Internal configuration drawing
1.To be stably sealed by sealed rubber ring and epoxy resin.Can be used in wet or dusty places.2.Switch over travel more than 2mm.3.Mute structure of sliding contact.4.A variety of contact terminals, provide with a variety of wires.5.A variety of levers.6.It can be used in environmental resistant requirements applications such as automobile

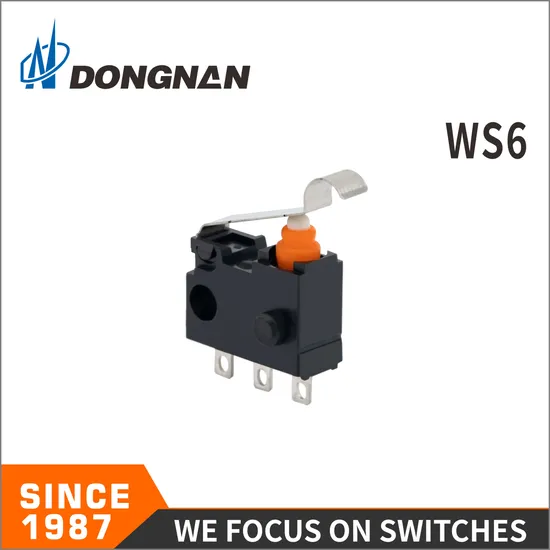

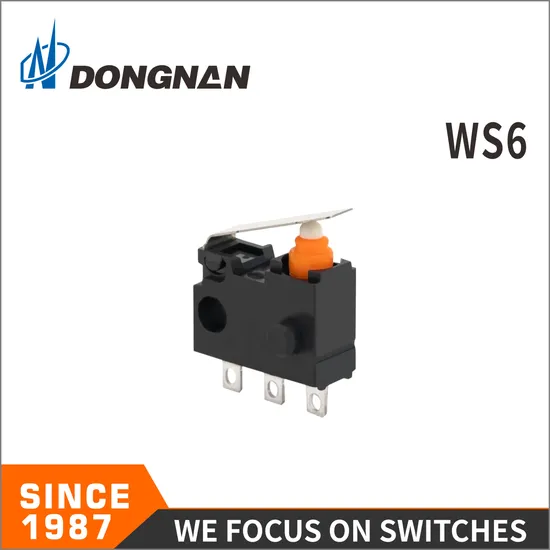

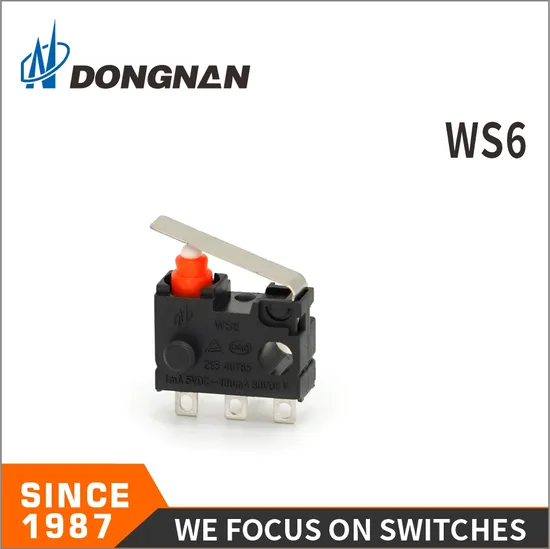

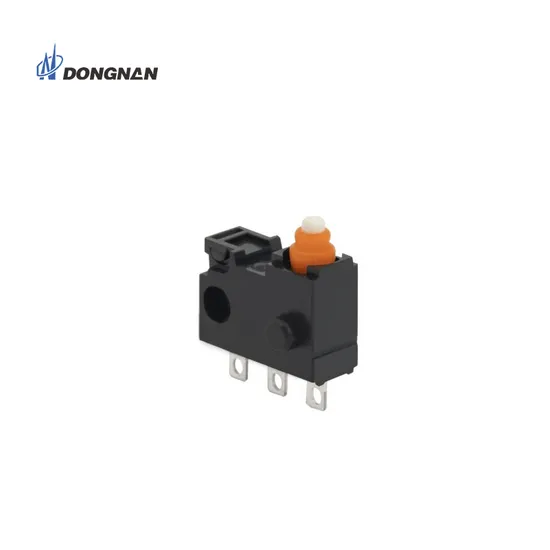

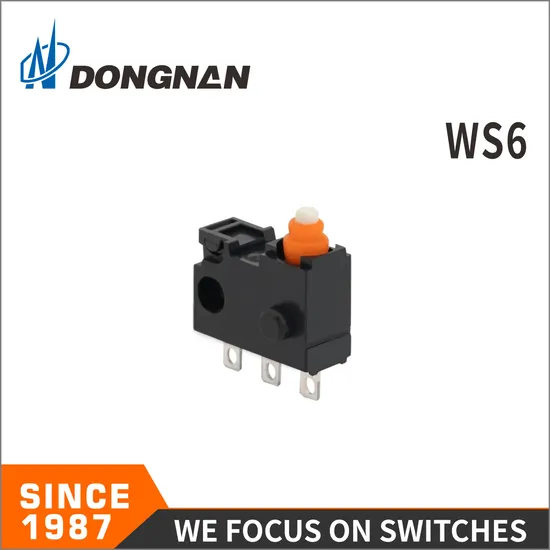

, agricultural machinery , large home appliances , office equipment etc.Product show
Technical characterictics
Item
Value
Environment
temperature
-40~+85°C
Operating speed
30mm~600mm/s(no
lever)
Operating frequency
Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance
≥100MΩ(500VDC)
Contact resistance
≤500mΩ
(Test voltage) Between
terminals of the same polarity
AC600V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal
parts and ground (case),and between each terminal and non-current-carrying metal parts.AC1500V , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm
double amplitude
Shock resistance
endurance:1000m/s2(approx.100G)max
Wrong action:300m/s2(approx.30G)max
Electric shock proof protection grade
I class
Degrees of protection provided by enclosure
IEC IP67(Besides terminal part of terminal type)Or other grades
Electrical Life
≥500,000
cycles
(1mADC5V,50mADC16V)
≥200,000
cycles (50mADC 30V)
