基本信息
| 型号（NO.） | LRFW |
| 操作 | 电的 |
| 接地模式 | 接地 |
| 运动模式 | 垂直&水平 |
| 磁极数 | 三极 |
| 接地 | 单地 |
| 系列 | 三 |
| 运行 | 垂直和水平 |
| 转换模式 | 双投掷式 |
| 经营结构 | 电的 |
| 认证 | ISO9001 |
| 品牌 | L&R |
| 高度 | 不超过1000米 |
| 绝缘介质 | 六氟化硫 |
| 额定电压 | 400A，630A，1250A |
| 运输包 | 木箱 |
| 规格说明 | ISO9001: 2008 |
| 商标 | 个性化 |
| 起源 | 温州 |
| 商品编码 | 8535210000 |
| 生产能力 | 每月10万件 |
产品详情
Product Description
Preview
Preview
DESCRIPTION

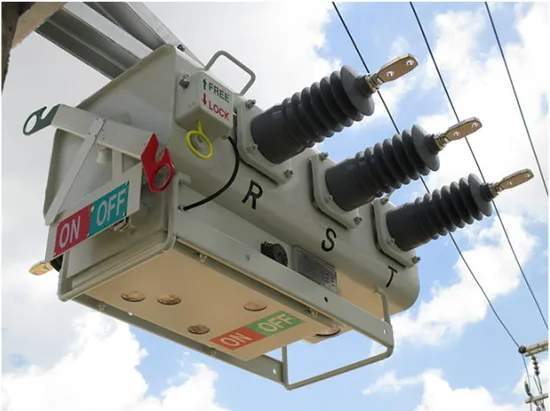

LRFW-12/24/36 pole-mounted load breaking switch is used to rated voltage 24KV, rated current
400/630A, 50/60 Hz power grid open circuit, load current in closed power system, overload current. This load switch can separate those broken distribution line automatically.The LRFW series outdoor SF6 load switch is a three-phase AC 50Hz /60Hz outdoor medium-voltage switchgear, which can break off and close the load current and overload current in the power system; The load switch is equipped with intelligent controller to realize the automation of distribution system.Application voltage levels include 12kV, 24kV and 36kV.Application standard: IEC62271-200.
LRFW-12/24/36 pole-mounted load breaking switch is used to rated voltage 24KV, rated current
400/630A, 50/60 Hz power grid open circuit, load current in closed power system, overload current. This load switch can separate those broken distribution line automatically.The LRFW series outdoor SF6 load switch is a three-phase AC 50Hz /60Hz outdoor medium-voltage switchgear, which can break off and close the load current and overload current in the power system; The load switch is equipped with intelligent controller to realize the automation of distribution system.Application voltage levels include 12kV, 24kV and 36kV.Application standard: IEC62271-200.
Preview
Preview
Preview

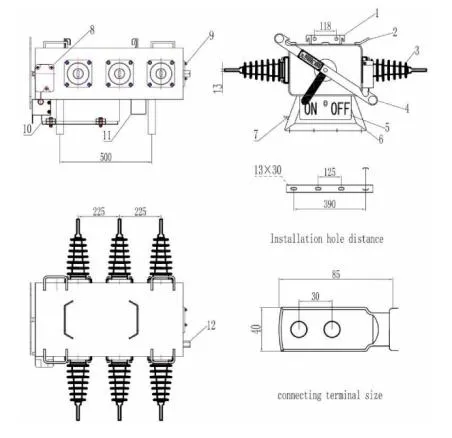

1. Lift handle
2. Carrying handle 3. Integrative rubber bushing 4. manual operation handle 5. Contact position indicator 6. Load switch support frame 7. Grounding device 8. Open closed locking device for load switch 9. High gas pressure relief explosion-proof device 10. Electric mechanism device 11. SF6 Gas pressure gauge 12. SF6 Gas filling valve
2. Carrying handle 3. Integrative rubber bushing 4. manual operation handle 5. Contact position indicator 6. Load switch support frame 7. Grounding device 8. Open closed locking device for load switch 9. High gas pressure relief explosion-proof device 10. Electric mechanism device 11. SF6 Gas pressure gauge 12. SF6 Gas filling valve
Preview
Preview
Preview
Preview
Preview
