基本信息
型号编号 | 磅(重量单位) |
运营 | 电的 |
接地模式 | 无地感 |
运动模式 | 插件式类型 |
极数 | 三极 |
接地 | 单接地 |
系列 | 三 |
运行 | 将水平方向旋转 |
转换模式 | 一次性投掷 |
通用模型 | 量子通信和计算(领域) |
经营结构 | 电动(的) |
认证 | ISO:国际标准化组织 CE:指欧洲统一(符合欧洲指导标准的产品认证要求) |
品牌 | 法拉第 |
字符 | 六氟化硫 |
机器结构 | 高可靠型弹簧机构 |
服务 | 实现免费维护和寿命长的要求 |
系统 | 一种广泛使用的密封气密压力系统 |
交通包 | 木箱 |
规格 | 采用紧凑型设计结构,轻便小巧 |
商标 | 法拉第 |
起源 | 中国 |
商品编码 | 8535900090 |
生产能力 | 每月 1000 单位 |
包装尺寸 | 125.00cm长 × 55.00cm宽 × 55.00cm高 |
包装总重量 | 1234千克 |
包装尺寸 | 125.00cm长 × 55.00cm宽 × 55.00cm高 |
包装总重量 | 1234公斤 |
产品详情
Product Description
Preview

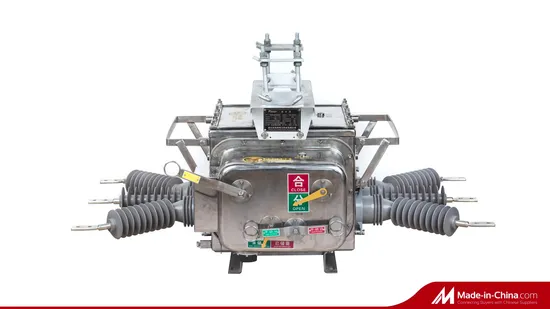

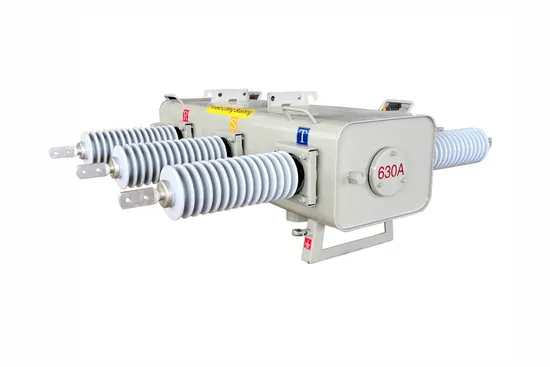

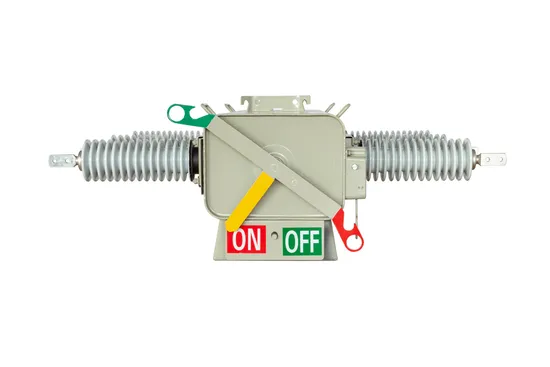

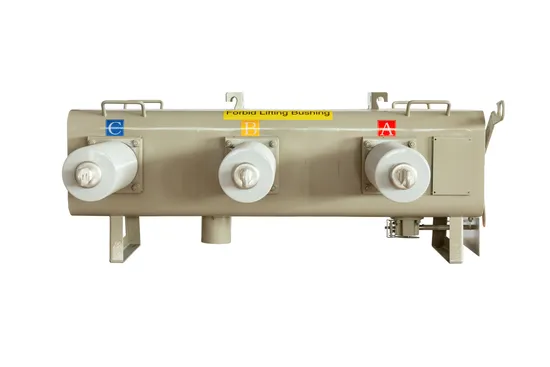

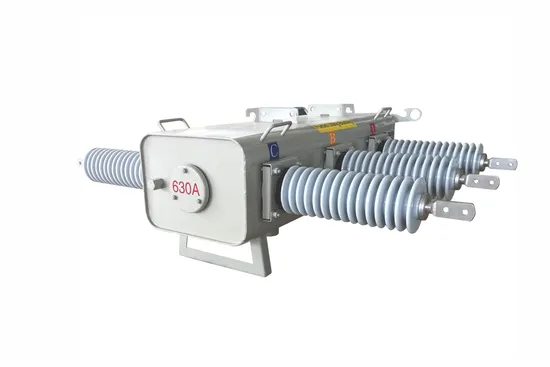

++++GeneralPGS type pole-install load switch was used in 12kV,24kV,33kV rated voltage, rated current 400/630A; 50/60HZ with the load current; over load current of power line open circuit and opening and closing electric systems.The switch can equiped with a conttoller with most advanced technical parameter.PGS-A type PGS is manaully LBS for choice.PGS-M type PGS is a intelligent type LBS for choice. It can automatically disconnect when the distribution line was break down. It could operated by handle; Implementt electro motion and distant. The electric controller was installed in stainless steel cabinet. So it could use in any conditions.++++Service environment
Air temperature:
Maximum temperature: +40ºC; Minimum temperature:-20ºC
Humidity:
Monthly average humidity 95%; Daily average humidity 90% .Altitude above sea level:
Maximum installation altitude: 2500m
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.No frequent violent shake
++++Feature
SF6 gas insulated : SF6 is a electric insulating gas of non-poison and nonflammable, and have a good arc suppression feature.Bushing diversity: Except for standard porcelain bushing, there are also provide various rubber bushing.Visible open circuit and opening and closing situation: It is easy to see the color sign of the main contact place indicator ( green open circuit; red closing). The indicator and main conductor always keep on direct connecting, make sure show the conductor state.Fast operation: Used by spring stored energy operation system., make sure fast switch on and switch off operate ( no more than 1 second)
Could
provide
controller:
Stocked by
electric controller,
could
operated
in
ground
or operate by the main controller through RTU screen
Solidity switch: Switch was made by solidity and anticorrosion material, make sure have a long useful life (30 years) have the pole equipment feature.Standard: it will filled full SF6 before delivery, and deal with seal. Test by IEC60265; GB3804.++++ Main technical specifications
Air temperature:
Maximum temperature: +40ºC; Minimum temperature:-20ºC
Humidity:
Monthly average humidity 95%; Daily average humidity 90% .Altitude above sea level:
Maximum installation altitude: 2500m
Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.No frequent violent shake
++++Feature
SF6 gas insulated : SF6 is a electric insulating gas of non-poison and nonflammable, and have a good arc suppression feature.Bushing diversity: Except for standard porcelain bushing, there are also provide various rubber bushing.Visible open circuit and opening and closing situation: It is easy to see the color sign of the main contact place indicator ( green open circuit; red closing). The indicator and main conductor always keep on direct connecting, make sure show the conductor state.Fast operation: Used by spring stored energy operation system., make sure fast switch on and switch off operate ( no more than 1 second)
Could
provide
controller:
Stocked by
electric controller,
could
operated
in
ground
or operate by the main controller through RTU screen
Solidity switch: Switch was made by solidity and anticorrosion material, make sure have a long useful life (30 years) have the pole equipment feature.Standard: it will filled full SF6 before delivery, and deal with seal. Test by IEC60265; GB3804.++++ Main technical specifications
