基本信息
| 型号编号 | YCQ9 |
| 认证 | CCC, CE, ISO9001 |
| 类型 | 集成式自动转换开关 |
| 极点 | 2p、3p、4p |
| 输出类型 | 多重 |
| 额定电流 | 16安培至630安培 |
| 额电压 | AC 230/400V |
| 操作方法 | 自动/手动 |
| 设备水平 | PC类 |
| 额定频率 | 50赫兹 |
| 结构 | 整合的 |
| 功能 | 隔离,开关 |
| 保护等级 | IP20 |
| 利用类别 | AC-33b |
| 运输包 | CNC(计算机化数值控制)/OEM(原始设备制造商) |
| 规格 | YCQ9 |
| 商标 | CNC |
| 起源 | 中国浙江 |
| 商品编码 | 8535302010 |
| 生产能力 | 每周8万个单位 |
| 包装尺寸 | 长为20.00cm,宽为15.00cm,高为120.00cm |
| 包装总重量 | 五公斤 |
| 包装尺寸 | 长为20.00cm,宽为15.00cm,高为120.00cm |
| 包装总重量 | 5.000公斤 |
产品详情
Product Catalog
Product Description

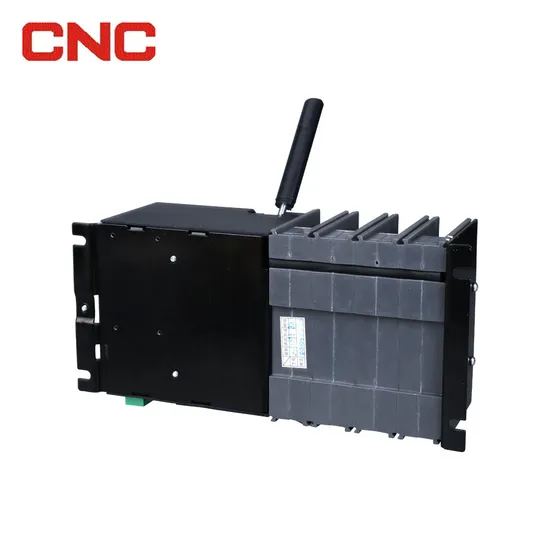

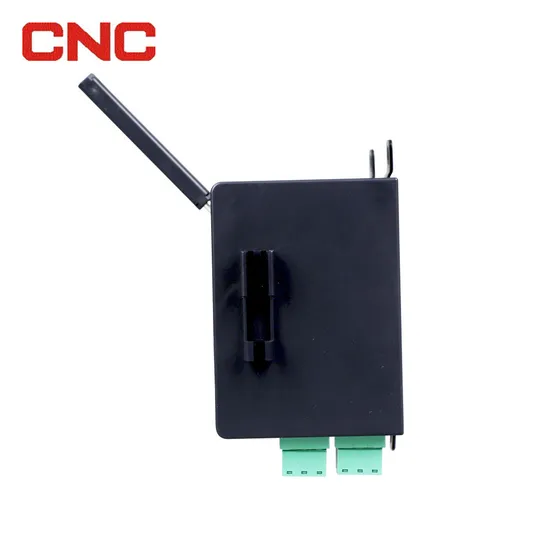

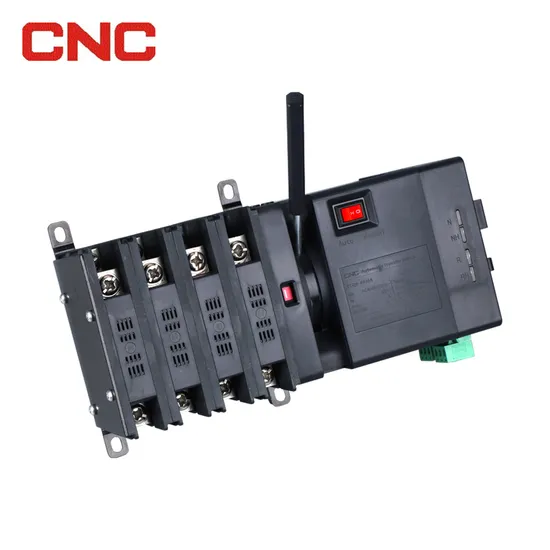

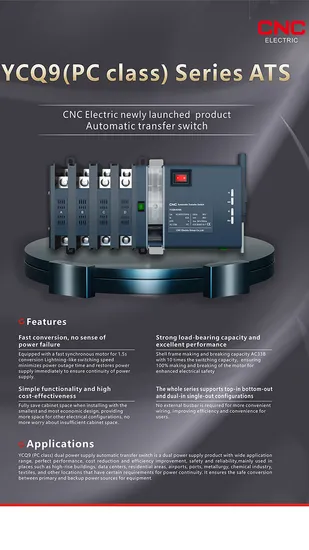

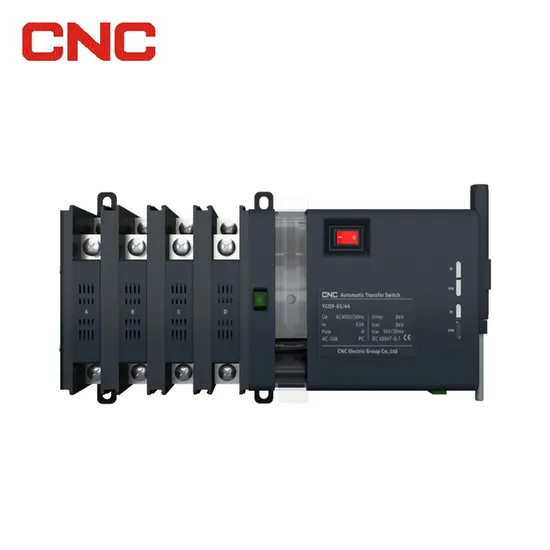

General YCQ9 series automatic transfer switch is suitable for AC 50Hz, rated working voltage AC400V, rated operating current up to 630A three-phase four-wire dual-circuit power supply grid, automatically connect one or several load circuits from one power supply to another to ensure load normal power supply of the circuit.This product is suitable for industrial, commercial, high-rise and residential buildings, etc.more important places.Standard: IEC 60947-6.Selection
YCQ9
63
/
3
A
16A
FFD
Model
Shell frame
Number of poles
Controller type
Rated current
Function
Automatic transferswitch(PC class)
63(16~63A)125(50~125A)250(125~250A)630(250~630A)
2: 2P(Only below 250A)3:3P4:4P
A:Economy
16A20A25A32A40A50A63A80A100A125A160A200A225A250A315A350A400A450A500A630A
/
B:Standard
/:Fire control linkage
FF:Fire feedback
D:GeneratorFFD:Fire feedback
Generator
,
Features
Full range of dual-input single-output(up in and down out),convenient wiring and cost-saving
Handle front operation for convenience and labor-saving
Compact size for space saving
Two controllers to meet different user needs
Low main circuit impedance and energy consumption
Reliable double interlock protection function
Instantaneous structural design, cleverly driven by dual springs, with a simple and stable structure
Rotary contact structure, circular arc extinguishing device design, good arc extinguishing performance, and long contact working life
