基本信息
| 型号编号 | BYDED0005 |
| 生产过程 | 注射 |
| 材料 | 不锈钢 |
| 准确度等级 | 0.5G |
| IP等级（IP Rating） | IP65 |
| 认证 | CE |
| 定制的 | 定制的 |
| 运输包 | 箱装包裹 |
| 商标 | 毕达斯 |
| 起源 | 中国江苏 |
| 商品编码 | 9025900010 |
| 生产能力 | 每年十万件 |
| 包装尺寸 | 23.00厘米 * 14.00厘米 * 16.00厘米 |
| 包装总重量 | 1.000千克 |
| 包装尺寸 | 23.00厘米 * 14.00厘米 * 16.00厘米 |
| 包装总重量 | 1.000千克 |
产品详情

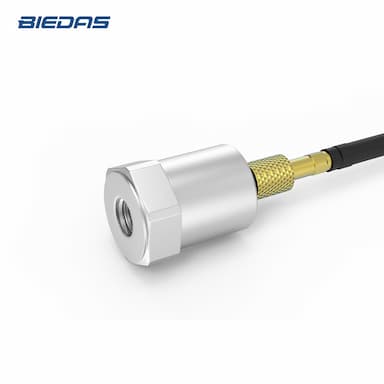

BYDED0005 High sensitivity (Voltage) IEPE type acceleration sensor
Preview
Product Description
Preview
Product Parameters
Sensitivity(20±5ºC)
100 mV/g
Measurement Range(pk)
50 g
Max Transverse Sensitivity
≤5 %
Frequency Response(±5%)
0.5~
5,000 Hz
Mounting Resonant Frequency
25,000 Hz
Operating Temp. Range
-40~+120 ºC
Temperature Response
See Graph
Shock Limit(pk)
2000 g
Max Output Signal(pk)
≤6V
Transient Temperature
8 mg/ºC(0.3Hz)
Response
Magnetic Sensitivity
1.5 g/T
Base Strain Sensitivity
0.2 mg/με
Noise
<0.4 mg
Output Impedance
<100 Ω
Operating Voltage(constant
+12~+24 VDC
current source)
Operating Current
+2~+10 mA
DC Bias Voltage
7±1 VDC
Mounting
M5
Sensing Element
Piezoelectric Ceramics
Sensing Geometry
Shear
Case Material
Stainless steel
Weight
30 g
Output
L5
Accessories
Certificate
Calibration parameter,
frequency response
M5 Stud, Protection cap
one
L5/L5(2m) STYV-1
Sensitivity(20±5ºC)
100 mV/g
Measurement Range(pk)
50 g
Max Transverse Sensitivity
≤5 %
Frequency Response(±5%)
0.5~
5,000 Hz
Mounting Resonant Frequency
25,000 Hz
Operating Temp. Range
-40~+120 ºC
Temperature Response
See Graph
Shock Limit(pk)
2000 g
Max Output Signal(pk)
≤6V
Transient Temperature
8 mg/ºC(0.3Hz)
Response
Magnetic Sensitivity
1.5 g/T
Base Strain Sensitivity
0.2 mg/με
Noise
<0.4 mg
Output Impedance
<100 Ω
Operating Voltage(constant
+12~+24 VDC
current source)
Operating Current
+2~+10 mA
DC Bias Voltage
7±1 VDC
Mounting
M5
Sensing Element
Piezoelectric Ceramics
Sensing Geometry
Shear
Case Material
Stainless steel
Weight
30 g
Output
L5
Accessories
Certificate
Calibration parameter,
frequency response
M5 Stud, Protection cap
one
L5/L5(2m) STYV-1
