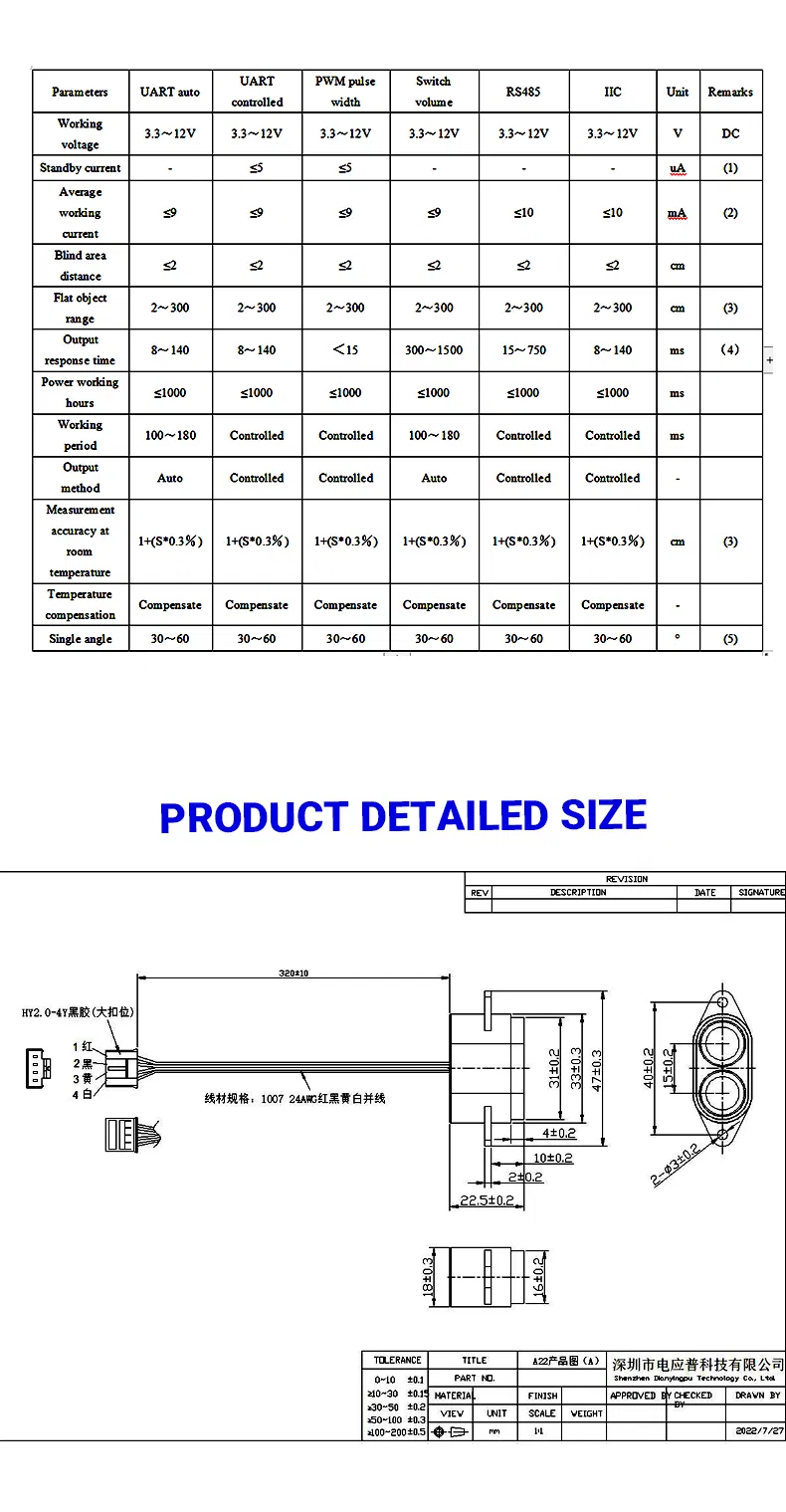

Product Parameters
Remarks :
(1) The module exceeds 5S does not receive the control instruction will enter a low power consumption dormant state, when the power consumption current is the standby power consumption current.
(2) Typical data obtained by testing with temperature 25°C, humidity 65% RH, power supply 12V, and 100ms working cycle.

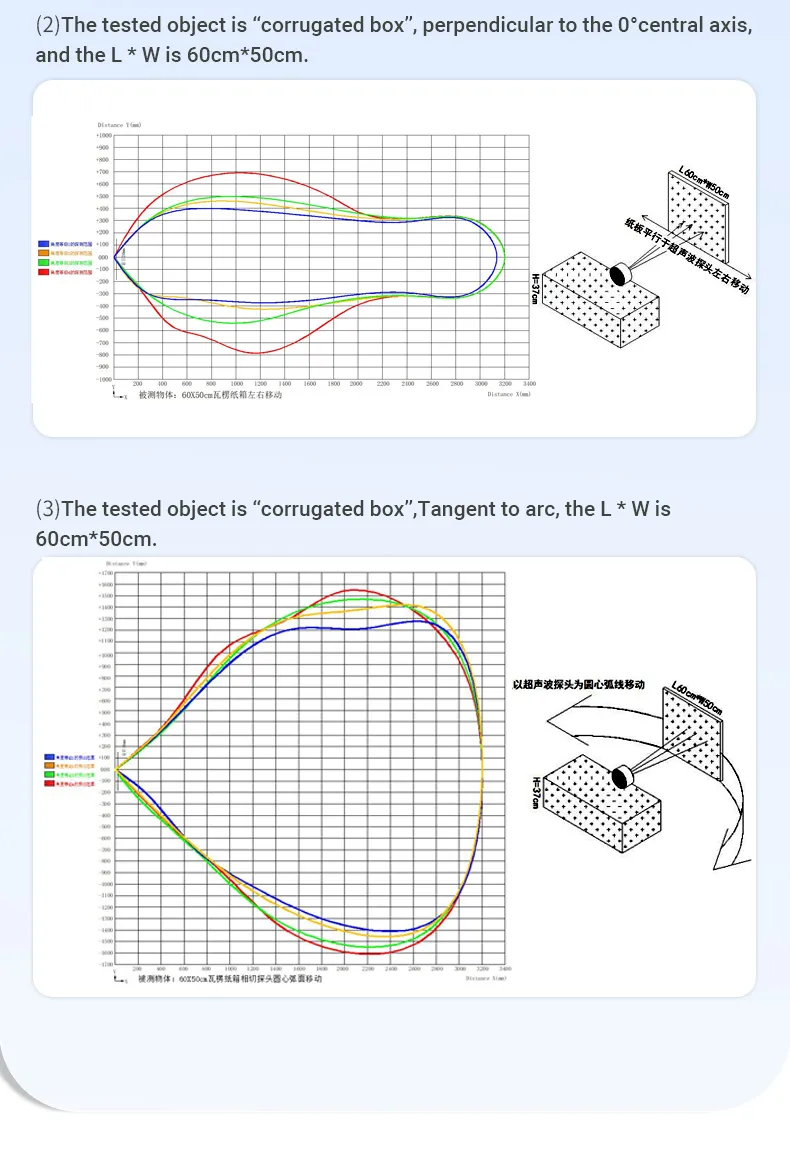

(3) The temperature is 25°C, the humidity is 65% RH, the measured object is a 50cm×60cm flat carton, and the transducer should be as vertical as possible. S represents the measurement distance.
(4) The output response time is 0.5~5 meter range test, the shorter the range, the faster the response time.

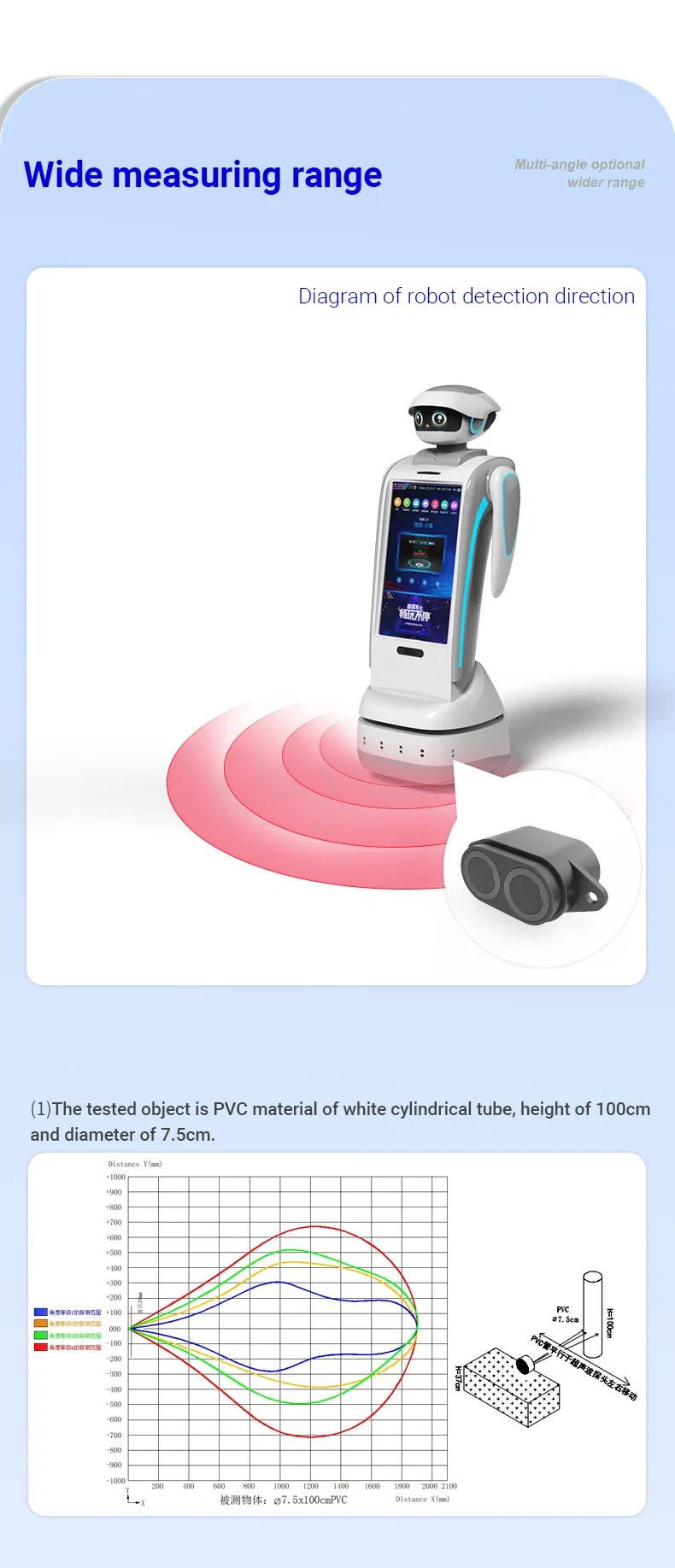

(5) Test data for single-angle modules, The measured object is the reference data obtained from the test of φ75mm×100cm white PVC pipe with a distance of 100cm.
