机器人关节的合金钢嵌入式数字信号扭矩传感器

Preview

基本信息产品详情证书

基本信息

型号（NO.）	KW-2001
输出信号类型	数字式
生产过程	普通绕线型
州	静态
准确度等级	0.1%满量程
国际防护等级	IP64
定制的	按照您的要求
材料	合金钢
线性	≤0.2%满量程（Fs）
爬行	≤0.2%满量程（Fs）
桥接电阻	700欧姆
安全过载	200%满量程
限定过载	300%满量程
通信协议	RS485
可重复性	≤0.05%满量程（Fs）
交通政策包	纸箱/瓦楞纸箱
规格	70毫米
商标	昆威
起源	中国
生产能力	每年2万件

产品详情

Product Description

Preview

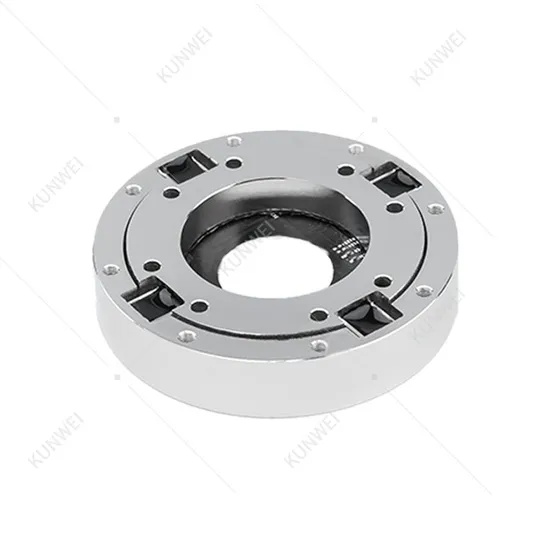

Alloy Steel Embedded Digital Signal Torque Sensor for Robot Joint

Preview

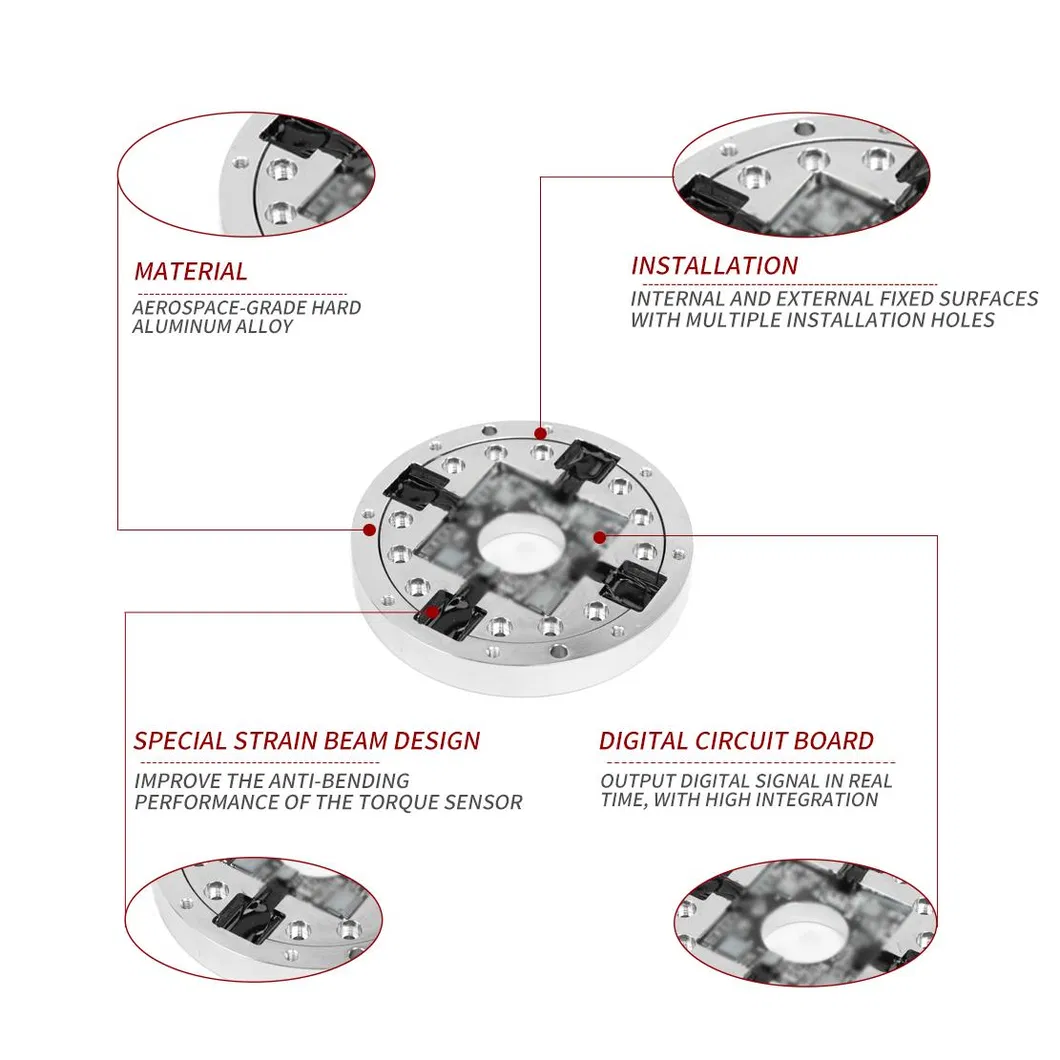

The KWR70N30 series torque sensor is a
small range joint torque sensor designed with a
spoke structure. It is a
torque sensor specifically designed for robot joint torque measurement. This torque sensor adopts a

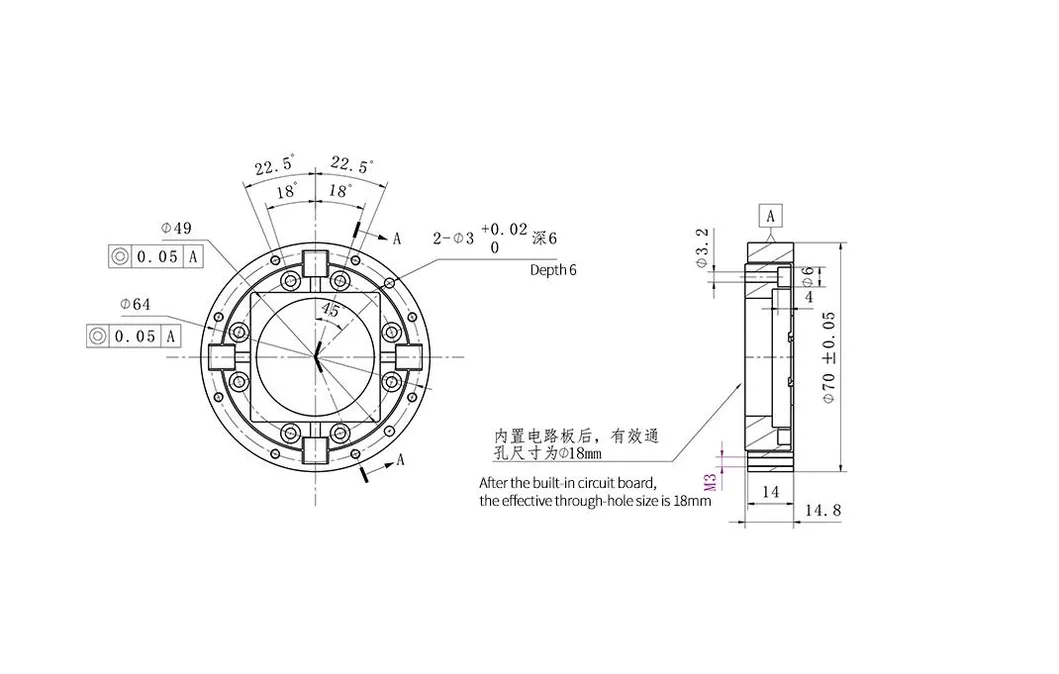

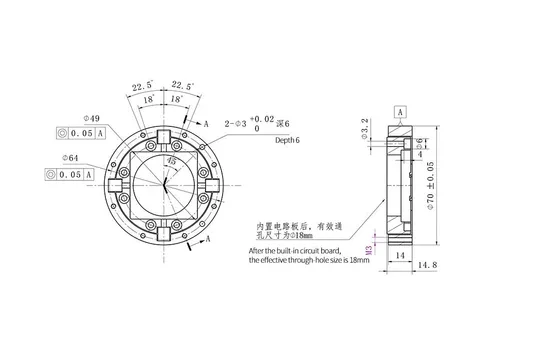

disc design, low height, and dual flange structure, providing sufficient installation strength and stiffness. This sensor measures torque in both clockwise and counterclockwise directions. In addition to standard dimensions, customized solutions for torque sensors can also be provided according to customer needs.How to choose a
proper sensor?
Note:F stands for force,T stands for torque.FAQ
1.How to place an order ?Just
provide us
your application&requirement and we`ll help you confirm all the details.2.What is lead time?
3-5 working days
if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 PC
for testing is available for all types.4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product.

Preview

Alloy Steel Embedded Digital Signal Torque Sensor for Robot Joint
Alloy Steel Embedded Digital Signal Torque Sensor for Robot Joint
Alloy Steel Embedded Digital Signal Torque Sensor for Robot Joint
