基本信息产品详情证书
基本信息
型号 | BTQ-408RTS |
输出信号类型 | 模拟类型 |
生产流程 | 普通绕线式 |
国家 | 动态 |
国际防护等级 | IP65 |
认证 | SGS |
定制的 | 定制的 |
容量 | 0.1-500纳米 |
交通运输包装 | 标准纸箱 |
规格 | 160乘以95乘以78毫米 |
商标 | 布兰斯 |
起源 | 中国 |
商品编码 | 9031809090 |
生产能力 | 20000件 |
产品详情
Product Description
Preview

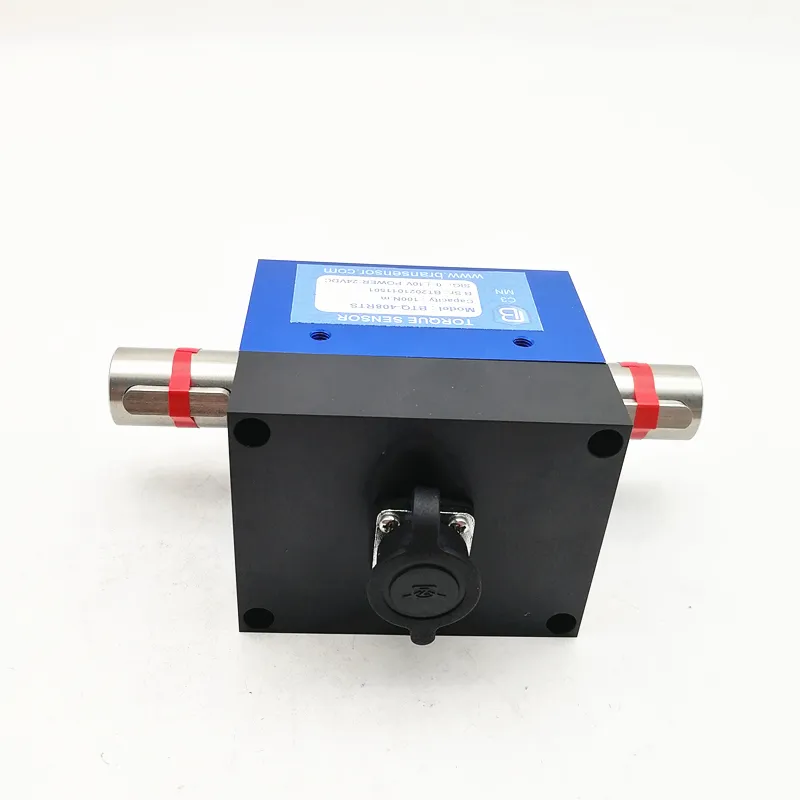

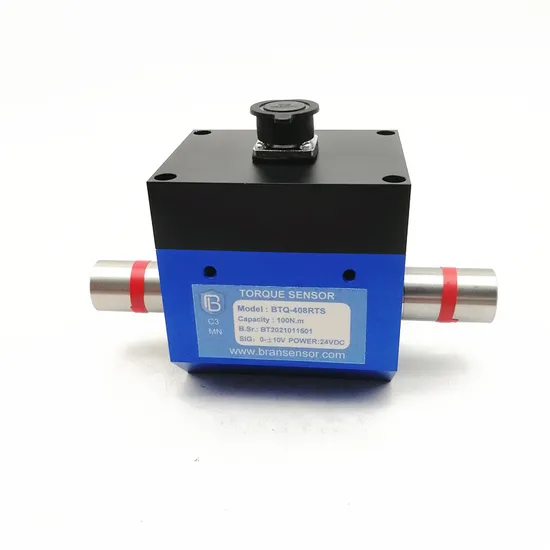

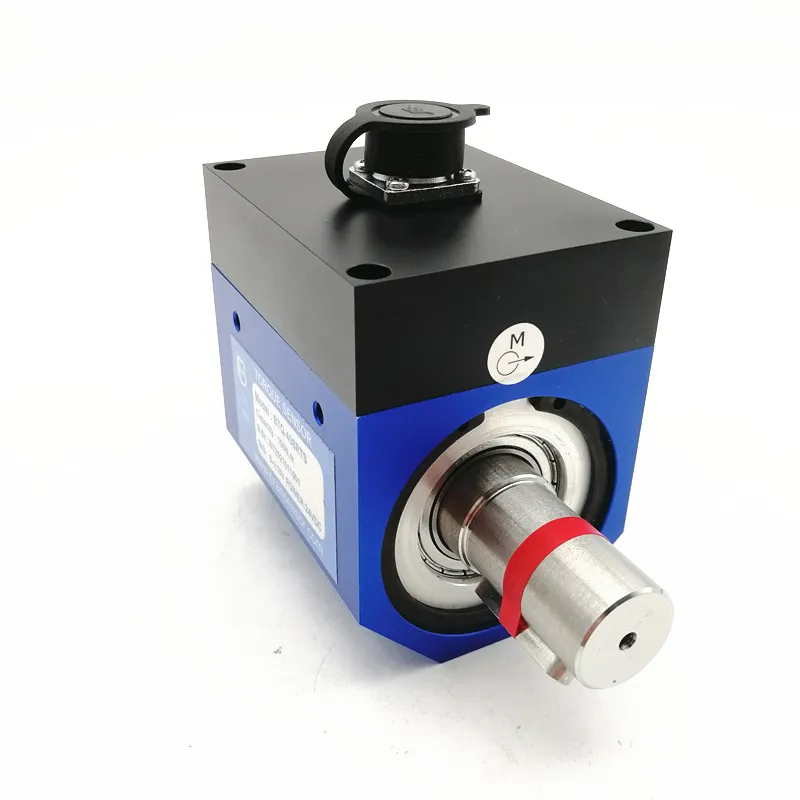

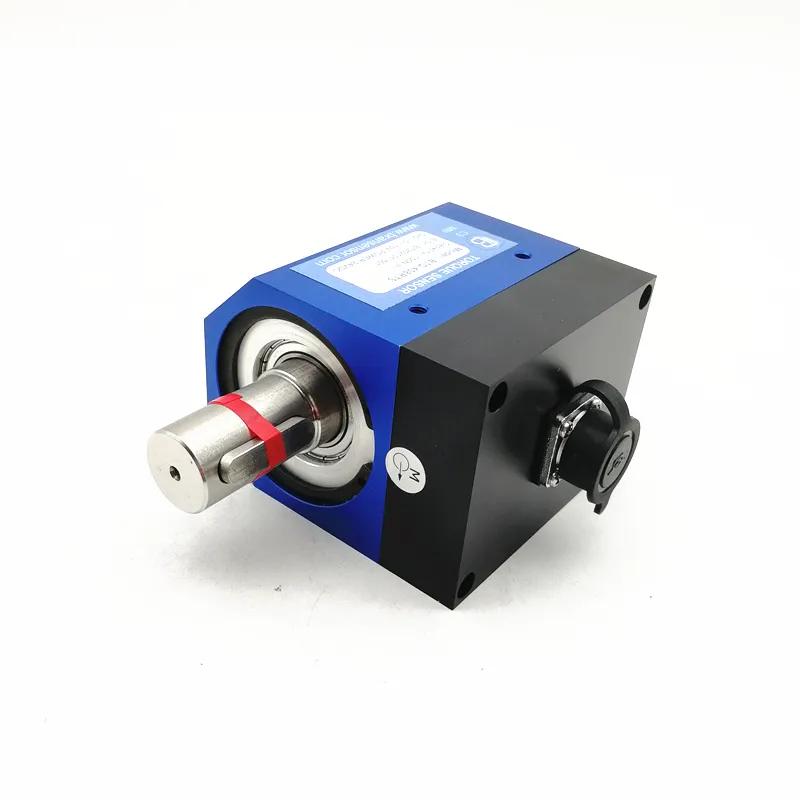

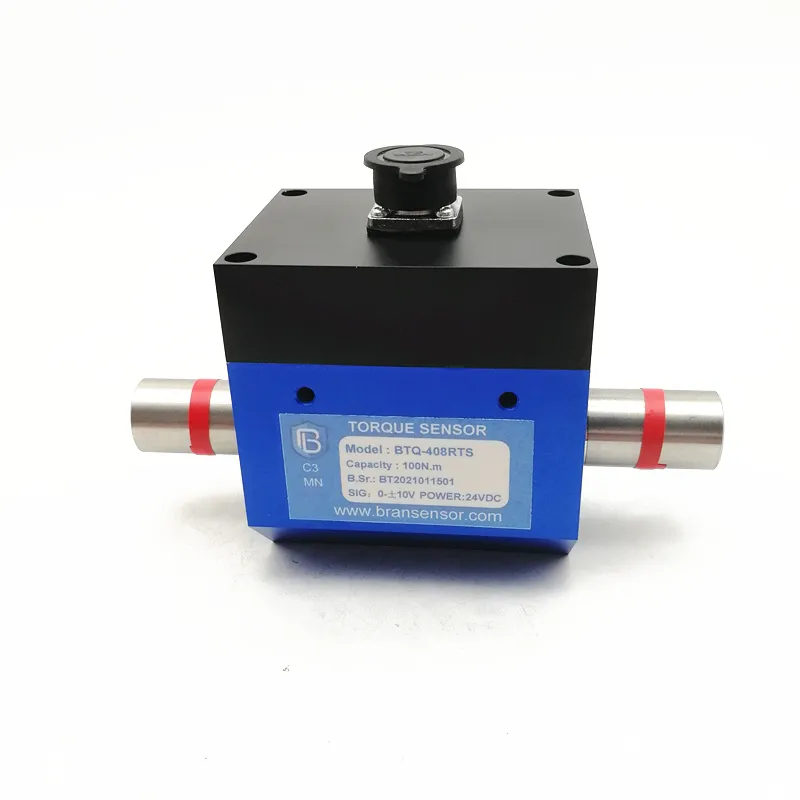

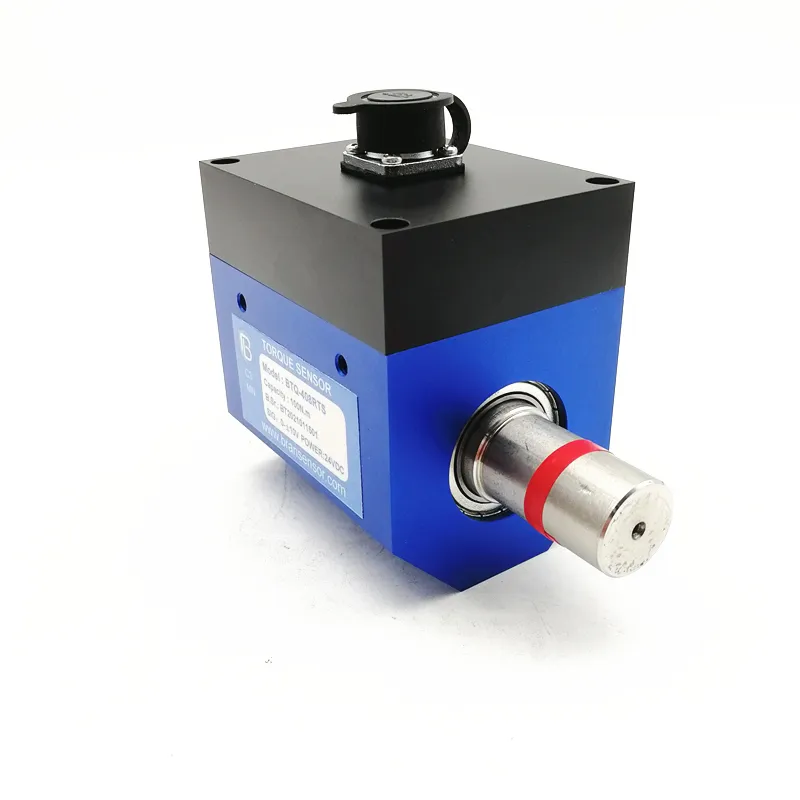

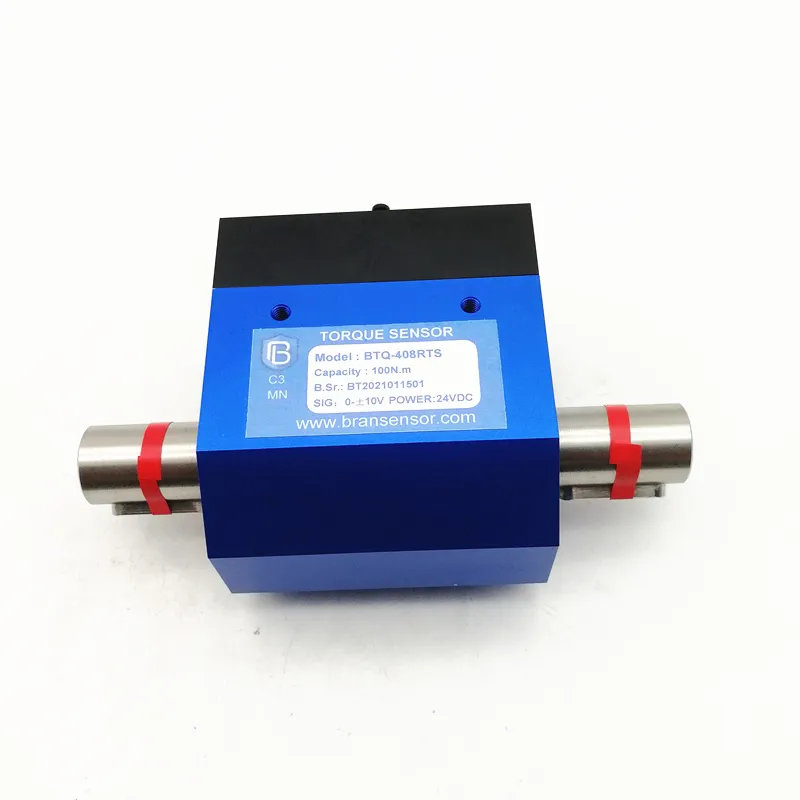

Dynamic rotary Torque Meter 1NM 5NM 5NM 100NM 200NM 500Nm Alloy Steel Static Torque Sensor
(BTQ-408RTS)
Type: BTQ-408RTS
Capacity: 0.1, 0.2, 0.5, 1, 2, 5, 10,20,30,50,100,200,500 Nm
Introduction
Rotary Torque Sensor -
Non contact Shaft to Shaft with Encoder
offers a unique solution for torque auditing applications. The BTQ-408 Rotary Torque Sensor - Shaft to Shaft with Encoder is available in a wide capacity range and utilizes strain gauge technology.
The 3-axis sensor is suitable for measuring force in three mutually perpendicular axes.
(BTQ-408RTS)
Type: BTQ-408RTS
Capacity: 0.1, 0.2, 0.5, 1, 2, 5, 10,20,30,50,100,200,500 Nm
Introduction
Rotary Torque Sensor -
Non contact Shaft to Shaft with Encoder
offers a unique solution for torque auditing applications. The BTQ-408 Rotary Torque Sensor - Shaft to Shaft with Encoder is available in a wide capacity range and utilizes strain gauge technology.
The 3-axis sensor is suitable for measuring force in three mutually perpendicular axes.
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
5.Product Highlights
Non-contact signal transfer
Angle speed feedback included
Compact size
Can operate up to 6000 RPM(could do it as OEM)
Utilizes Strain Gauge Technology
Wide capacity output range
6.Application areas
Areas of application are, for example, force measurement during production processes, force control in handling machines, force measurement during assembly processes, three-dimensional load measurement, measurement of friction forces.
Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time.
bransensor.en.made-in-china.com
Non-contact signal transfer
Angle speed feedback included
Compact size
Can operate up to 6000 RPM(could do it as OEM)
Utilizes Strain Gauge Technology
Wide capacity output range
6.Application areas
Areas of application are, for example, force measurement during production processes, force control in handling machines, force measurement during assembly processes, three-dimensional load measurement, measurement of friction forces.
Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time.
bransensor.en.made-in-china.com
