基本信息
| 型号编号 | HPT604-A |
| 输出信号类型 | RS232、RS485、4-20mA、0-5V、0-10V |
| 生产流程 | 焊接 |
| 材料 | 不锈钢 |
| 线程类型 | 潜水式类型 |
| 布线类型 | 两线/三线/四线 |
| 测量介质 | 水状液态燃料油 |
| IP等级（IP Rating） | IP68 |
| 认证 | CE RoHS FCC SGS ISO |
| 定制的 | 非定制的 |
| 范围 | 0-0.5 ... 500兆水（可选） |
| 输出信号 | 4-20毫安/1-5伏/0-5伏/0-10伏/0.5-4.5伏/SDI-12/双路4-20安培 |
| 最高准确度 | 0.25%满量程，0.5%满量程（可选） |
| 电缆 | PE；PUR；FEP 通风电缆可定制 |

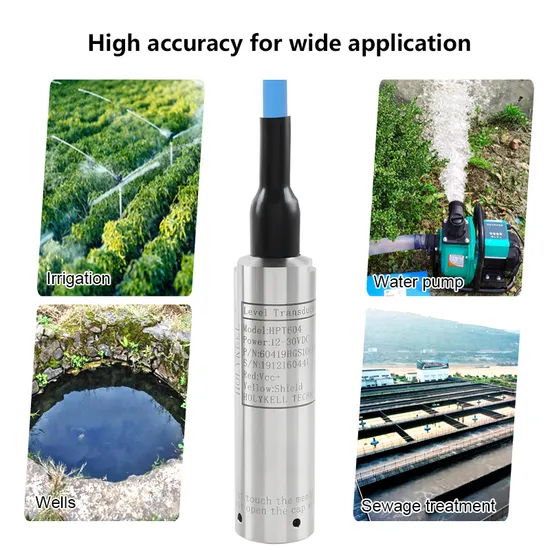

| 应用程序 | 水，汽油，柴油，燃料等 |
| 中等兼容 | 316L不锈钢、聚四氟乙烯、钛合金（可选项） |
| 电源供应 | 7-30VDC/8-30VDC/13-30VDC/12VDC/12-30VDC/3 直流电 |
| 极性保护 | 是的 |
| 响应时间 | 10 毫秒 |
| 压力型 | 表压；密封表压；绝对压力（可选） |
| 超载 | 满量程的150% |
| 破裂压力 | 500% 满量程 |
| 交通总包 | 霍利凯尔标准纸箱 |
| 规格 | 32乘以32乘以28 |
| 商标 | 霍立克 |
| 起源 | 中国（大陆）湖南 |
| 生产能力 | 每月3万件 |
| 包装尺寸 | 32.00厘米 * 32.00厘米 * 28.00厘米 |
| 包装总重量 | 2.000千克 |
| 包装尺寸 | 32.00厘米×32.00厘米×28.00厘米 |
| 包装总重量 | 2.000kg 千克 |
产品详情
Product Description
Preview

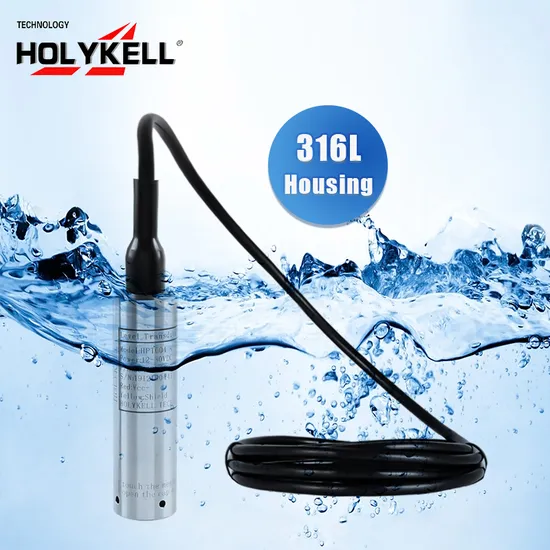

What you can benefit from Holykell HPT604 submersible level sensor?
Features
Advantages
Benefits
Six-fold
protetion
(Lightning and surge protection, static protection, overvoltage protection, polarity protection, EMC anti-interference)
More
durable
performance for harsh environment
provides customers with
increased safety, reliable performance, durability, and
cost savings
Using
Germany
imported chip
1.
0.25%F.S
accuracy
2. Long term stability:
≤±0.1%F.S.
of span/year
High precision and good stability
Independently developed
RS485 circuit board
1. Zero temp drift:
0.1F.S/ºC,
FS temp drift:
0.01F.S/ºC
2. It shows
4
decimal places
3. Temp can be calibration by users
Low temp drift
2. More
accurate
reading
3.
Liquid level
and
temperature
can be displayed simultaneously
Product Feature
Suction oil filter design
4 pore design Anti-blocking
Prevent plugging rate increases more than 80%
Simple maintenance ,easy to cleaning and installation
lightning
surge reverse protection
short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection
Reliable and longlasting in harsh application
The vent with a filter
breath atmospher and protect moisture enter transducer
without maintenance, even in the most humid environments.
USA TE Chip,Digital PCB board
High accuracy 0.25%
Small temperature drift,automatically compensates for changes in barometric pressure
Stability,keep sensor running longer by reducing downtime and maintenance costs
Lowe-Power output signals
Low-power output signals for battery-operated or solar measuring systems available
,lowest power supply is 3.3V
energy-saving and environmental protection
How To Order
Features
Advantages
Benefits
Six-fold
protetion
(Lightning and surge protection, static protection, overvoltage protection, polarity protection, EMC anti-interference)
More
durable
performance for harsh environment
provides customers with
increased safety, reliable performance, durability, and
cost savings
Using
Germany
imported chip
1.
0.25%F.S
accuracy
2. Long term stability:
≤±0.1%F.S.
of span/year
High precision and good stability
Independently developed
RS485 circuit board
1. Zero temp drift:
0.1F.S/ºC,
FS temp drift:
0.01F.S/ºC
2. It shows
4
decimal places
3. Temp can be calibration by users
Low temp drift
2. More
accurate
reading
3.
Liquid level
and
temperature
can be displayed simultaneously
Product Feature
Suction oil filter design
4 pore design Anti-blocking
Prevent plugging rate increases more than 80%
Simple maintenance ,easy to cleaning and installation
lightning
surge reverse protection
short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection
Reliable and longlasting in harsh application
The vent with a filter
breath atmospher and protect moisture enter transducer
without maintenance, even in the most humid environments.
USA TE Chip,Digital PCB board
High accuracy 0.25%
Small temperature drift,automatically compensates for changes in barometric pressure
Stability,keep sensor running longer by reducing downtime and maintenance costs
Lowe-Power output signals
Low-power output signals for battery-operated or solar measuring systems available
,lowest power supply is 3.3V
energy-saving and environmental protection
How To Order
Preview
Preview
In
order
to
recommend
you
the
most
suitable
products
make
an
quotation,please
provide
following
information
send
it
our
sales
when
are
going
inquiry,
thanks
!
What is your medium? Water ,Diesel, petrol or others.
2.
Working Temperature? -30~80
Level range: 0-1m...500m
optional
4.
Output signal:4-20mA, 0-5V or others
order
to
recommend
you
the
most
suitable
products
make
an
quotation,please
provide
following
information
send
it
our
sales
when
are
going
inquiry,
thanks
!
What is your medium? Water ,Diesel, petrol or others.
2.
Working Temperature? -30~80
Level range: 0-1m...500m
optional
4.
Output signal:4-20mA, 0-5V or others
