KA-S17 80-265V Wall Flush Mount Infrared Sensor Switch
specifications:
1. Detection Range: 120 degree
2. Power Source: 80-265V
3. Power Frequency: 50/60Hz
4. Rated Load: Max. 800W (110-130V/AC), 1200W (220-240V/AC)
5. Detection Distance: Max. 8m (< 24º C)
6. Time Delay: 10sec to 7min(adjustable)
7. Light Control: 10LUX~2000LUX(adjustable)
8. Detection Motion Speed: 0.6-1.5m/s
9. Installation Height: 1-1.8m
Product introduction:
The product is a new energy-saving switch, it adopts integrated circuit and the good sensitivity detector. It incorporates automatism, convenience, energy-saving, safety and practicality. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters detection field. It can identify day and night automatically. Its installation is very convenient and using range is wide. It has the functions of power indication and detection indication.

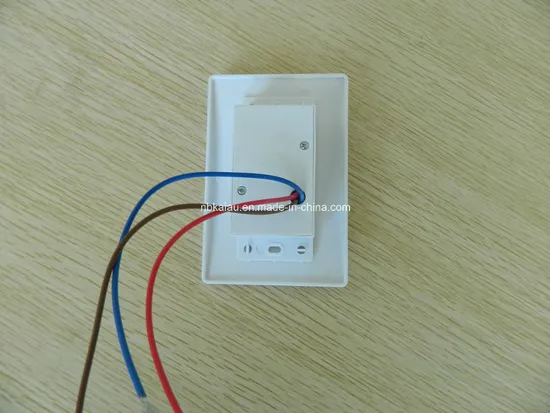

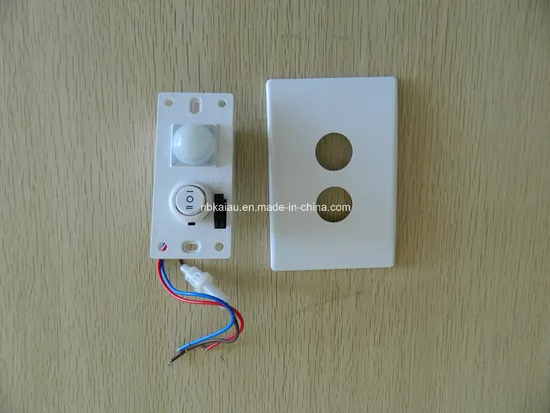

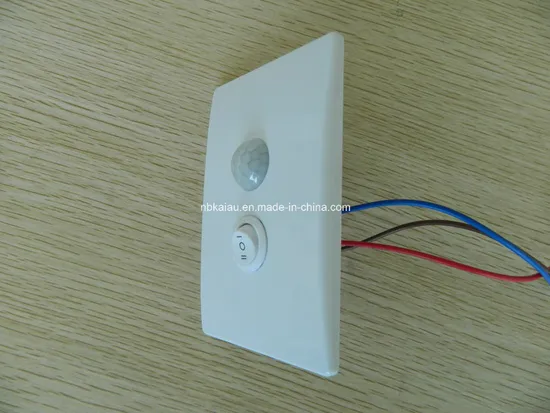

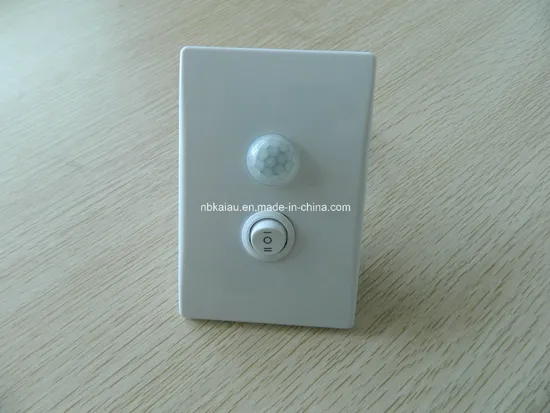

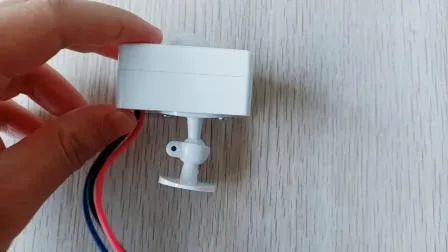

KA-S17 Actual photos:
