基本信息产品详情证书
基本信息
型号 | ASDS/ASDSS/ASDH |
IP等级 | IP68 |
灵敏度 | 高级的 |
认证 | RoHS |
定制的 | 定制的 |
测量范围 | 0至200000微西/厘米 |
常数 | K=0.01/0.1/1/10 |
温度范围 | 0到130摄氏度 |
耐压性 | 直到1.0MPa |
外管材质 | 316L不锈钢/PPS塑料 |
连接 | Vp或固定电缆 |
线程 | Pg13.5或3/4NPT,1/2NPT或定制 |
外部维度 | 13×70毫米或定制尺寸 |
热敏电阻 | PT100/ PT1000/ 3K/ 2.252K/ 10K/ 22K 等 |
定制支持 | OEM、ODM、Obm |
商标 | 能时 |
起源 | 中国 |
商品编码 | 90279000 |
生产能力 | 每年超过35000件 |
包装尺寸 | 22.00厘米×12.50厘米×6.00厘米 |
包装总重量 | 0.5kg 即:500g |
包装尺寸 | 22.00cm * 12.50cm * 6.00cm |
包装总重量 | 0.5kg 相当于 0.5 千克或者半公斤 |
产品详情
Nengshi online industrial Conductivity sensor can be used continuously in different applications and with all kinds of conductivity meters. We use advanced technologies to manufacture Conductivity sensors. The quality of our sensors are excellent.The electrodes can be used in laboratory and different industry applications.
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
Product Description
Preview
Nengshi Online Industrial Conductivity sensor
•Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•Measurement range:0~200ms/cm, temperature range:0~130ºC
• Pressure range:1.0MP
•Conductivity Constant 0.01/ 0.1/ 1/ 10/ 25 optional
•Stable performance, long life
•Easy to dismantle and clean
•Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.
•The material: stainless steel, Titanium steel, Hastelloy, PPS plastic etc.
•The thermistor Pt100, Pt1000,2.252K,10K,22K etc. optional
Constant
K=0.01/ 0.1/ 1/ 10
Measurement range
0-200000μs/Cm
Temperature
0-130ºC
Pressure resistance
Up to 1.0 MPa
Material
316L Stainless steel/PPS Plastic
Connection
VP or fixed cable
Thread
PG13.5 or 3/4NPT, 1NPT, 1/2NPT, or customized
Temperature compensation
PT100/ PT1000/ 3K/ 2.252K/ 10K/ 22K etc.
Cable length
According to customer's requirement
Customized support
OEM, ODM, OBM
Contact us:
https://nengshi.en.made-in-china.com/contact-info.html
Related Products
• Excced 30 Years professional manufacturer•
5
series and over
90
kinds type can meet more than 100 kinds applications such as chemical industry, water treatment, food&beverage, swimming pool&spa, hydroponics etc• Produce exceed
3,500,000
pcs, sell exceed
2,000,000
pcs for Europe and North America

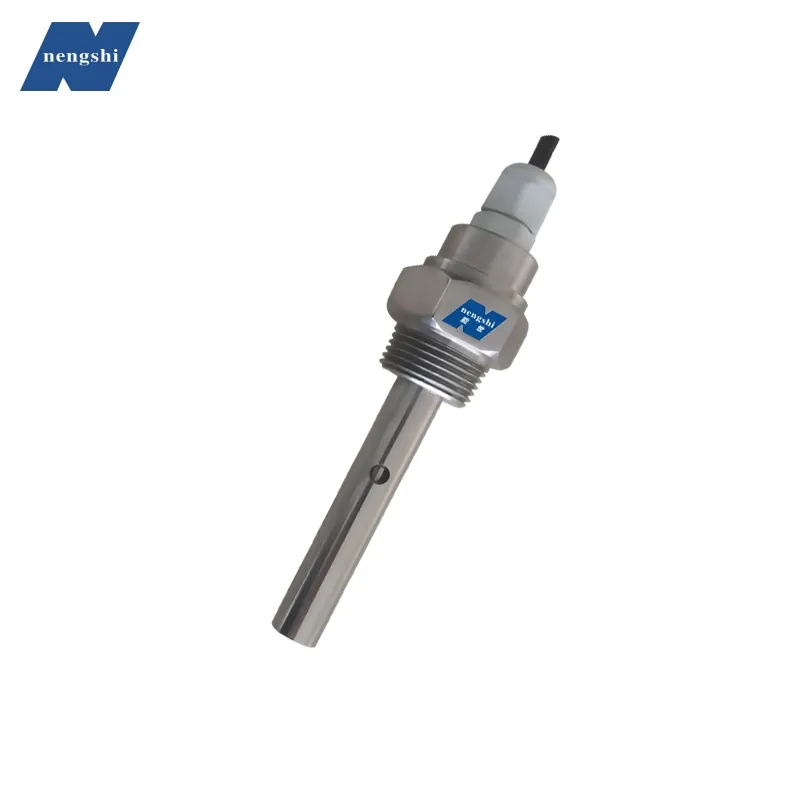

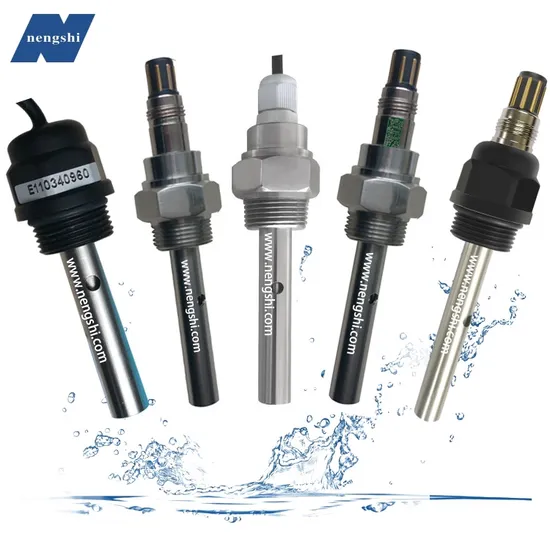

Online industrial 316L stainless steel ec sensor
• Constantly water monitoring usage
• Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•VP connection thread optional

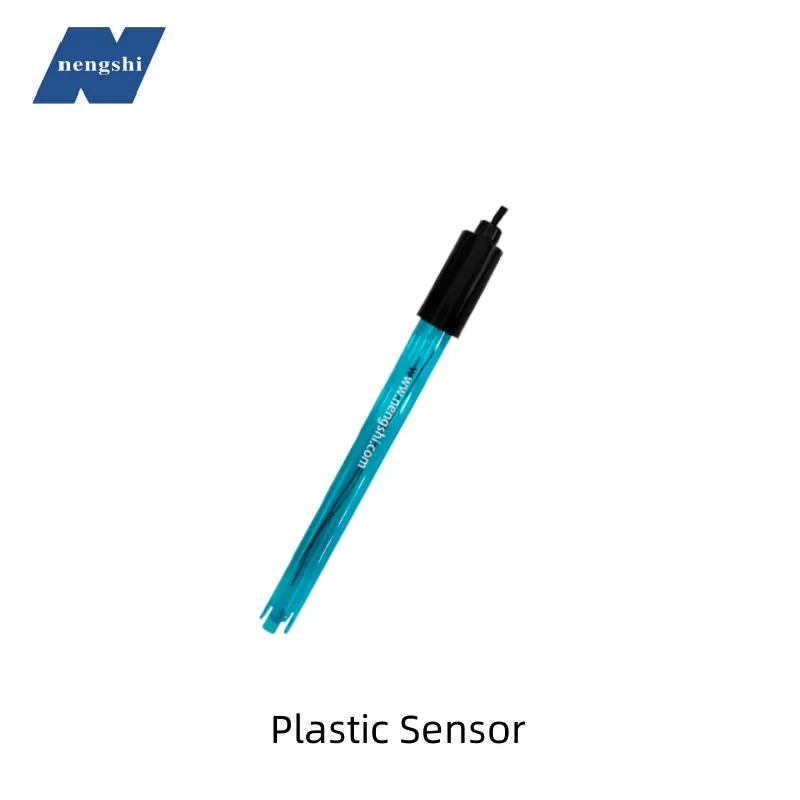

Plastic conductivity sensor
• Cost efficient conductivity sensor
• Different color/connection threads avaliable
YOU MAY ALSO LIKE
-Nengshi factory direct sales
-5 series and over 9 kinds of types can meet more than 100 scenarios
Product Applications
• Our sensor can be used continuously in different kinds of online industrial applications• 5 series and over 90 kinds of types can meet more than 100 scenarios

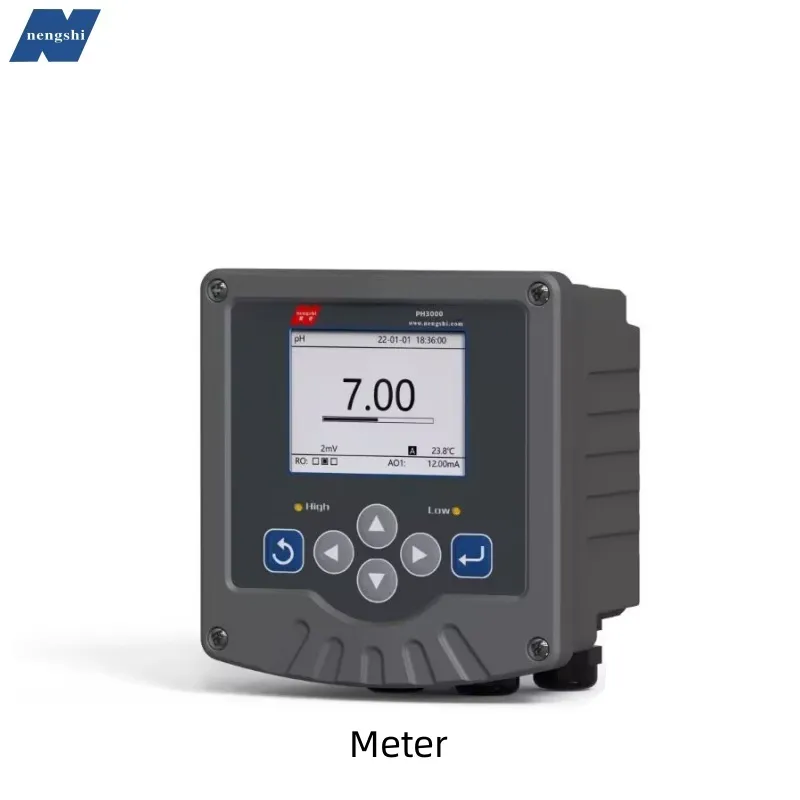

• Can be used with all kinds of
transmeters
•Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•Measurement range:0~200ms/cm, temperature range:0~130ºC
• Pressure range:1.0MP
•Conductivity Constant 0.01/ 0.1/ 1/ 10/ 25 optional
•Stable performance, long life
•Easy to dismantle and clean
•Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.
•The material: stainless steel, Titanium steel, Hastelloy, PPS plastic etc.
•The thermistor Pt100, Pt1000,2.252K,10K,22K etc. optional
Constant
K=0.01/ 0.1/ 1/ 10
Measurement range
0-200000μs/Cm
Temperature
0-130ºC
Pressure resistance
Up to 1.0 MPa
Material
316L Stainless steel/PPS Plastic
Connection
VP or fixed cable
Thread
PG13.5 or 3/4NPT, 1NPT, 1/2NPT, or customized
Temperature compensation
PT100/ PT1000/ 3K/ 2.252K/ 10K/ 22K etc.
Cable length
According to customer's requirement
Customized support
OEM, ODM, OBM
Contact us:
https://nengshi.en.made-in-china.com/contact-info.html
Related Products
• Excced 30 Years professional manufacturer•
5
series and over
90
kinds type can meet more than 100 kinds applications such as chemical industry, water treatment, food&beverage, swimming pool&spa, hydroponics etc• Produce exceed
3,500,000
pcs, sell exceed
2,000,000
pcs for Europe and North America
Online industrial 316L stainless steel ec sensor
• Constantly water monitoring usage
• Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•VP connection thread optional
Plastic conductivity sensor
• Cost efficient conductivity sensor
• Different color/connection threads avaliable
YOU MAY ALSO LIKE
-Nengshi factory direct sales
-5 series and over 9 kinds of types can meet more than 100 scenarios
Product Applications
• Our sensor can be used continuously in different kinds of online industrial applications• 5 series and over 90 kinds of types can meet more than 100 scenarios
• Can be used with all kinds of
transmeters
Preview
Packaging & Shipping
Preview
Packaging Details:
each sensor is put in a small stiff white cardboard box with sponge, and we will put mangy white box(if you order more than one sensors) into one big
cartonPort:
Wuhan/Shanghai/or other portsLead Time (the amount of time from order placement to dispatch):
Quantity(pieces)
1 - 50
51 - 100
101 - 500
> 500
Lead time (days)
2
4
To be negotiated
each sensor is put in a small stiff white cardboard box with sponge, and we will put mangy white box(if you order more than one sensors) into one big
cartonPort:
Wuhan/Shanghai/or other portsLead Time (the amount of time from order placement to dispatch):
Quantity(pieces)
1 - 50
51 - 100
101 - 500
> 500
Lead time (days)
2
4
To be negotiated
Preview
FAQ
Preview
1. Who are we?
We are
a professional manufacturer of pH, ORP, DO, Conductivity, Ion etc. sensor.
We have more than thirty years history and produced more than 250,000pcs per year.
2. How can we guarantee quality and what is our after sales services?*We have a quality control system,From the material to the completion of production, we continuous to control the quality of our products.All of our products will be fully pre-inspection by QC departments before shipping.
*If a fault caused by defects in materials or manufacture,we gurarteen12 months warranty from the date of delivery ,either replacement or repairto a practically new condition3.What can you buy from us?pH sensor,ORP sensor, DO sensor, Conductivity sensor, Temperature sensor, Ion sensor,
Sodium sensor4. Why choose us instead of other suppliers?We
have more than thirty years history and have produced more than 3,000,000pcs/ year,
and 2,000,000pcs of them are exported to worldwide.
These numbers and customers have proven that our sensors are excellent.5. What services can we provide?Accepted Delivery Terms: EXW,
FOB,ETCAccepted Payment Currency: US Dollars, Chinese YuanAccepted Payment Type: T/T, Paypal, Western Union, othersLanguage Spoken: English, Chinese
We are
a professional manufacturer of pH, ORP, DO, Conductivity, Ion etc. sensor.
We have more than thirty years history and produced more than 250,000pcs per year.
2. How can we guarantee quality and what is our after sales services?*We have a quality control system,From the material to the completion of production, we continuous to control the quality of our products.All of our products will be fully pre-inspection by QC departments before shipping.
*If a fault caused by defects in materials or manufacture,we gurarteen12 months warranty from the date of delivery ,either replacement or repairto a practically new condition3.What can you buy from us?pH sensor,ORP sensor, DO sensor, Conductivity sensor, Temperature sensor, Ion sensor,
Sodium sensor4. Why choose us instead of other suppliers?We
have more than thirty years history and have produced more than 3,000,000pcs/ year,
and 2,000,000pcs of them are exported to worldwide.
These numbers and customers have proven that our sensors are excellent.5. What services can we provide?Accepted Delivery Terms: EXW,
FOB,ETCAccepted Payment Currency: US Dollars, Chinese YuanAccepted Payment Type: T/T, Paypal, Western Union, othersLanguage Spoken: English, Chinese
