基本信息
| 型号 | ES-6505GD |
| 生产过程 | 半导体集成电路 |
| 材料 | 塑料 |
| IP等级（IP Rating） | IP68 |
| 灵敏度 | 中等 |
| 认证 | CE |
| 定制的 | 定制的 |
| 登山路径 | 天花板安装 |
| 探测器类型 | 有线或无线可选 |
| 输出 | 继电器输出或射频信号 |
| 应用程序 | 室内 |
| 信号传输 | 有线无线报警 |
| 工作模式 | 被动 |
| 传感器类型 | 半导体 |
| 工作原理 | 电动继电器输出 |
| 使用说明 | 火，自动 |
| 运输包 | 每箱60个 |
| 规格 | 适合全球使用 |
| 商标 | Ease Security |
| 起源 | 中国 |
| 商品编码 | 8531901000 |
| 生产能力 | 每月五百万个/件 |
| 包装大小 | 40.00cm长 * 30.00cm宽 * 30.00cm高 |
| 包装总重量 | 3.5千克 |
| 包装尺寸 | 40.00cm*30.00cm*30.00cm |
| 包装总重量 | 3.5千克 |
产品详情
Product Description
Preview

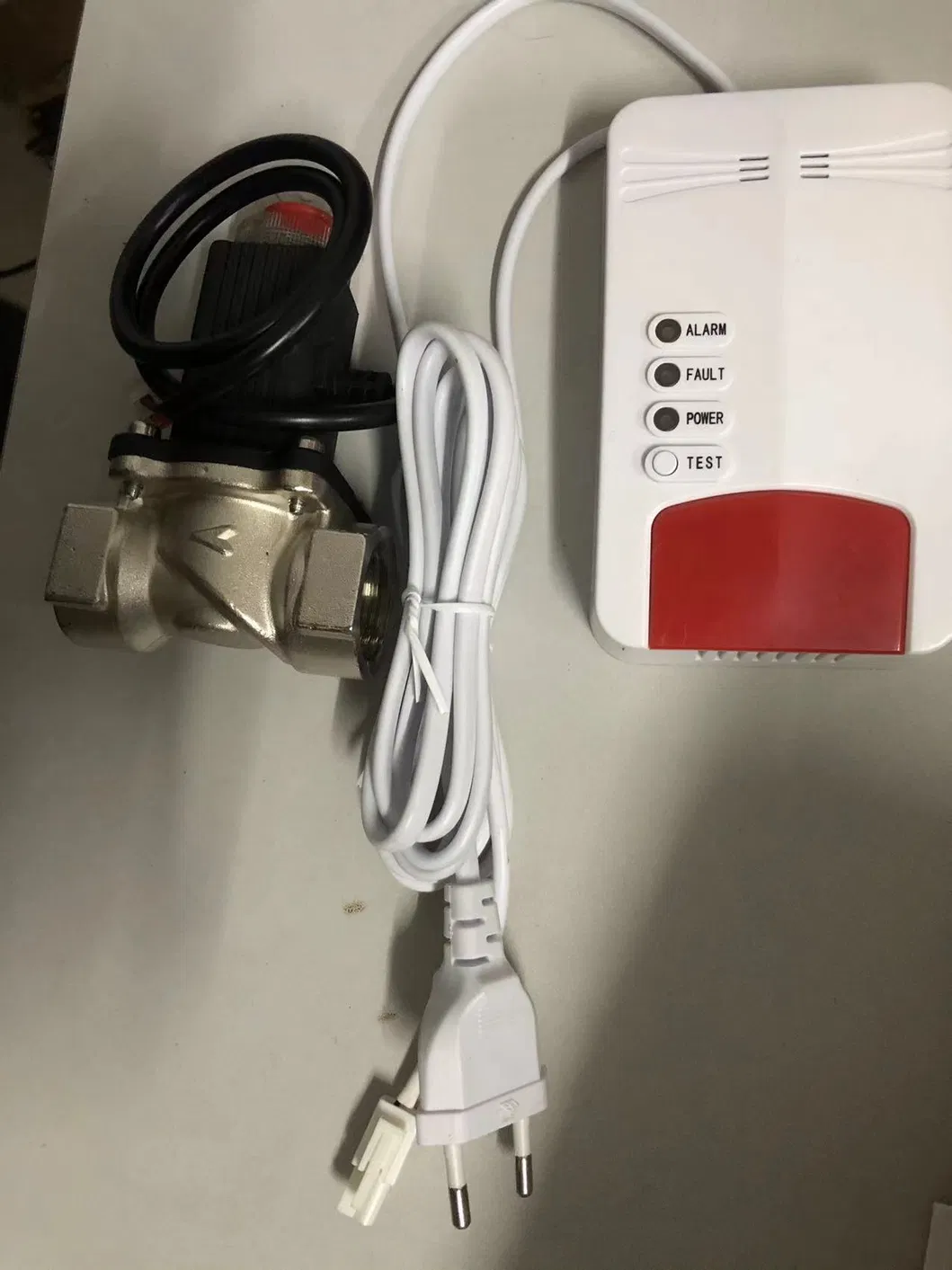

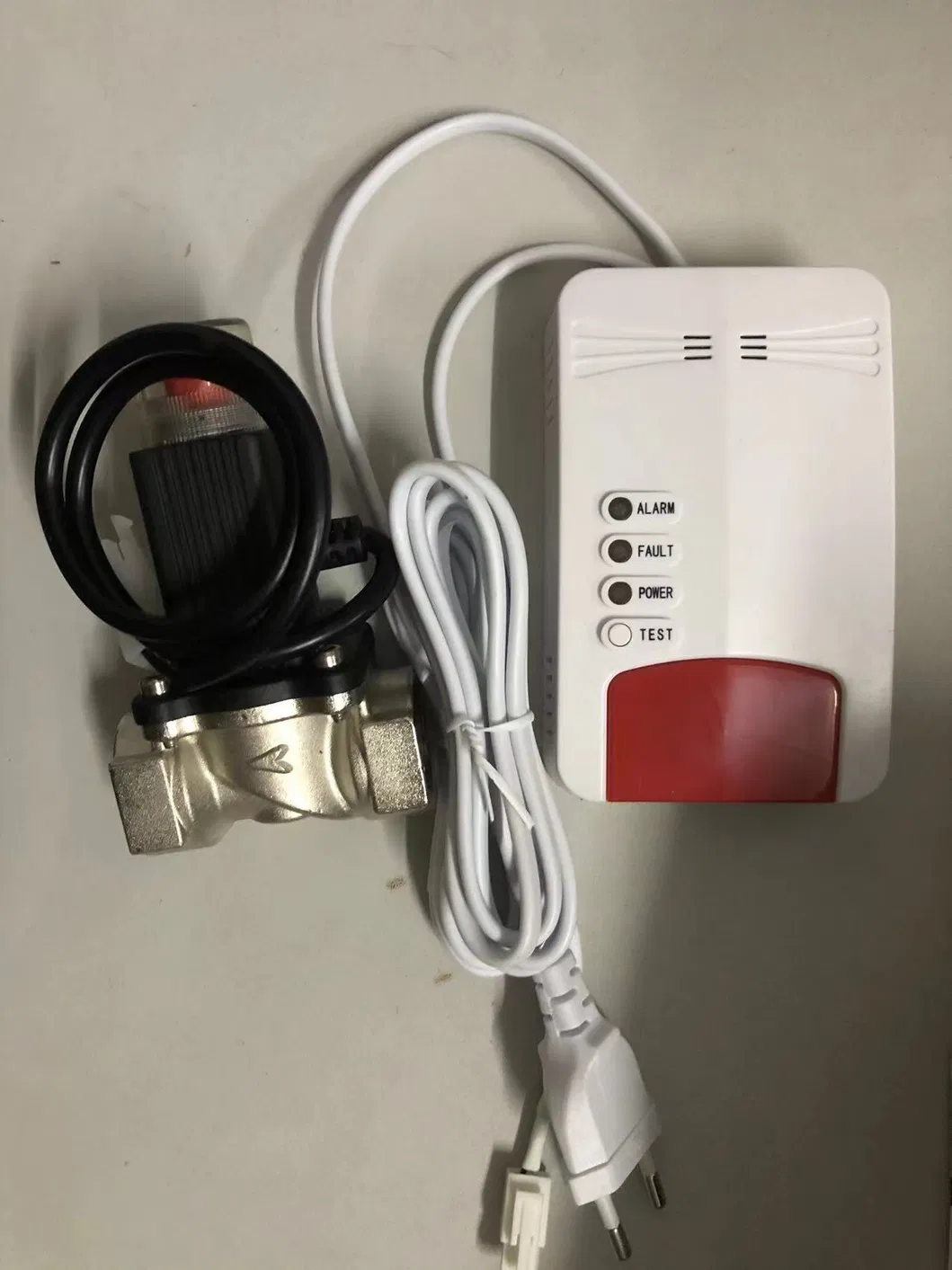

Wired Wireless CO Gas Leakage
Detector with Relay output and solenoid valve (ES-6505GD)
Features/Specification
High reliability
sensor
Auto
reset
after
alarm
MCU
processing
adopted
fault
automatic
detected
Gas
type:natural
gas/LPG
/CO
SMT design,high
stability
Technical Specification
Operating voltage: AC 85-260V
Static current :<= 100mA
Alarm current :<= 110mARating Power: <= 3W (AC 220V supply)
Warm-up Time:
180S
Alarm Level:10%LEL(CH4);
Alarm Level CO:100PPM
Power: LED Constant Green
Alarm: LED Flashing Red Rapidly (CH4)
LED flashing red slowly (CO)
Sensor Failure: Fault LED Constant Yellow
Alarm Reset:Automatic reset when leaked gas clears
Sound Level: >= 85dB/m
Operating temperature: -10 ºC~ +50 ºC
Environment humidity: <= 95 % RH (no congelation)
Installation mode: wall mounted
Alarm output: relay output/sound & flash alarm
Networking: RF 315MHz or 433MHz (wireless type)
Radio distance: 100m in open area (wireless type)
Execute criterion :
GB15322.2-2003
Outline
s
ize
:
1
23
*7
8
*4
0
mm
Product Profile
Detector with Relay output and solenoid valve (ES-6505GD)
Features/Specification
High reliability
sensor
Auto
reset
after
alarm
MCU
processing
adopted
fault
automatic
detected
Gas
type:natural
gas/LPG
/CO
SMT design,high
stability
Technical Specification
Operating voltage: AC 85-260V
Static current :<= 100mA
Alarm current :<= 110mARating Power: <= 3W (AC 220V supply)
Warm-up Time:
180S
Alarm Level:10%LEL(CH4);
Alarm Level CO:100PPM
Power: LED Constant Green
Alarm: LED Flashing Red Rapidly (CH4)
LED flashing red slowly (CO)
Sensor Failure: Fault LED Constant Yellow
Alarm Reset:Automatic reset when leaked gas clears
Sound Level: >= 85dB/m
Operating temperature: -10 ºC~ +50 ºC
Environment humidity: <= 95 % RH (no congelation)
Installation mode: wall mounted
Alarm output: relay output/sound & flash alarm
Networking: RF 315MHz or 433MHz (wireless type)
Radio distance: 100m in open area (wireless type)
Execute criterion :
GB15322.2-2003
Outline
s
ize
:
1
23
*7
8
*4
0
mm
Product Profile
Preview
Preview

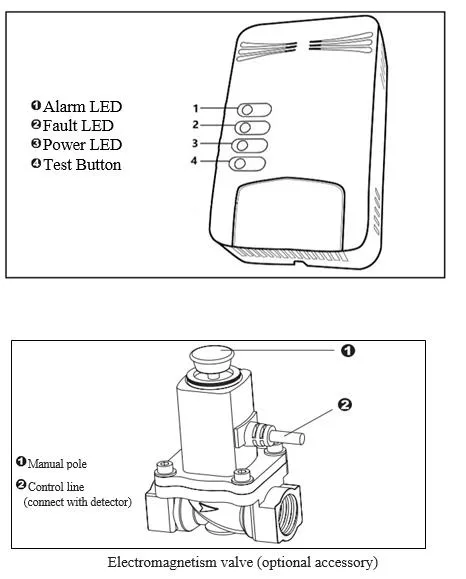

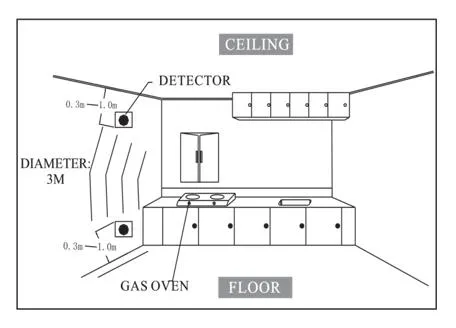

Installation
Preview
Preview

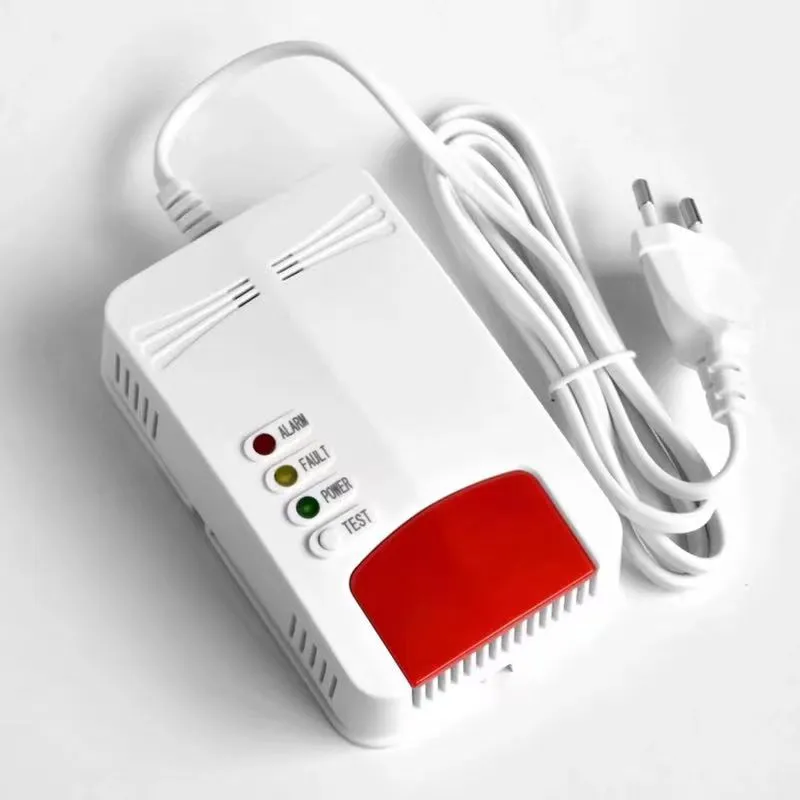

Wired Wireless Optional

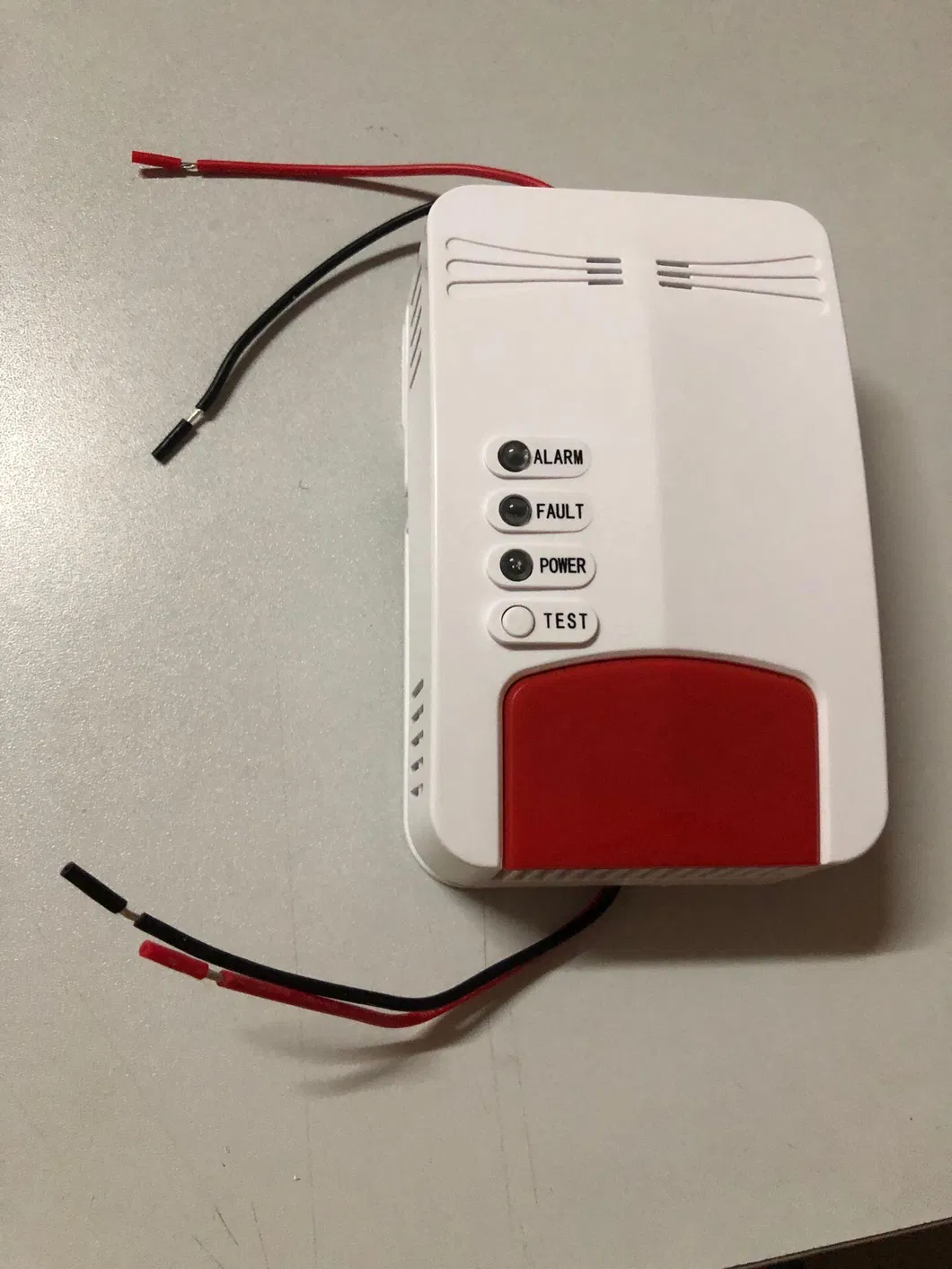

DC AC types optional
DC AC types optional
Preview
Preview
Preview
Preview
Preview

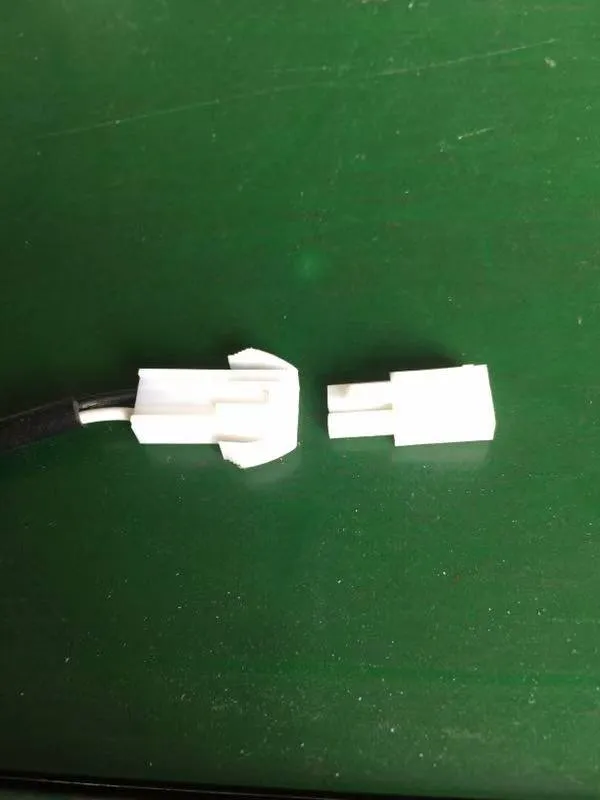

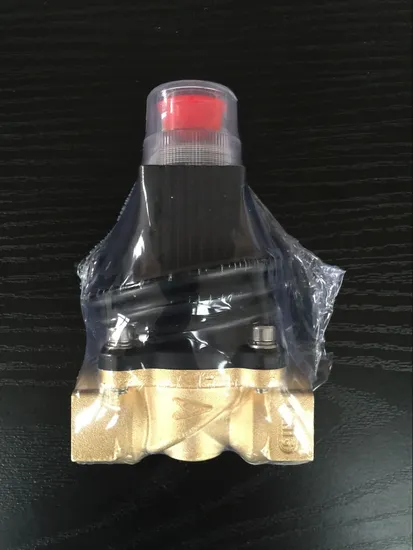

Connectors for solenoid valves
Preview
Preview
Packing Box
Preview
Preview
Ease Security is a Hi-tech enterprise which specializes in anti-theft security alarm products and fire alarm products. Our service range covers R&D, manufacture and marketing. Our current main products are fire alarm panel,home alarm system, outdoor active IR beam detector,PIR detector, smoke detector, gas leakage detector, door magnetic switch, panic button, alarm siren and etc.
we are offering you following:
Top quality, product quality is the life of the company;
We have built a whole quality control system according to ISO 9000. Our QC inspects each product in every working procedure to ensure the quality exactly.
Competitive price, price helps our customer be competitive in the market;
We are trying to improve the efficiency in every process to lower the cost without affecting quality.
Excellent service, service is the basis of the company.
We always belive that "Win-Win" strategy is the basis of a long-term cooperation relationship. We are looking forward to establishing a good business relation with you.
we are offering you following:
Top quality, product quality is the life of the company;
We have built a whole quality control system according to ISO 9000. Our QC inspects each product in every working procedure to ensure the quality exactly.
Competitive price, price helps our customer be competitive in the market;
We are trying to improve the efficiency in every process to lower the cost without affecting quality.
Excellent service, service is the basis of the company.
We always belive that "Win-Win" strategy is the basis of a long-term cooperation relationship. We are looking forward to establishing a good business relation with you.
