基本信息
| 型号编号 | FFT-35ML |
| 生产流程 | 整合 |
| 函数类型 | 功能性 |
| 材料 | 金属 |
| IP等级(IP Rating) | IP64 |
| 认证 | ISO |
| 定制的 | 定制的 |
| Model | Fft-35ml |
| 光纤头 | 方形头 |
| 传感模式 | 通过梁面反射 |
| 光纤内核 | 0.25乘以17(发射器);0.25乘以17(接收器) |
| 电缆长度 | 1米电缆,免费切割 |
| 弯曲半径 | R25 |
| 小检测目标 | 直径4毫米金线 |
| 探测距离 | 35乘500毫米 |
| 证书 | Ce, RoHS, ISO9000 |
| OEM/ODM | 是的 |
| 最小订单量 | 不 |
| 环境温度 | -25度至60度 |
| 交货期 | 付款后7天 |
| 兼容型光纤放大器 | FF-403 |
| 交通包 | 塑料袋 |
| 商标 | F&C |
| 起源 | 中国 |
| 商品编码 | 9001100009 |
| 生产能力 | 每月一万 |
产品详情
Product Description
Preview

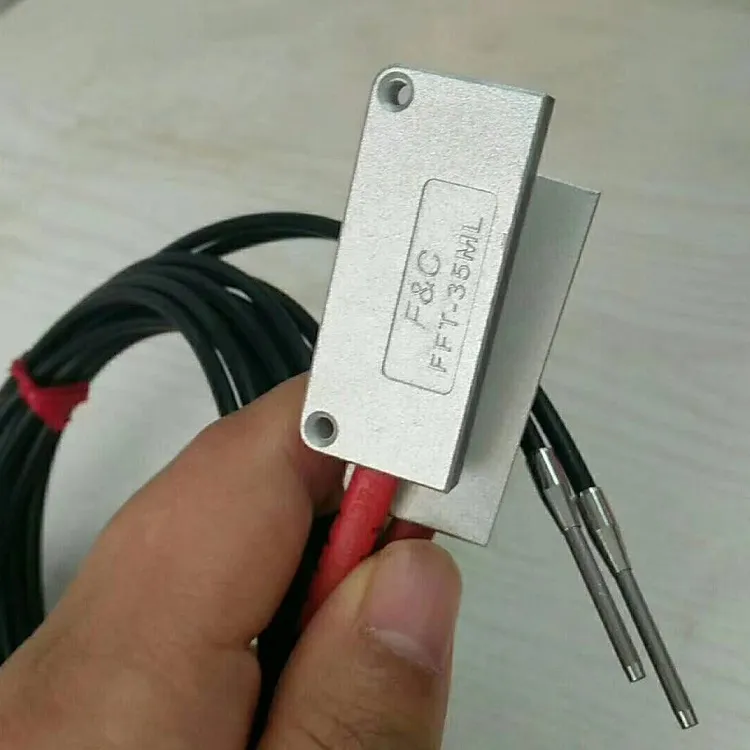

FFT-35ML 35*500mm area factory Thru-beam Optical Fiber Sensor with CE
Preview

Preview

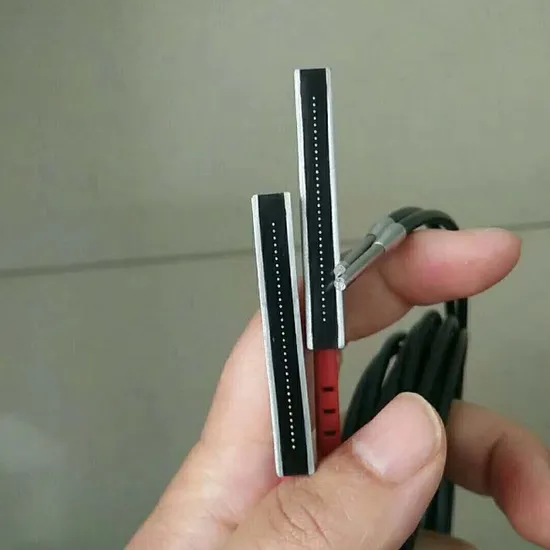

Array fiber unit sensor
Features:
Fiber optic sensors used for tiny object detection, including both metal and non-metallic items, plastic objects, semi-transparent objects......, it just like a photoelectric switch, featured as high precise and small volume, especially suitable

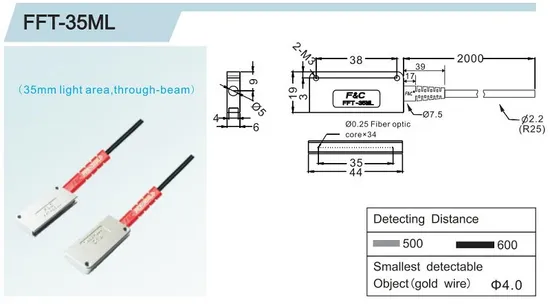

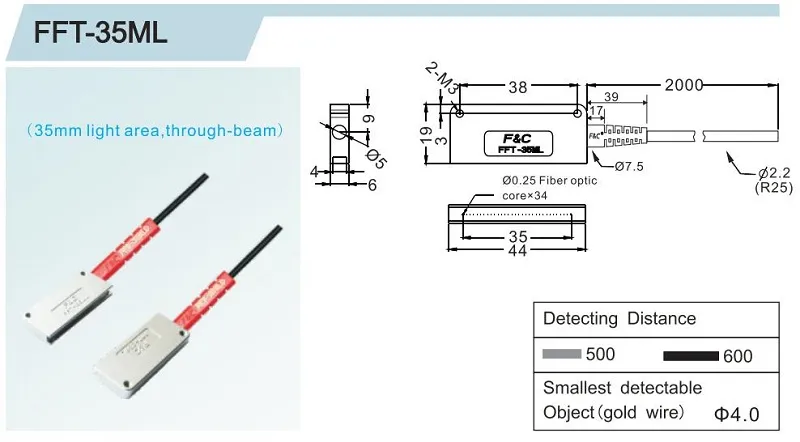

for any application in very limited mounting space. but its sensing range is short compared to photoelectric switch.FFT-35ML Array type Through Beam fiber unit work with Digital fiber amplifier FF-403, which is a quite easy and smart control with 8 unit digital display. it is for area detection, 35*500mm . dimentions check below:
Features:
Fiber optic sensors used for tiny object detection, including both metal and non-metallic items, plastic objects, semi-transparent objects......, it just like a photoelectric switch, featured as high precise and small volume, especially suitable
for any application in very limited mounting space. but its sensing range is short compared to photoelectric switch.FFT-35ML Array type Through Beam fiber unit work with Digital fiber amplifier FF-403, which is a quite easy and smart control with 8 unit digital display. it is for area detection, 35*500mm . dimentions check below:
Preview

Preview

Preview

Preview

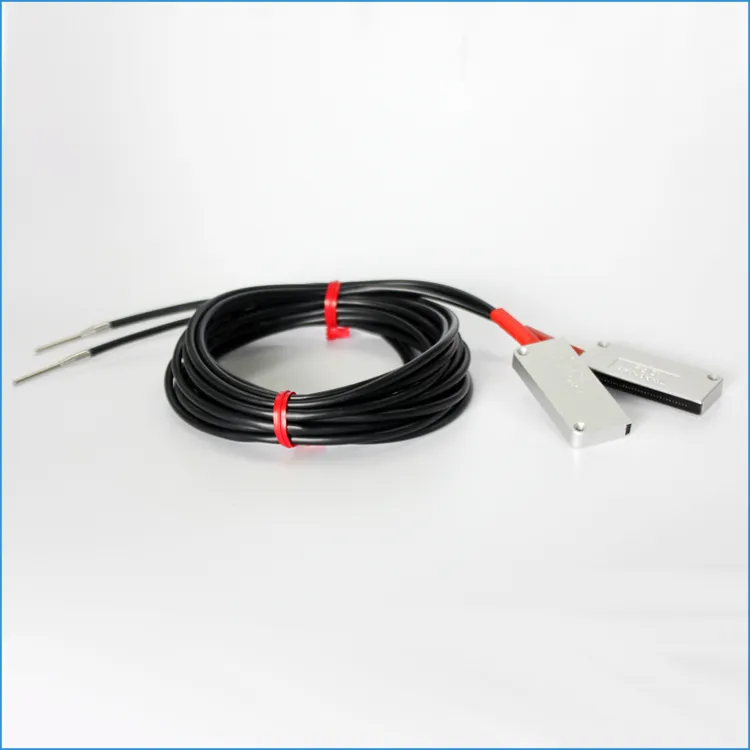

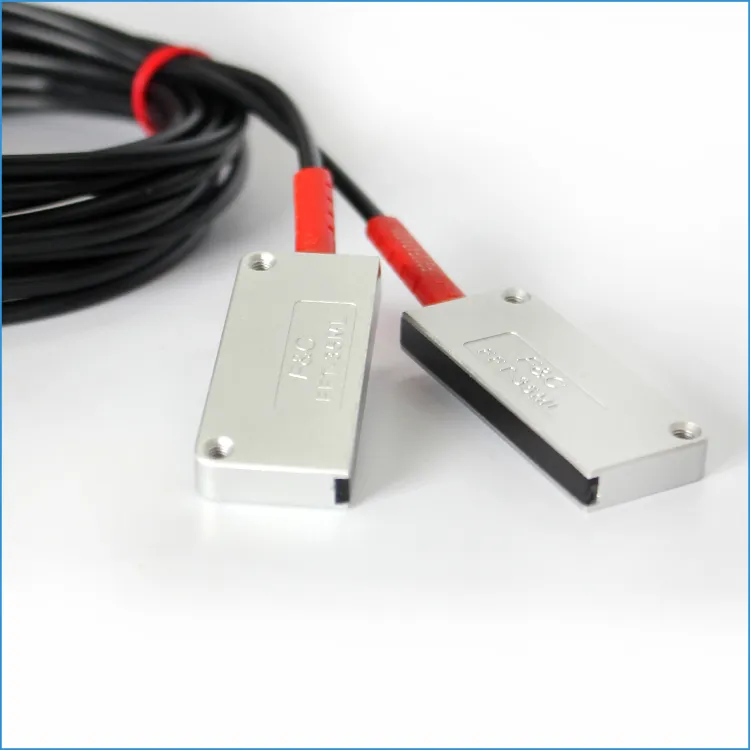

Through Beam type Array optical fiber sensors

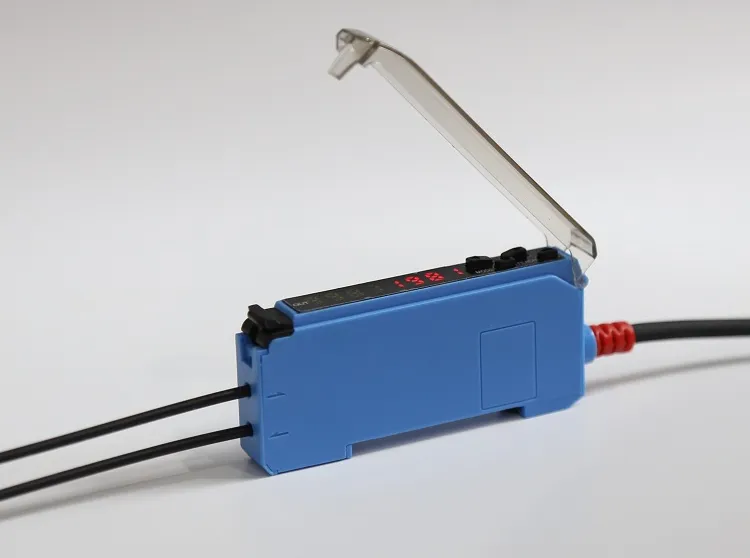

Compatible Digital Fibre Amplifier FF-403
:
Compatible Digital Fibre Amplifier FF-403
:
Preview

Preview
Optic fiber sensor
Applications
Optic fiber sensor
Factory Information
F&C
Sensing
Technology
is
a
high-tech
enterprise,
specialized
in
R&D,
manufacturing
and
marketing
industrial
automation
control
sensors
which
is
mainly
for
limit
protection,
counting
and
presence
or
absence
judgement.there
are
14
series
and
around
5000
models
available,
based
on
Changsha,
Dongguan
and
Taiwan,
F&C
sensors
and
our
authorized
distributors around
the
world
are
dedicated
to
provide
wonderful one-stop-service to
all the
customers.Our
main
products
include
Fiber
optic
sensor,
Fiber
Unit,
proximity
sensor,photoelectric
sensor,
light
curtain,
label
sensor,
pressure
switch,
magnetic
switch,
din-rail
power
supply
etc. and producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Applications
Optic fiber sensor
Factory Information
F&C
Sensing
Technology
is
a
high-tech
enterprise,
specialized
in
R&D,
manufacturing
and
marketing
industrial
automation
control
sensors
which
is
mainly
for
limit
protection,
counting
and
presence
or
absence
judgement.there
are
14
series
and
around
5000
models
available,
based
on
Changsha,
Dongguan
and
Taiwan,
F&C
sensors
and
our
authorized
distributors around
the
world
are
dedicated
to
provide
wonderful one-stop-service to
all the
customers.Our
main
products
include
Fiber
optic
sensor,
Fiber
Unit,
proximity
sensor,photoelectric
sensor,
light
curtain,
label
sensor,
pressure
switch,
magnetic
switch,
din-rail
power
supply
etc. and producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Preview

Preview

Preview
Optic fiber sensor

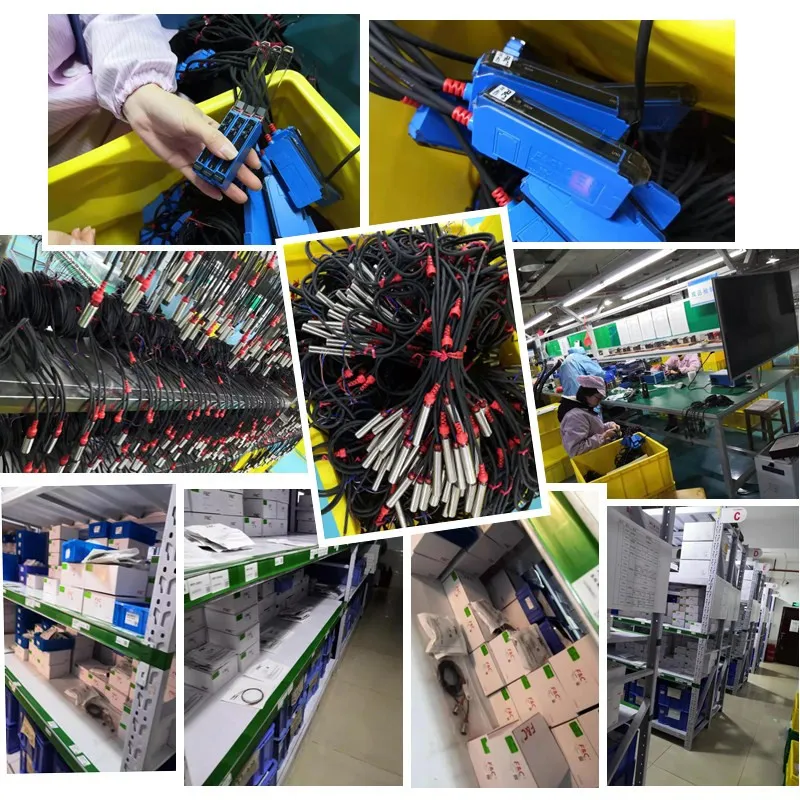

factory Office, exhibition, staffs & customers
