基本信息
| 型号编号 | KTF1/TLH-225毫米 |
| 生产流程 | 注入 |
| 材料 | 铝 |
| 准确度等级 | 百分之零点一 |
| 国际防护等级 | IP67 |
| 认证 | CCC |
| 定制的 | 定制的 |
| 项目 | Ktf1/Tlh-225毫米 |
| 测量划距 | 50毫米至2500毫米 |
| 线性 | 0.05%满量程 |
| 电阻 | 10千欧姆 |
| 决议 | 无穷大 |
| 可重复性精度 | 0.01毫米 |
| 温度 | 零下60度到零上150度 |
| 寿命很长 | >100*1000000次循环，>25*1000 |
| 电源 | 5V 至 24V |
| 最大速度 | 最大速度 |
| 交通包裹 | 每件物品都装在带有泡沫的PVC管中 |
| 规格 | 铝制外壳 |
| 商标 | MIRAN |
| 起源 | 中国 |
| 商品编码 | 8543709990 |
| 生产能力 | 九百九十九万九千九百九十九 |
产品详情
Product Description
Preview

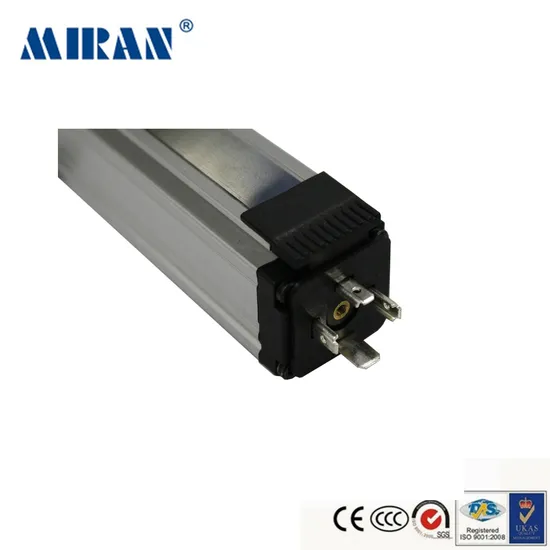

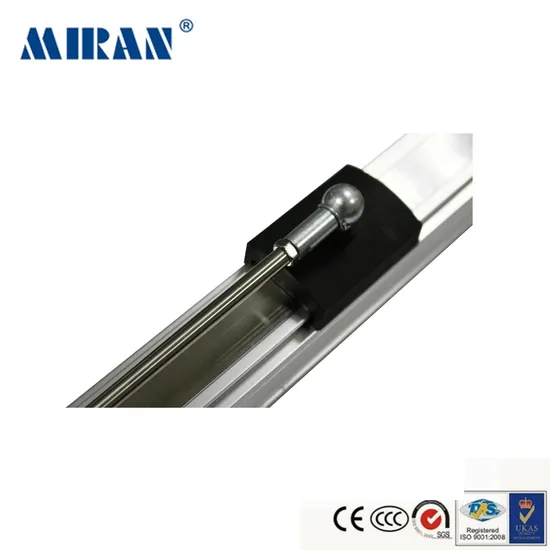

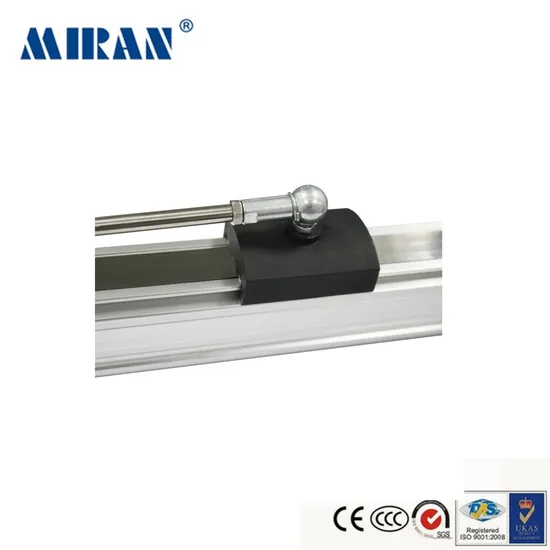

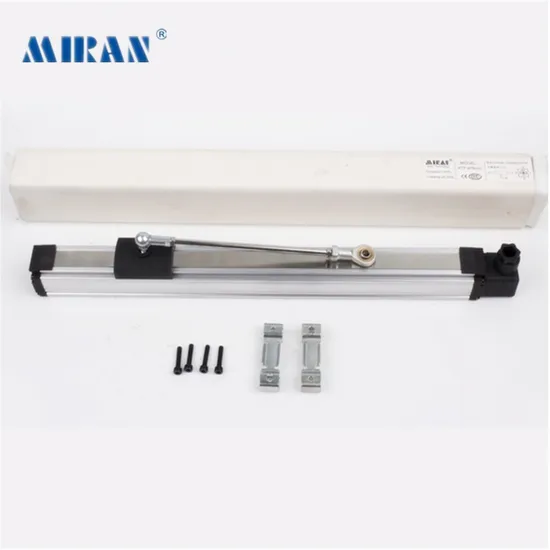

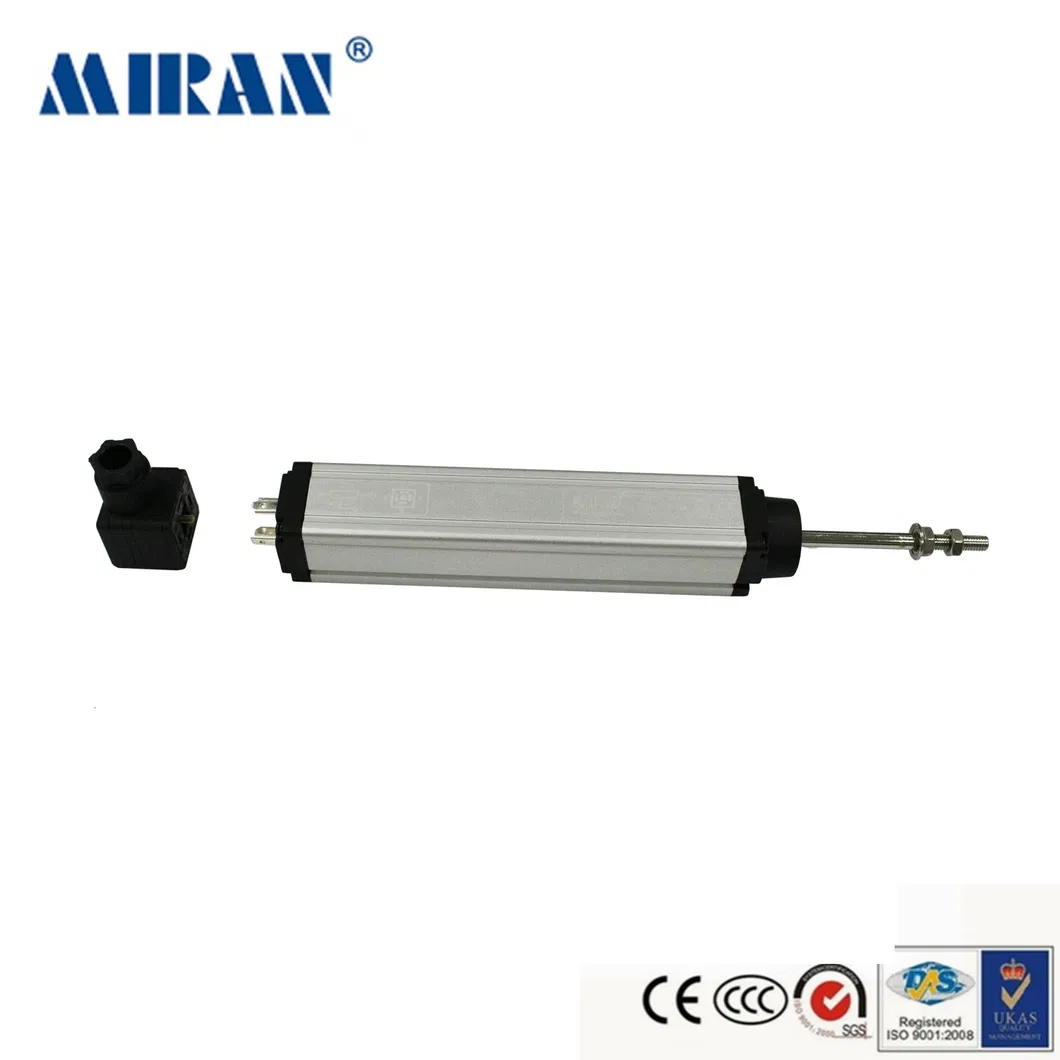

50mm-2500mm Linear Position Sensor for Distance Measuring
Attention:
The stroke length is 225mm. The longer the stroke is, the more expensive it is. The stroke is optional from 50mm-2500mm. If you need different lengths of travel, please contact with the supplier. The default signal output: 0-100% of the power supply voltage value, which is reasistance output, if you need other siganl output, Such as 4-20mA, 0-5V, 0-10V, and RS485 Signal Output, please purchase the transmission module in the shop or contact with the supplier
Attention:
The stroke length is 225mm. The longer the stroke is, the more expensive it is. The stroke is optional from 50mm-2500mm. If you need different lengths of travel, please contact with the supplier. The default signal output: 0-100% of the power supply voltage value, which is reasistance output, if you need other siganl output, Such as 4-20mA, 0-5V, 0-10V, and RS485 Signal Output, please purchase the transmission module in the shop or contact with the supplier
Preview
Preview
