基本信息产品详情证书
基本信息
| 型号编号 | KTR12-10mm |
| 生产流程 | 注入 |
| 材料 | 铝 |
| 准确度等级 | 百分之零点一 |
| IP等级。 | IP67 |
| 认证 | ISO |
| 定制的 | 定制的 |
| 项目 | Ktr12-10mm |
| 测量行程 | 10毫米至200毫米 |
| 线性 | 0.05%满量程（Fs） |
| 电阻 | 5千欧姆 |
| 决议 | 无限的 |
| 可重复性精度 | 0.01毫米 |
| 温度 | 零下60度到零上150度 |
| 长寿 | 超过 1 亿个周期数 (或轮次)，超过 2.5 万个 |
| 电源供应 | 3伏特至36伏特 |
| 最大速度 | 每秒五米 |
| 运输包 | 每件都装在带有泡沫的PVC管中 |
| 规格 | 铝制外壳 |
| 商标 | 米兰达 |
| 起源 | 中国 |
| 商品编码 | 85亿4千3百70万9千9百 |
| 生产能力 | 九百九十九万九千九百九十九 |
产品详情
Product Description
Preview

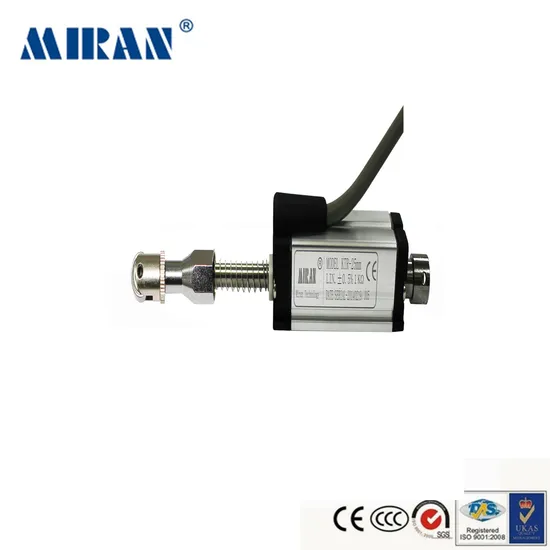

Spring Self Return Linear Potentiometer
Attention:
The stroke length is 10mm. The longer the trip is, the more expensive it is. The stroke is optional from 10mm-200mm. If you need different lengths of travel, please contact with the supplier. The default signal output: 0-100% of the power supply voltage value, which is reasistance output, if you need other siganl output, Such as 4-20mA, 0-5V, 0-10V, and RS485 Signal Output, please purchase the transmission module in the shop or contact with the supplier..
Attention:
The stroke length is 10mm. The longer the trip is, the more expensive it is. The stroke is optional from 10mm-200mm. If you need different lengths of travel, please contact with the supplier. The default signal output: 0-100% of the power supply voltage value, which is reasistance output, if you need other siganl output, Such as 4-20mA, 0-5V, 0-10V, and RS485 Signal Output, please purchase the transmission module in the shop or contact with the supplier..
Preview
Preview
Preview
