基本信息产品详情证书
基本信息
| 型号编号 | RH-M0550-S1-PD56-N10-S0-CN |
| 非线性 | 满量程的±0.01% |
| 重复精度 | 满量程的±0.001% |
| 滞后 | 小于10微米 |
| 温度系数 | 15ppm每摄氏度 |
| 磁力速度 | 任意 |
| 保护等级 | IP67rh不锈钢棒 |
| 工作温度 | 零下40摄氏度至零上85摄氏度 |
| 外管压力 | 连续压力为35MPa/峰值压力为70MPa |
| 输入电压 | +24VDC±20% |
| 运营电流 | 80毫安（随范围变化） |
| 极性保护 | 最大直流电压-30V |
| 过压保护 | Max.36VDC |
| 交通包 | 纸管 |
| 商标 | TEC传感器 |
| 起源 | 中国 |
| 商品编码 | 90318090 |
| 生产能力 | 年产量为八万件 |
产品详情
Product Parameters
Preview
Product Description
Preview

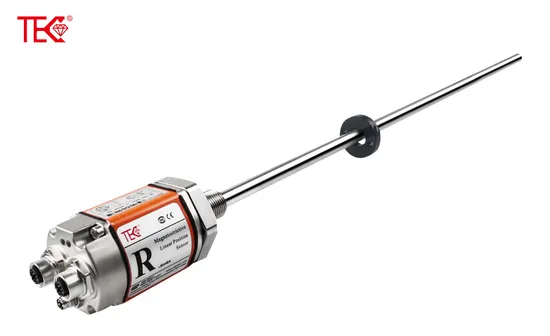

TEC magnetostrictive displacement sensor is a new generation of linear displacement sensor independently developed by Zheda
Jingyi. It can provide users with real-time, reliable, accurate and continuous linear displacement signals under harsh working environment,
and is widely used in metallurgical equipment, wind power equipment, construction machinery, rubber machinery, port machinery,
energy and other industrial automation fields.
Jingyi. It can provide users with real-time, reliable, accurate and continuous linear displacement signals under harsh working environment,
and is widely used in metallurgical equipment, wind power equipment, construction machinery, rubber machinery, port machinery,
energy and other industrial automation fields.
Preview
Preview
Preview
Preview
Preview

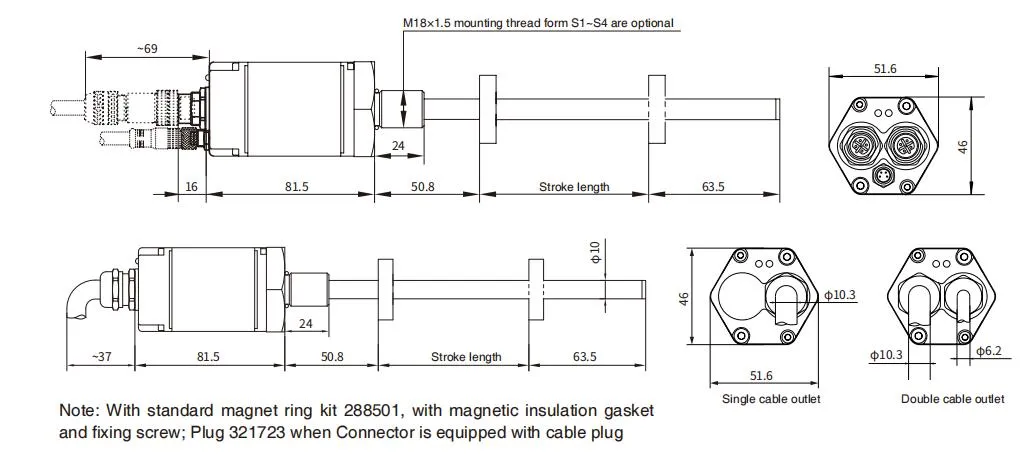

Installation Instructions
Preview
Preview
Company Profile
Preview
Preview
