基本信息产品详情证书
基本信息
| 型号 | F21-2D |
| 接收器灵敏度 | -110分贝毫瓦 |
| 接收器电源 | 18至65伏交流/直流；65至440伏交流/直流（可选） |
| 安全码 | 32位（43亿） |
| 温度范围 | 零下40度到零上85度 |
| 输出接触器容量 | 8A密封继电器输出（带AC 250V/10A继电器） |
| 电缆长度 | 1.65米（其他长度可定制） |
| 控制距离 | 100米 |
| 速度类型 | 单/双 |
| 关键字 | 使用遥控式起重滑车 |
| 频率 | 310兆赫/446兆赫 |
| 按钮 | 两个按钮 |
| 用法 | 用于控制塔式起重机和混凝土泵等 |
| 应用程序 | 工业机械 |
| 信号传输 | 无线电波 |
| 类型 | 按钮 |
| 通用 | 通用 |
| 传输距离 | 50至100米 |
| 电压 | 12伏特 |
| 电池类型 | AA电池 |
| 材料 | 玻璃纤维聚酰胺 |
| 交通包 | 标准出口包装 |
| 规格 | F21-2D |
| 商标 | 沃荷波 |
| 起源 | 中国湖北 |
| 商品编码 | 85269200 |
| 生产能力 | 每月五千套 |
产品详情
Product Description
Preview
Preview
12V UHF : The Receiver power supply
12V AC DC . Frequency UHF 425~446MHz . Arrow buttons 18-65V UHF : The Receiver power supply
18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons 65-440V UHF : The Receiver power supply
65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttonsF21-2D Function Characteristic :
1.Have 3 function keys (2 double speed buttons + 1 start button ).
2. Control contact is up to 6. 3. Small size for the installation of thght-spaces tailored
4. With battery voltage warning device, the power supply is cut off during low power.

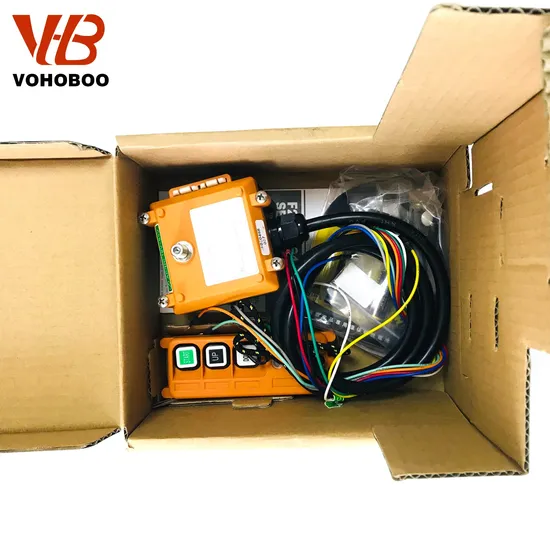

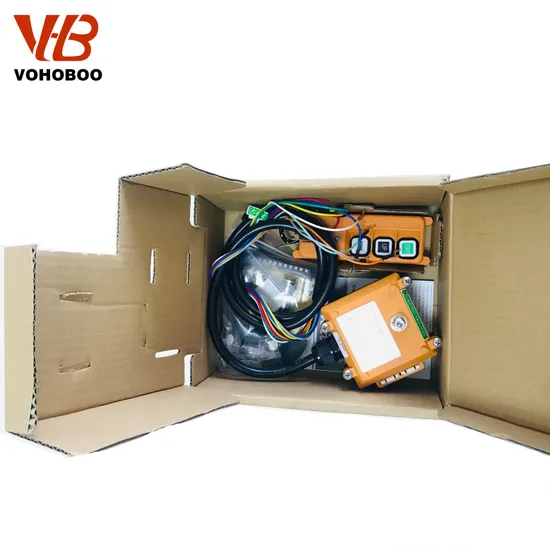

5. Can be connected with the computer through the data line to set the keys ( The program software /data line need to buy extra ) Up/down can be programmed to interlock or non-interlock .F21-2D Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.1M cable connector
1 pieces dust bag
1 piece english manual
Product
Application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls
12V AC DC . Frequency UHF 425~446MHz . Arrow buttons 18-65V UHF : The Receiver power supply
18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons 65-440V UHF : The Receiver power supply
65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttonsF21-2D Function Characteristic :
1.Have 3 function keys (2 double speed buttons + 1 start button ).
2. Control contact is up to 6. 3. Small size for the installation of thght-spaces tailored
4. With battery voltage warning device, the power supply is cut off during low power.
5. Can be connected with the computer through the data line to set the keys ( The program software /data line need to buy extra ) Up/down can be programmed to interlock or non-interlock .F21-2D Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.1M cable connector
1 pieces dust bag
1 piece english manual
Product
Application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls
Preview
Preview
Preview
Preview
Preview
Preview
Preview
Preview
Preview

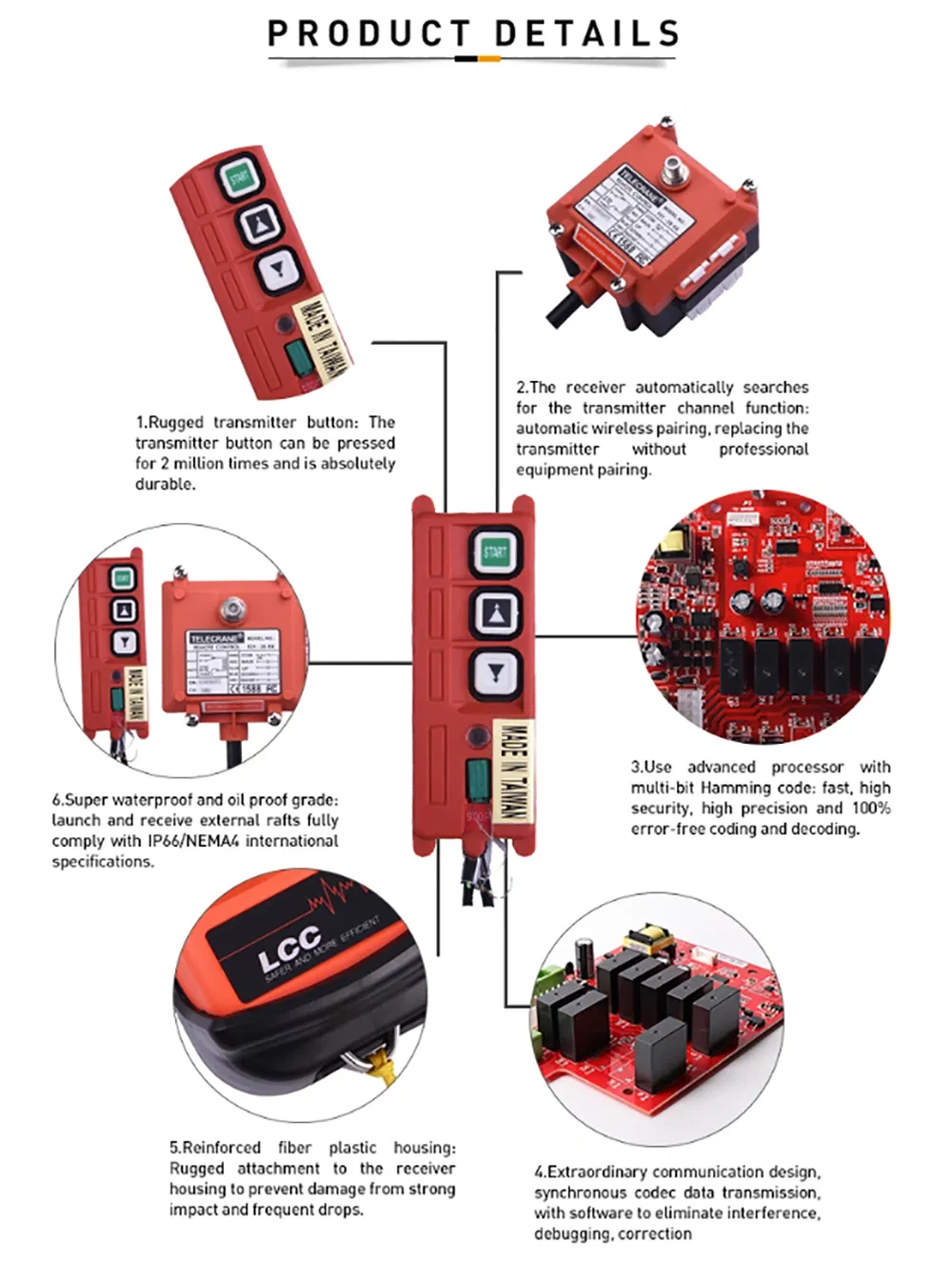

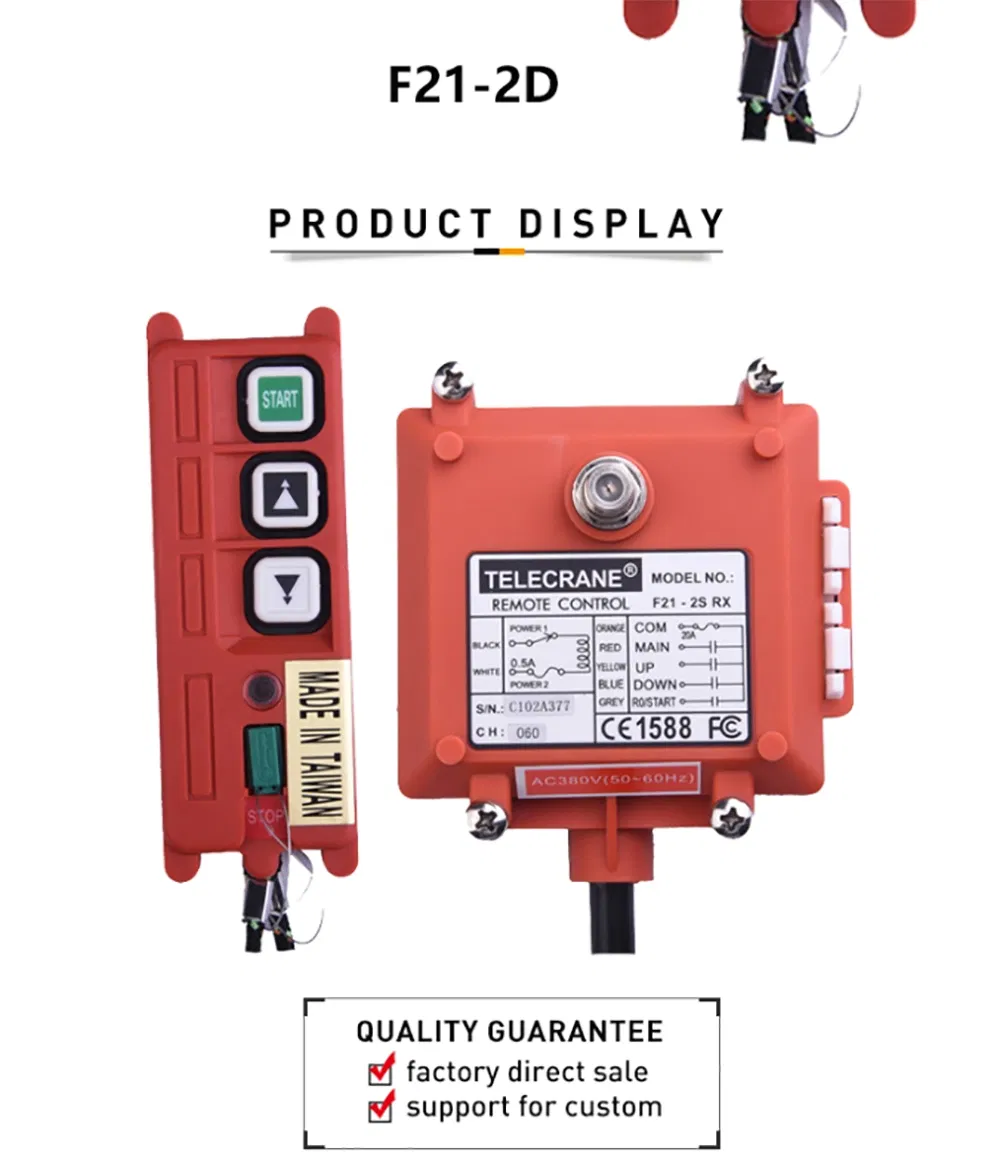

Product Details
Preview
Product Advantages
Preview
Product Parameters
F21-2D Transmitter Parameters
Product Name
F21-2D
Wireless Remote Control
Material
Glass-Fiber PA
Enclosure protection class
IP65
Application
Overhead cranes, hoist ,chain hoist, other industrial machine
Frequency
310.0325~331.165Mhz
Transmitter power supply
AA-size batteries (not included)
Channel
80
Channel Spacing
Control distance
Approx 100m(200 meters is customized)
Certificates
CE, FCC, ISO
Number of push button
4 Single speed push button +1 start+1 stop
F21-2D Transmitter Parameters
Product Name
F21-2D
Wireless Remote Control
Material
Glass-Fiber PA
Enclosure protection class
IP65
Application
Overhead cranes, hoist ,chain hoist, other industrial machine
Frequency
310.0325~331.165Mhz
Transmitter power supply
AA-size batteries (not included)
Channel
80
Channel Spacing
Control distance
Approx 100m(200 meters is customized)
Certificates
CE, FCC, ISO
Number of push button
4 Single speed push button +1 start+1 stop
Preview

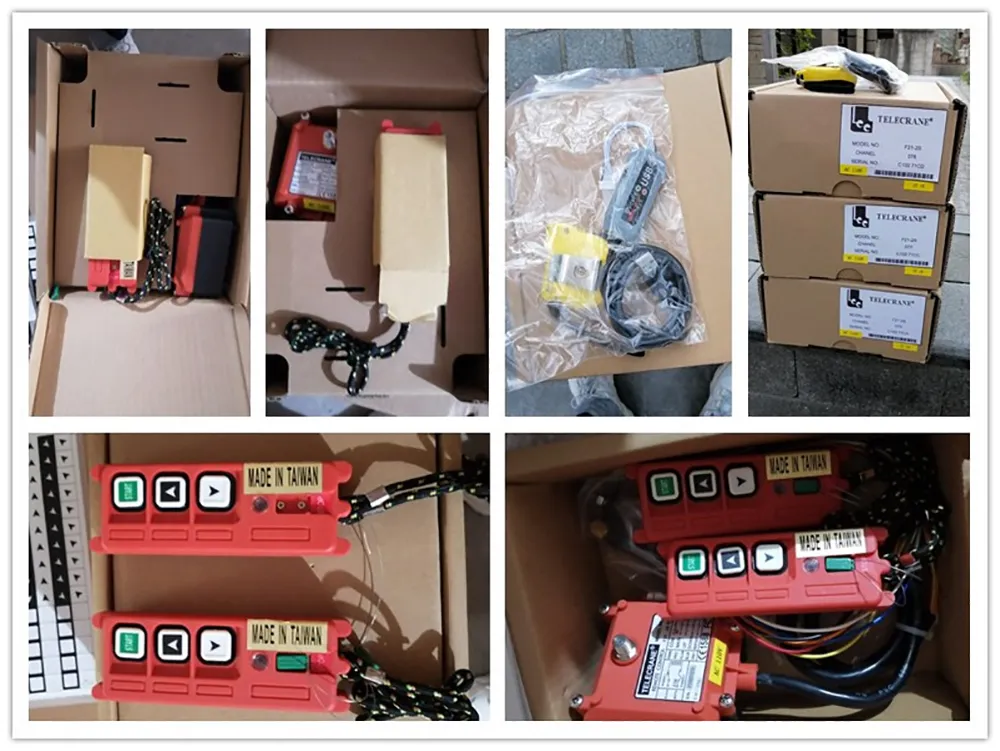

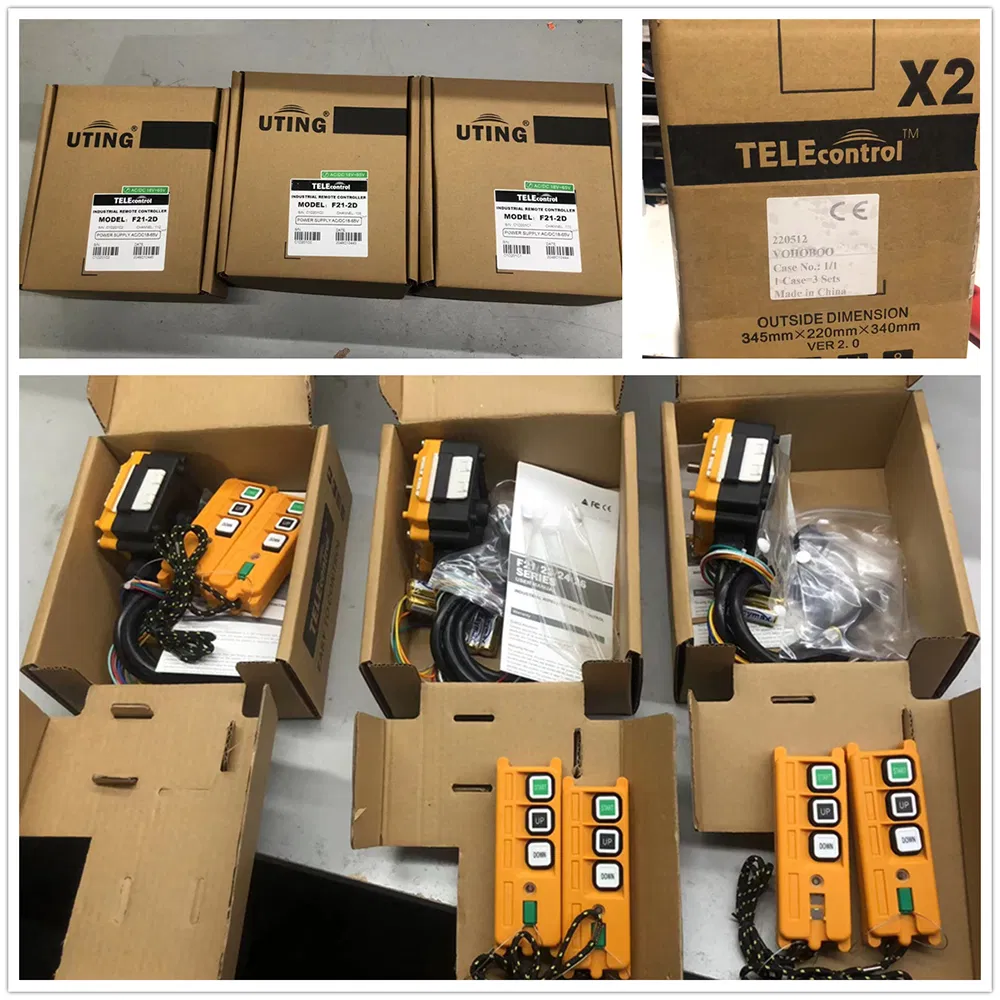

Packaging & Shipping
Preview
About Us
Preview
证书
标题：CE certificate of overhead crane
