Please Note :
1 . The remote controller , Button type is Momentary (default)
If you want to get Latching type , We can customize it for you .Tips:
Momentary :
Press the button ,working ; release the button , stop working
.Latching :
Press the button ,working ; release the button , still working ;
When you pressed the button again , stop working .2 . All industrial remote controllers are UHF model .Any question or problem , please feel free contact with us .
Product Specifications
:
12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz .Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz .Arrow buttons

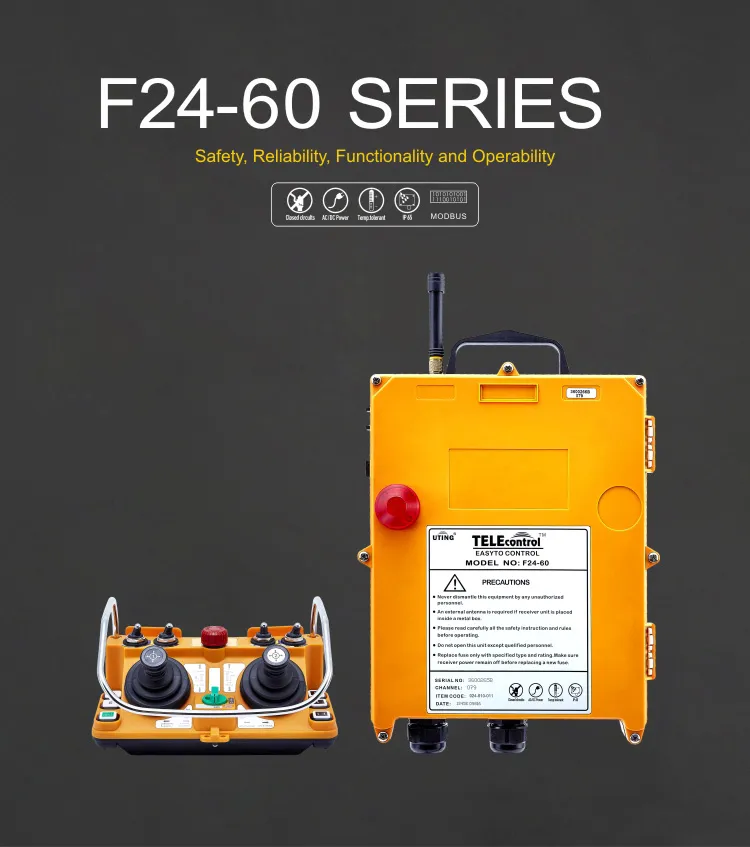

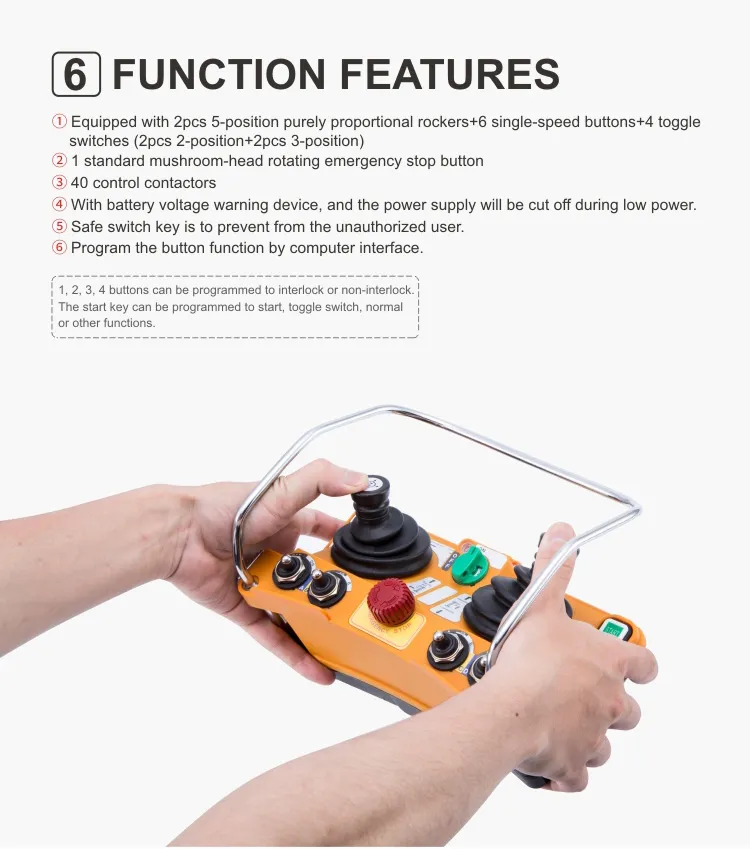

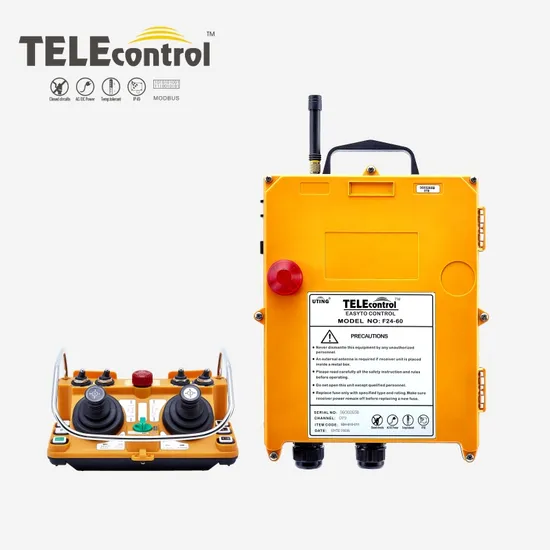

F24-60 Function Characteristic :

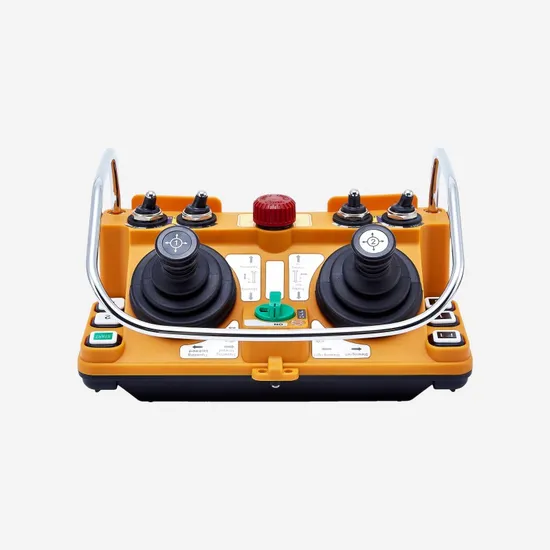

1.6 function buttons, 2 three-position and 2 two-position rotating switch, stop, rotary start switch .2.2 pcs five-step joysticks with 10 million times of mechanical life and pure proportion.3.Control contact is up to 40.4.With battery voltage warning device, the power supply is cut off during low power.5.Safety switch key is to prevent from unauthorized user.6.Program the button function by computer software.( The program software /data line
need to buy extra )
7.The spare buttons can be programmed to normal, toggle, interlock or start, etc.( The program software /data line
need to buy extra )
8.Start button can be program to be start, normal, toggle function etc.( The program software /data line
need to buy extra )
9. Installed with proportional module for analog signal output (optional)
( The program software /data line
need to buy extra )
F24-60
Standard Configuration:

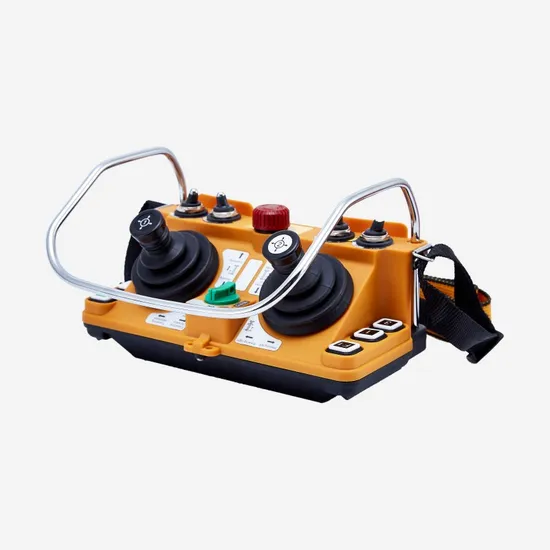

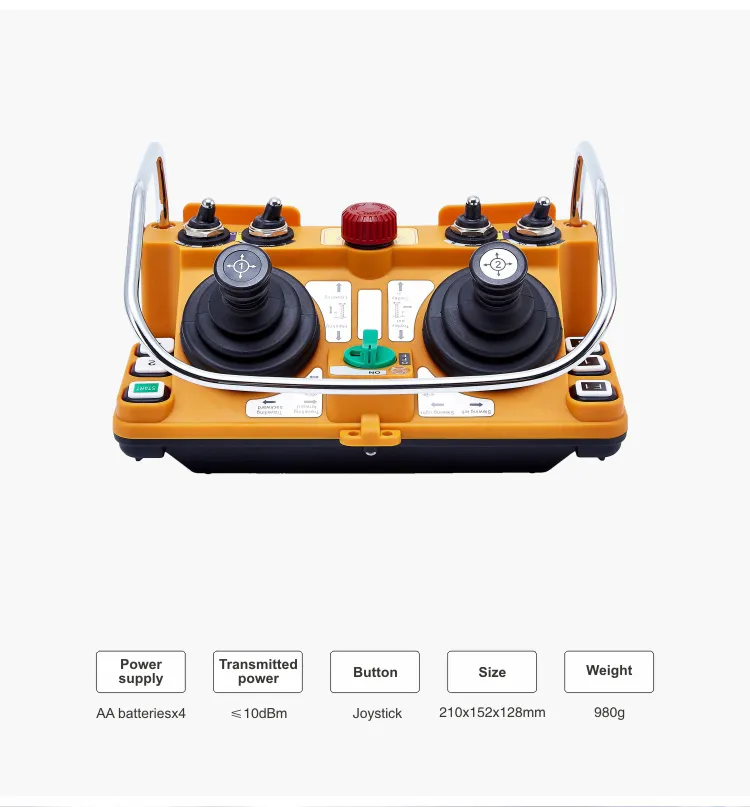

1 pieces transmitters (with hanging belt)

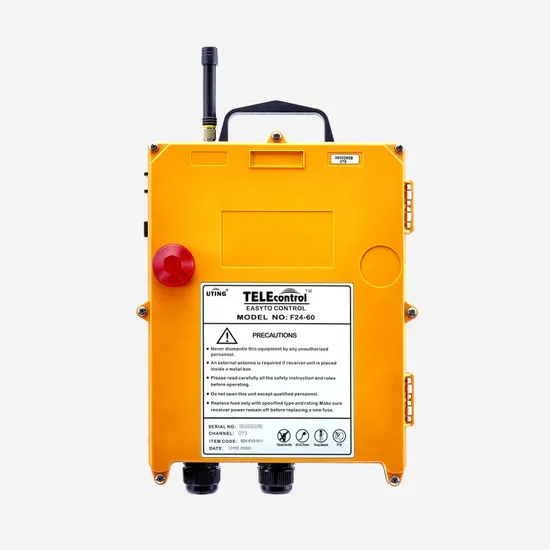

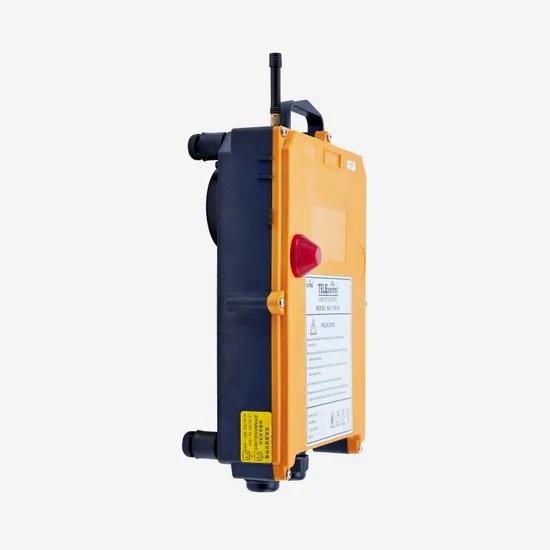

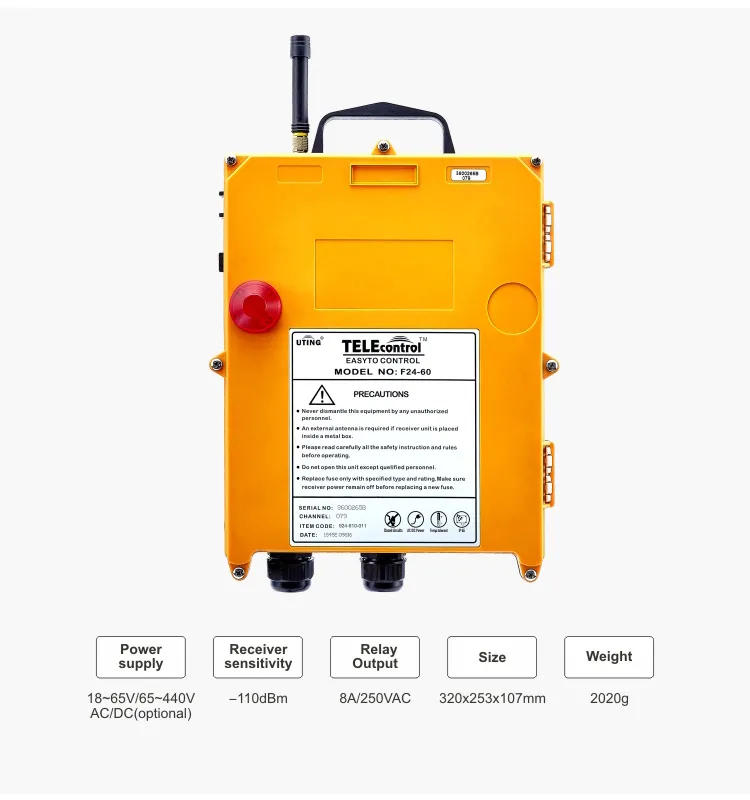

1 piece receiver
with 1.5M cable connector
1 pieces dust bag
1 piece english manual

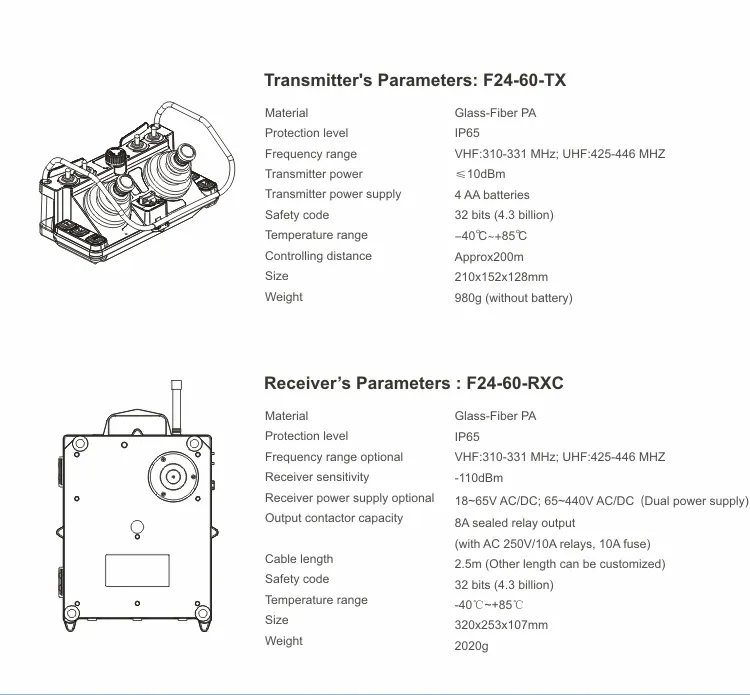

F24-60 Wireless Remote Control Parameters :

Products
Application:
Widely
applied
for
lifting
equipment,
construction
machinery,
cargo
loading/unloading
machines,
water
supply
system,
data
transmission,
the
iron-smelting
and
steel-making,
the
automobile
manufacturing,
paper-making
and
chemical
industry,
steel
structure
processing,
galvanization,
shipbuilding,
railroad,
bridge,
tunnel
construction
and
other
equipment
and
sites
which
can
be
worked
by
radio
controls.
Crane Remote Control are used for tower cranes, overhead cranes, concrete pumps, concrete mixers, shipyard, etc., for industrial, agricultural, clean, drainage and other industries.

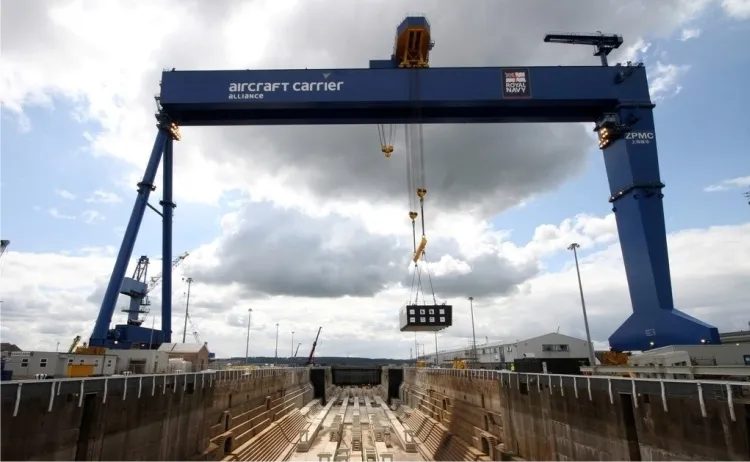

1.Overhead Crane Remote Control
Overhead crane is one of the most widely used areas of industrial overhead crane radio remote control systems. In particular, in metallurgy, automobile manufacturing, paper mills and material warehouses, are all equipped with industrial overhead crane radio remote control systems.2. Mobile crane, truck crane wireless radio remote control system
Typically, the large car crane remote control system is also equipped with a data feedback device, the feedback device can be displayed on the operating system display system, the operator can monitor the data according to the display.3. Concrete pump truck wireless radio remote control system
The traditional mode of concrete pump operation to be completed with the number of people, low efficiency, limiting the performance of concrete pump truck to play. The use of industrial remote control device can maximize the machine's performance. The driver locates the truck, then carry the remote control system to operate concrete pump truck.4. Mining machinery
Mine visibility is low. With remote control systems, greatly increased the safety of operation, comfort and accuracy, saving investment and improve efficiency.5. Crawler slag loader
The use of industrial remote control device, without changing the existing manual mode of operation to achieve the purpose of unmanned to complete the slag operation. The Eliminating the harsh environment, the unclear line of sight, the hidden dangers from high temperature. Improve the efficiency of cleaning operations, improve the working environment of metallurgical workers and reduce the labor intensity of workers.Application:Crane ,hoist ,winch ,forklift ,concrete pump truck ,lifting equipment
