H1Z2Z2-K，红黑太阳能光伏电缆，4mm²，6mm²，带有MC4接头

Preview

基本信息产品详情证书

基本信息

型号编号	PV004
绝缘材料	LSZH
指挥家类型	被困的
品牌	威登电子
认证	TUV
线芯材料	镀锡线
OD尺寸	6.5毫米，7.3毫米
运输包	聚乙烯袋+纸箱
规格	4mm²，6mm²
商标	威登电子
起源	中国
商品编码	8544491100
生产能力	每月30万件

产品详情

Product Description

Preview

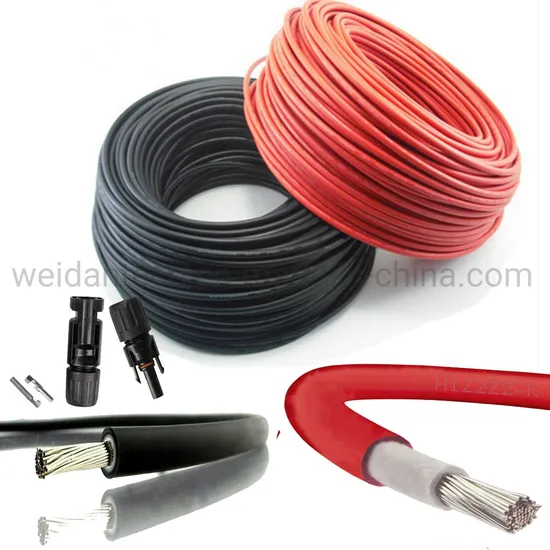

H1Z2Z2-K, EN50618 Black/Red Color Solar Photovoltaic Cable, 2.5mm2/4.0mm2/6.0mm2,
Halogen free Copolymer insulation and Anti-UV
LSZH outer sheath.

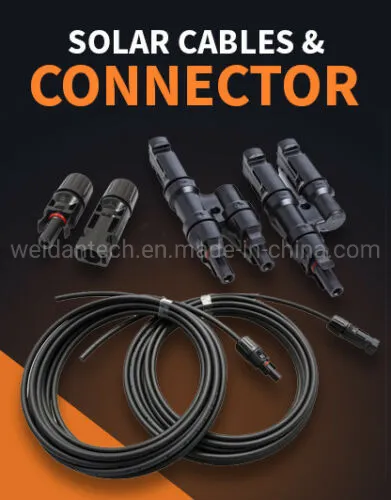

---- Suitable for all photovoltaic systems for cabling of solar modules and connection to the AC/DC inverter.
Characterisitc:
*Duarable Insulation and very nice waterproof quality (IP67) enable
for all kinds of wwather.
* Inner Conductor: Flexible Tinned Copper Wire
*Dielectric: LSZH Halogen free Copolymer (UV resistant)

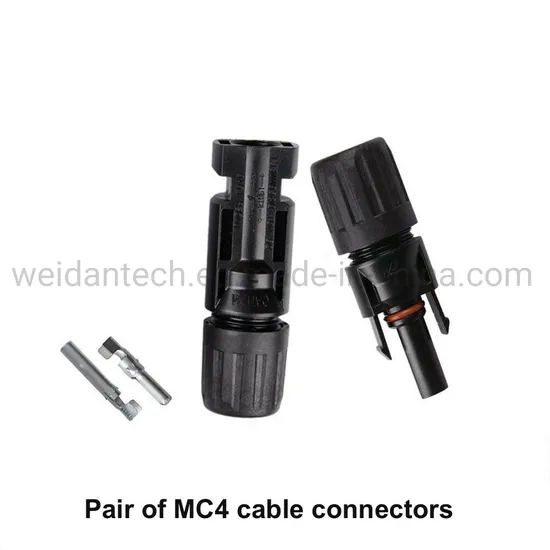

*one side with Male Solar Connector, and the others comes with Female Solar Connectors, with Waterproof IP67
*Colored Cable (RED +Black) easy for use, avoid any mixed connected and short circuit.

Preview

Speficiations:
* Temperature range: -40ºC to 90ºC;
(Move)
-120ºC to 90ºC
(Fixed)
*Nominal Voltage [U0/U] AC 600/1000V, DC900/1500V
*Alternating Text Voltage: AC 6.5KV/ DC:15 KV

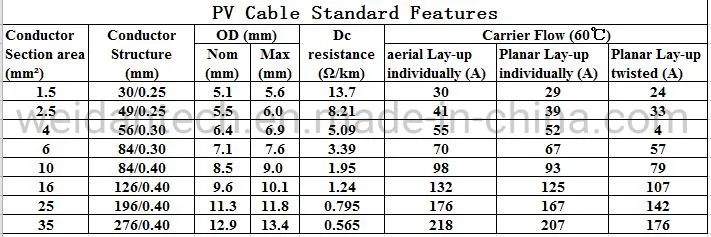

*DC Resistance Conductor: 2.5mm2≤7.98
Ω/km
4.0mm2≤4.95
Ω/km
6.0mm2≤3,30 Ω/km

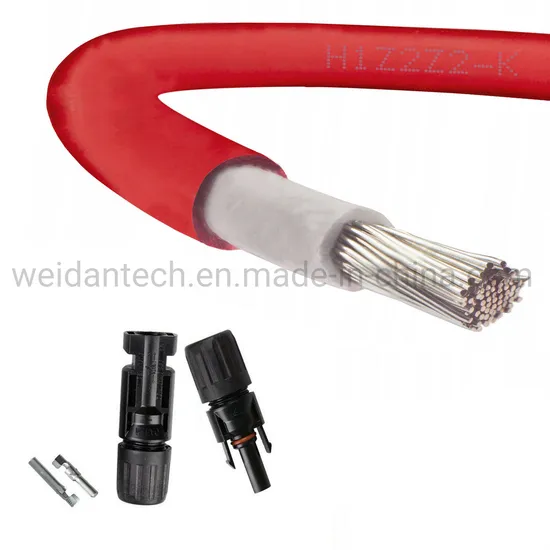

*Cable Structure: Tinned Plated Copper wires, Stranded, IEC60228 Class 5 Double Insulated isolations,
1500V EN50618
* Chemically Cross-linked special compound
