基本信息
型号/编号 | PP |
形状 | 圆导线 |
导体材料 | 铜线 |
交通包裹 | 货盘 |
规格 | 0.6-4.0毫米 |
商标 | 温杜 |
起源 | 中国 |
商品编码 | 85441100 |
生产能力 | 年产量 2500 吨 |
包装尺寸 | 50.00厘米乘以50.00厘米乘以40.00厘米 |
包装总重量 | 60.000公斤 |
包装尺寸 | 50.00cm乘50.00cm乘40.00cm |
包装总重量 | 60000公斤 |
产品详情
Product Description
Preview

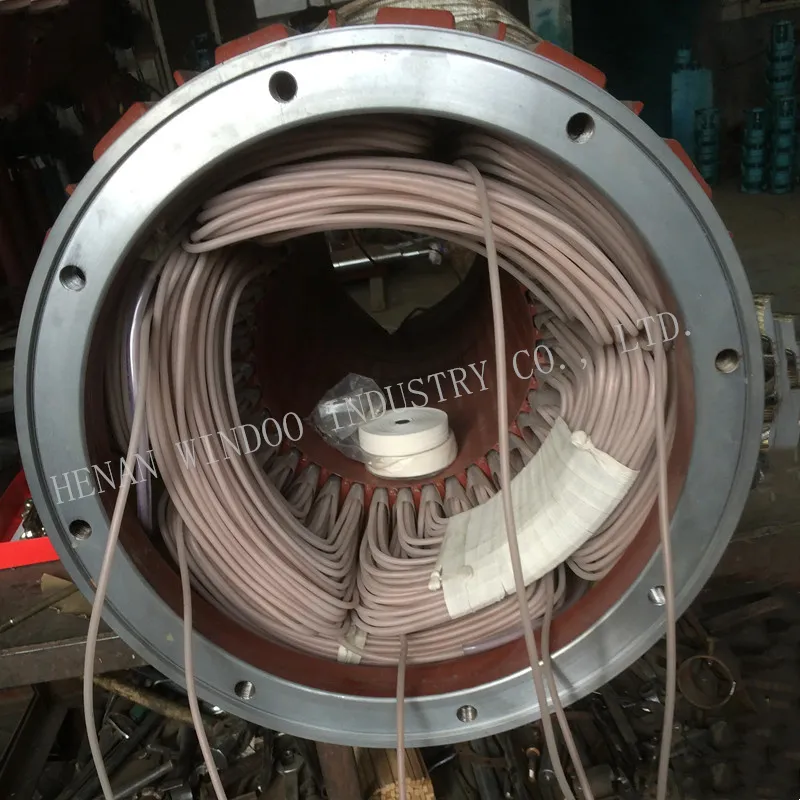

The double-layer cladding design is adopted, the conductor is oxygen-free copper wire, and the inner layer uses imported high-voltage polyethylene as insulation layer, which has good insulation performance. The outer layer adopts the polymer material - nylon as the sheath, which is waterproof and oil resistant. It has the advantages of corrosion resistance, acid resistance, alkali resistance, salt resistance and high mechanical strength. It is suitable for submersible water pump and oil-immersed sewage pump.
Preview

Preview
We produce polyethylene insulated nylon sheathed water-resistant winding wire, adopt JB/T4014 technical standard, to regulate its varieties, specifications, technical requirements and inspection standards, it is used in AC rated voltage U0/U 450/700V water-filled submersible motor and pump motor under similar conditions with polyethylene insulated nylon sheathed water-resistant winding wire, PE waterline for short
Preview

Preview
The rated working voltage of PE winding wire is 450/750V
PE winding wire works in water for a long time, the PH value of water is 6.5~8.5, and the water temperature is not more than 10kgf/cm
The long-term operating temperature of PE winding wire should not exceed 70ºC

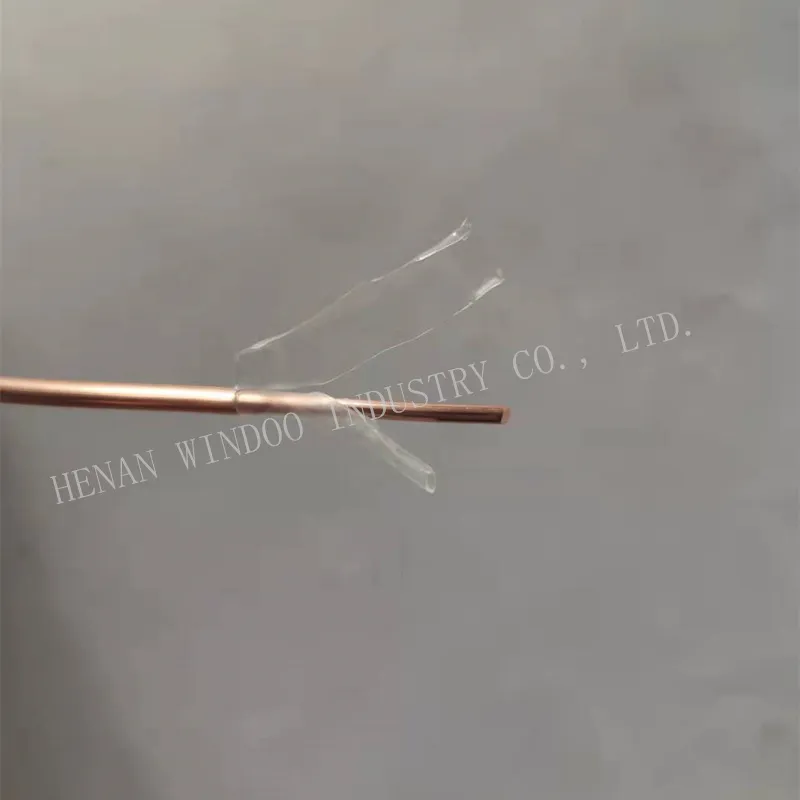

1. Winding wire structure:

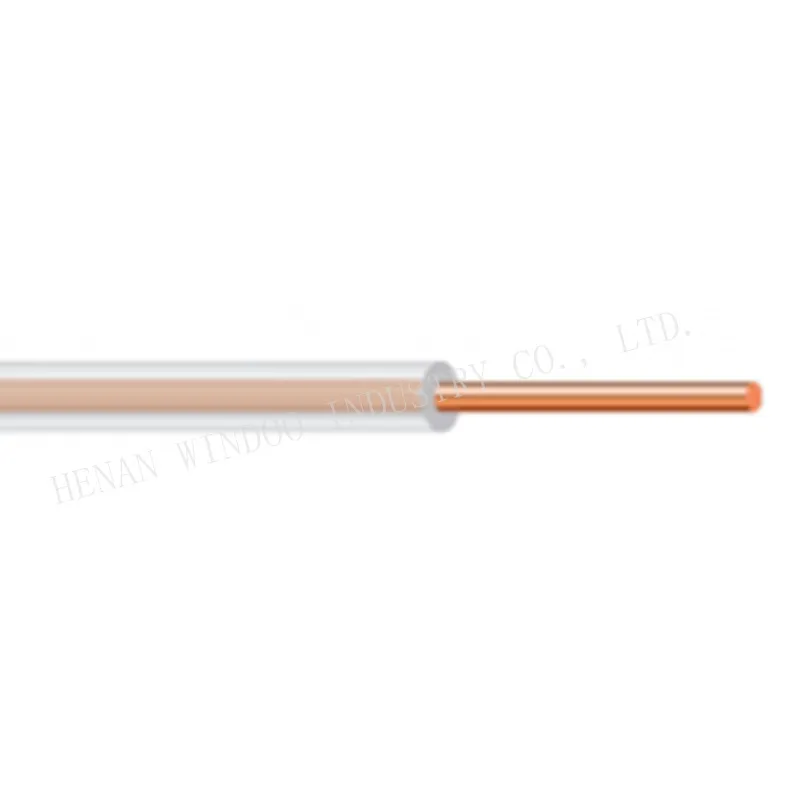

Bare copper wire +PE insulation +PA sheath
PE winding wire works in water for a long time, the PH value of water is 6.5~8.5, and the water temperature is not more than 10kgf/cm
The long-term operating temperature of PE winding wire should not exceed 70ºC
1. Winding wire structure:
Bare copper wire +PE insulation +PA sheath
Preview

Preview
2. Specifications:
Single strand diameter: ∅0.47mm--∅3.6mm
Multi-strand wire diameter: 0.80mm*7-1.12mm*7 0.69mm*19-1.18mm*19
Single strand diameter: ∅0.47mm--∅3.6mm
Multi-strand wire diameter: 0.80mm*7-1.12mm*7 0.69mm*19-1.18mm*19
Preview

Preview
3,PE+PA type submersible motor winding wire
Preview

Preview
