Myra line, also known as Myra line." Mylar, a transliteration of "Mylar," is the world's first PET film successfully developed and industrialized by DuPont in the United States .

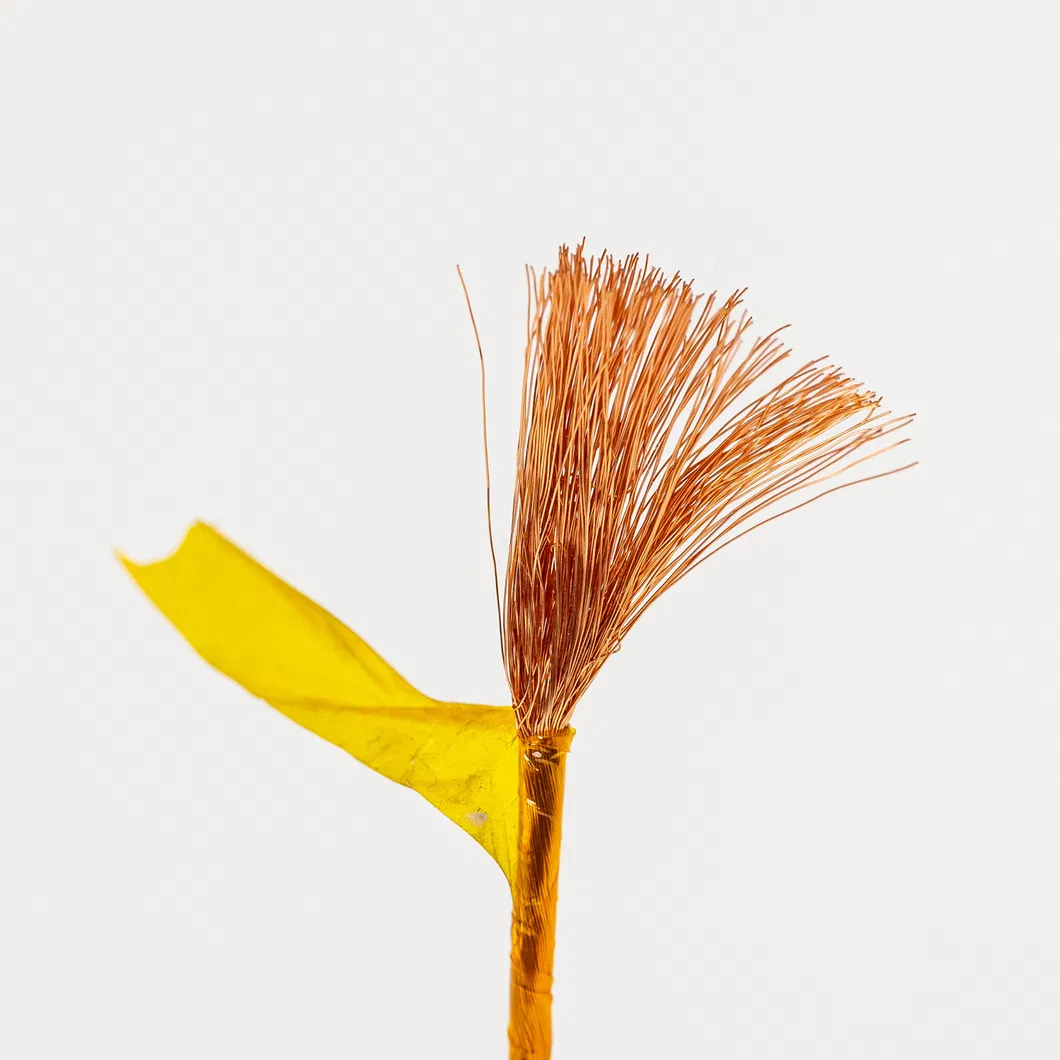

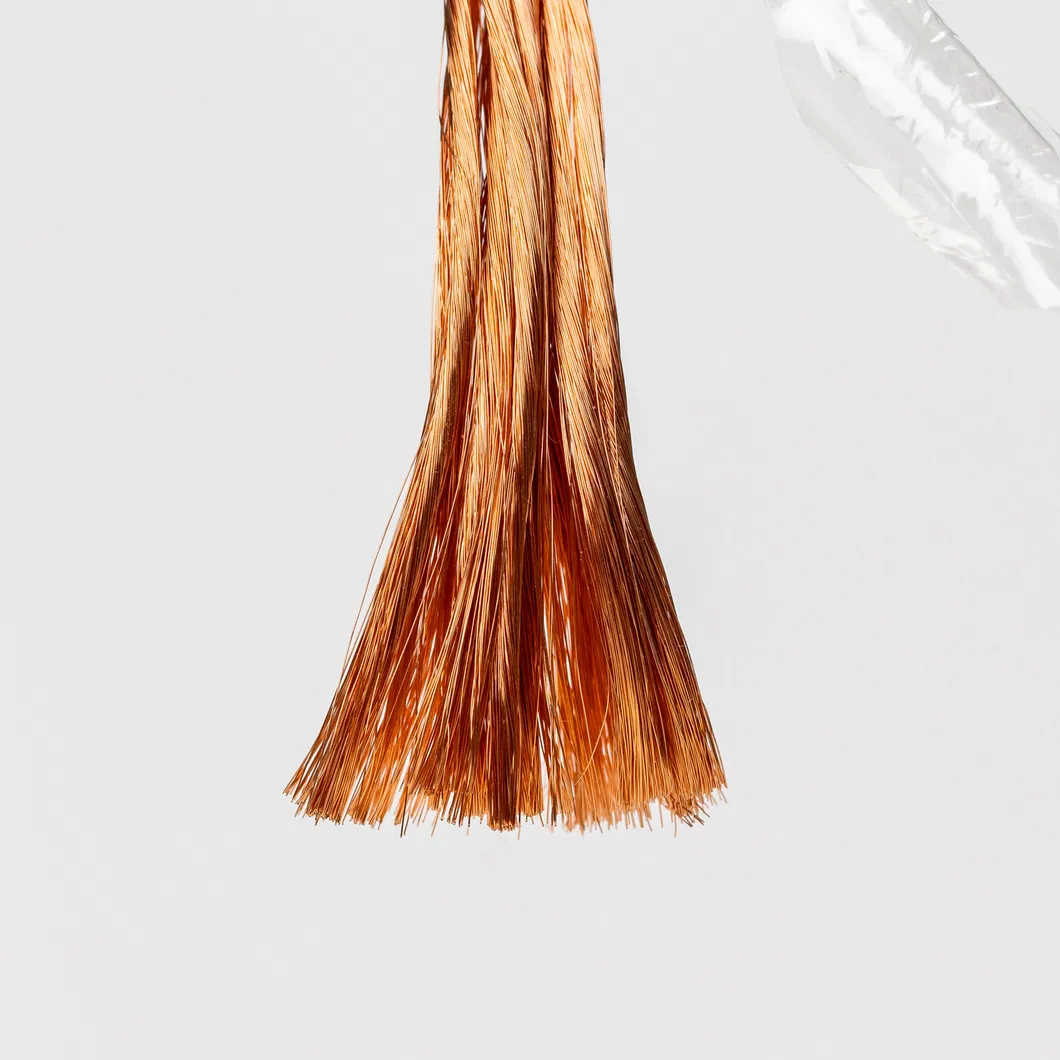

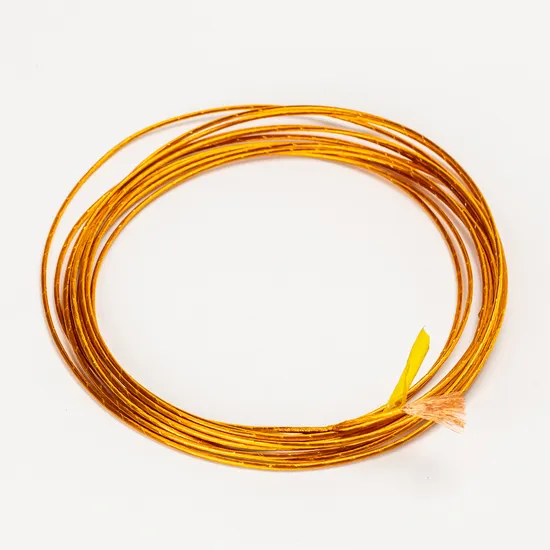

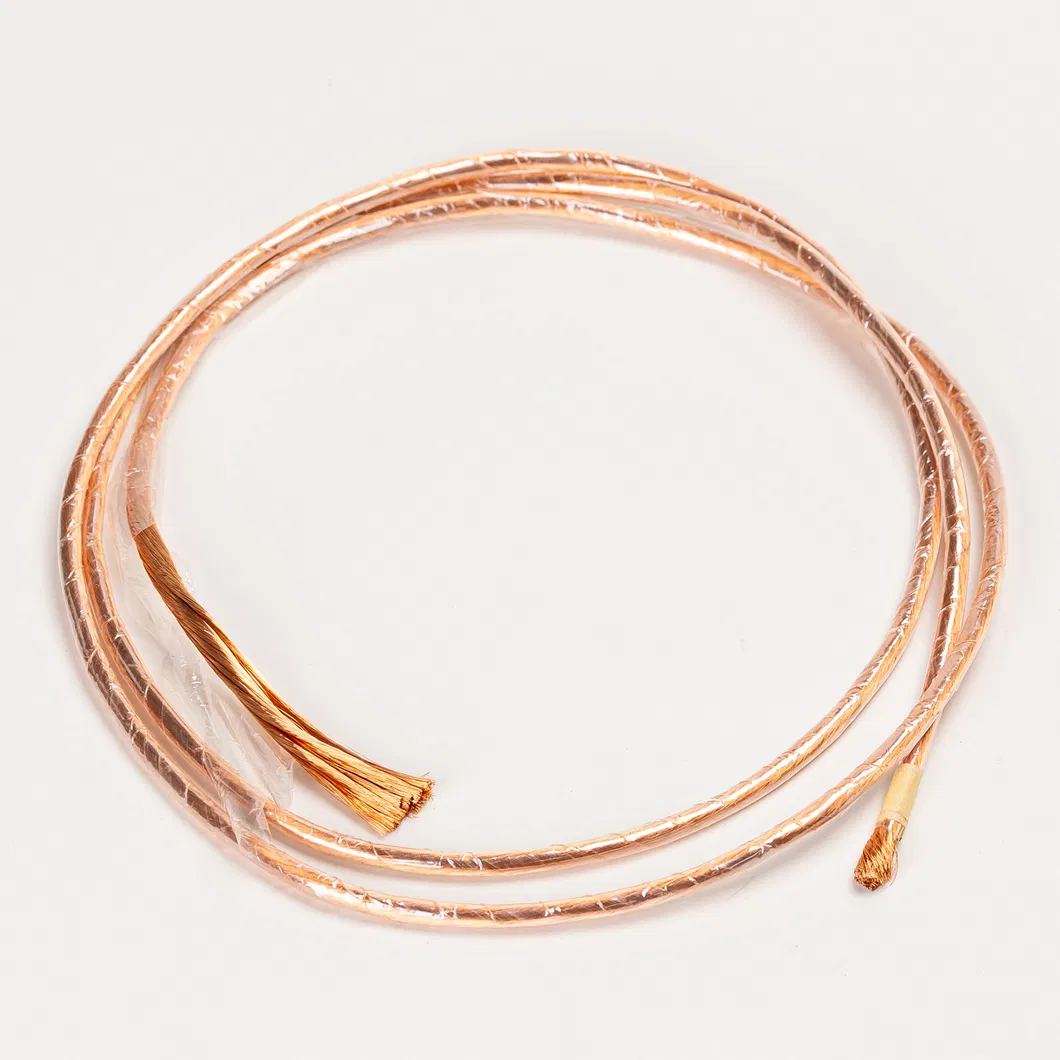

Mylar wire is LITZ wire, enameled twisted wire outside to add a layer or two layers of Mylar film, so as to increase the insulation voltage of the wire, in addition to play a shielding role. Can replace silk-covered wire.
Due to its superior electrical properties, good heat resistance, surface smoothness, transparency and mechanical flexibility, Mylar can be used as an insulating sheath to wind high frequency inductors and transformers for converters, communication equipment, ultrasonic equipment, sonar equipment, video equipment, radio equipment and thermal inductance equipment
.
Mylar wire definition: more than 2 strands of enameled wire single wire, twisted together with a certain structure and a specific skein. Features: Since each enamelled wire tends to occupy every possible position, such a design can balance the continuity of magnetic flow and because of the reactance of individual independent single enamelled wire, so that the current extension of the wire is consistent, the ratio of AC impedance value and DC impedance value will approximate to one, so it is widely used in high "Q" value of the lineApplications: High frequency inductors and transformers, converters, communication equipment, ultrasonic equipment, sonar equipment, video equipment, radio equipment and thermal inductance equipment, etc.Number of shares: a molding 2-200 sharesb Multiple molding 2-2000 strands (depending on finished outside diameter)Finished outer diameter: 0-6mmSingle line range: 0.03-0.50mmSkein: 6-100 mm/ turnStranding: According to customer requirements, can choose "S" or "Z" type

Product Parameters
Name
Polyimide multiple membrane coated wire
conductor material
copper/aluminum /CCA
Conductor diameter
0.03~1.0mm
Type of insulating paint
2~10000root
Stranding mode
Single/double
Type of insulating paint
UEW/PEW/EIW/AIW
film thickness
0/1/2/3
The material is laminated
KAPTEN
thermal class
B(130)/F (155)
total cross sectional area
30mm²
Film thickness
0.025mm/0.050mm
The number of times insulation is wrapped
1~12

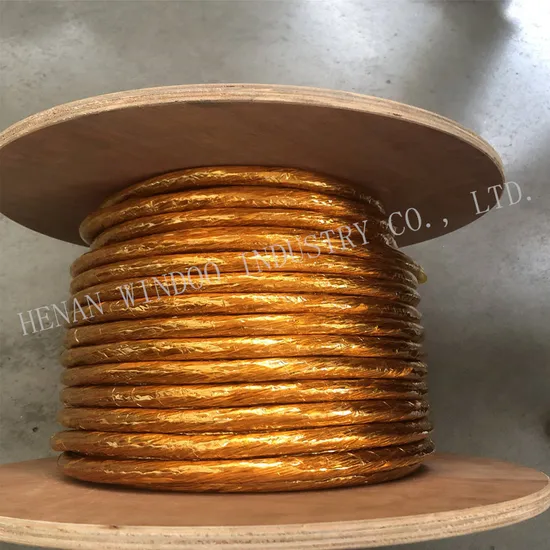

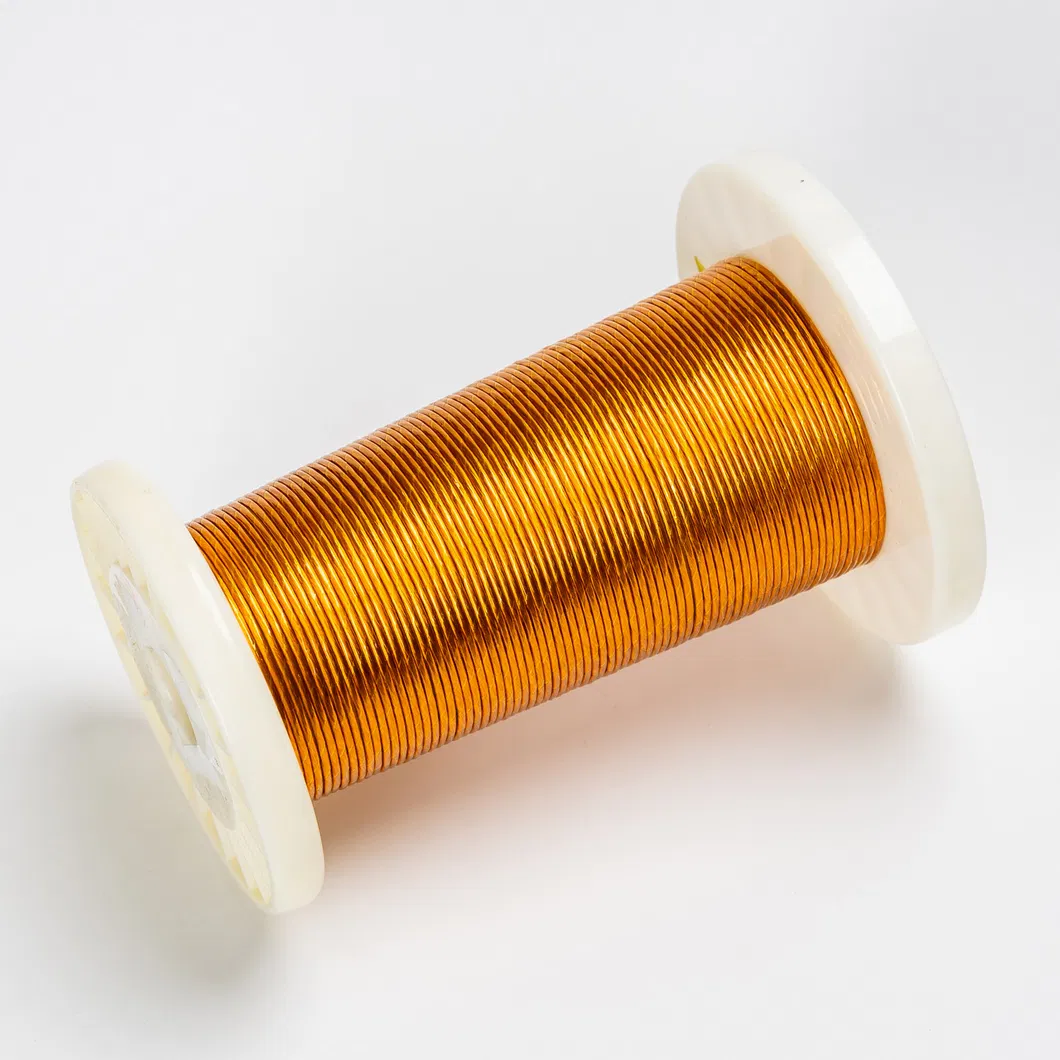

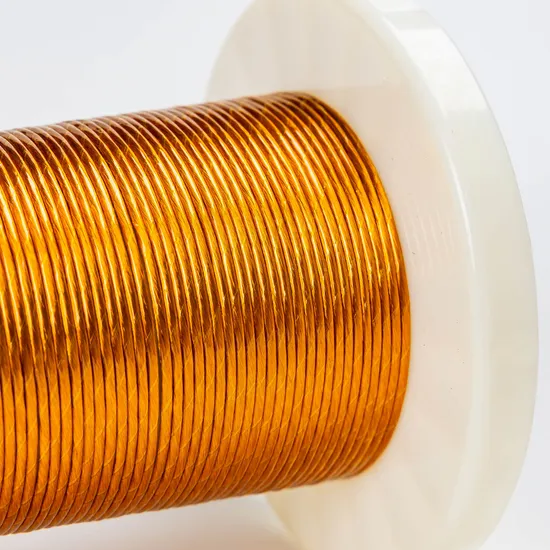

Reel size
PT-10/PT-15/PT-25/
400/500axis
Overlap number
30~80%
length of lay
3~100mm
Finished outside diameter
0.15~10mm
application
Ultrasonic equipment/photovoltaic inverter/high-frequency inductor/transformer/ultra-high voltage transformer/Marine power supply/charging pile power module magnetic components
advtantage
The product is designed to meet the high temperature resistance, low temperature, electrical insulation, adhesion, radiation resistance, can meet the safety regulations instead of three layers of insulated wire
