Welding Cable H01N2-D
These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for outside installation in dry, moist and wet areas.- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Strands to VDE-0295 as listed below
- Synthetic or paper separator over core
- Polychloroprene rubber (neoprene) jacket EM5
Product Parameters
Model
H01N2-D Welding Cable
Conductor
Class 5 copper conductor for
H01N2-D Welding Cable
Class 6 copper conductor for H01N2-E Welding Cable
No. of Cores
1
Conductor Type
stranded
Insulation
Rubber
Jacket(Sheath)
Rubber
Test Voltage
1.0 KV
Nominal cross-sectional area of conductor(mm²)
10~240(mm²)
Application
Electric connect cable wire

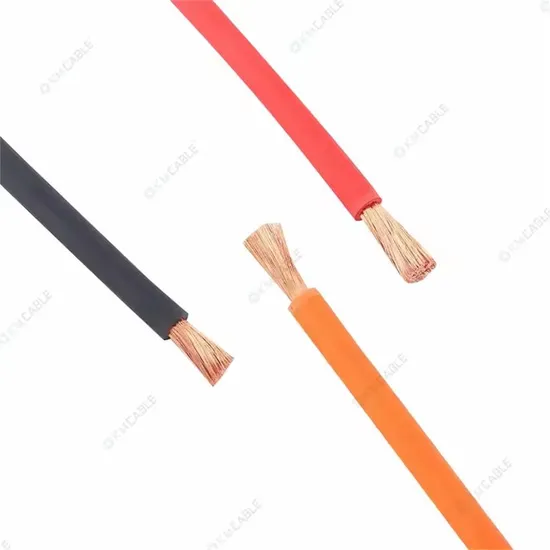

Colors
Black , Blue or Customized
Ambient temperature
-40ºC ~+90ºC
Max. Temperature at conductor
+120 ºC
AWG
Cross area mm2
Cable diameter mm
Cable weight kg/km
8
1*10
9.0
135
6
1*16
10.5
205
4
1*25
11.3
302
2
1*35
12.8
420
1
1*50
14.5
586
2/0
1*70
16.8
798
3/0
1*95
20.8
1015
4/0
1*120
22.3
1310
300MCM
1*150
24.6
1620
350MCM
1*185
25.9
1916
500MCM
1*240
27.3
2540
Detailed Photos

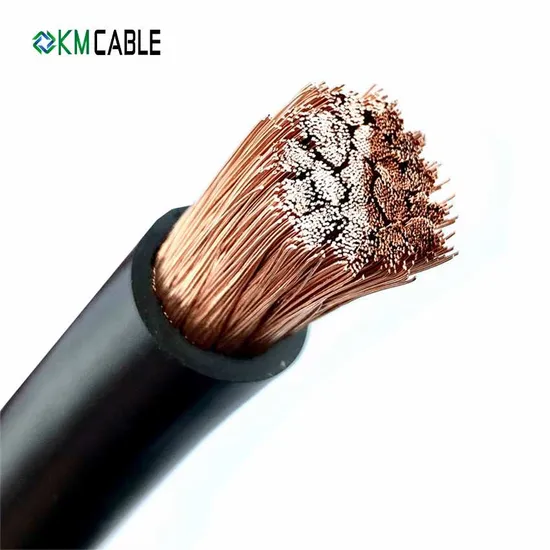

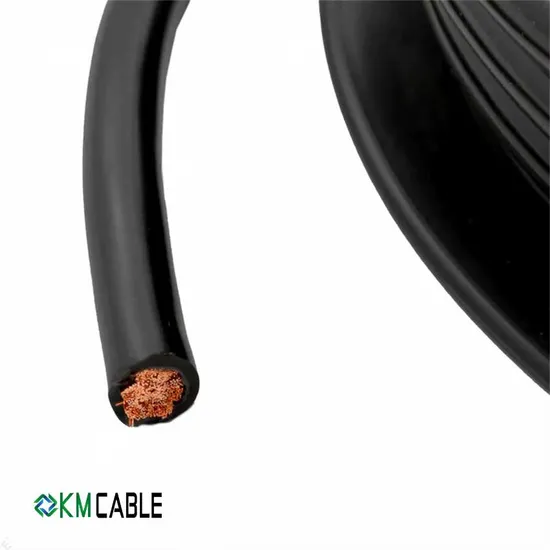

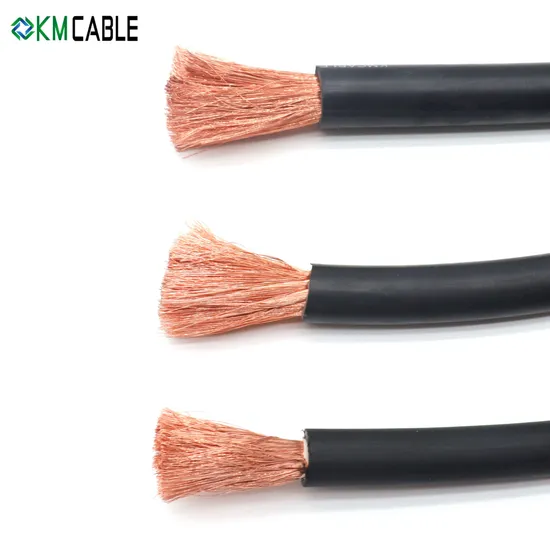

Welding Battery Cable stands out as a premium solution designed specifically for Welding, Solor System, Battery Connection applications, boasting exceptional performance and reliability. Its unique feature lies in the use of pure copper as a conductor, ensuring superior conductivity and flexibility for users.Pure copper
High Conductivity: Pure copper
conductors offer excellent electrical
conductivity,minimizing energy loss in
electrical systems.Corrosion Resistance: Copper's corrosion
resistance ensures long-term stability
and reliability, making it a preferred
choice in various applications.High Flexible Cable
Designed specifically for welding machine,
these high-voltage welding
cables offer unparalleled flexibility, guaranteeing superior performance in various environments and applications for your welding machine.Application
