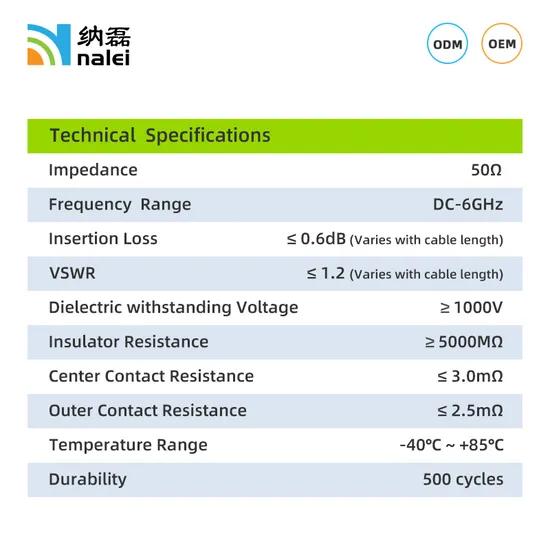

基本信息
型号编号 | NL-J01-2205022 |
材料 | 黄铜,镀金 |
阻抗 | 50欧姆 |
D/C,即:支取。 | 6吉赫(Giga赫兹) |
频率范围 | DC至6千兆赫 |
VSWR(电压驻波比) | ≤ 1.2(随电缆长度而变化) |
耐久性 | 500次 |
温度范围 | 负四十摄氏度至正八十五摄氏度 |
交通运包 | 纸箱 |

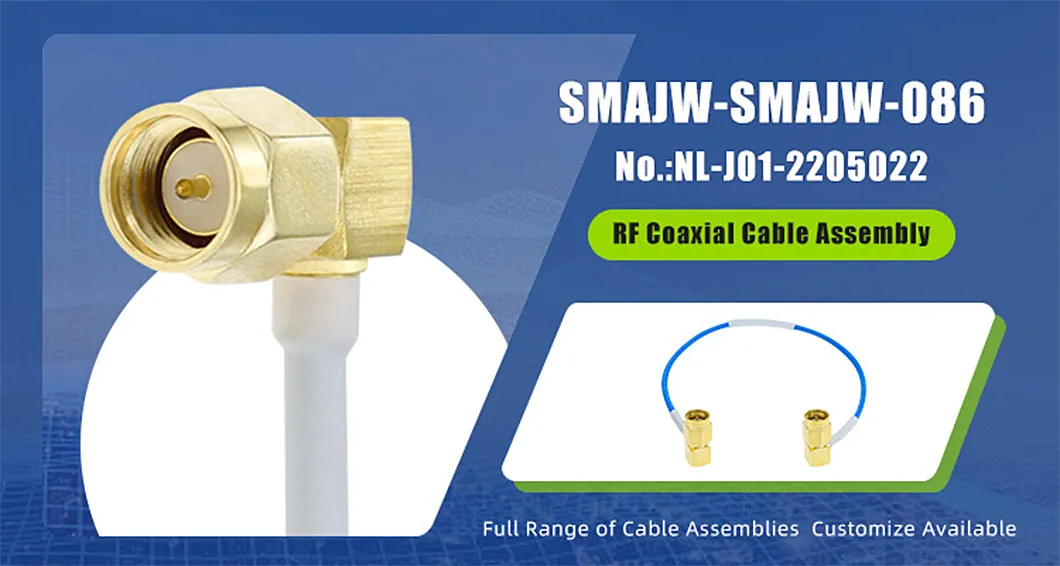

规格 | SMAJW-SMAJW-086 |
商标 | 纳雷/ODM/OEM |
起源 | 中国 |
产品详情

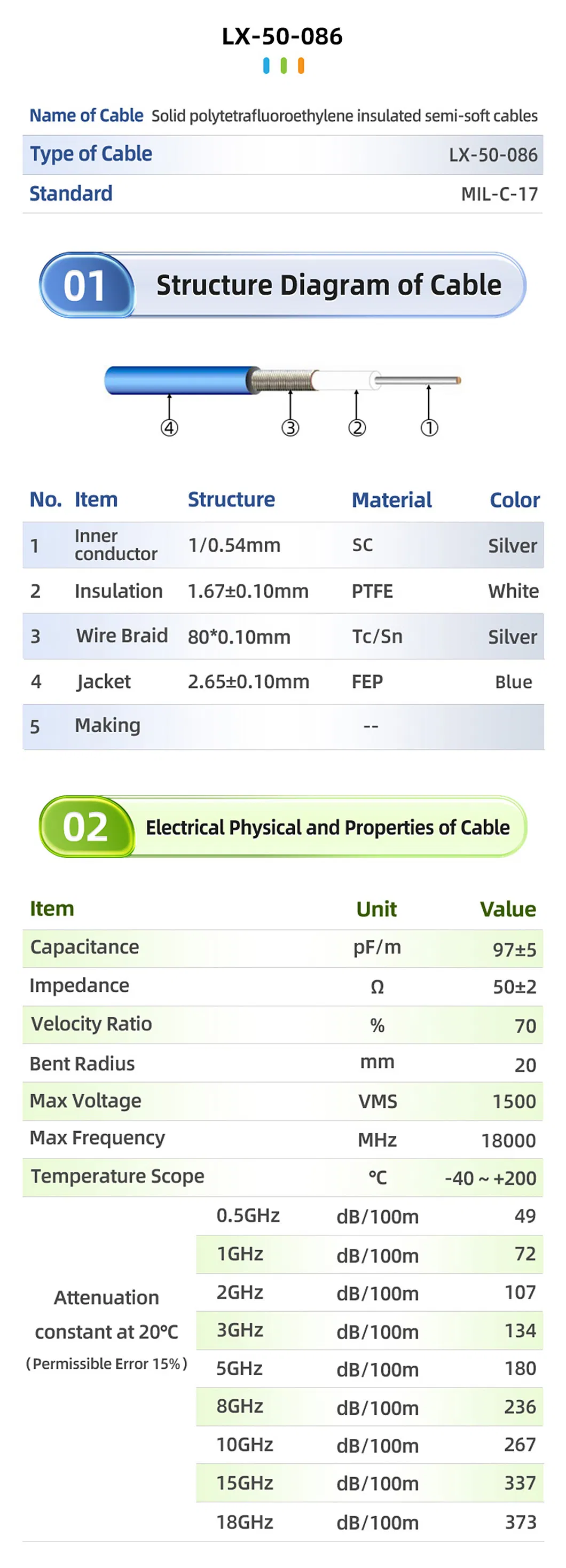

Product Parameters
Preview

Preview

Preview

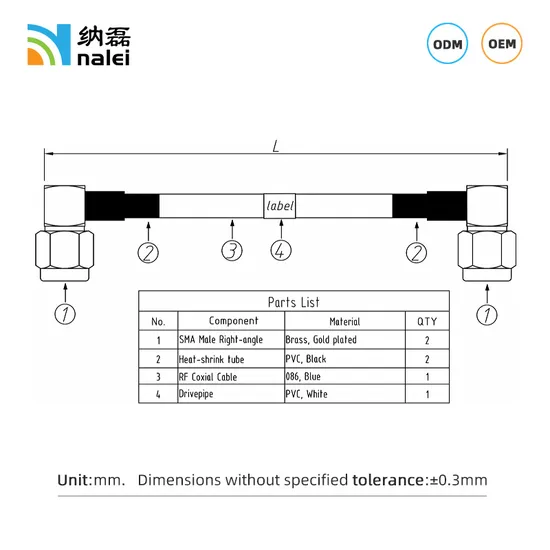

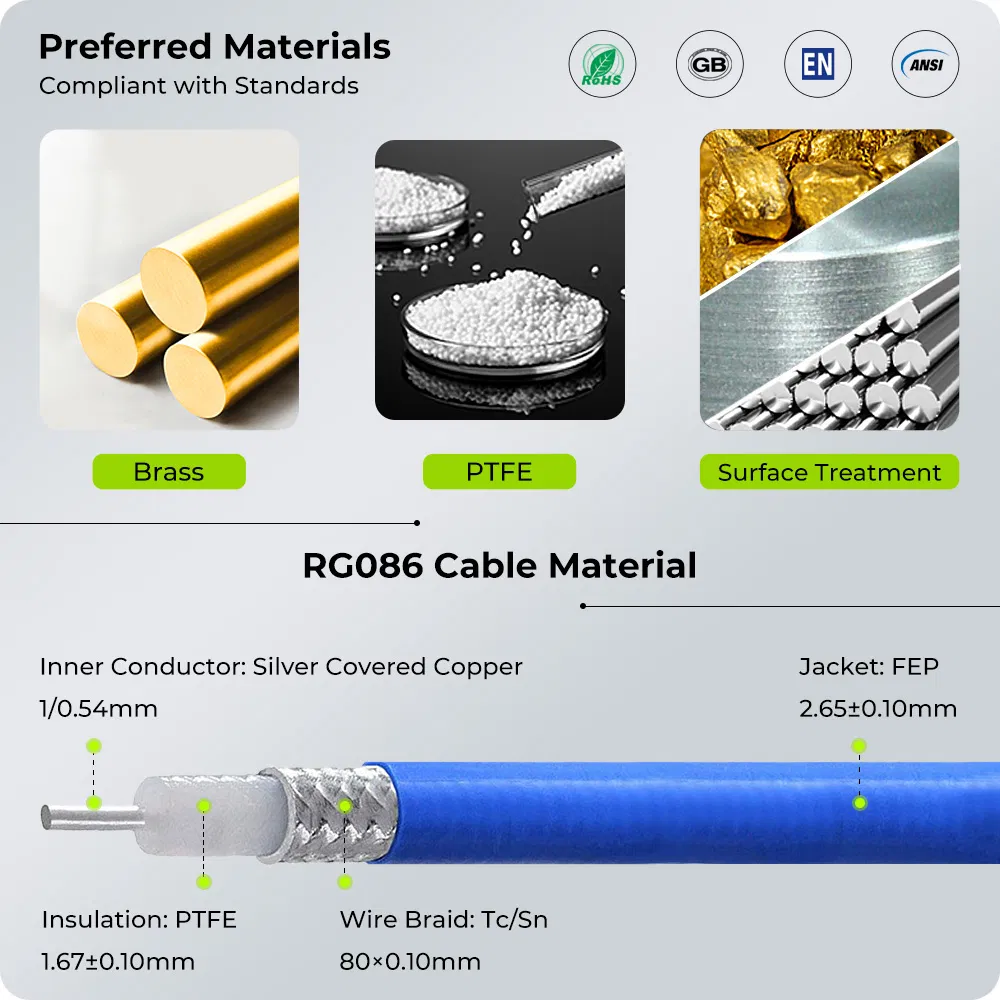

Preferred Materials,Compliant with Standards
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance.
2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear.
3.SMA Male Right-angle:Brass, Gold plated.
4.Heat-shrink tube:PVC, Black.
5.RF Coxial Cable:086, Blue.
6.Drivepipe:PVC, White.
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance.
2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear.
3.SMA Male Right-angle:Brass, Gold plated.
4.Heat-shrink tube:PVC, Black.
5.RF Coxial Cable:086, Blue.
6.Drivepipe:PVC, White.
Preview

Preview

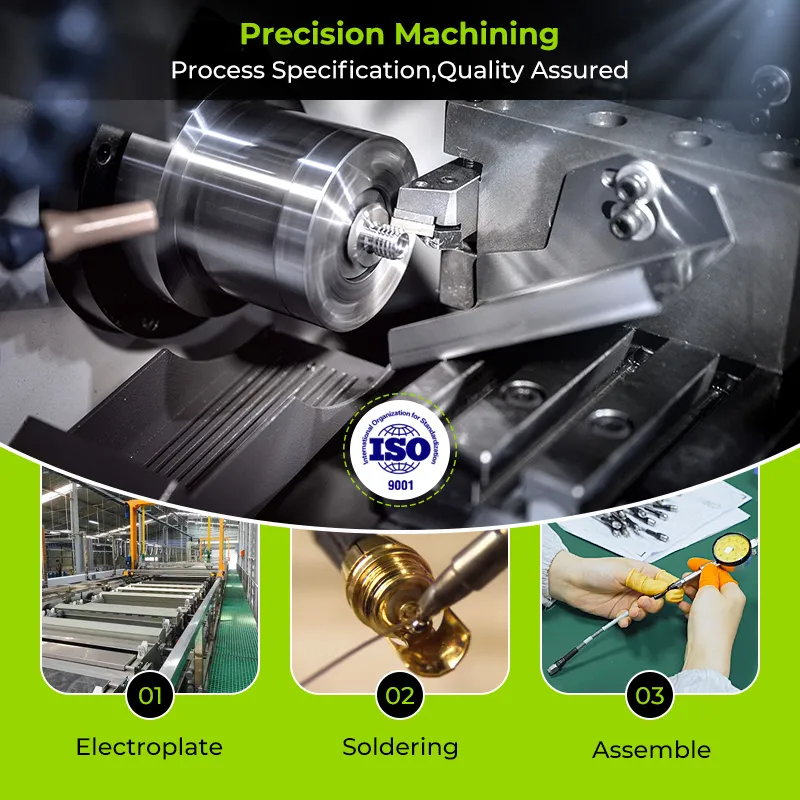

Precision Machining,Process Specification
Preview

Preview
Factory Inspection,Stable Performance
Preview

Preview

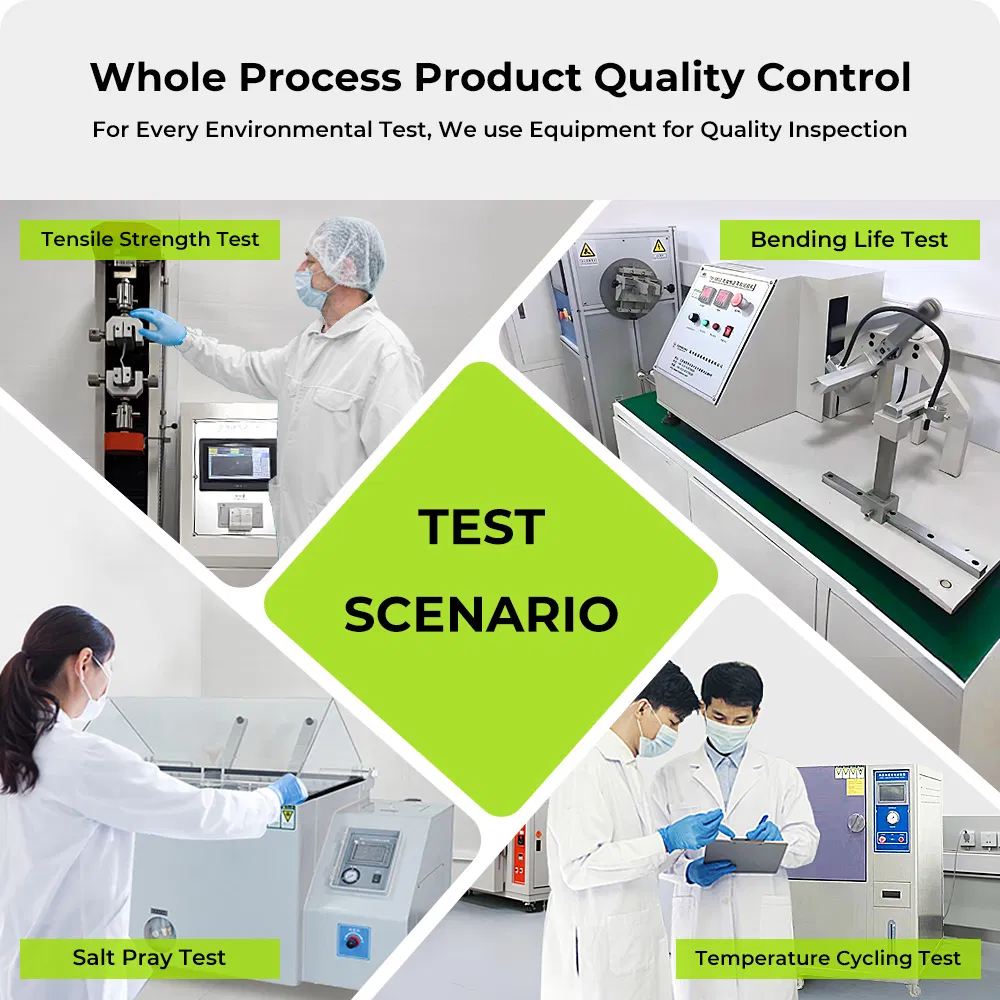

Whole Process Product Quality Control
For Every Environmental Test, We use Equipment for Quality Inspection.
1.Tensile Strength Test.
2.Bending Life Test.
3.Salt Pray Test.
4.Temperature Cycling Test.
Product Display
For Every Environmental Test, We use Equipment for Quality Inspection.
1.Tensile Strength Test.
2.Bending Life Test.
3.Salt Pray Test.
4.Temperature Cycling Test.
Product Display
Preview

Preview

Preview

Preview
Packaging & Shipping
Preview

Preview

Preview
Company Introduction
Preview

Preview
Cooperative Brands
Preview

Preview

Preview
Certifications
Preview

Preview

Preview
FAQ
Preview

Preview
证书
标题:ISO9001系统证书



Preview

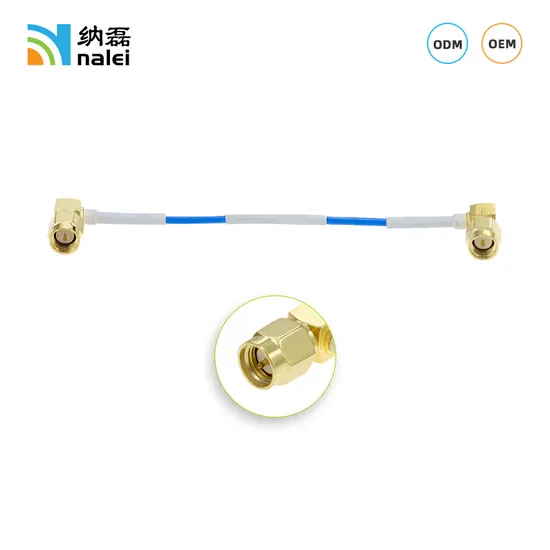

Nalei DC-6g射频同轴电缆组件SMA公头直角连接器至SMA公头直角连接器通过086#电缆
¥11.8 ~ ¥15.71
