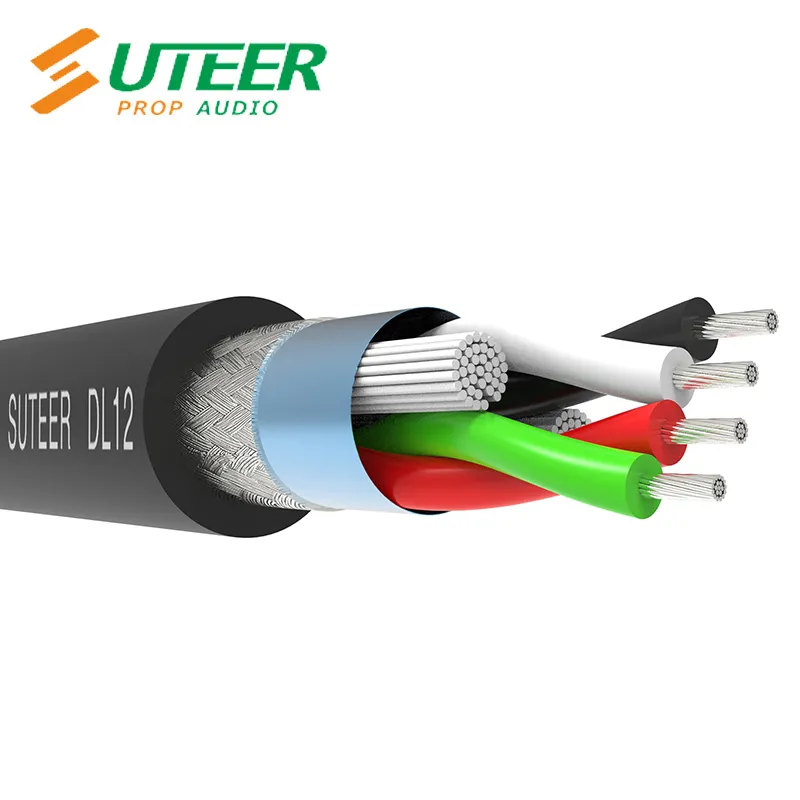

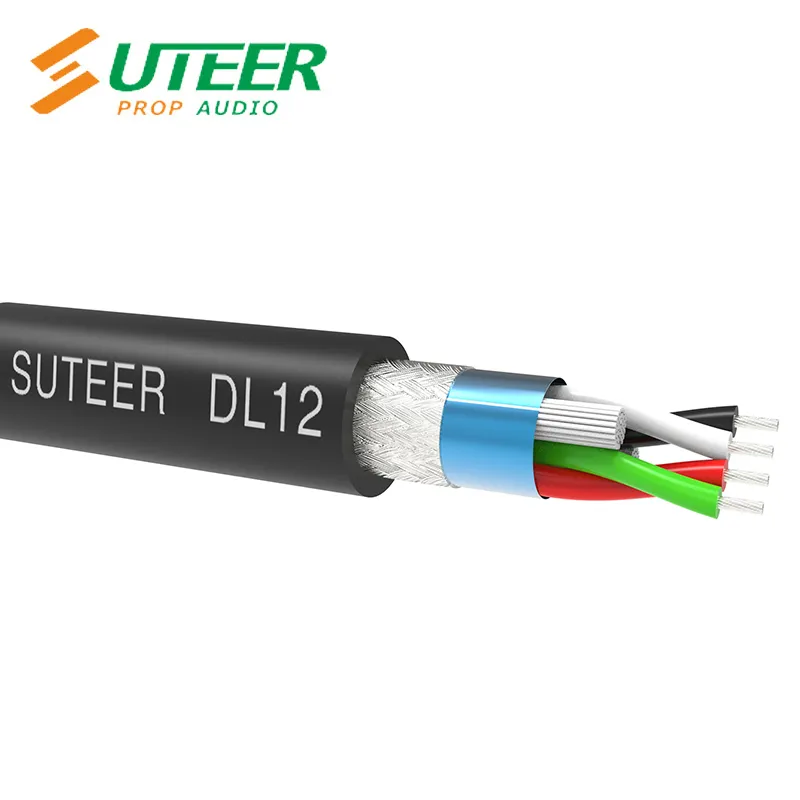

Application:
The DL12 cables are designed for digital signal transmission according to the DMX and AES-EBU standards.It is a cable for digital signal transmission with a characteristic impedance of 110 Ohm, consisting of four conductors with a section of 0.23 mm². They are both surrounded with an Aluminum foil PET and braiding, ensuring the best shielding of the cable, resulting in an excellent protection against interference of all kinds of electromagnetic fields, produced by dimmers, electric motors, power cables and many other electromagnetic interference sources.
Features:
2 x 0.22 mm² (24 AWG)
Stranded Oxygen-free copper

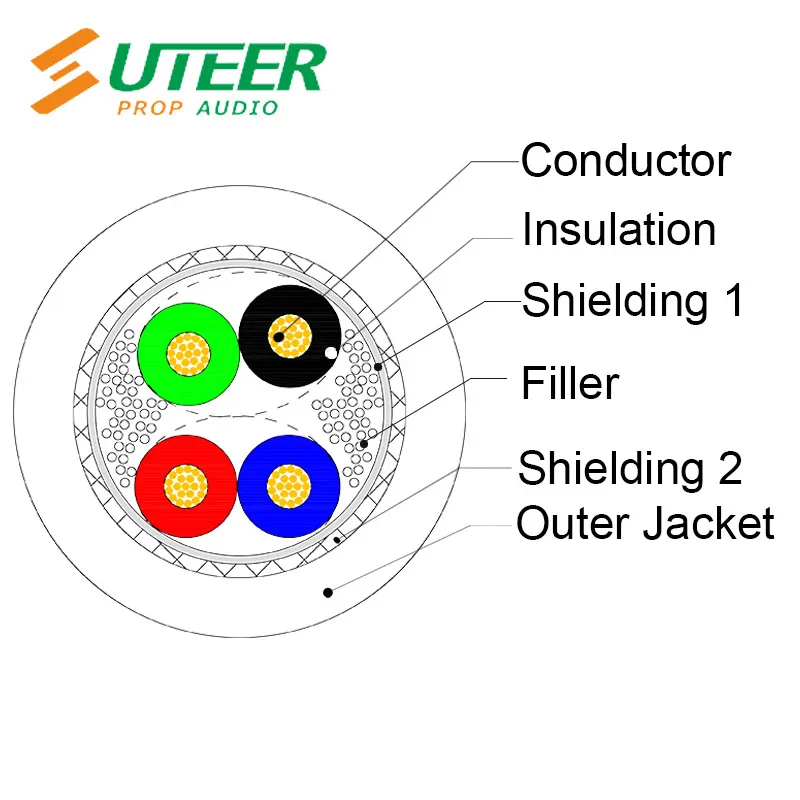

AL/PET Foil and ultra-high density braided shielding
Ultra flexible PVC outer jacket
110 Ω
characteristic impedance
8.0 mm (Ø) outer diameter
Specifications:
