基本信息

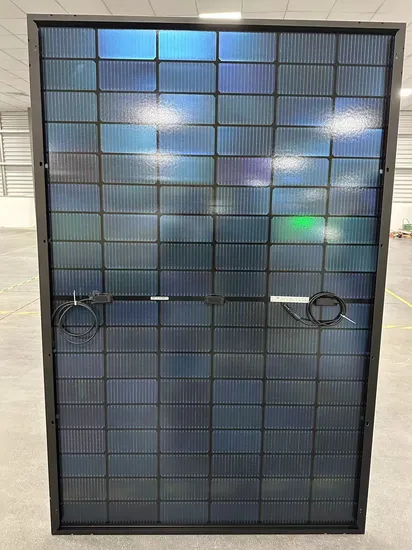

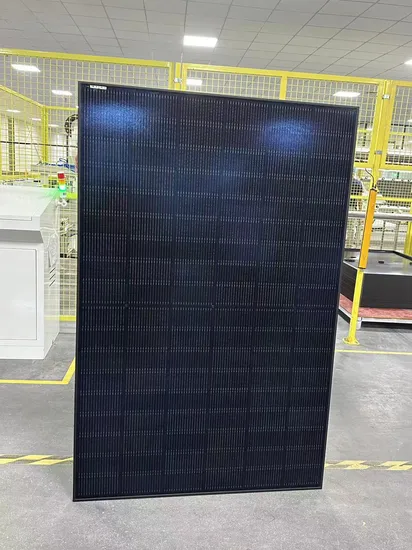

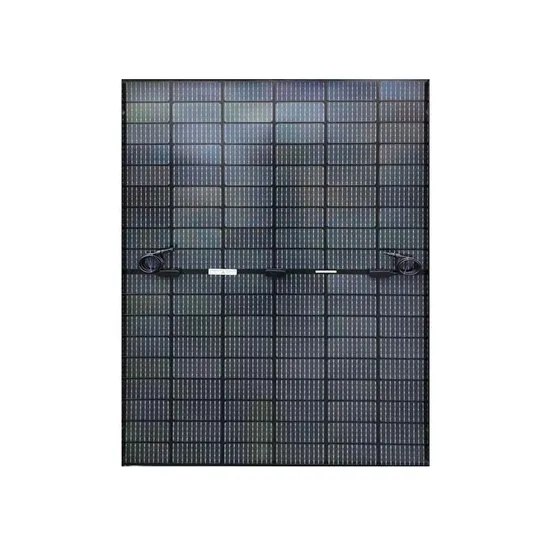

型号/编号 | SF-M18/G108-420W全黑色 |
条件 | 新 |
认证 | EST:东部标准时间(Eastern Standard Time) ISO:国际标准化组织(International Organization for Standardization) CB:认证标志(Certification Body) CE:欧洲共同市场安全标志(Conformité Européenne) |
材料 | 单晶硅 |
最大效率 | 百分之二十二点零二 |
接线盒 | IP68 |
太阳能电缆 | 4平方毫米,300毫米 |
旁路二极管 | 3件 |
运输包 | 带木托盘的纸箱 |
规格 | 1722乘以1134乘以30毫米 |
商标 | 星光远太阳能 |
起源 | 中国浙江 |
商品编码 | 八十五亿四千一百四十三万 |
生产能力 | 每天5000件 |
产品详情
Product Description
Preview
Shinefar Solar
specialize in manufacturing PERC, N-type TOPCon, and HJT solar panel.
Specializing in research and development of solar panel, on/off grid system and hybrid solar system . We devote ourselves to provide excellent one- stop solar solution.
Electrical Specification
specialize in manufacturing PERC, N-type TOPCon, and HJT solar panel.
Specializing in research and development of solar panel, on/off grid system and hybrid solar system . We devote ourselves to provide excellent one- stop solar solution.
Electrical Specification
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
Module type
SF-M18/G108-420
SF-M18/G108-425
SF-M18/G108-430
SF-M18/G108-435
Testing condition
STC
NOCT
Pmax(W)
420
311.64
425
315.35
430
319.06
435
322.77
Vmp(V)
31.69
29.47
31.86
29.63
32.03
29.79
32.20
29.95
Imp(A)
13.25
10.57
13.34
10.64
13.42
10.71
13.51
10.78
Voc(V)
37.43
34.81
37.52
34.89
37.61
34.98
37.70
35.06
Isc(A)
14.18
11.31
14.28
11.39
14.38
11.48
14.49
11.56
Module efficiency
21.51
21.76
22.02
22.28
Cell type(mm)
Mono 182*91,108cells
Operational Temperature
-40~+85ºC
Maximum system voltage
1500VDC
Max series fuse rating
25A
Module dimension
1722*1134*30mm
Packing
37pcs/pallet,962pcs/40HQ container
J-box
IP68
Solar cable
4MM2,300MM
Global Layout
With a solid global presence, Shinefar Solar has been shipping products to Europe, Latin America, North Africa, and Southeast Asia. To better serve our international customers, we have established seven overseas branches and service centers in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK. Furthermore, our European manufacturing base in Spain is currently under construction and is scheduled to commence production in 2026.
Rated products
You May be interested !
Please click the related products.
View more
>>

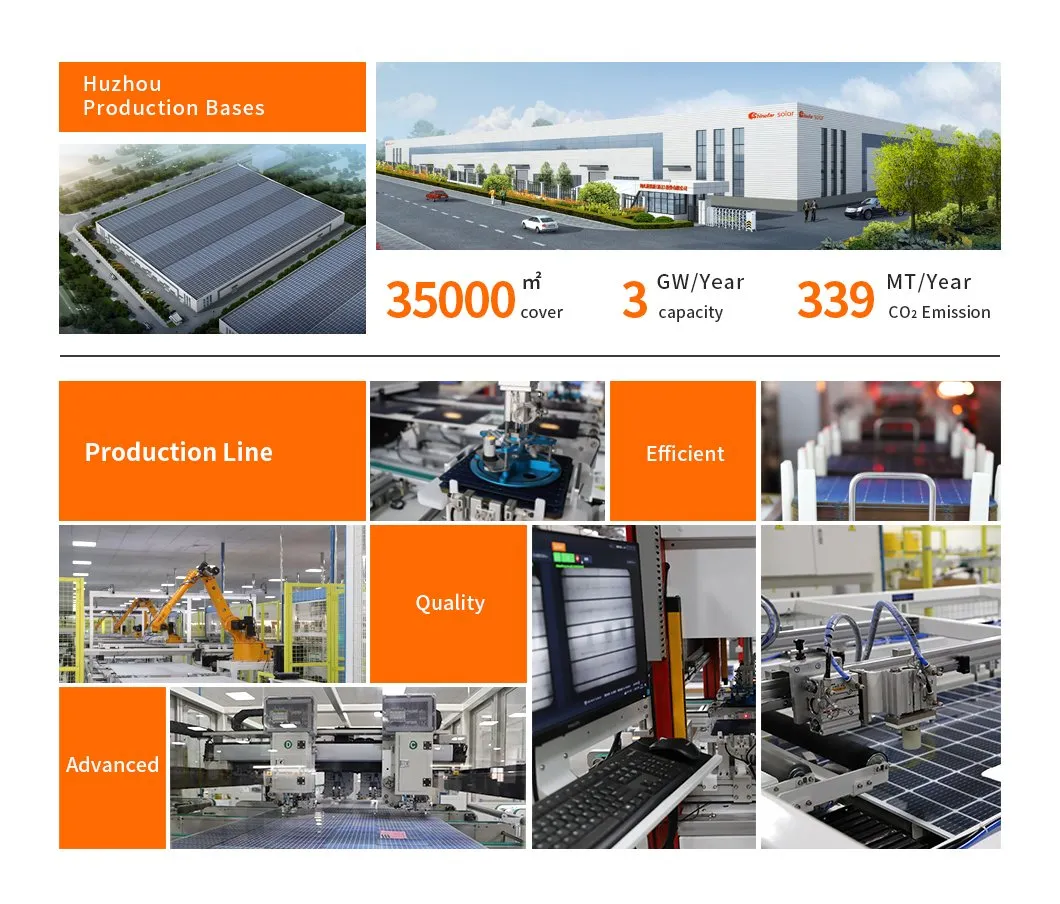

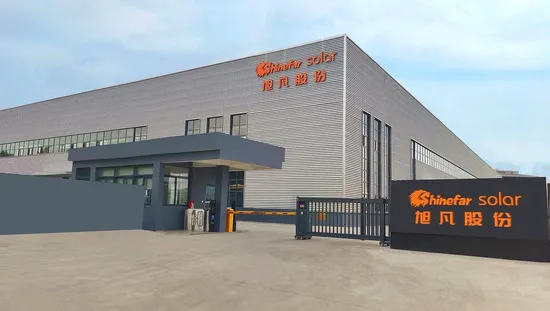

Our factory
Shinefar solar advanced production facilities span over 35000m2
in Huzhou, Zhejiang which with an annual production capacity of 3GW.
The factory currently has 3 fully automated production lines,
each panel passes five quality tests, checks layer by layer, and hand over to the customer's hands.
SF-M18/G108-420
SF-M18/G108-425
SF-M18/G108-430
SF-M18/G108-435
Testing condition
STC
NOCT
Pmax(W)
420
311.64
425
315.35
430
319.06
435
322.77
Vmp(V)
31.69
29.47
31.86
29.63
32.03
29.79
32.20
29.95
Imp(A)
13.25
10.57
13.34
10.64
13.42
10.71
13.51
10.78
Voc(V)
37.43
34.81
37.52
34.89
37.61
34.98
37.70
35.06
Isc(A)
14.18
11.31
14.28
11.39
14.38
11.48
14.49
11.56
Module efficiency
21.51
21.76
22.02
22.28
Cell type(mm)
Mono 182*91,108cells
Operational Temperature
-40~+85ºC
Maximum system voltage
1500VDC
Max series fuse rating
25A
Module dimension
1722*1134*30mm
Packing
37pcs/pallet,962pcs/40HQ container
J-box
IP68
Solar cable
4MM2,300MM
Global Layout
With a solid global presence, Shinefar Solar has been shipping products to Europe, Latin America, North Africa, and Southeast Asia. To better serve our international customers, we have established seven overseas branches and service centers in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK. Furthermore, our European manufacturing base in Spain is currently under construction and is scheduled to commence production in 2026.
Rated products
You May be interested !
Please click the related products.
View more
>>
Our factory
Shinefar solar advanced production facilities span over 35000m2
in Huzhou, Zhejiang which with an annual production capacity of 3GW.
The factory currently has 3 fully automated production lines,
each panel passes five quality tests, checks layer by layer, and hand over to the customer's hands.
Preview

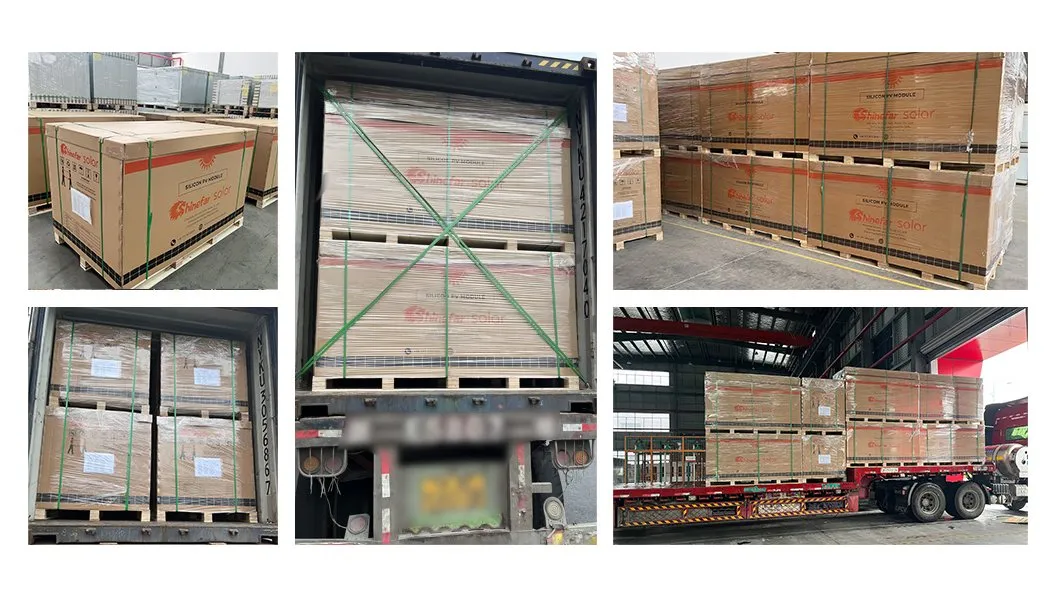

Packaging & Shipping
Preview
Discover Our Solar Panel Packaging Solutions:
1.Standard Packaging:31 pcs/ pallet or 37 pcs/pallet. Efficiency meets practicality with our standard packaging.
2.Special Packaging:1 pcs/carton or 2 pcs/carton.This bespoke approach caters to your specific order sizes and ensures your solar panels arrive in pristine condition.

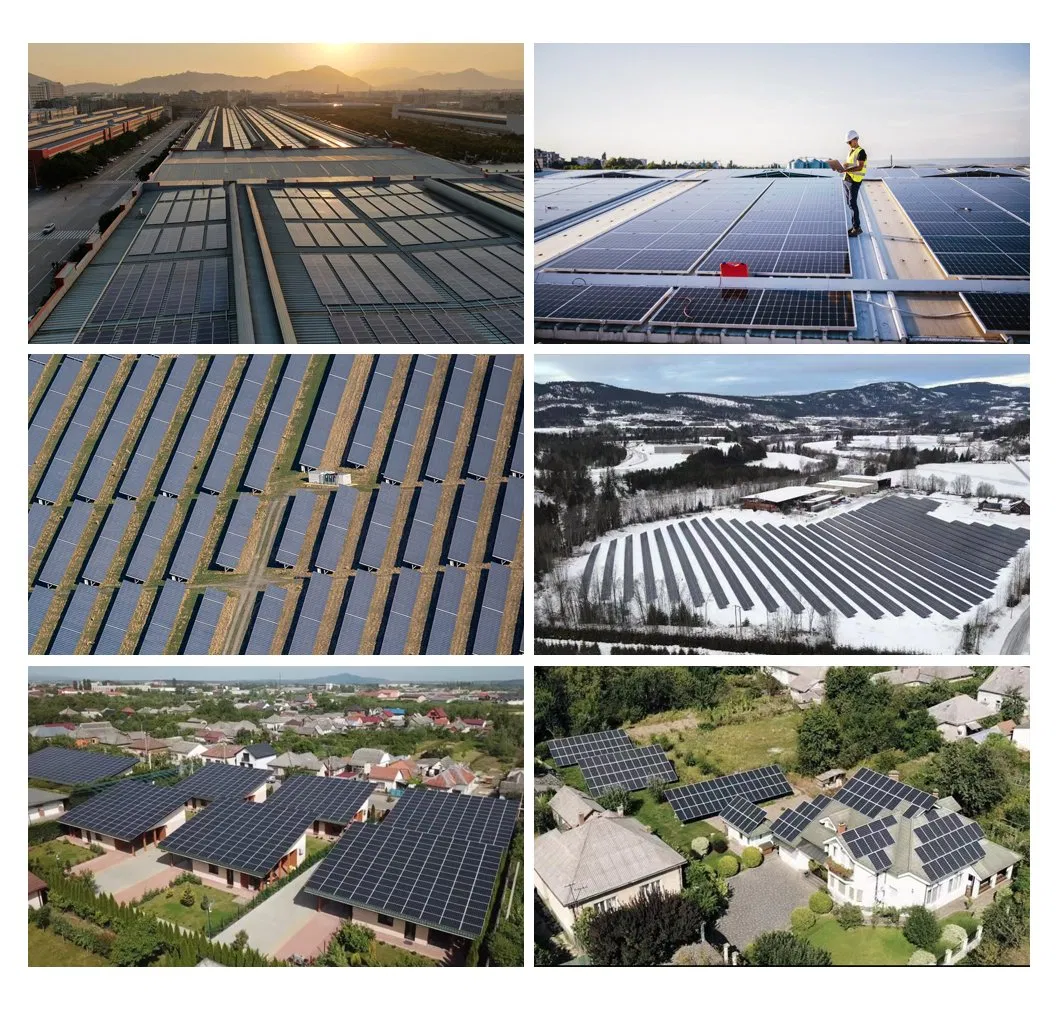

Project case
With a global presence that extends to Brazil, Morocco, Ukraine, Vietnam, and beyond, we are proud to be at the forefront of solar innovation. Our footprint in these diverse regions underscores our commitment to sustainable energy solutions. Through photovoltaic projects that harness the sun's brilliance, we're shaping a greener, cleaner future for
the world.
Global exhibition
1.Standard Packaging:31 pcs/ pallet or 37 pcs/pallet. Efficiency meets practicality with our standard packaging.
2.Special Packaging:1 pcs/carton or 2 pcs/carton.This bespoke approach caters to your specific order sizes and ensures your solar panels arrive in pristine condition.
Project case
With a global presence that extends to Brazil, Morocco, Ukraine, Vietnam, and beyond, we are proud to be at the forefront of solar innovation. Our footprint in these diverse regions underscores our commitment to sustainable energy solutions. Through photovoltaic projects that harness the sun's brilliance, we're shaping a greener, cleaner future for
the world.
Global exhibition
Preview
Certifications
Preview
According to the needs of different market, we have full certification:ISO 9001; ISO 14001;ISO 18001;
TUV; CE; ROHS; IEC;PID ; DEWA; CB; RETIE; immetro;
Ammonia 62716;
slae mist corrosion 61710; SGS-CPVT Ex treme Testing; SGS-Statement.
TUV; CE; ROHS; IEC;PID ; DEWA; CB; RETIE; immetro;
Ammonia 62716;
slae mist corrosion 61710; SGS-CPVT Ex treme Testing; SGS-Statement.
