CR2477
Henli Max's

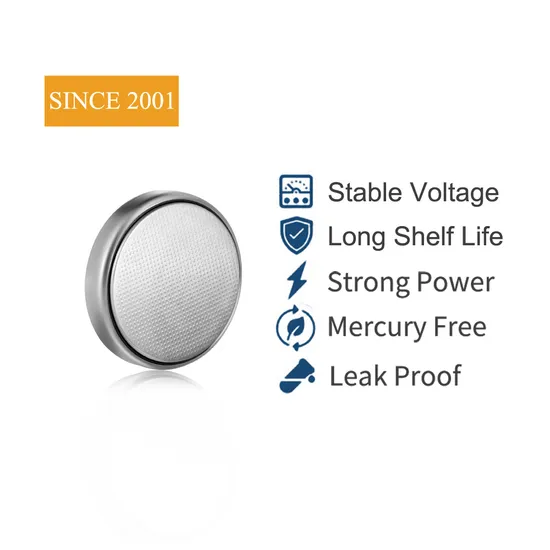

cr2477 lithium battery, an exceptional lithium manganese button battery. With a nominal voltage of 3V and a nominal capacity of 1000mAh, this
henli max cr2477
delivers reliable power for a wide range of applications. Our groundbreaking research and innovative design have overcome the power limitations of traditional lithium batteries, ensuring robust large current working performance.
One of the key advantages of our
cr2477 3v lithium battery

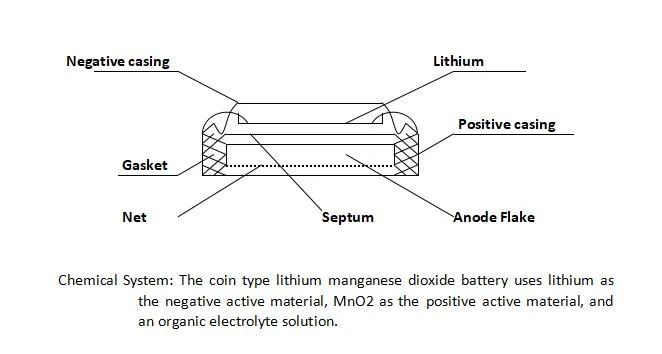

is its excellent anti-leakage performance. We have independently designed and optimized the battery structure to ensure exceptional anti-leakage characteristics, guaranteeing safe and reliable operation. Additionally, our specially developed sealing technology ensures a long storage life for the battery, preserving its quality even during extended periods of storage.
The CR2477 Lithium Manganese Dioxide Button Battery finds extensive applications in various products, including personal computers, electronic shelf labels, toys, e-watches, POS systems, domestic medical equipment, instruments and apparatus, as well as security and protection monitoring devices. With a diameter of 24.5mm, a height of 7.7mm, and a weight of 10g, it offers a compact and lightweight solution while delivering optimal performance.

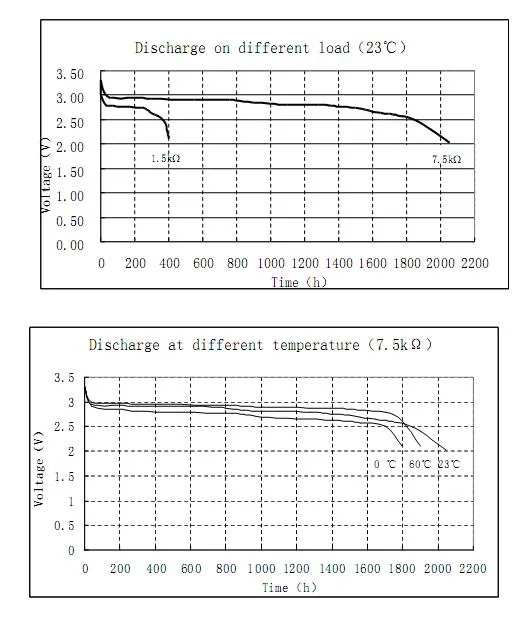

Our CR2477 model offers a nominal capacity of 1000mAh, coupled with a nominal voltage of 3V and nominal current of 1mA. This robust energy resource can reach a max pulse current of 20mA and functions optimally in temperatures ranging from -20 to 60ºC. Weighing only 10g and measuring 24.5mm in diameter with a height of 7.7mm, it is designed for efficiency and convenience.
Choose Henli Max as your trusted supplier of cr2477 lithium battery. Our commitment to research, innovation, and product excellence ensures that you receive a high-quality battery that meets your specific requirements. Experience the outstanding power, efficiency, and reliability of Henli Max's cr2477 lithium battery.

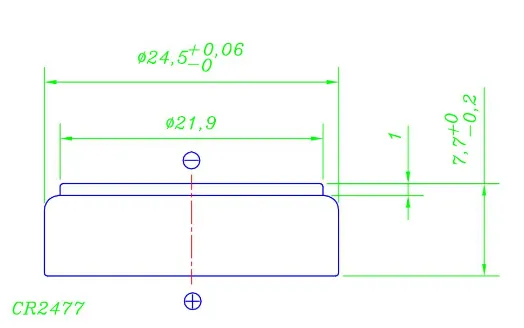

Battery Outline Dimensions

Packaging
Normal package:
1600
pcs per box.
CR2477

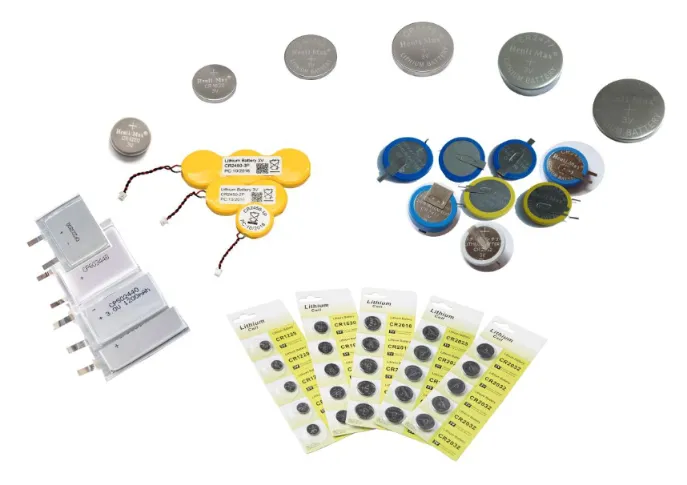

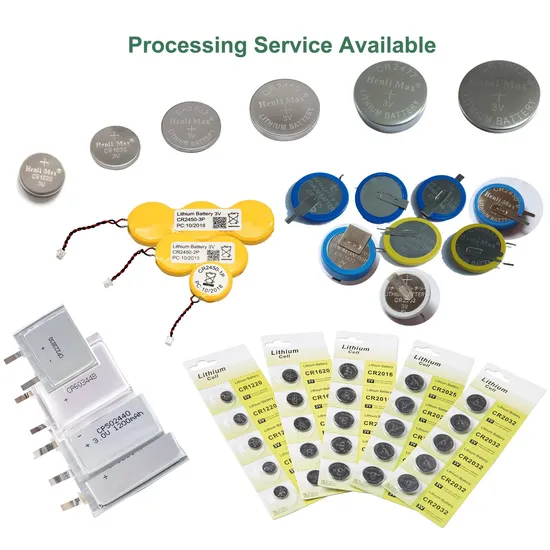

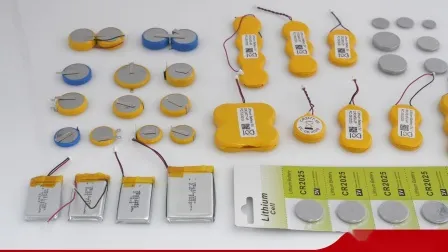

Battery processing service
According to special needs of terminal products, we can provide supporting battery processing services including Blister Pack, solder wires,solder tabs.
Discuss with us before making an order, we can help you find out the batteries that
suit your products properly.

Changzhou Yufeng Electrical Co., Ltd was founded in 2001, and is a high-tech enterprise specialized in the R&D, production and sales of 3V primary lithium cells.Our company is located in Changzhou Photo-voltaic
industrial Park, covering an area of 26000m², with more than 300 staffs, and has become the Top 2
3V Lithium button battery
company in
the field
of
industry in China. Now we produce more than 20 models of lithium button cells, with more than 400million pcs annual output.

In the past years, our company has been focusing on the technology innovation and production management. We registered 3 brands which are "Henli Max", "NSN", and "SUYU MAX" to better match different discharge characteristics requirements of various products.
Our company adhere to the key values of " Foresight, Innovation, Responsibility". We dedicate to providing high quality batteries and great service to you.
