Overview
Quick Details
Place of Origin: China (Mainland)
Brand Name: XINCHENG
Product name: Earthing Grounding Wire Earth Clamp
Use: High Voltage Grounding Rods with Earth Clamp
Type: high voltage earthing rod
Model Number: Earth Rod
Constitute: Earthing wire, earthing clamp and rod
Application: Suitable for making power failed equipments, preventing unexpected power
kind: 3
phrases and 4
phases
Characteristics: Temporary Earthing equipment
Set: Three sticks or four sticks
Rated Voltage: 0.5KV-500KV
The temperature scope for protective cover :+40°C.Installation: vertical type, horizontal
The material of clamps: Aluminum/copper
Strength: >=600N/mm2
The material operating rod: Super Epoxy Non-alkali Fiberglass Fabric Tube
Color: Red or as per your requires
Package: International Standard Package
Ground operating rod: IEC60855:1985.IEC61235:1993.
Warranty: 3
Year
OEM: available

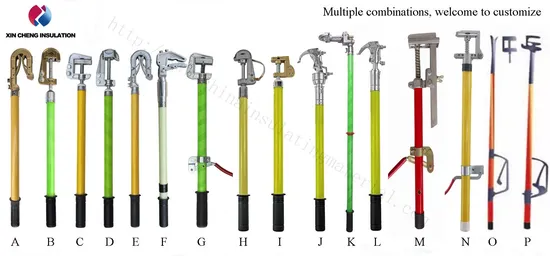

High Voltage Grounding Rods with Earth Clamp

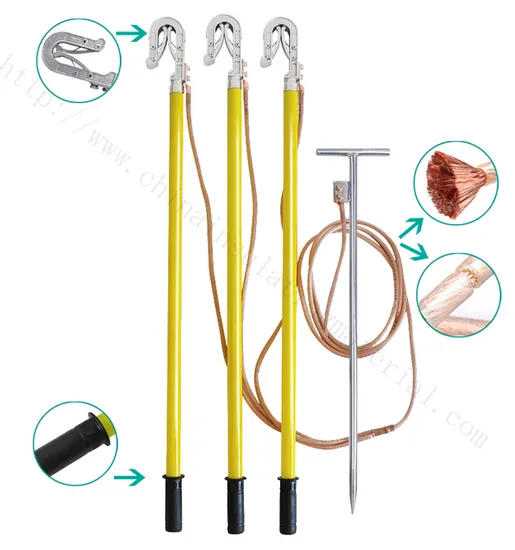

Earthing rods are matched with earthing wires and earthing pin or earth clamp to form a
complete set. Application: Suitable for making power failed equipments or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipments.
The material operating rod is Super Epoxy Non-alkali Fiberglass Fabric Tube

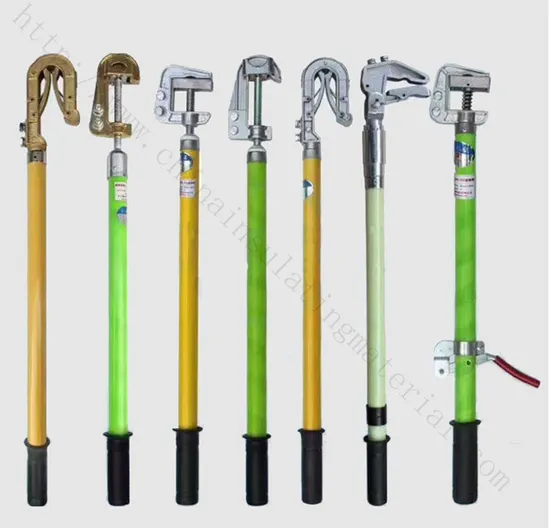

Grounding Rod /
Earth Rod
/
Grounding Wire with Clamp
1.Product specifications of earthing wire: 16sqmm, 25sqmm, 35sqmm, 50sqmm, 70sqmm
Also can produce as your request.
2. Applications:
1>. Distribution lines and systems
2>.Transmission lines and systems
3>.Substation bus
4>.Underground systems
5>. Industrial circuits and systems
Structure:

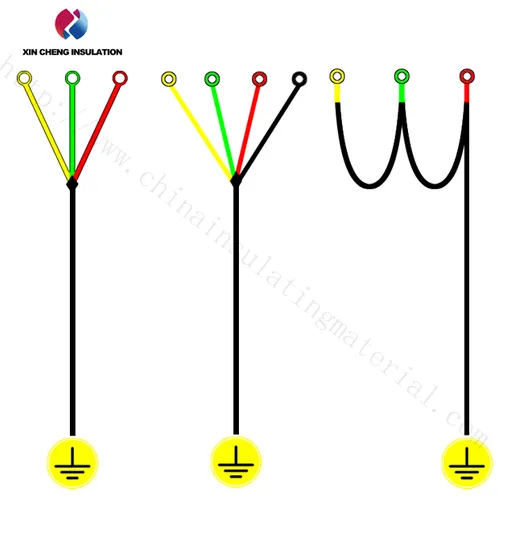

The flat spiral grounding line by wire end terminal, short, ground wire, wiring nose, bus route, the grounding end terminal (or) temporary grounding and grounding operation bar, etc.Line end and the grounding wire clip, high quality aluminum alloy die-casting clamp and two kinds of pure copper wire clip, and its matching fasteners by metal chrome plating treatment.Grounding bar operation USES electrical and mechanical strength are good imports of advanced epoxy resin, glass fiber is delicate.Short line and grounding line type of the multi-strand fine the annealed copper stranded wire is coated with a
soft, high temperature resistant made of transparent insulation layer. Ground wire clamp and insulation lever connection points have fixity and detachable type two kinds, and for substation busbar and overhead conductors such as a
variety of styles, user can choose according to actual need.
Product Features
Earthing rod: epoxy, with good insulation performance;the length is optional. The hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, hight strength, exc ellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for protective cover: ±40°C
Cooper wire's cross section area:
10mm²/16mm² /
25 mm² /
35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm²; or customized.
Earthing clamp's material:
Aluminum or cooper
Advantages
1. Anti-moisture. Nice looking.
2.Epoxy rod with light weight and high strength
3. Easy Maintenance; easy operation, flexibly structured
4.Good insulation performance
Product Parameters
Technical Parameters:
Suitable for making power failed equipments or temporary short-circuited lines grounded, preventing unexpected
power to intrude in and do damage to personnel and equipments.
33KV high voltage portable earth wire set
Packaging &
Delivery
Packaging Details: Standard packing or as customer requirements
Delivery Time: After payment in 15 days
Port: Tianjin port
Lead Time :
After payment in 15 days

Q 1, Could you accept the sample order and if it is free ?
A Yes, we welcome the sample order to test and check quality. And the sample and the delivery fee are not free, as many samples are requested to be sent.
Q 2, How do you ship the goods and how long does it take to arrive?
A The sample is usually transported by DHL, Fedex, UPS or TNT express. We will choose the economical express and transport way according to the goods quantity, or as the requirements of client's .The express time is usually around 3-7 working days.
Q 3, Do you provide the customized service and OEM?
A Yes, it is available.
Q 4, How about the after sale service?
A Any questions, pls contact us freely! We will service you well !
Our supply ability: 250,000 Piece/Pieces per Month, More specific u
can understand us through email.
Our Services
We are specialized in power and cable equipments and construction tools. According to customers' need, we can provide the most suitable products and solutions. Ensuring the quality of products, we organize production and make delivery in time, solve the guests' needs and problems perfectly.
