基本信息
型号编号 | HCPS-LR-MX |
用法 | 开关设备连接 |
材料 | 硅橡胶与铜管 |
类型 | 绝缘母线 |
筛选 | 经过涂层或模具的筛选 |
现在 | 630安培,1250安培 |
电压 | 20千伏、3万伏、3.5万伏、3.6万伏等 |

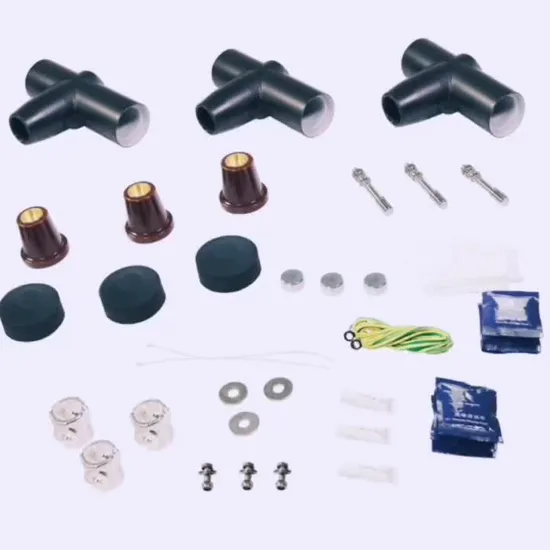

完整套 | 母线,端适配器,交叉适配器 |
交通包 | 一盒/一箱 |
规格 | 226毫米、364毫米、554毫米、576毫米、689毫米、826毫米等 |
商标 | HiFuture |
起源 | 中国深圳 |
商品编码 | 8538900000 |
生产能力 | 每年10万件 |
产品详情
Product Description
Preview

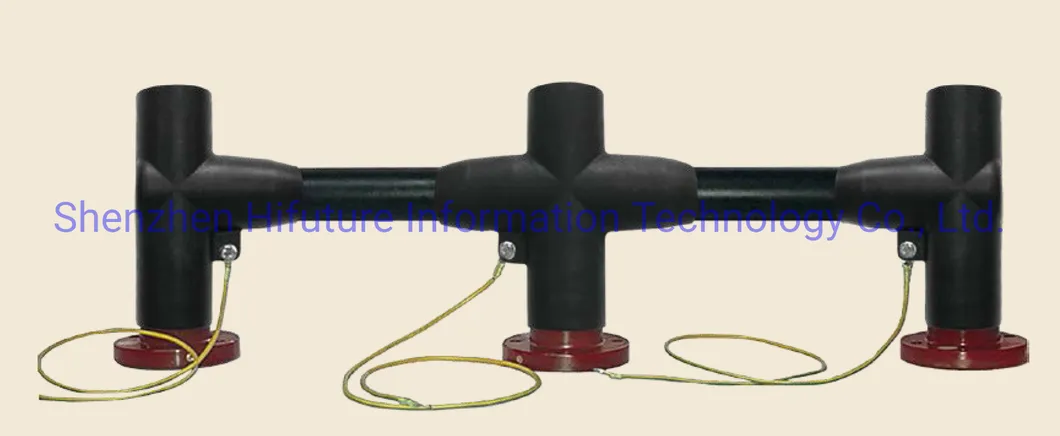

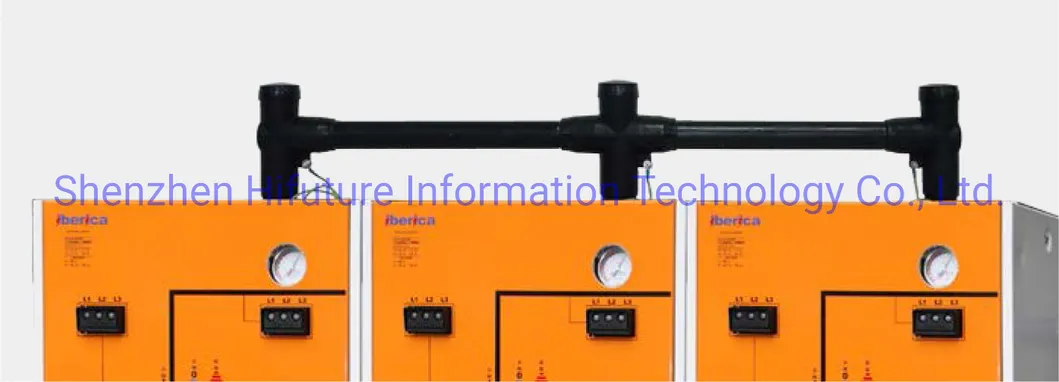

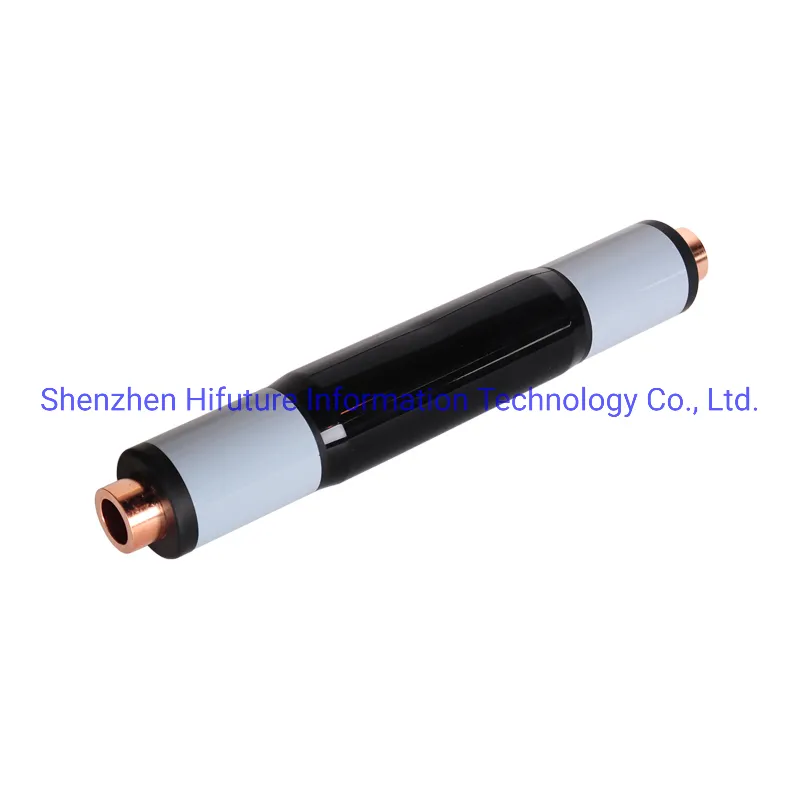

High Quality 20kV Copper Tube Connector Insulaton Busbar
Preview

Preview

Preview

Preview

Preview

Preview
Features and Advantages:
1. Provide effectively grounded and non-effectively grounded system solutions of equipment neutral point;
2. 24kV external bus bar system and connectors used for metal SF6 closed switchgear, its maximum voltage systems is 24kV, compatible with12kV voltage systems, 630A or 1250A continuous through-flow;
3. Apply to all outlets bus bar connection of Europe and America RMU;
4. Compliance with the taper design of EN50181 standard;
5. Achieve full insulation, hermetic type, and full protection safely;
6. Easy to install, support dismounting and installation repeatedly;
7. Easy to expand, flexible to remove;
8. Uvioresistant, cold-resistant, heat-resisting, long working life;
9. Maintenance-free, reliable operation, heavy anti-pollution, anti-flooding, corrosion resistance, anti-condensation and anti-frost, not affected by altitude, applicable to all kinds of polluted environment.
Main Busbar Specification:
226mm, 364mm, 412.5mm, 416mm, 439mm, 466mm, 486mm, 512mm, 554mm, 576mm, 689mm, 826mm or Customized Lengths
Busbar Applicable to switchgears up to 26/35kV
^_^ Please be noted that we can customize different specifications according to your special requirements!
1. Provide effectively grounded and non-effectively grounded system solutions of equipment neutral point;
2. 24kV external bus bar system and connectors used for metal SF6 closed switchgear, its maximum voltage systems is 24kV, compatible with12kV voltage systems, 630A or 1250A continuous through-flow;
3. Apply to all outlets bus bar connection of Europe and America RMU;
4. Compliance with the taper design of EN50181 standard;
5. Achieve full insulation, hermetic type, and full protection safely;
6. Easy to install, support dismounting and installation repeatedly;
7. Easy to expand, flexible to remove;
8. Uvioresistant, cold-resistant, heat-resisting, long working life;
9. Maintenance-free, reliable operation, heavy anti-pollution, anti-flooding, corrosion resistance, anti-condensation and anti-frost, not affected by altitude, applicable to all kinds of polluted environment.
Main Busbar Specification:
226mm, 364mm, 412.5mm, 416mm, 439mm, 466mm, 486mm, 512mm, 554mm, 576mm, 689mm, 826mm or Customized Lengths
Busbar Applicable to switchgears up to 26/35kV
^_^ Please be noted that we can customize different specifications according to your special requirements!
