Put-cast Resin Joint Of Low Voltage
1. High mechanical strength
2. Resistant ti UV-radiation, alkaline earths and chemical
2. Resistant ti UV-radiation, alkaline earths and chemical agents
3. Storable for up to 40 months
Universally suitable to connect low voltage plastic insulated cables or conductors insulated with PVC, PE, VPE and EPR. Suitable for compression connectors on aluminium and copper conductors.
Voltage level:
Uo/U (Um)0.6/1(1.2)kV
Applications
Indoor
Outdoor
Underground
Water
Cable trays
Put-cast Resin Joint Of Low Voltage :
Be suitable for all low volage electrical power cable
Adopt the technology of resins-pour install simply conveniently and express
Advanced branch joint of cable asving space and cable
Superxcellent effect waterproof protection of machine
High gydrolysis strength
CO2gas producing10ml
Thin-fluid after mixing
Excellent adhesive strength on metal and synthetic material
Resistant against UV-rays and chemical influences
Alkali-resistant

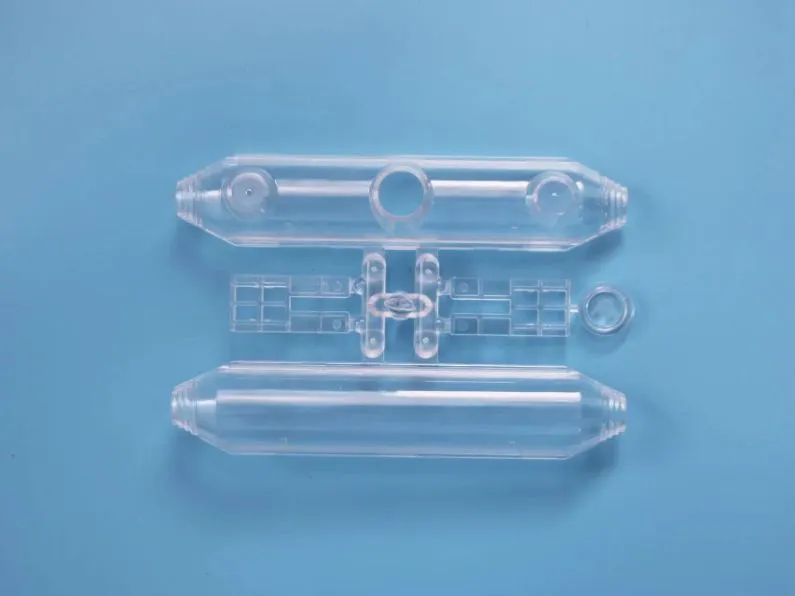

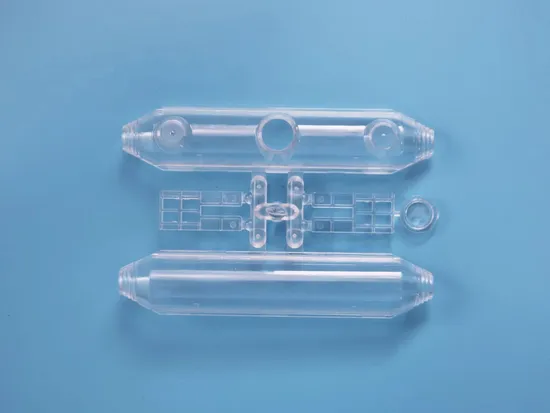

Cast Moulds made of robust and high-quality transparent synthetic material

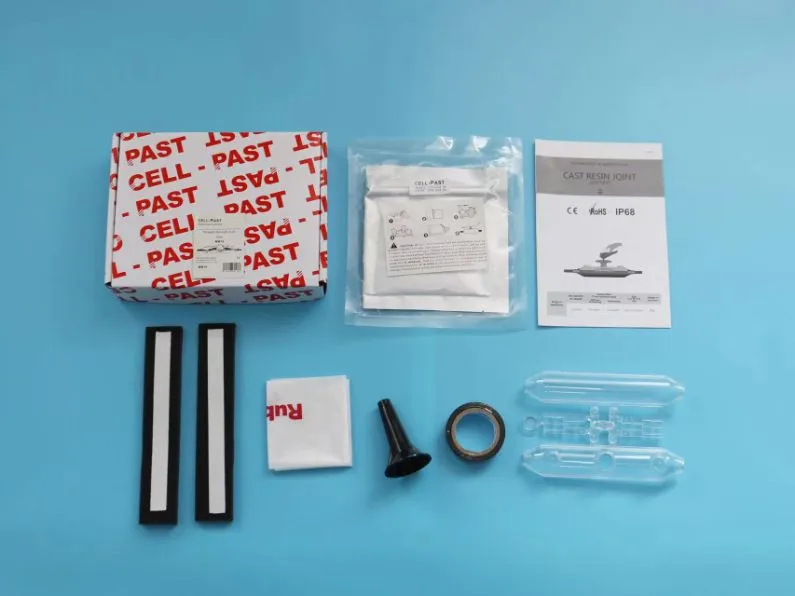

The cast resin will be delivered in a transparent mixing bag After removing the protective bag and the separator the 2 components flow together and must be mixed for about 3 minutes before filling into the moulded cast joint

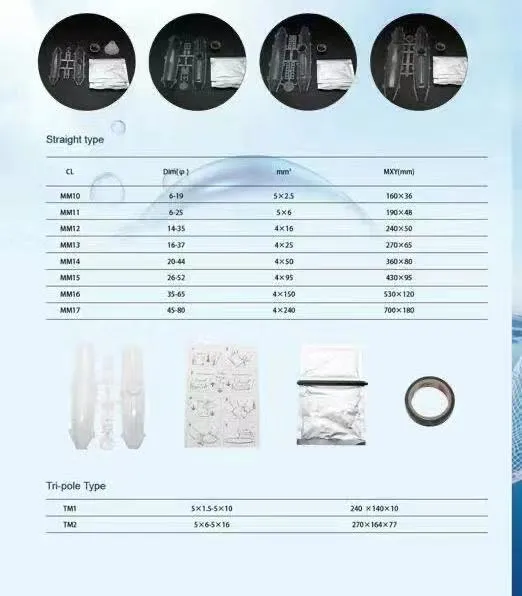

Product Dimensions
