基本信息
| 型号编号 | Y系列 |
| 物种 | Y、Y2系列三相 |
| 转子结构 | 鼠笼式 |
| 套管保护 | 封闭型 |
| 启动模式 | 直接在线启动 |
| 认证 | ISO9001, CCC |
| 颜色 | 可定制 |
| 电压 | 3千伏. 3.3千伏. 6千伏. 6.6千伏. 1万伏. 11千伏 |
| 保护 | IP44或IP54、IP55 |
| 责任 | S1 |
| 绝缘等级 | F |
| 冷却方法 | IC611 |
| 频率 | 50赫兹/ 60赫兹 |

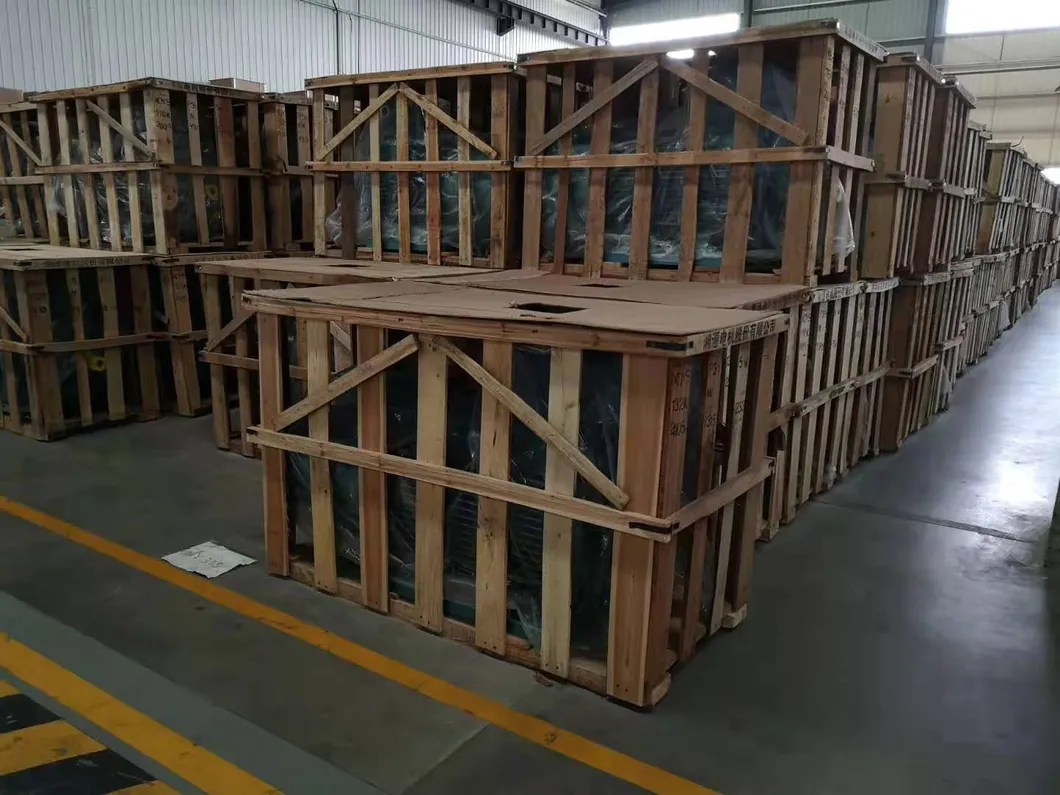

| 运输包 | 标准出口包装 |
| 规格 | 根据类型 |
| 商标 | XEMC |
| 起源 | 中国 |
| 商品编码 | 8501530090 |
产品详情
Product Description
Preview
Type:

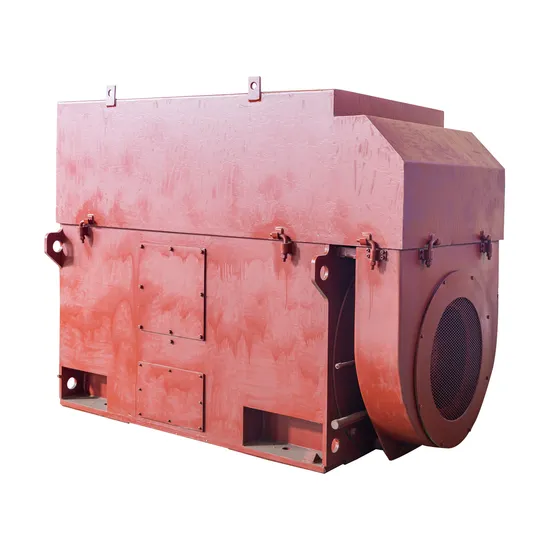

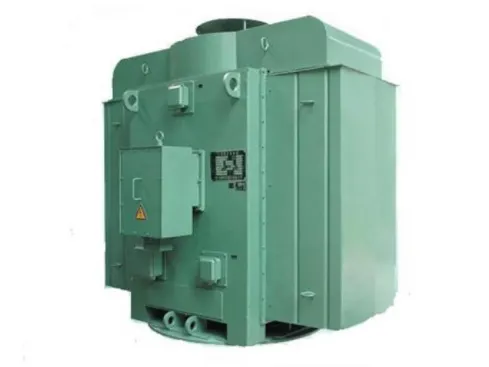

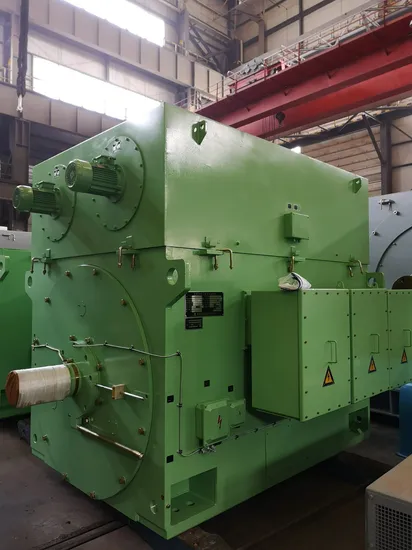

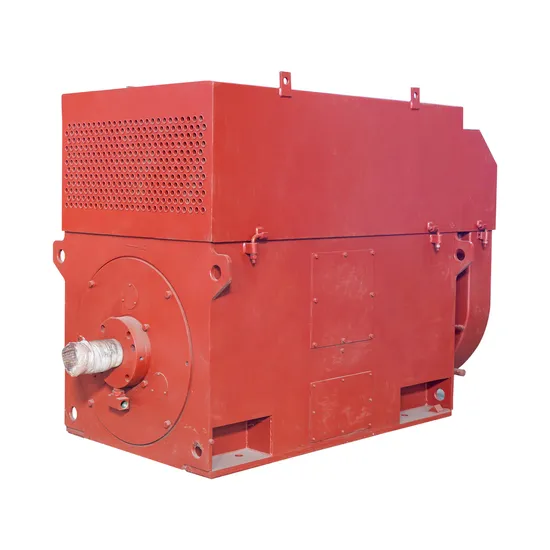

Y Asynchronous Synchronous AC Electric MotorThis series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
Y Asynchronous Synchronous AC Electric MotorThis series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
Preview
Preview
Efficiency level: High efficiency energy-saving
Rated output: 150~8000 kW
Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V
Rated frequency
(speed):
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)
60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)
No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P
Mounting methods: Horizontal foot mounted IM1001 (B3)
Material of frame/housing: Fabricated in welded steel plate frame
Frame size: 355~800 frame
Service Factor: 1.00
Insulation Class: F (155ºC)
Temp. Rising: ΔT=80°K
Bearing type: Roller/Ball bearing
Working Duty: S1 (Continuous)
Ambient Temperature: -20°C ~ 40°C
Altitude: <=1000 m.a.s.l
Ambient humidity: <=90%
Protection Class: IP44, IP54, IP55
Cooling: IC611

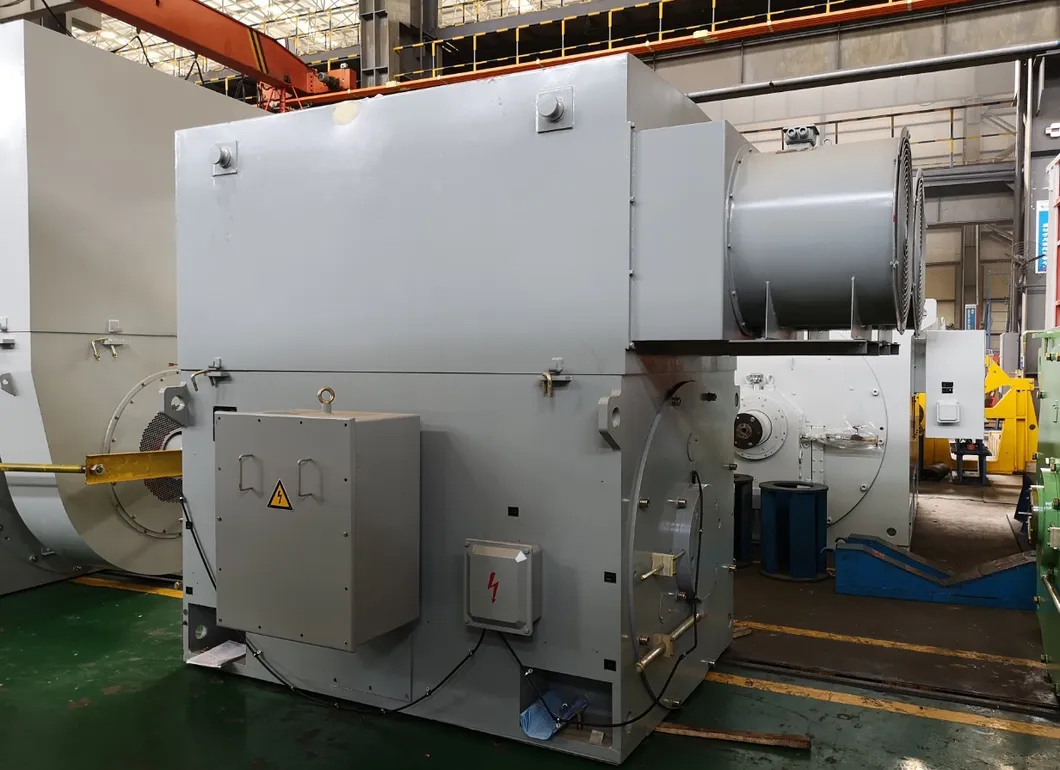

Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor
Lubricating: Grease lubricated bearings
Grounding lug: On the frame and terminal box
Temperature detector: PT100
Material of nameplate: Stainless steel
Metric Threaded Cable Entries on the Terminal Box
Rated output: 150~8000 kW
Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V
Rated frequency
(speed):
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)
60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)
No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P
Mounting methods: Horizontal foot mounted IM1001 (B3)
Material of frame/housing: Fabricated in welded steel plate frame
Frame size: 355~800 frame
Service Factor: 1.00
Insulation Class: F (155ºC)
Temp. Rising: ΔT=80°K
Bearing type: Roller/Ball bearing
Working Duty: S1 (Continuous)
Ambient Temperature: -20°C ~ 40°C
Altitude: <=1000 m.a.s.l
Ambient humidity: <=90%
Protection Class: IP44, IP54, IP55
Cooling: IC611
Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor
Lubricating: Grease lubricated bearings
Grounding lug: On the frame and terminal box
Temperature detector: PT100
Material of nameplate: Stainless steel
Metric Threaded Cable Entries on the Terminal Box
