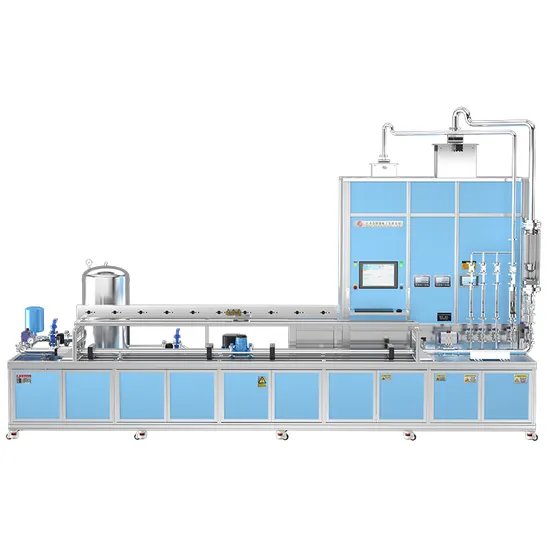

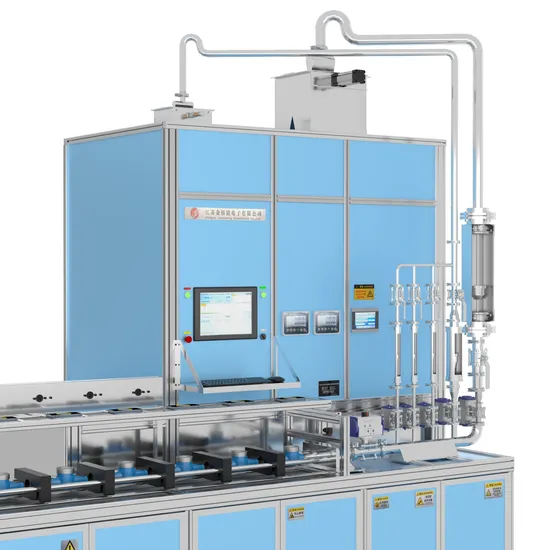

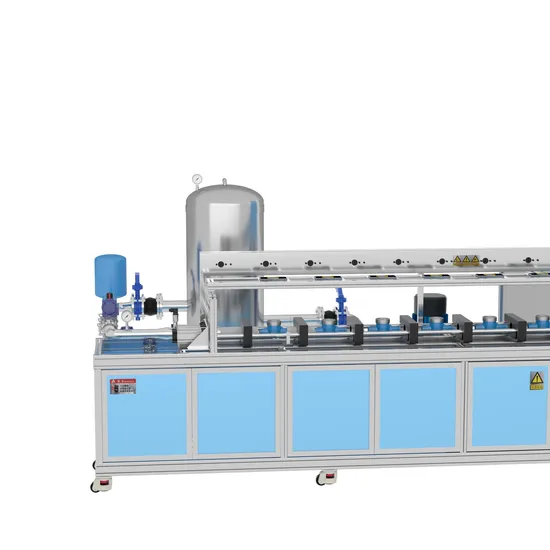

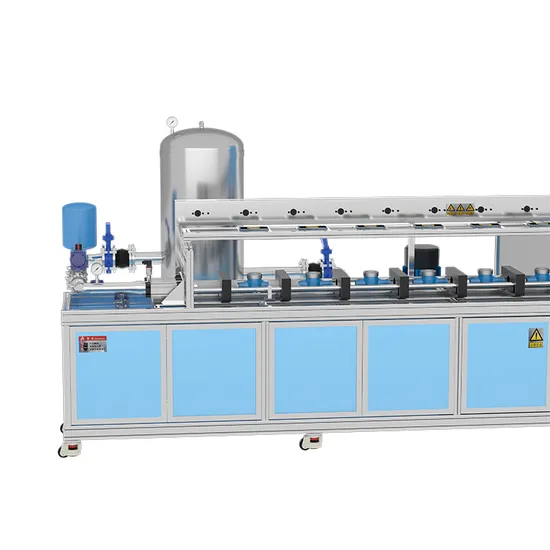

DN15mm~DN50mm multi jet calibration water flow meter test bench
Patent:
201625049746.2,201625049747.4,2016302293350.0
Automatic water meter test device (hereinafter referred to as the device) is a statutory measurement verification
institutions, water meter manufacturing industry, water companies and industrial and mining enterprises as the
flow transfer standards, testing, calibration.It is necessary standard measuring instrument for calibrating water
m
eter.
Automatic water meter test device (hereinafter referred to as the device) is a statutory measurement verification
institutions, water meter manufacturing industry, water companies and industrial and mining enterprises as the
flow transfer standards, testing, calibration.It is necessary standard measuring instrument for calibrating water
meter.
PERFORMANCE AND FEATURES:
(1)
Calibration methods are all,The detecting device can support volumetric method, weighing method and comparison test scheme simultaneously.
(2)
High Efficiency of production; 1,000 water flow meters can be diagnosed within 8 working hours
(3)
Quick input: Input meter numbers by barcode gun; fast, accurate and convenience
(4)
Energy saving including water, electricity power and manpower.
(5)
Small Volume: Spaces saving, automatically, network sharing and auxiliary material save.
(6)
Strong data management: Automatically diagnosis the whole procedure and come to conclusion by running software, save data of all the water flow meters and functions
of diagnosis
record querying, correction, statistics and print; plus network planning for multiple diagnosis equipments, set up the system of data management and query, so-called internet plus era.
(7)
Innovative struction: Aluminum frame with 304SS lining, classy appearance for enhancing
company image; can be integrated mobile, instead of outdated water flow meter diagnosis
equipment, which cannot
be moved.
(8)
High expansibility: Automatic assembly line is reserved on the equipment for future upgrading. Digital and ultrasonic water meter is reserved as well. These functions are not available
on ordinary meters.
(9)
Suitable for upgrading most of outdated water meters in the country. Worth to be adopted by the administrative departments for measurement, water companies and water meter manufacturers.
Techniche Info:
(1)
Accuracy of weighing sensor1/10000
(2)
Circulating pump power2.2kw
(3)
Concentricity
of partial series connection of pneumatic fix clamp1mm
(4)
Respond speed of high-speed video camera 500 frames/sec.
(5)
Accuracy of
servo motor 1/25000
(6)
Time of pneumatic reversing 0.2 sec.
(7)
Diagnosis range: wet-dry water meter with 15-25mm diameter.Save data of all the water flow meters and functions
of diagnosis
record querying, correction, statistics and print.
Verification Caliber
DN15-50
Capacity
DN15 10pcs, DN20 8pcs, DN25 6pcs, DN32 2pcs, DN40 2pcs, DN50 1pcs
Measurement Range
0.006-40 m³/h
Device Expansion Uncertainty
≤0.2% (k=2)
Water Meter Type
"Ultrasonic water meter
Mechanical water meter
Electromagnetic water meter"
Electronic Scale
Mettler Toledo stainless steel electronic scales 30KG(6000e), 600KG(3000e)
Water Source Power System
Nanfang Pump, Flow Rate: 70 M³/H, Head: 40m
Weighing Containers
2000L
Real-time pressure monitoring
German JUMO, range:0-4mpa, accuracy:≤0.2%
Material of the device
"Made of high-quality industrial aluminum and stainless steel 304,durable and excellent appearance"
Computer Software And Hardware
It adopts touch industrial control integrated design, supports Win10 64-bit operating system with a simple and efficient operation interface. The hardware is equipped with 8GB memory, 128G SSD, 1TB hard disk, 17-inch Capacitive Touch screen and supports diversified expansion
Communication
Modbus/RS232 Serial Port
