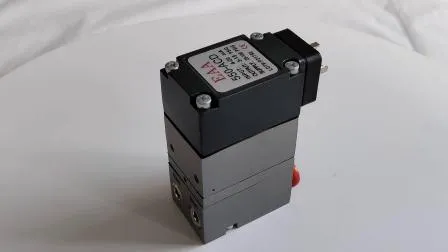

Electro Pneumatic Transducer Model 550X/T1500
The Type 550X/T1500 is an electronic pressure regulator that converts a variable signal (current or voltage) to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained. This economical
instrument provides precision air pressure regulation to actuators,valves, positioners and other final control elements. An integral volume booster provides high flow capacity,increasing control speed in critical applications.Compact Size
Great for high density mounting
Easy Wiring
Conduit, terminal block or DIN 43650 connections
Multiple Mounting Options
Wall, panel, DIN rail, pipe or manifold mounted
Input/Output Ports on Front and Back
Provides flexible pneumatic connections
External Zero and Span Adjustments
Convenient field calibration
RoHS
All versions of the T550X comply with the RoHS directive
Intrinsic Safety Approvals
Factory Mutual (FM)
(4-20mA units only)
Canadian Standards Assoc.(CSA)
ATEX option available
