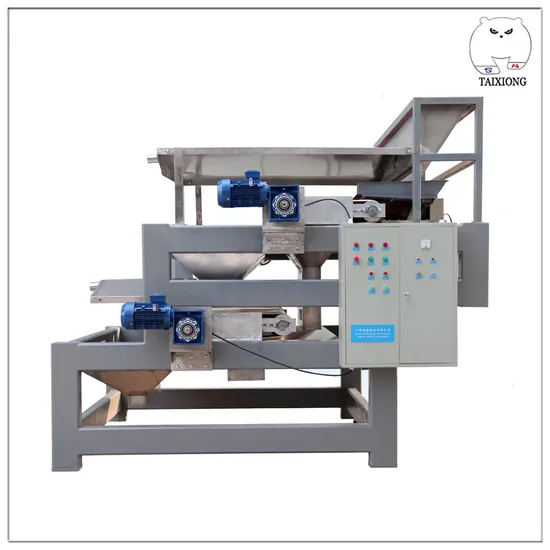

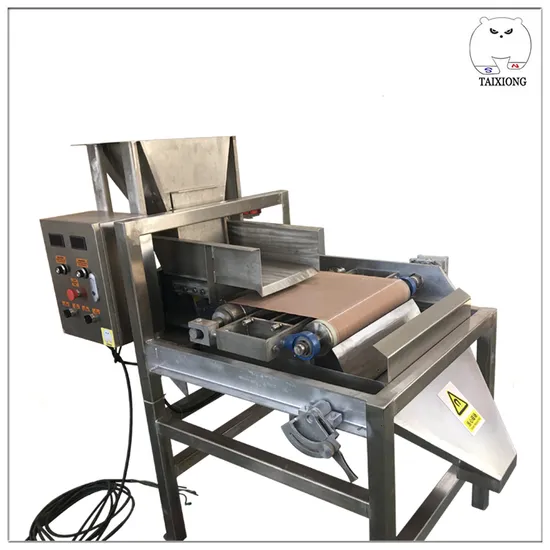

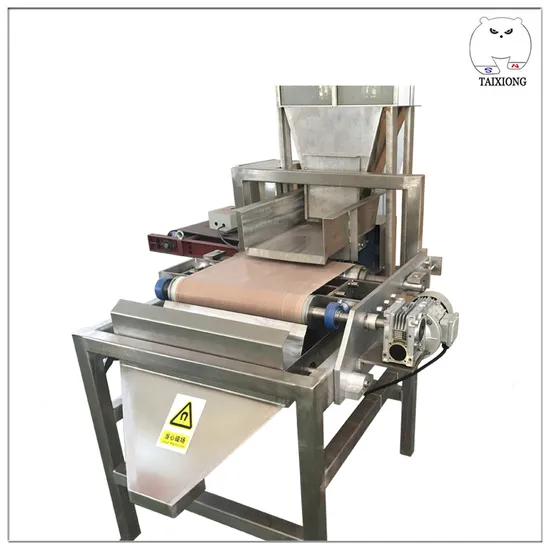

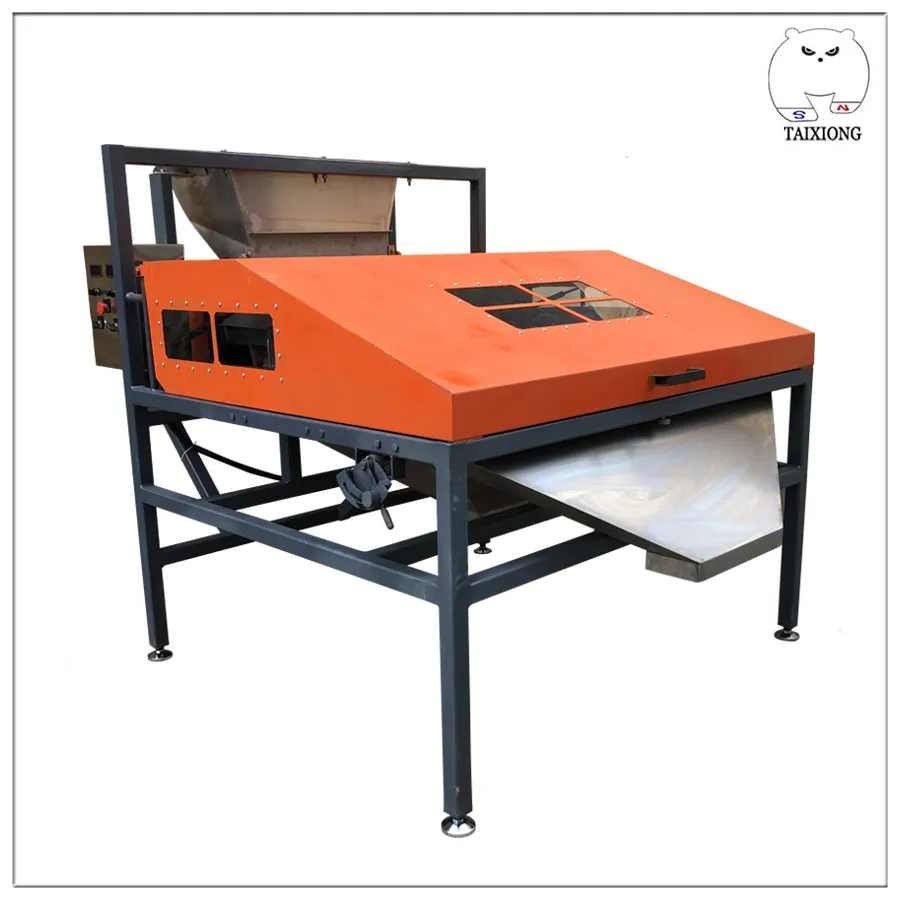

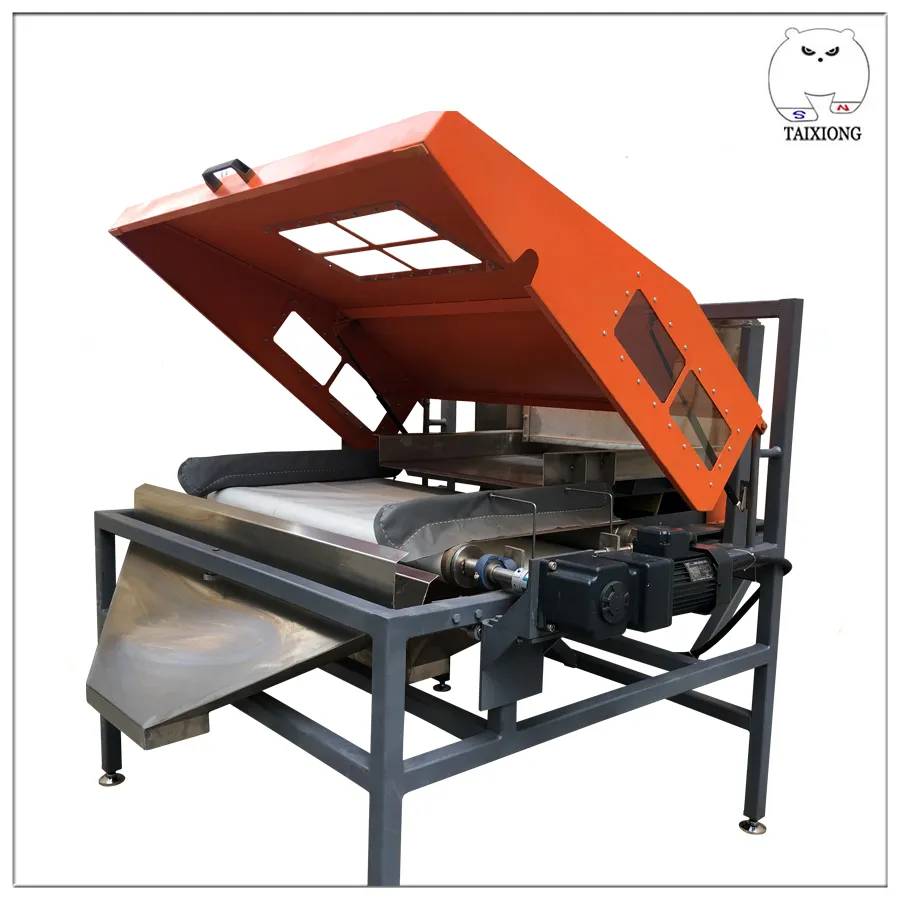

Dia. 4" Roller 15000 Gauss Single Layer Magnetic Roll Separator Machine For Soya Bean

1. Features:
With the ever increasing demand for high-purity feedstocks used in manufacturing, We
offer the
Rare Earth Roll dry high-intensity magnetic separators. Which
provide maximum efficiency in the separation of weak magnetic particles for product purification applications. We
applied sophisticated finite element analysis in magnetic circuit design to produce an energy-free separator capable of generating the exceptionally high field-strengths needed to remove unwanted fine iron contaminants. Magnetic cleaning has been applied to the most basic industry foundations such as industrial minerals, metals recycling, glass batch and cullet, abrasives and refractories, chemicals pharmaceuticals, and plastics.The High Intensity
Magnetic Roll Separators--- High Purity Non-Step Separation for weakly Magnetic Materials.The High Intensity

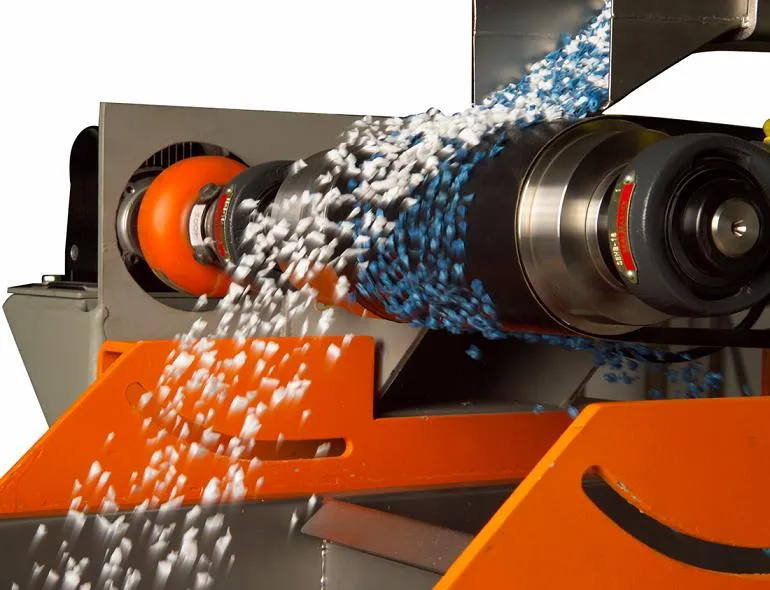

Magnetic Roll Separators employ high intesisty, high gradient and trajectiory deflection to provide an alternative in handling a wide variety of materials which do not respond well to traditional methods such as magnetic drum separators or grate magnets. Induced by Powerful high gradient circuits, the weakly magnetic particles present different parabolic trajectory from non-magnetic particles. The difference becomes separation criteria. Magnetic Roll Separators are capable of purification or concentration of weakly magnetic material automatically and continuously.2. Wide Range Of Applications:
Industrial Mieral
Silica Sand
Quartzite
Feldspar
Nepheline Syenite
Abraisves And Refractories
Alumina
Garnet
Chromite
Corundum
Heavy Mineral Sands
Ilmenite
Leucoxene
Chemicals and Pharmaceuticals
Recycling3. Characteristics
High strength neodymium-boron-iron
permanent magnets.•
Several magnetic roll diameters available to match thespecific application.•
Several magnetic roll widths available to match the
production capacity.•

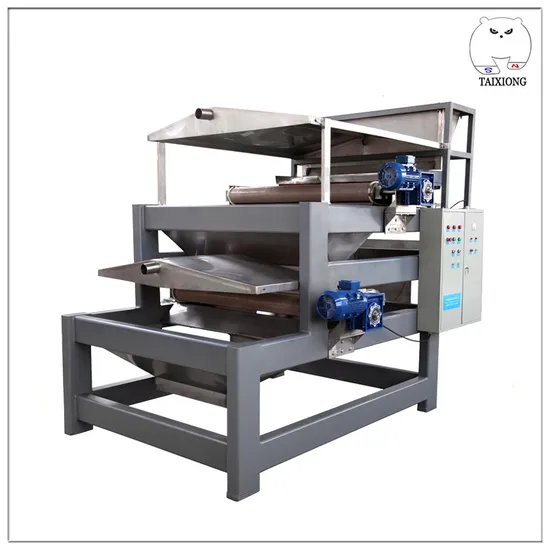

Multiple separation stages available on one separator.Up to three magnetic rolls placed in series.•
Kevlar feed belt. Positive belt tracking features.•
Cantilever rolls for ease of operation and maintenance.•
Mounted hopper with slide gate control.•
Mounted vibratory feeder with control to provide
consistent feed rate to the magnetic roll.•
Independent drive on each magnetic roll.•
Variable speed drive. Feed belt speeds up to 250 fpm
using a variable frequency control.•
All stainless steel construction.•
Wide range splitter to segregate magnetics
and non-magnetics.•
Flanged magnetic and non-magnetic product
discharge chutes.•
Dust tight housing available.•
High temperature magnets available.•
Design and equipment modifications incorporating specific
features and options. The separator may incorporate
various options and features
applicable to the process.•
Equipment layout and dimensional drawings. Modifications
are common to fit an existing plant or provide specific
operating characteristics.•
Equipment selection, sizing, material flows and balances.•
In-plant audit to determine iron contamination levels,
production flow rates, material handling aspects,
equipment selection and sizing, and predict performance.4. Specifications

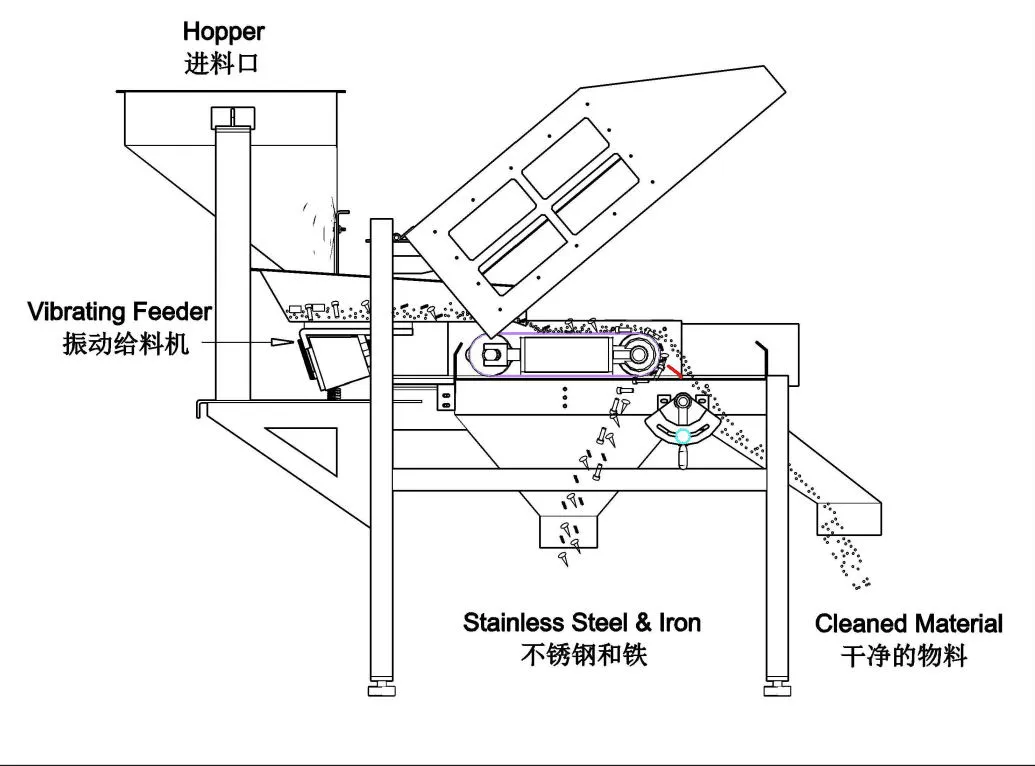

5.Working Principle

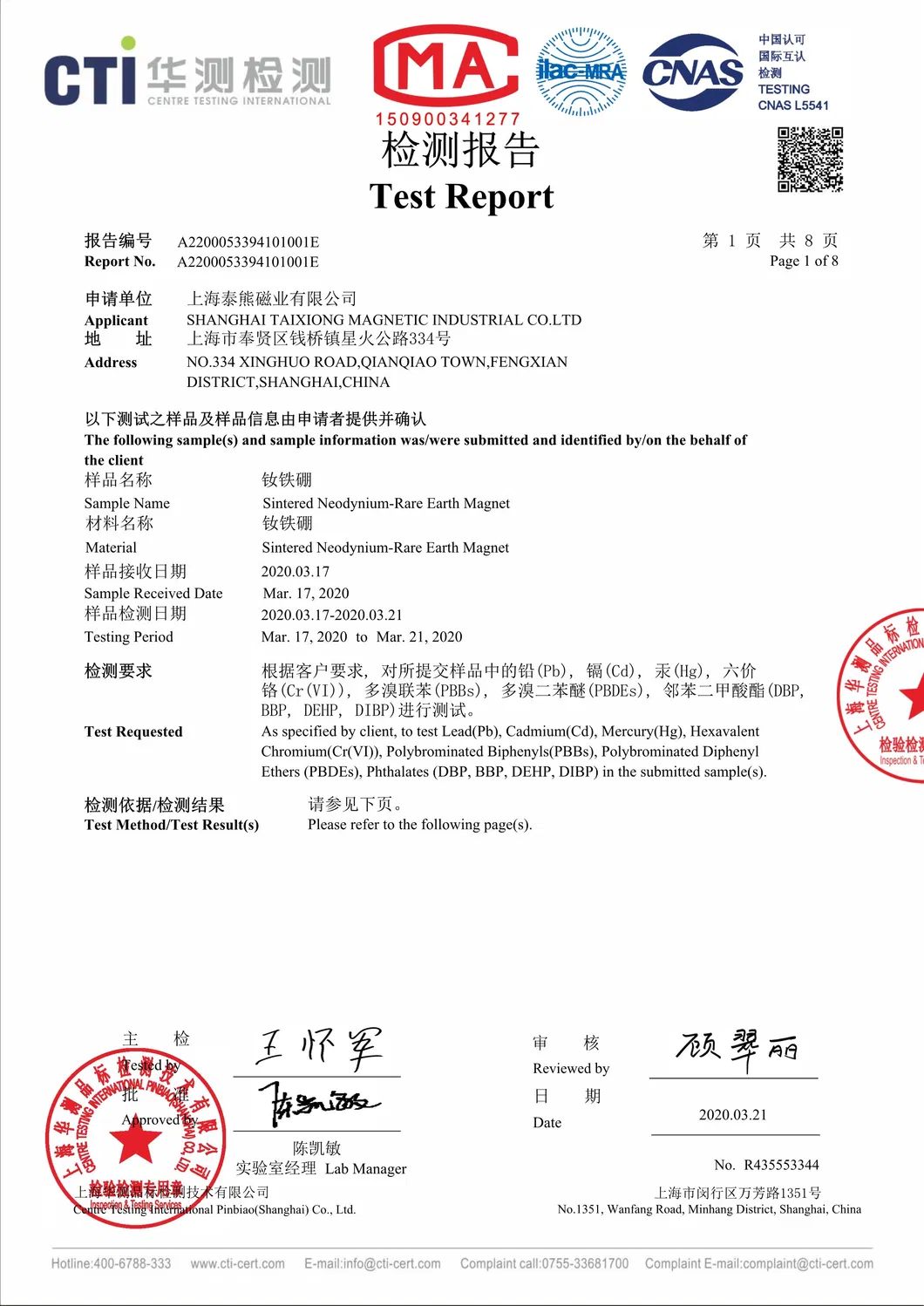

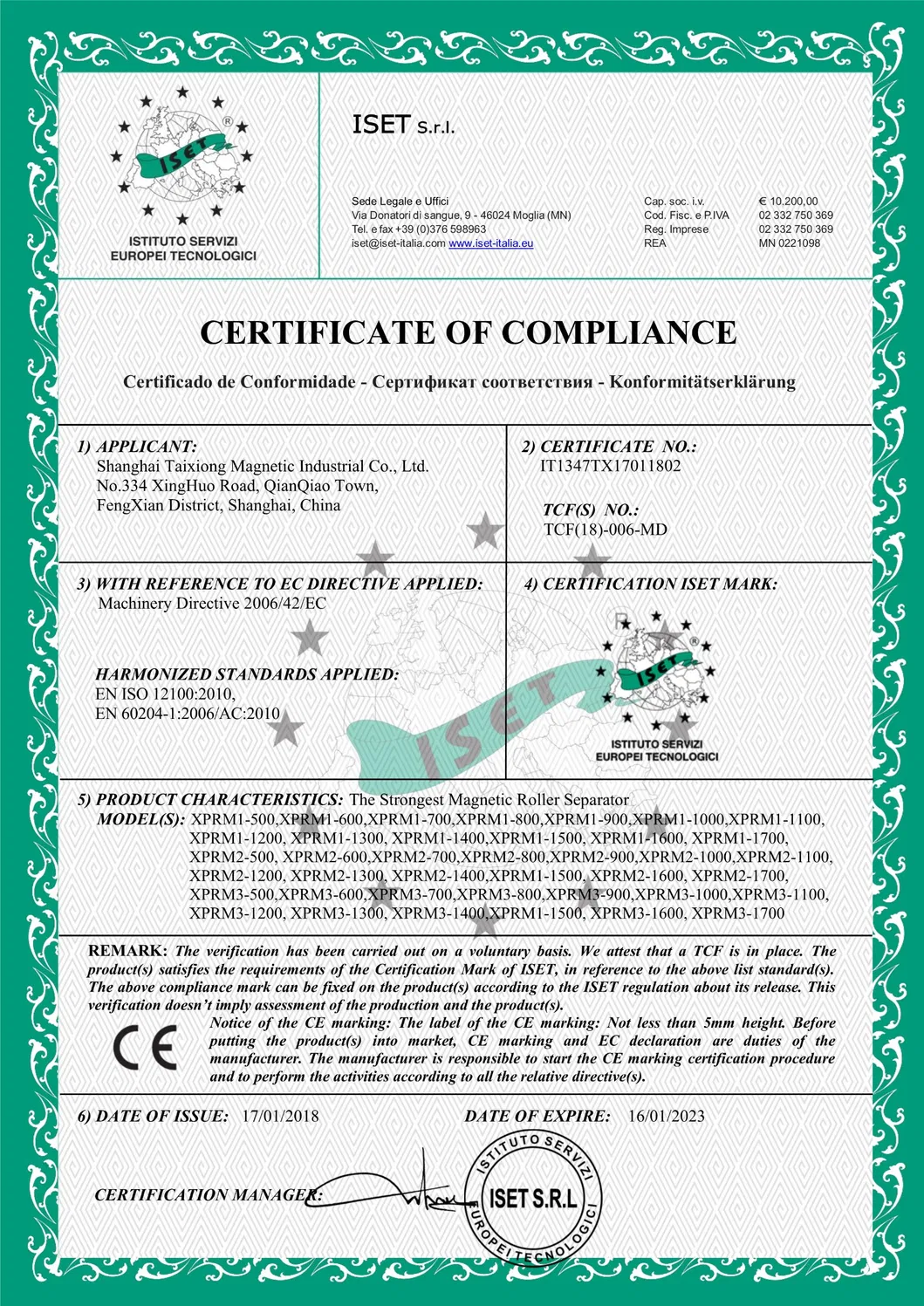

4. Certification

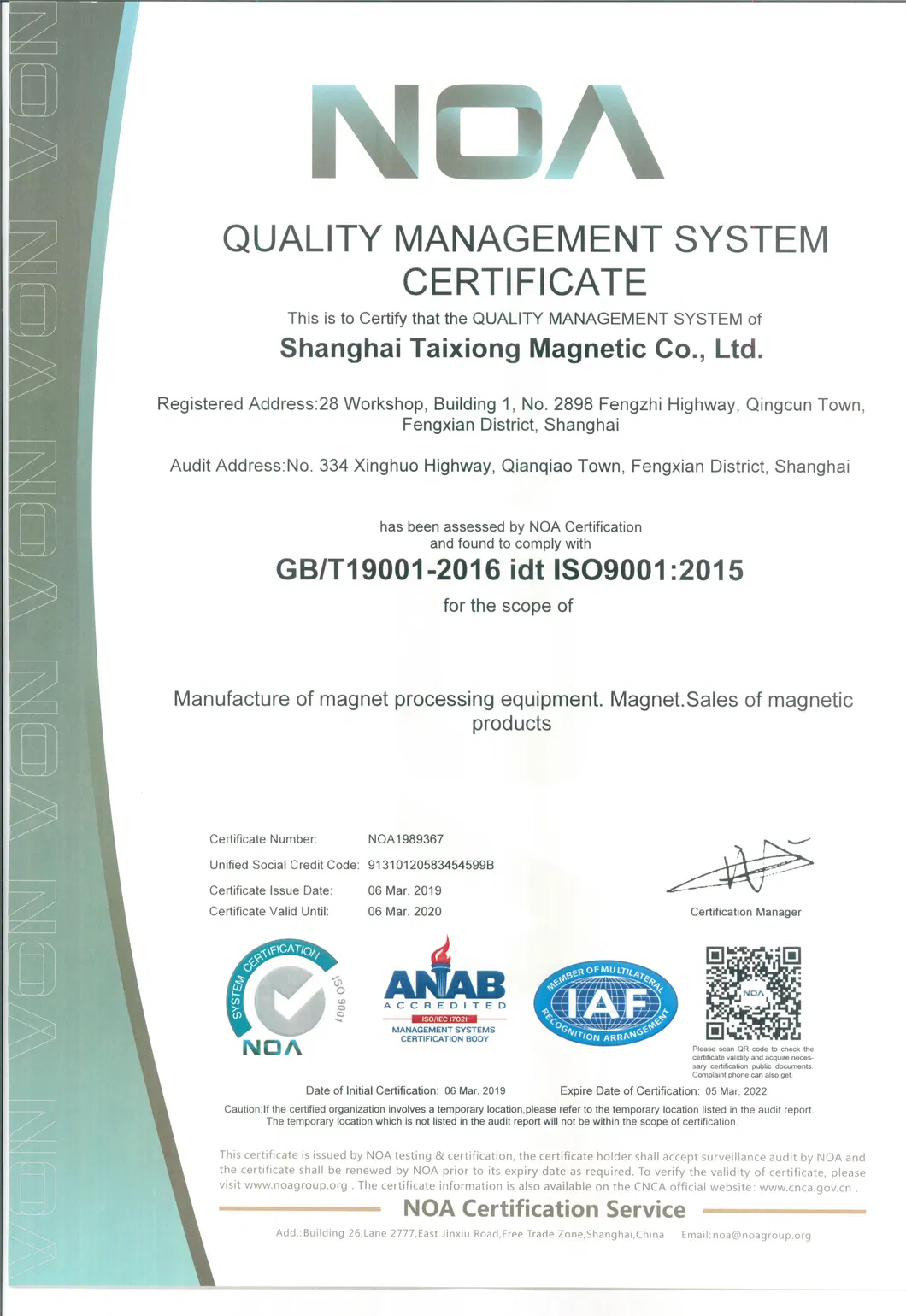

Quality is our life. Innovation is our power. In order to guarantee the quality of products and improve the environment, Huate takes the lead to pass through the GB/T19001-ISO9001:2000 quality management system verification, ISO14001-2004 environmental management system verification and GB/T28001-2001 Occupational Health and Safety Management System verification. Huate has fully controlled the entire process of manufacturing and development of 9 categories of products, and has formed a comprehensive, complete set of product R&D, manufacturing, test base.

Our Company

Q1: What is the iron removing rate of your Magnetic Separators?
A: ABOVE 99%.Q2: How about your delivery date?
A: 25-35 days.Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before deliveryQ4: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.Q5: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.Q6: How can I get the quotation IN TIME?A: For a timely and responsible quotation, please inform us more details as following:
1. What kind of material you are going to deal with?
2. What is the size of the materials?
3. What is the width of the conveying belt?
