型号编号 | GQ19B-M/DC12V |
商标 | ONPOW |
起源 | 浙江 |
商品编码 | 8531801001 |
生产能力 | 每月一万 |
产品详情
Product Description
Preview

Preview

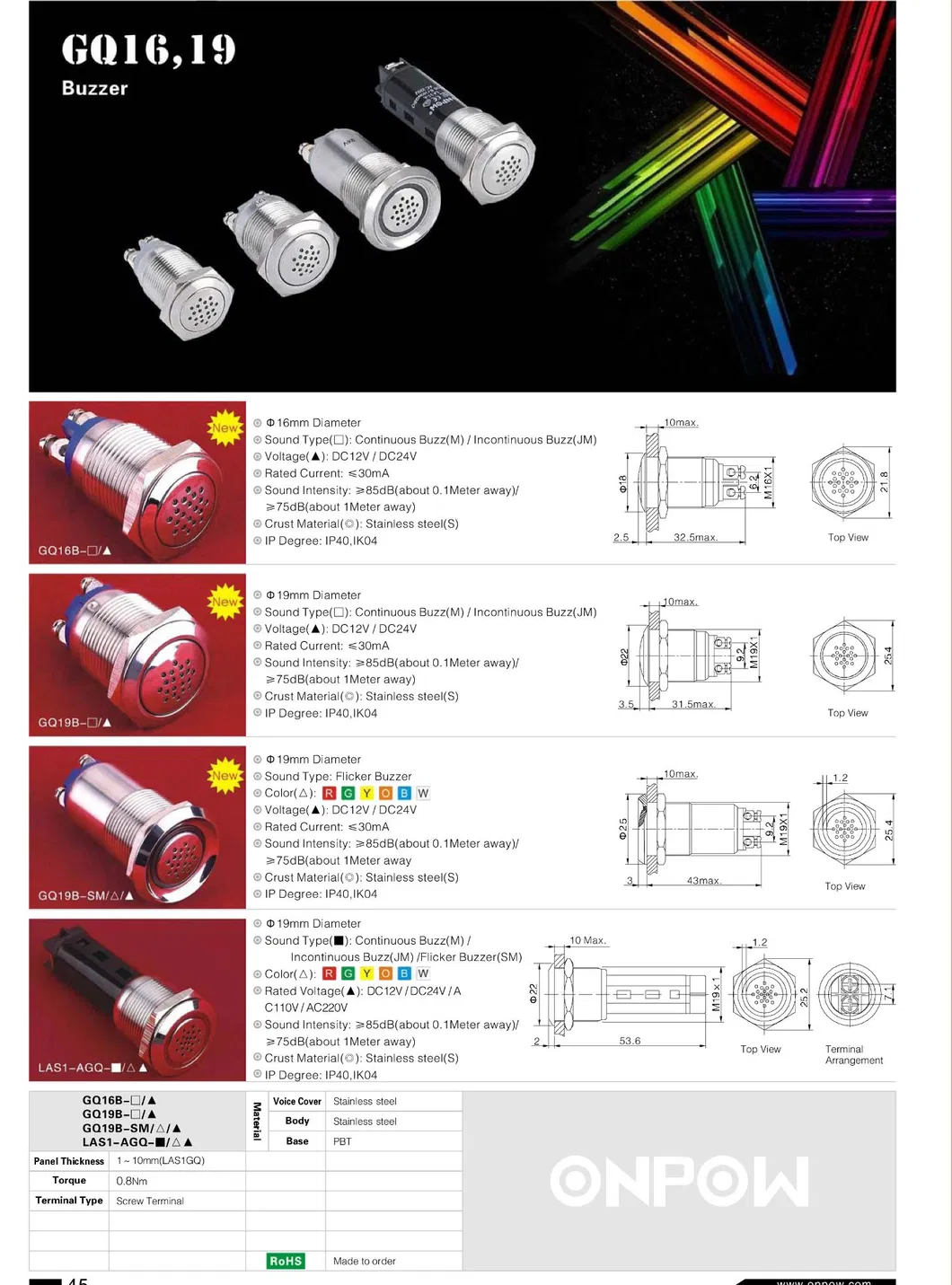

Diameter: 19mm
Sound Type: Continuous Buzz (M) (other option: Incontinuous Buzz(JM))
Voltage: DC12V (other option: DC24V)
Rated Current: ≤
30mA
Sound Intensity: ≥
85dB (about 0.1Meter away)
The Crust Material: Stainless steel(S)
IP Degree: IP40, IK04
The front shape: Domed Honeycomb
Terminal type: Screw Terminal
Insulation Resistance: 2000VAC
Operating temperature: -20 to +55° C
Panel Thickness: 1~10mm
Torque: 5~14Nm
Material: Voice cover: Stainless steel
Body: Stainless steel
Base: PBT
Frequency: Continuous Buzz is about About 2.8kHz
Incontinuous Buzz is about 1~1.5Hz
Sound Type: Continuous Buzz (M) (other option: Incontinuous Buzz(JM))
Voltage: DC12V (other option: DC24V)
Rated Current: ≤
30mA
Sound Intensity: ≥
85dB (about 0.1Meter away)
The Crust Material: Stainless steel(S)
IP Degree: IP40, IK04
The front shape: Domed Honeycomb
Terminal type: Screw Terminal
Insulation Resistance: 2000VAC
Operating temperature: -20 to +55° C
Panel Thickness: 1~10mm
Torque: 5~14Nm
Material: Voice cover: Stainless steel
Body: Stainless steel
Base: PBT
Frequency: Continuous Buzz is about About 2.8kHz
Incontinuous Buzz is about 1~1.5Hz
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
· Pls contact us for BEST PRICE! !
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3. Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5. Other special requirement pls contact Mr. Puma
Puma chen
ONPOW /
ONPOW PUSH BUTTON MANUFACTURE Co., Ltd.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Work time: 8: 0-11: 30 13: 00-17: 30(Except Sunday)
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3. Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5. Other special requirement pls contact Mr. Puma
Puma chen
ONPOW /
ONPOW PUSH BUTTON MANUFACTURE Co., Ltd.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Work time: 8: 0-11: 30 13: 00-17: 30(Except Sunday)
