线阵列优质声音高频驱动器扬声器应用

Preview

基本信息产品详情证书

基本信息

型号	NC7506PT-8
频率范围	500至19000赫兹
灵敏度	109分贝
音圈	3′vc
旧物质	聚酰亚胺（Kapton）
线圈材料	铝
隔膜材料	钛
磁铁	钕（化学元素）
类别	扬声器
传输模式	空气传导
换能器原理	压电耳机
风格	便携式
辐射模式	间接辐射型
认证	CE
锥体	封底
品牌	DB扬声器
交通运输包装	纸箱
规格	400 x 270 x 165毫米
商标	CI
起源	中国
商品编码	8518290000
生产能力	五万

产品详情

Product Description

Preview

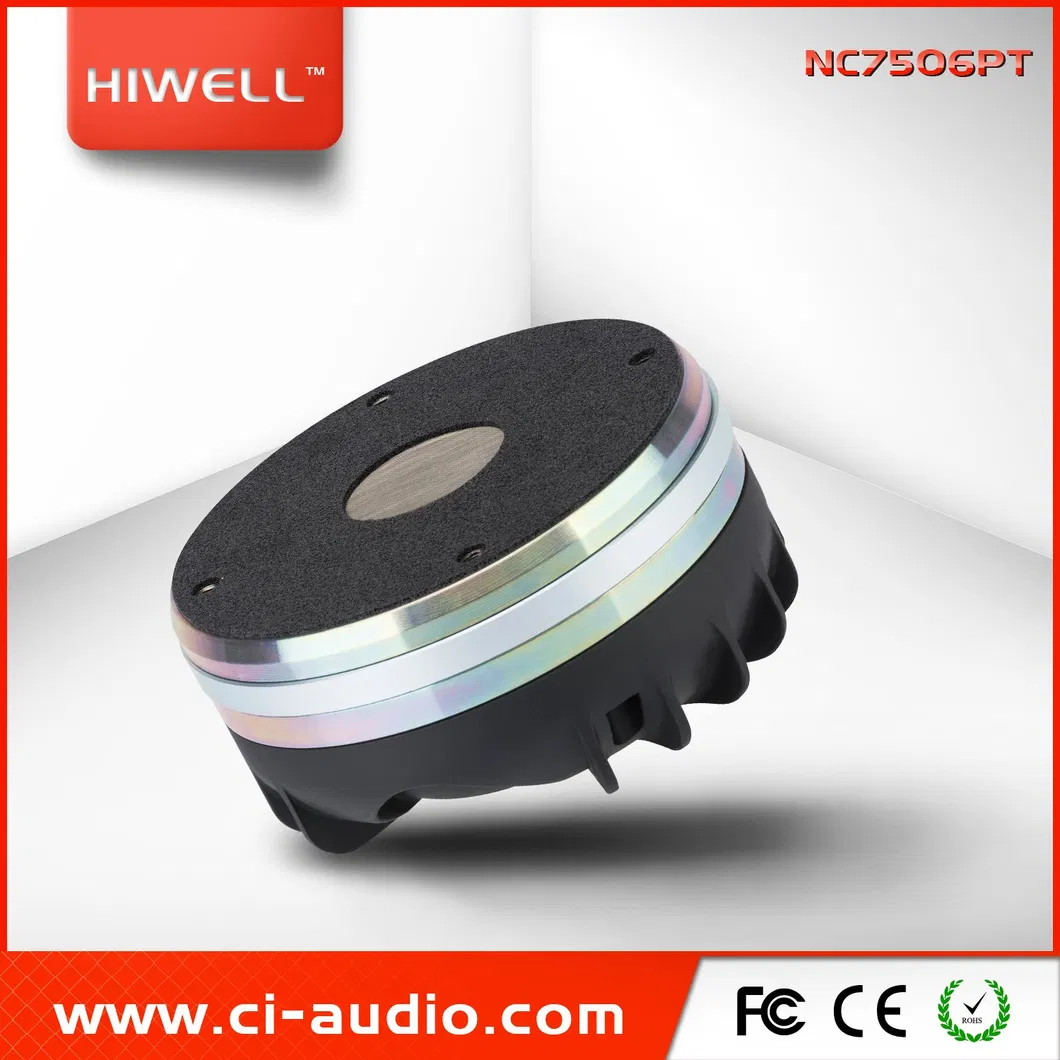

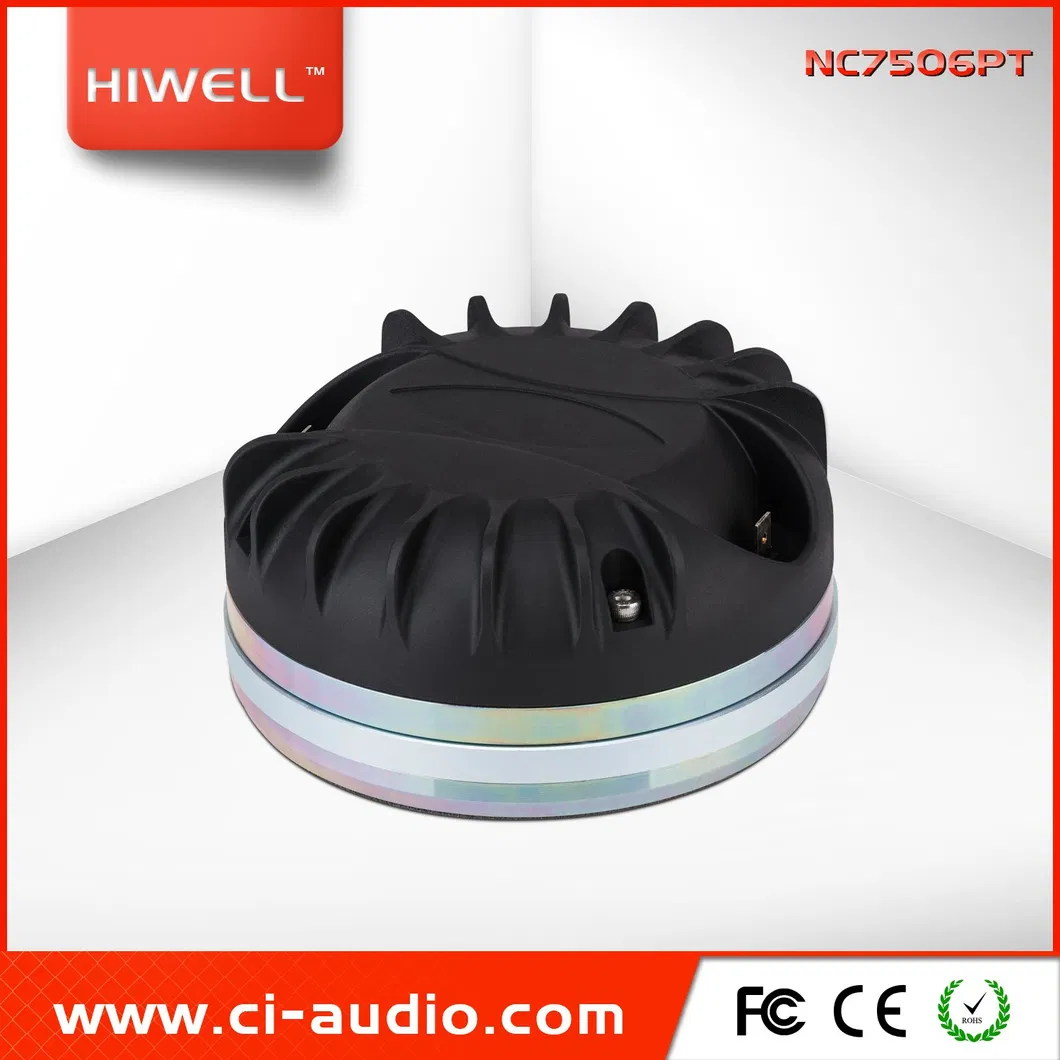

line array good sound hf driver loudspeaker application
3 INCH ALUMINIUM VOICE COIL
109 dB/SPL SENSITIVITY
220 WATT PROGRAM POWER HANDING

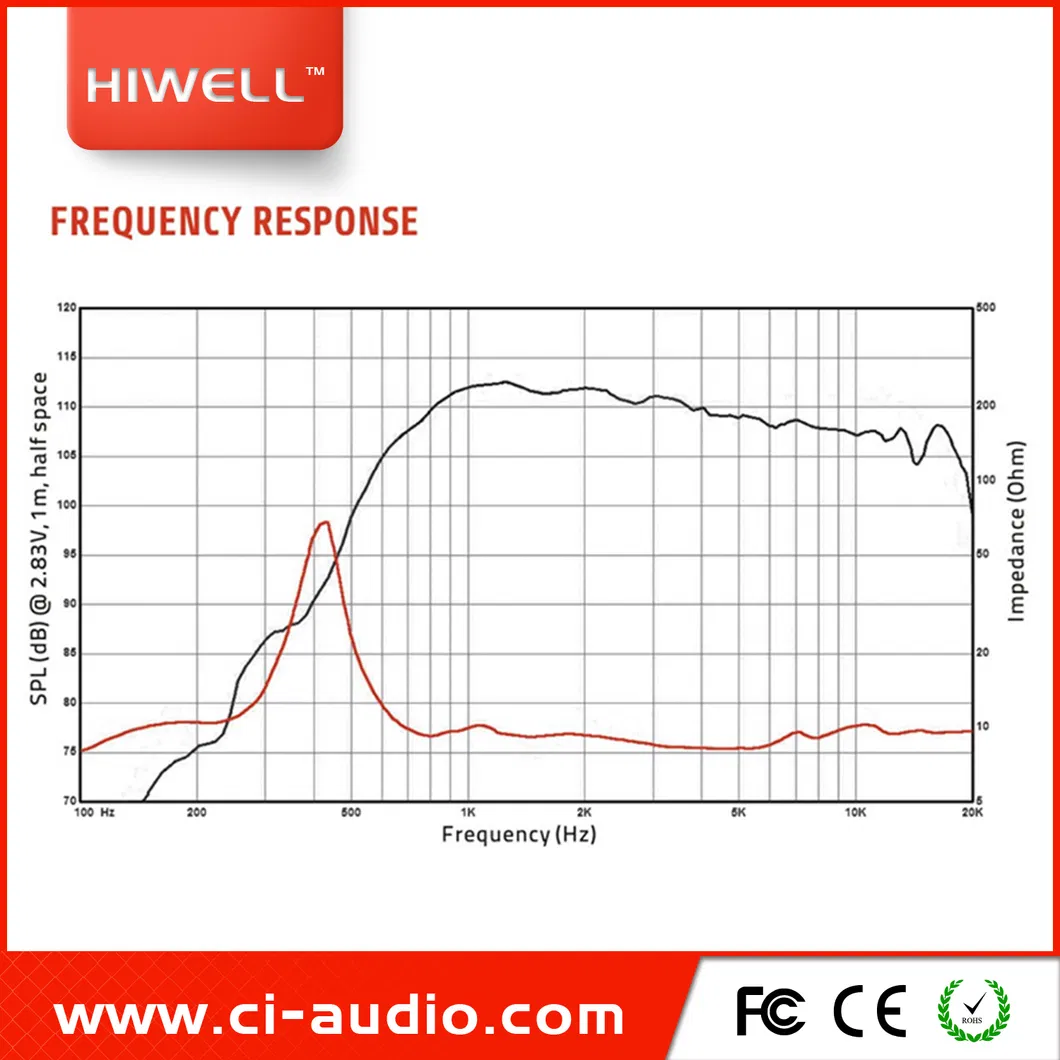

500-19000 Hz FREQUENCY RANGE
COMPOSITE POLYIMIDE /
YITANIUM DIAPHRAGM
VOICE COIL COPPER DEMODULATION RING
GENERAL SPECIFICATIONS
SHIPPING INFORMATION

Preview

Quality
Assurance
Since the raw material sent in untill the speaker sent out, every aspect of them will be fully checked.

Preview

We have many advanced test equipments to measure the quality of products. No defectives will be send out.
Our company have a nice quality control managing system(QC) that have strict management of
products and staffs.
FAQ1.Q:
Are
you
a
factory
or
trading
company?
A:
We
are
a
manufacturer with
our
own
factory ,we have more than 15
years experience.2.Q:
Can
you
do
OEM
and
ODM?
A:
Yes,
both.We can put your idea into products.
3. How many days do you need to prepare the goods?
We need about 20-25
working days for large order.
