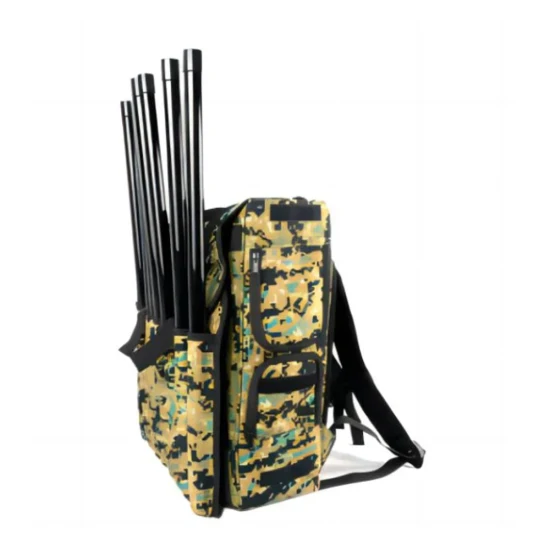

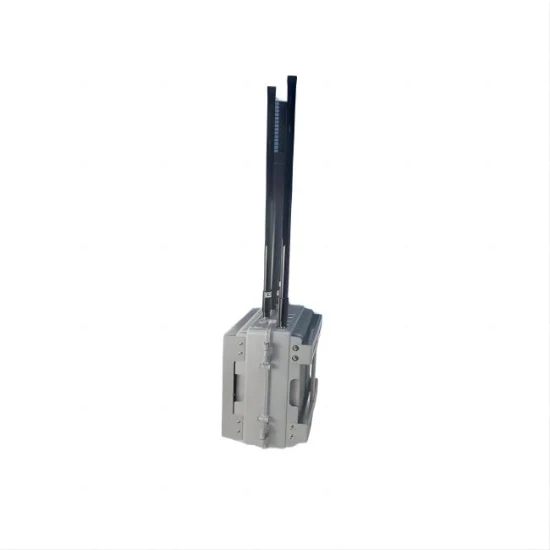

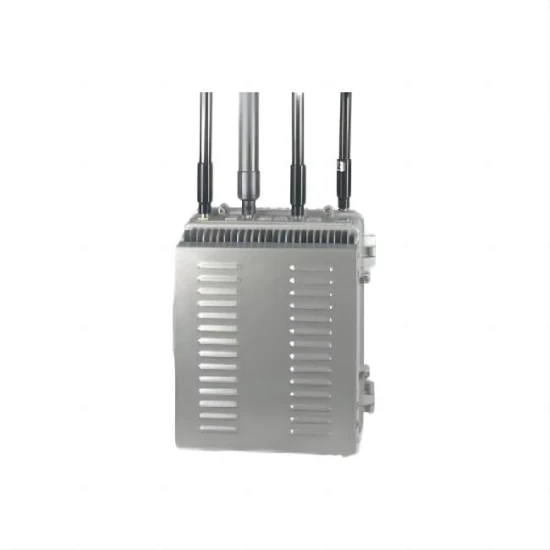

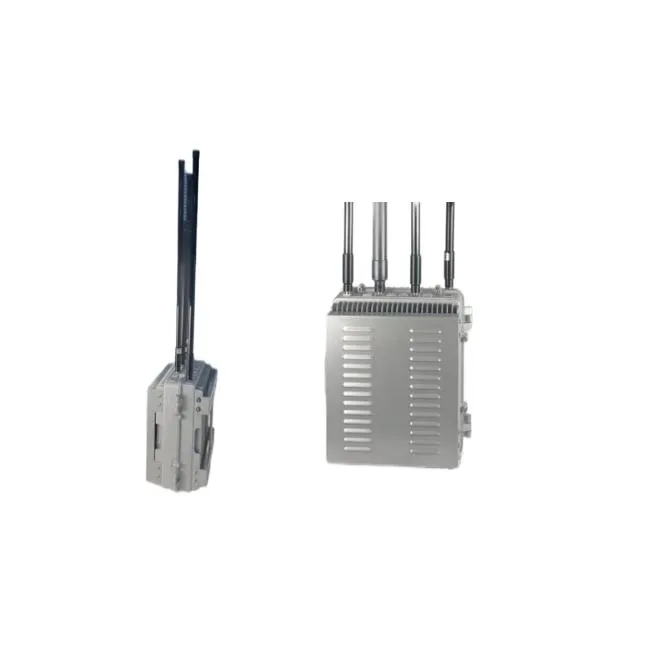

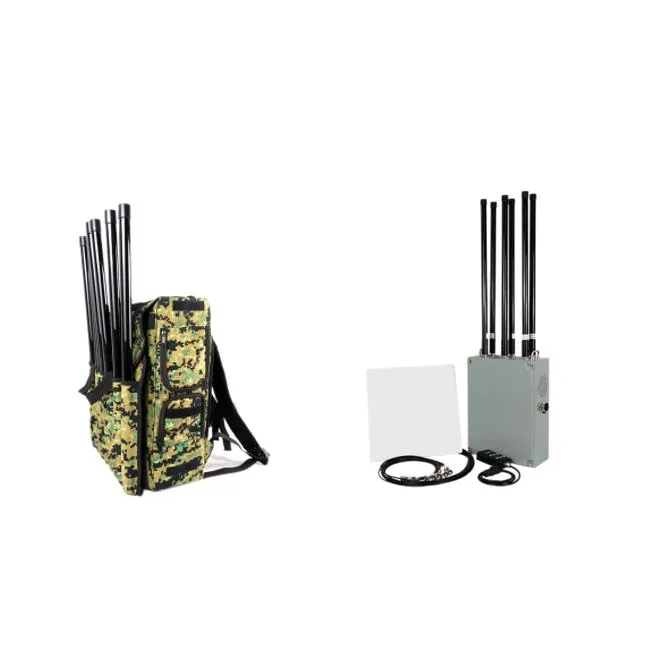

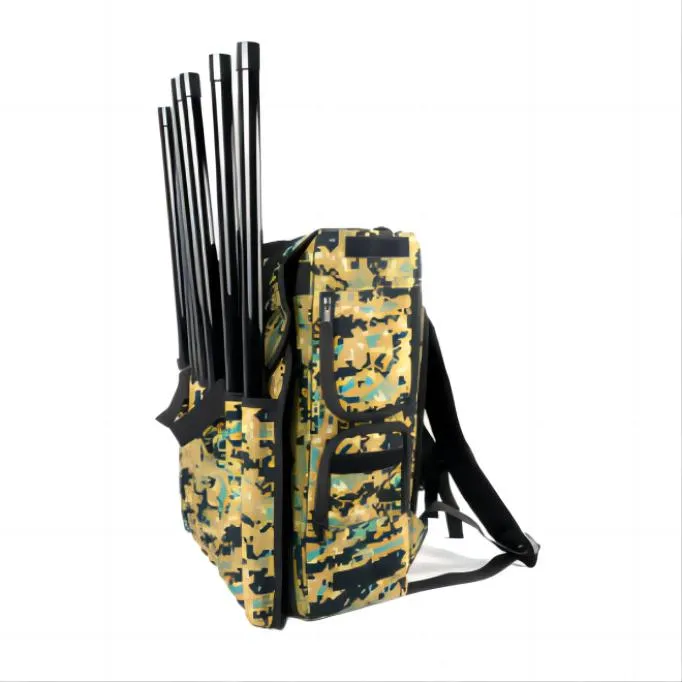

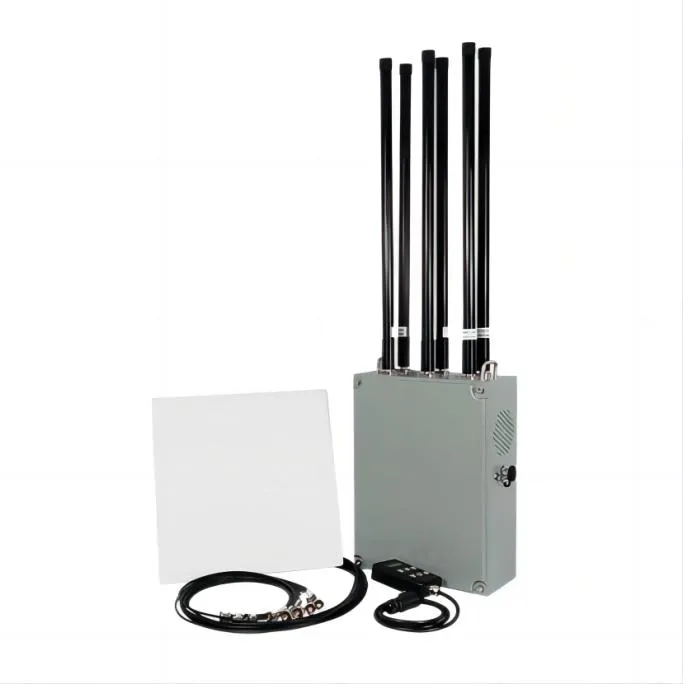

Type:Cabinet/Backpack Anti-Drone Device
Object of action:UAV map transmission, flight control links, and navigation signals
Operating frequency band (optional):
CH1 (433M): 400-450MHz-------------------------------------------- 43dBm;
CH2 (900M): 840-930MHz-------------------------------------------- 46dBm;
CH3 (1.2G): 1160-1280MHz----------------------------------------- 43dBm;
CH4 (1.4G): 1400-1500MHz----------------------------------------- 46dBm;
CH5 (1.5G): 1550-1630MHz----------------------------------------- 43dBm;
CH6 (2.4G): 2380-2500MHz---------------------------------------- 46dBm;
CH7 (5.2G): 5150-5300MHz---------------------------------------- 46dBm;
CH8 (5.5G): 5720-5880MHz---------------------------------------- 46dBm;
Coverage angle: Horizontal:-45°~45°;
Vertical:-45°~45°
Maximum number of simultaneous transmission channels:8
Quantities of simultaneous jamming:≥30
Cover distance:≤2.2km
Jamming success rate:>99%
Interception response time:<3s
Operating temperature:-35ºC~55ºC
Overall power consumption:<300W
Power supply voltage:AC
220V
Size:400*300*140±5mm // 400*280*220mm
Weight:≤17kg
Power:AC220V - DC24V
Working time:≥60 minutes
Material:Aluminium + high-performance plastic
Antenna type:Directed or Omni-directional
