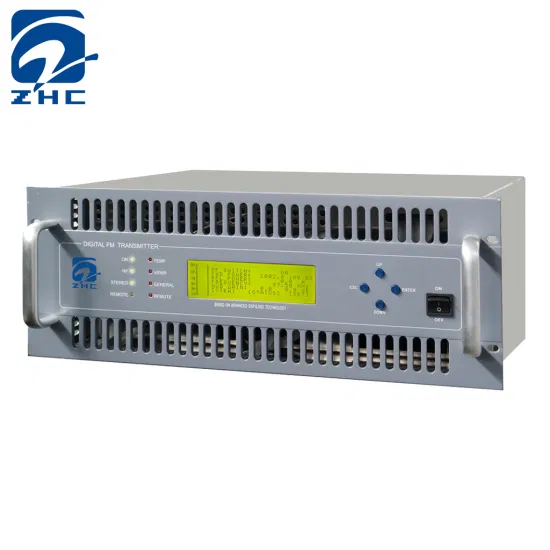

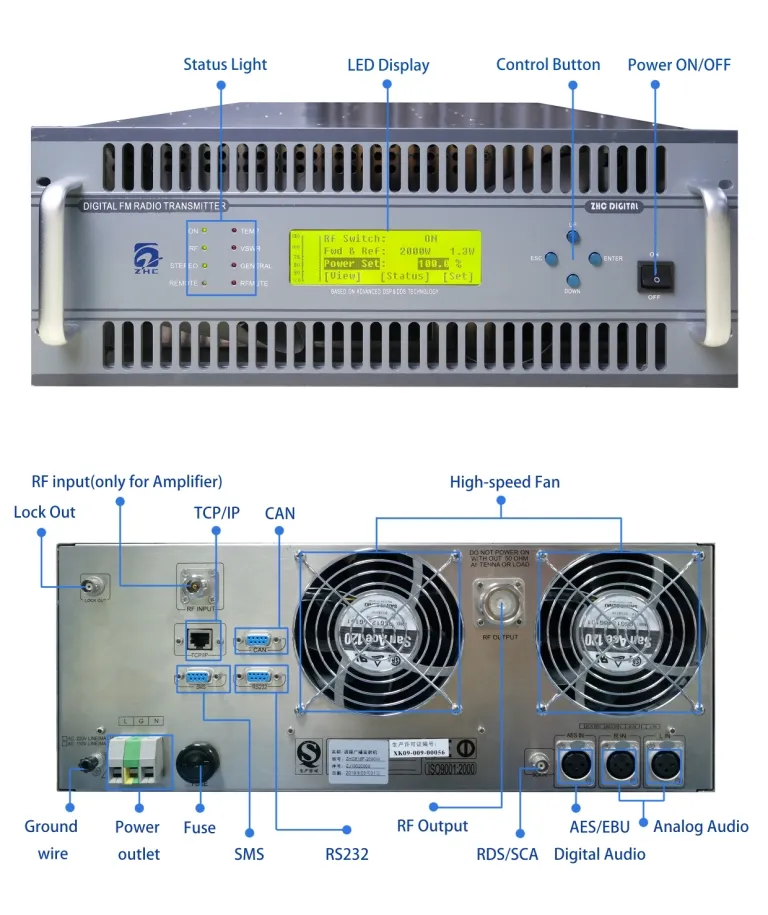

ZHC618F-2000W
Compact
FM
Stereo

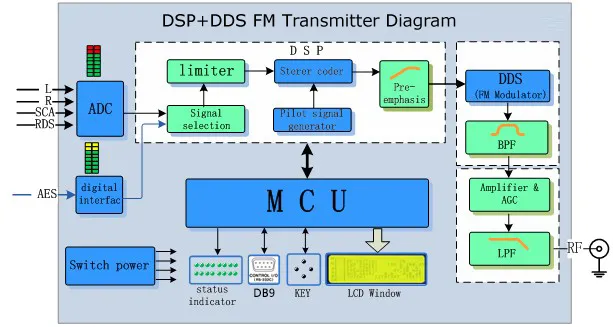

TransmitterZHC618F-2000C is a compact FM stereo broadcasting transmitters. The advanced digital technologies, Digital Signal Processor (DSP) and Digital Direct Synthesizer (DDS), are used in the transmitters to get little size, high performance and high reliability. They are widely used for professional radio stations to transmit high quality FM radio programs.FEATURES: 1. The simple design of 2KW FM stereo transmitter, exciter, power amplifier, output filter, switching power supply, etc. are installed in a 4U high 19-inch standard chassis, reducing the connection cables between ordinary transmitter components, and more reliable High, easier operation.2. The whole process of digital processing (DSP + DDS), to achieve the perfect hearing effect close to CD sound quality.3. Analog audio and digital audio (AES / EBU) can be input at the same time, digital audio has priority.4. With TCP / IP, CAN and RS232 communication interfaces and SMS cat interface.5. Perfect alarm and protection functions for over current, over voltage, over temperature, over power, and excessive standing wave ratio.6. Large screen LCD displays working parameters in real time.7. Large radiator and two high-speed, long-life fans are used to ensure that the transmitter works at a reliable low temperature.8. Use high quality, high reliability, wide range switching power supply.9. High-quality stainless steel, 4U, 19-inch standard chassis.10. The machine has high reliability, high performance, easy operation and low price.ZHC618F-2000W/C FM Transmitter DiagramTechnical Specifications:1. Frequency Range
87.0MHz~108.0MHz2. Output Power
0~2000W3. Output power deviation
<± 10%4. Output power stability
<± 3%5. Output Load Impedance
50Ω6. RF Output Interface
7/16"(female) or 7/8"Flange7. Residual wave radiation
<-70dBc8. Parasitic amplitude modulation
<-50dB9. Carrier Frequency Precision
±200Hz10. Analog Audio Input
-12dBm~+8dBm11. Audio Input Level Gain
-15dB~+15dB, step 0.1dB12. Audio Input Impedance
600Ω, Balance, XLR13. AES / EBU input impedance
110Ω, Balance, XLR14. AES / EBU input level
0.2 ~ 10Vpp15. AES / EBU sample rate
30kHz ~ 96kHz16. SCA Input
Unbalance (optional) BNC connector17. Pre-emphasis
0μS, 50μS, 75μS (optional)18. Audio Response
±0.1dB (30Hz~15000Hz)19. LR channel level difference
<0.1dB (100% modulation) 20. Stereo Separation
≥50dB 30Hz ~ 15000Hz21. Stereo S/N ratio
≥70dB 1KHz, 100% modulation22. Distortion
<0.1% 30Hz~15000Hz23. Cooling mode
Forced Convection24. Temperature Range:
-10ºC~+45ºC25. Relative humidity
<95%26. Working Altitude
<4500m27. Power Consumption:
3300VA28. Size
4U, 19-inch standard 650mm×483mm×177mm29. Weight
45KG
