基本信息
| 型号编号 | 多通道编码器 |
| 编码 | MPEG-4 |
| 颜色 | 黑色 |
| 输入 | 8/16/24路HDMI输入 |
| 视频编码 | MPEG-4 Avc/H.264 |
| 音频编码 | 通过MPEG-1第2层、LC-AAC、He-AAC和AC3 |
| 尺寸（宽×长×高） | 482毫米×328毫米×44毫米 |
| 交通包 | 标准包 |
| 规格 | CE, ISO, Rohs |
| 商标 | 戴泰 |
| 起源 | 中国（大陆）浙江省 |
| 生产能力 | 每月800件 |
产品详情
Product Description
Preview
Description

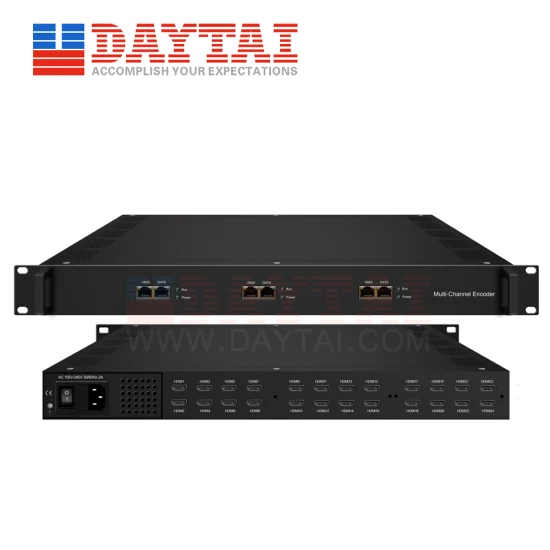

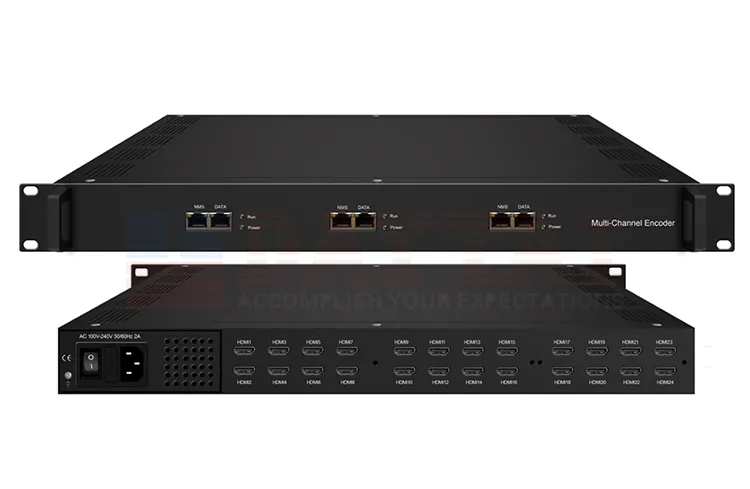

Digital TV Headend 8,16,24 Way Multi-Channel Encoder,Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.Order Information:DT-MCE-9228S-8 OR DT-MCE-9228S-16 OR DT-MCE-9228S-24 is optional,Power requirements:AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.Features⊙Support "Null PKT Filter" function⊙MPEG4 AVC/H.264 video encoding format⊙Control via web management, and easy updates via web⊙IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)⊙8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs⊙MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment⊙Support QR code, LOGO, caption insertion (Language Supported:English,for more languages please consult us…)★Specification
★Order Information
Digital TV Headend 8,16,24 Way Multi-Channel Encoder,Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.Order Information:DT-MCE-9228S-8 OR DT-MCE-9228S-16 OR DT-MCE-9228S-24 is optional,Power requirements:AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.Features⊙Support "Null PKT Filter" function⊙MPEG4 AVC/H.264 video encoding format⊙Control via web management, and easy updates via web⊙IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)⊙8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs⊙MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment⊙Support QR code, LOGO, caption insertion (Language Supported:English,for more languages please consult us…)★Specification
★Order Information
