4G Cat 12 ODU支持B42 B43 Cbrs频段

Preview

基本信息产品详情证书

基本信息

型号（No.）	霍尔204
条件	新
频率频带	B42频段、B43频段、Cbrs频带、Laa频带
SIM卡	Esim或4FF Nano SIM卡
电源供应	Poe电源
无线网络	802.11b/G/N，WiFi 4，2.4GHz
交通总包	纸箱
规格	245乘以145乘以67.5毫米
商标	E-Link
起源	中国
商品编码	8517623400
生产能力	五百万

产品详情

Product Description

Preview

4G CAT 12 ODU HOR204

Preview

• 3G/4G LTE wireless data transmission.
• Supports global frequency bands.
• Automatic networking and dialing when powered on.
• Built-in watchdog, self-recovery from system crash.
• 2*2 MIMO WIFI
antenna. (Optional)
• 4G 2*2 MIMO or 4*4 MIMO antennas.
• 3G/4G LTE full-band high gain antenna: 10DBi
• Supports WIFI, GPS functions. (Optional)
• 2 * LAN Gigabit
ports.
• Built-in SIM or eSIM card.
• Built-in communication protocols. PPTP, L2TP, IPSEC VPN, TCP, DHCP, HTTP, DDNS, TR-069, GRE, HTTPS, SSH and other protocols.
• Support local UI upgrade and remote upgrade.
• ABS plastic shell, industrial quality, waterproof, dustproof, lightning proof, grade. IP65.
• Lightning protection, level: 5KA
• Operating system: Openwrt 18.06, which supports secondary development by users.
• Operating temperature. -30ºC ~ +70 ºC.

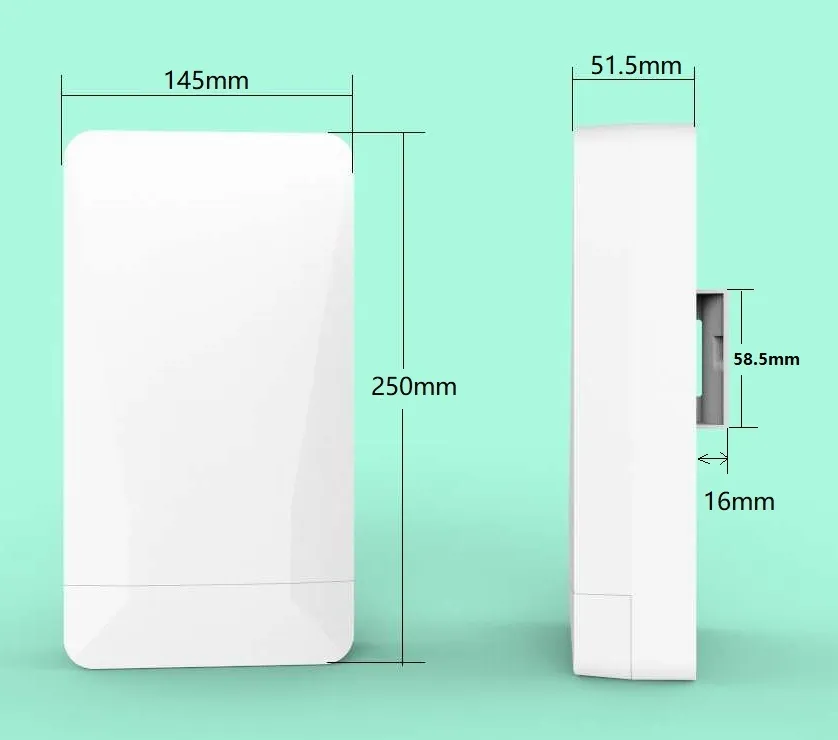

• Size: 250*145*67.5 mm.
Product features
Wireless
Mobile
Broadband 3G / 4G/5G Connection.Supports 3G/4G/5G global frequency bands.
Supports
4G LTE CAT 6, CAT 12
or
5G
high speed internet access.
System crashes and automatically recovers. The system
automatically maintains the data link and is permanently online.
Supports
Multiple VPN tunnels for data
encryption.
Designed
for
industrial
usage

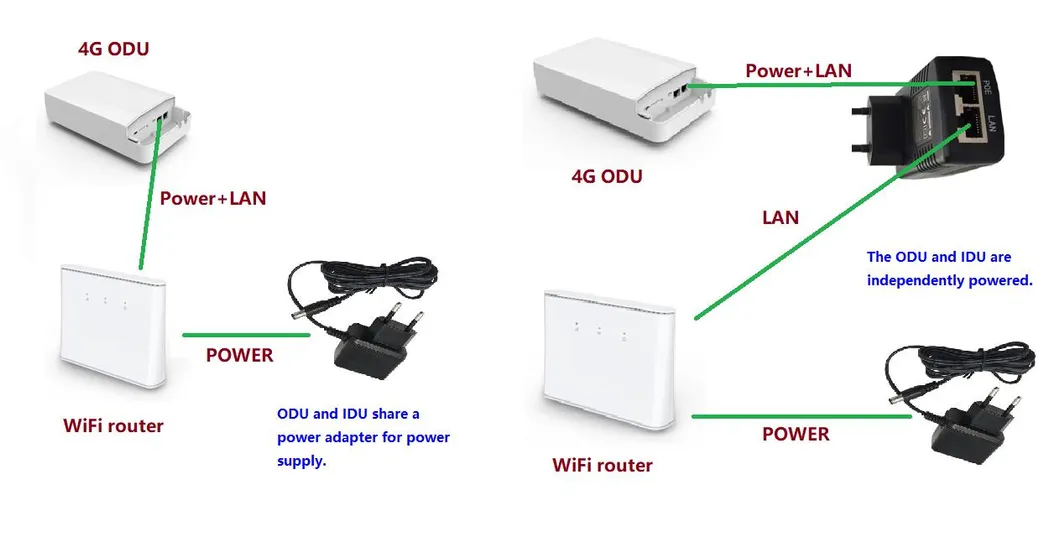

Power
Input Range.POE DC +12V
to
+36 VDC
Industrial design for harsh environment.
ABS fireproof plastic material shell.
Easy
to use
and easy
maintenance
User friendly
web interface for user interaction.
Supports
Central Management
Platform.
Supports
local web UI and remote FOTA update firmware.
Operating system
Built-in
OpenWRT 18.06
operating system. Supports
user secondary application development.
SPECIFICATIONS

Preview
