SL-101DQ
is a
special designed monitor for rear/quad view with shotcut key for quad operation
Compatible with AHD1080P,AHD720P,CVBS camera
It has 3 kind size , 7" ,9" and 10.1" , shape is similar---built in quad function ( support 4x1080P/4x720P AHD camera )
--DVR function ( optional function,built in micro SD card slot,record camera footage)
--touch panel
(optional function, USB connector to connect with PC )
--HDMI input (optional function,easy to connect to PC or DVR )
Product Parameters
monitor spec
Screen Size: 10.1inch 16:9
Resolution:1024X 600
Brightness :450cd/M2
Contrast: 500:1
Power input:DC12-36V

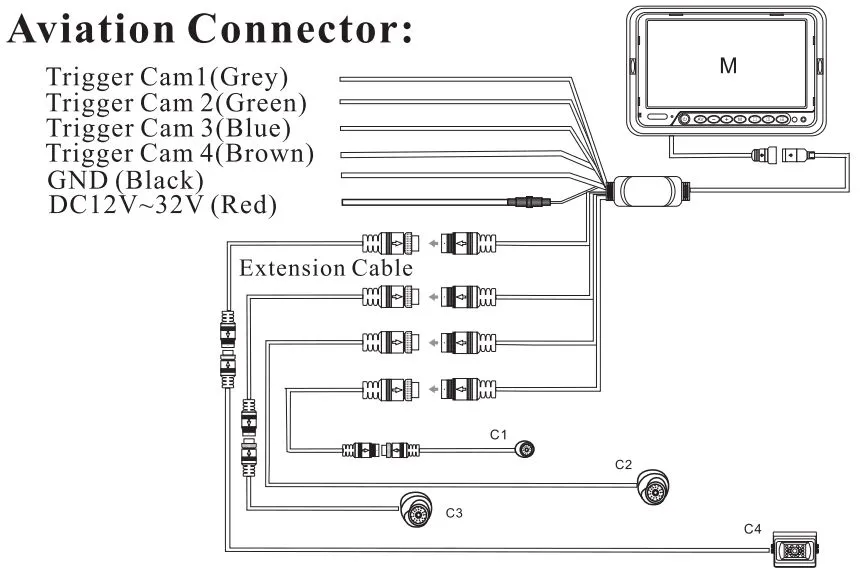

AV input:2-4 channel ,could connect
4 x AHD or
analog camera Color System: NTSC/PAL Auto- SwitchResolution: 1024(H) x 600VBrightness: 450 CD/m2 high brightnessContrast Ratio: 350: 1Color /Bright /Contrast /Dimmer: Adjusted by OSDKey with blue LED lampPAL / NTSC auto switchView Angle: Left/Right: +60, Up: 45. Down: 60 degreeSignal input: 4 channel, monitor supply power to camerasQuad function ( optional ,Quad image, duplex image, full screen image switch)Auto sequence function from channel 1-4Special designed 3 quad operation button on front casePower Supply: DC9-36V, 1.5APower Consumption: 9W(Average)Operation Temperature: -20~+70 centigradeStorage Temperature: -30~+80 centigrade
