基本信息
| 型号 | KP-DC275406500-12/C |
| 速度 | 1000- 6500转/分钟 |
| 冷却能力 | 4.8kw |
| 额定工作电流 | 4安 |
| 防护等级 | IP67 |
| 制冷剂 | R134a |
| 油 | RL 68 h |
| 警察 | 2.1-2.3 |
| 运输包装 | 纸箱 |
| 规范 | 27 cc |
| 商标 | 开普勒 |
| 起源 | 中国 |
| HS编码 | 8414301300 |
| 产能 | 200000 PCS/年 |
产品详情
Product Description
Preview

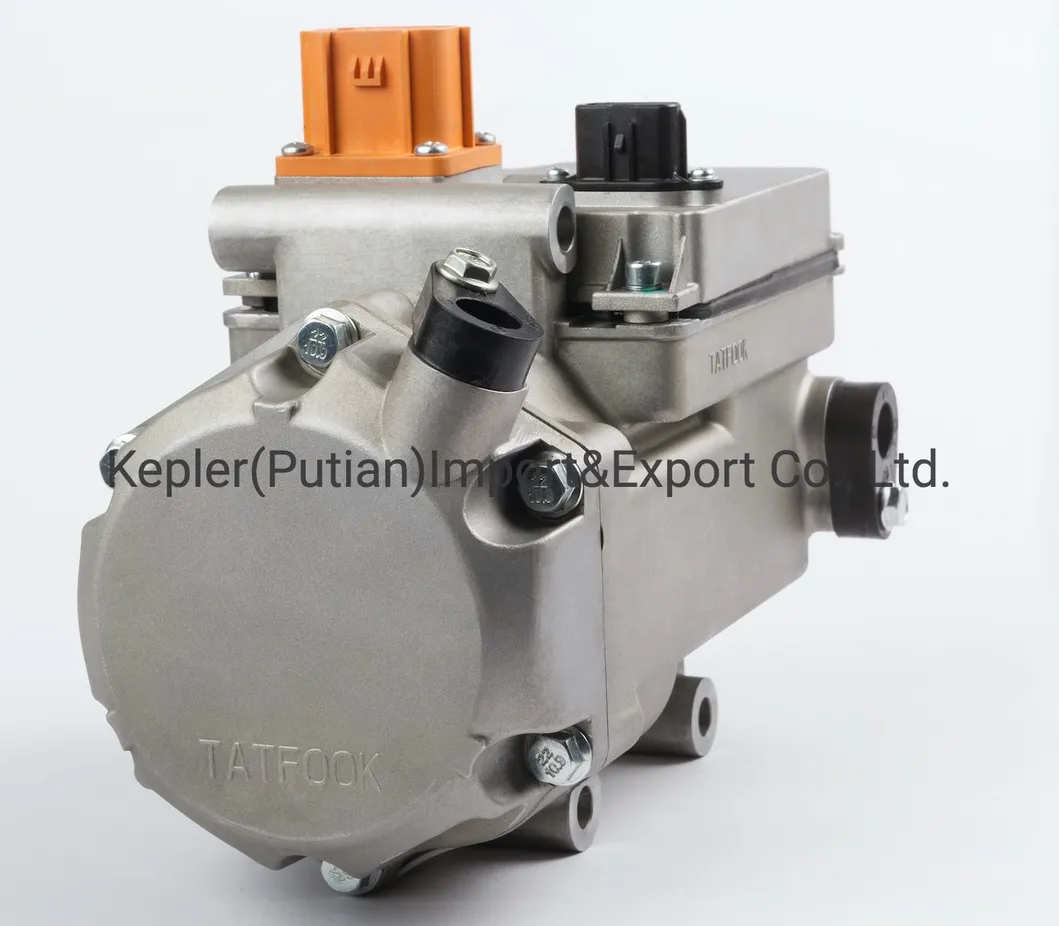

KEPLER INTEGRATED TYPE 27CC DC COMPRESSOR with 580VDC input voltage
Preview
Preview
Style No.: KP-DC275806500-12/C
Standard:
Standard:
Preview
Preview
GB/T22068-2008 Electric compressor assembly used for vehicle air conditioner
Basic Technical Parameters

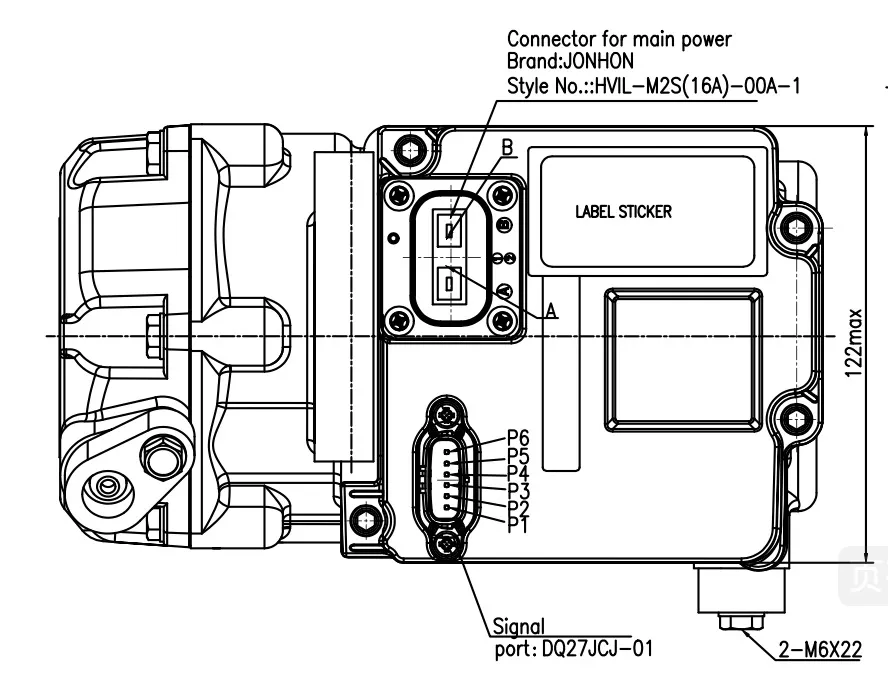

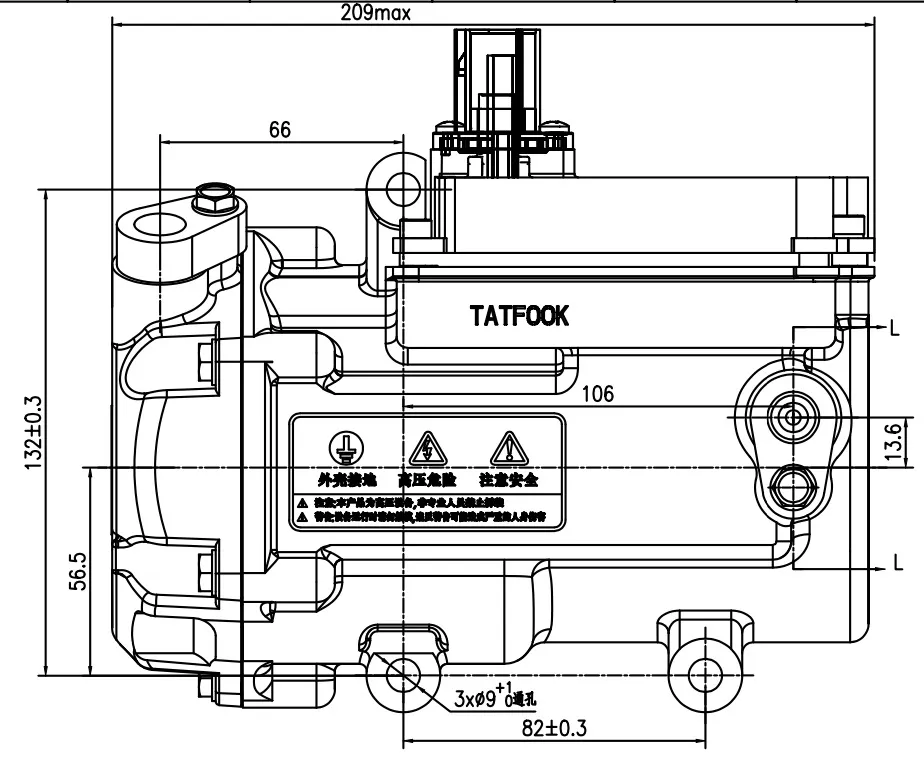

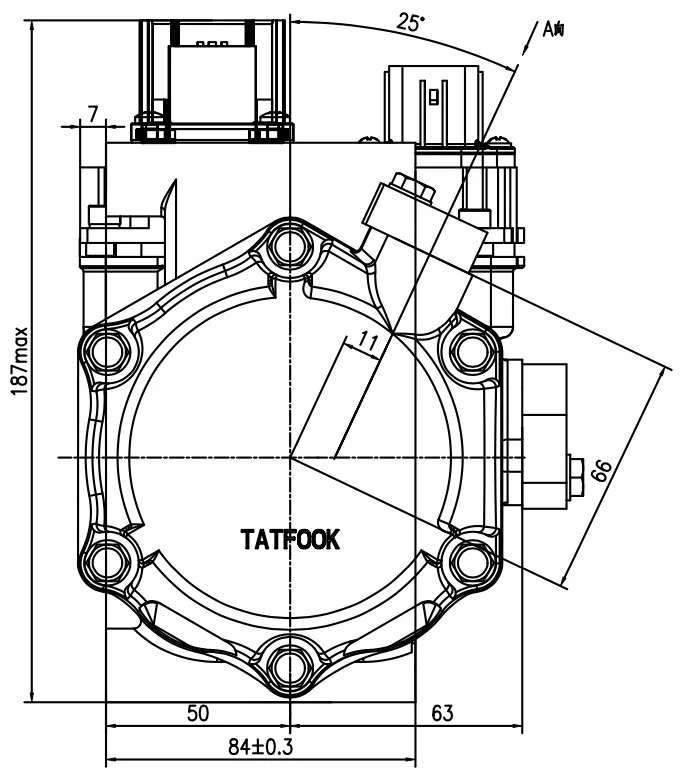

Compressor Drawing
Basic Technical Parameters
Compressor Drawing
Preview
Preview
Preview
Preview

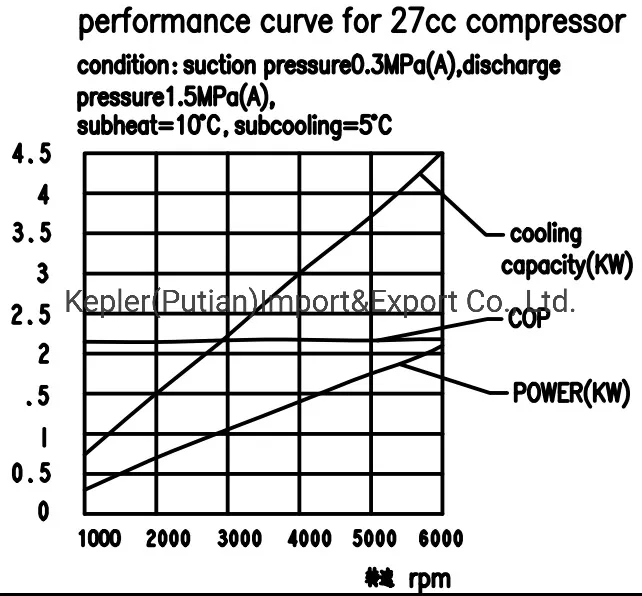

Performance Curve for 27cc Compressor
Preview
Preview
Wire Diagrammed for compressor with PWM Speed regulation
Preview
Preview
Application for 144vdc electric compressor
Electric Car
Electric Truck
Electric Van
Electric Car
Electric Truck
Electric Van
Preview
证书
标题：IATF16949
Preview
540 V直流电动涡旋压缩机R134 A电动汽车用压缩机
价格待议
运输工具制造产业链 · 汽车空调系统 · 自动压缩机
型号KP-DC275406500-12/C
运输包装纸箱
产地中国
莆田
已认证
