BAFS5008 mass gas flow sensor is a microelectromechanical system (MEMS) flow sensor chip production, is suitable for various purposes of cleaning, small relatively dry gas flow measurement and process control, unique packaging technology makes the product to meet different range of flow measurement, to ensure the high sensitivity, high reliability, high stability and low cost.BAFS5008 series products are based on MEMS traffic sensing unit, high precision digital processing and calibration circuit (MCU) composition, integrated high-resolution Delta-σ A/D converter and have internal calibration function Qun circuit and MCU processor together to ensure that the sensor signal real-time effective acquisition, obtain accurate traffic signal, And the corresponding compensation algorithm is processed internally, so there is no need to do any external calibration compensation, can ensure high precision flow output; Friendly digital output communication line, users can get corresponding data and information very easily; Product application range is very broad.
Charcteristics:
arcteristics:
High accuracy (1.5% F.S accuracy)
Linear output and no temperature compensation
Maintain long term stability with minimum zero drift
Fast response time (20 ms response time)
Wide flow rate range 0~60m/s, impact resistance 100g
Solid sensing core (no surface cavities or fragile film), resistant to clogging and pressure impact

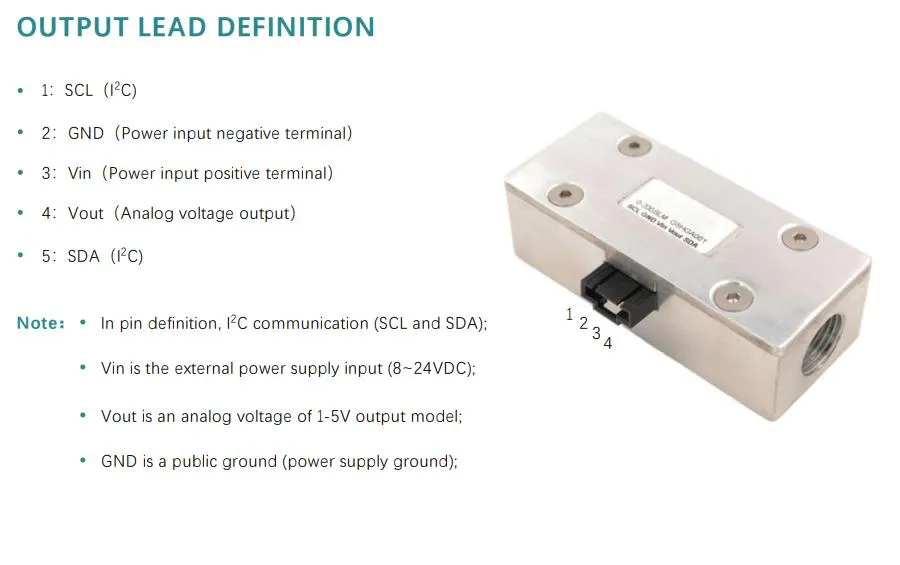

Analog output (1-5 V) (digital I2C communication output is available)
Can be adapted to the relative humidity gas measurement
The sensor is resistant to condensation
Application
•
Industrial
•Medical
•Oil
•Food processing
•Fuel gas
•Chemical
•Smelting
•Mechanical and electrical equipment
Product Parameters

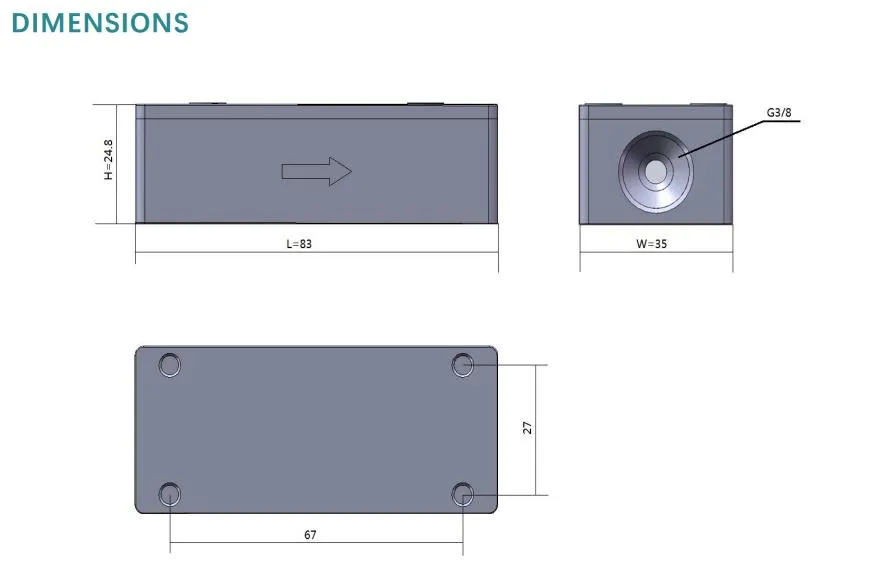

Dimensions

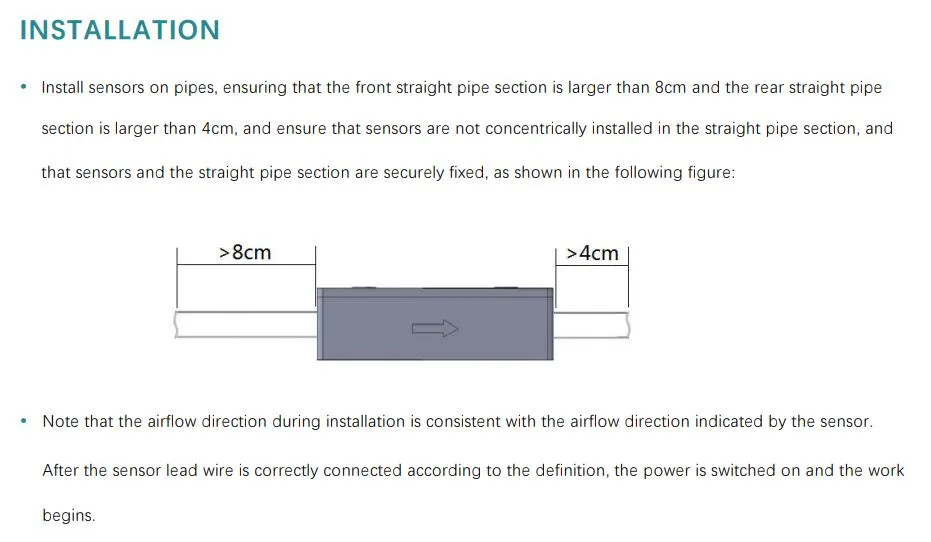

Installation Instructions

Notice:
• The product is best used in the environment of clean gas; not suitable for the environment with a lot of dust, oilpollution and mult!phase tlow, tor the envronment with a lot of water vapor, please contact the manufacturer inadvance.•
Products are suitable for gas measurement, monitoring and control in automotive, industria, commercial, equipmentand other industries. Use in other unsuitable environments should be strictly controlled.•
When using or applying this product, you should strictly follow the relevant operating specifications and safetyprecautions and regulations for operators.

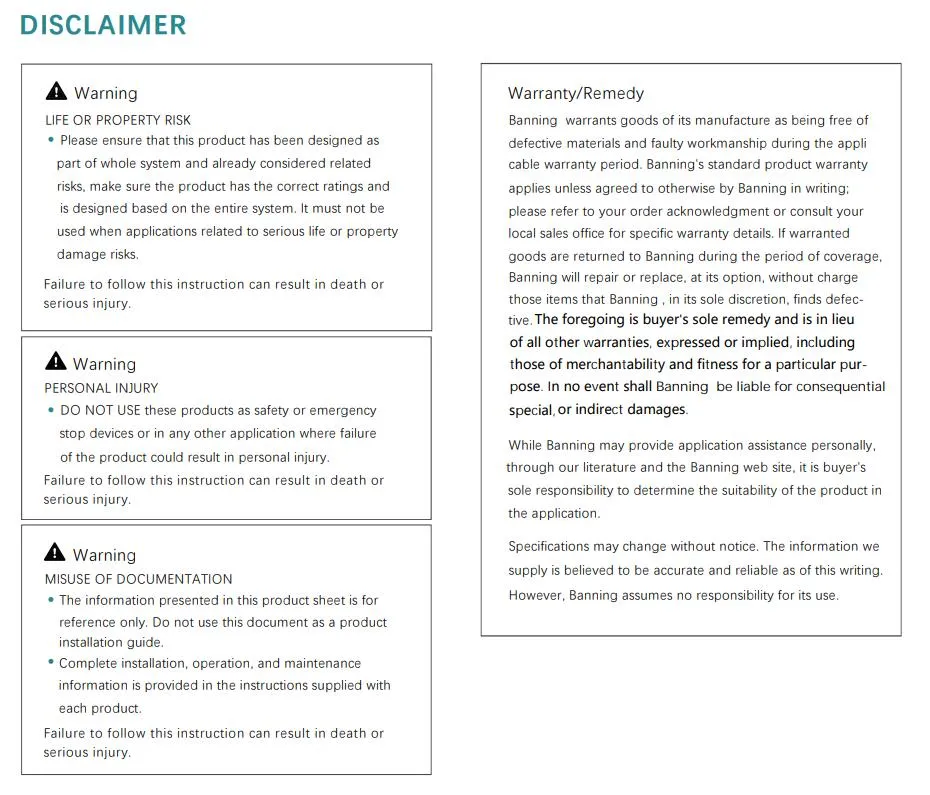

Disclaimer
