1
4110702677003
Pressure and temperature sensor
2
4110000405393
Seal washer
3
4110001117052
O-ring
4
4110001595027
Cylinder liner
5
4110702677004
Hexagon flange bolt
6
4110702677006
Hexagon screw plug
7
4110702677002
Assembled sealing washer
8
4110001117056
Locating pin 12x35
9
4110702780002
Crankcase assembly
10
4110001117053
O-ring
11
4110001117050
Parallel pin
1
4110702780004
Crankcase pre-assembly
2
4110001117059
Corehole plug 16/10
3
4110000001027
Bowl plug
4
4110001117058
Pulling rivet
5
4110000001148
Screw plugs
6
4110000001061
Within the hexagonal plug
7
4110000001017
Composite washer
1
4110001595032
Bowl plug
2
4110702780005
Cylinder block
3
4110001117062
Main bearing bolt
4
4110001117061
Main bearing bolt
5
4110702677010
Crankcase
6
4110001117064
Parallel pin with internal thread
7
4110001050002
Camshaft bushing
8
4110000001034
Camshaft bushing
9
4110001595035
Bowl plug
1
4110001050012
Front seal
2
4110001117171
Oil seal of crankshaft (rear)
1
4110702677013
Piston nozzle assembly
Y
1
4110001117089
Hexagon head bolt
2
4110000984092
Socket cap screw
3
4110702416044
Flywheel housing plate
4
4110000001012
Cylindrical pin
5
4110702677015

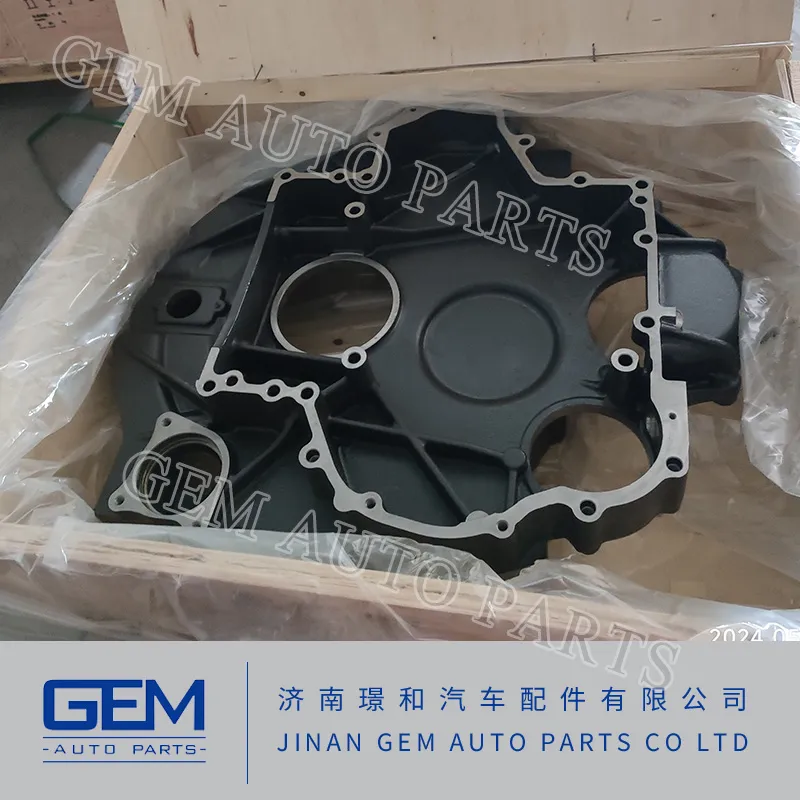

Flywheel housing
6
411000111724
Inner hexagon socket head cap screw
7
4110001117165
Speed sensor
8
4110001117166
Hexagon head bolt
9
4110001117167
Hexagon flange bolt
10
4110702677016
Hexagon flange bolt
11
4110001117168
Handhole cover plate
12
4110001117170
Handhole cover
13
4110001117163
Flywheel housing cover
14
4110702677017
Hexagon flange bolt
15
4110001117097
Hexagon flange bolt
1
4110000001369
Cylindrical pin
2
4110702890008
Front end cover
3
4110702890009
Bracket
4
4110001117069
Hexagon flange bolt
5
4110001117070
Hexagon flange bolt
6
4110702890010
Hexagon flange bolt
7
4110000001411
Hex head bolt
8
4110702890011
Stent
9
4110702890012
Hexagon flange bolt
1
4110001117076
Crankshaft gear
2
4110000001071
Cylindrical pin
3
4110702677019
Crankshaft assembly
1
4110702677020
Crankshaft subassembly
2
4110000001155
Blockage
1
4110702677021
Crankshaft
2
4110702677022
Oil pump gear
1
4110702677024
Main bearing upper shell
2
4110702677025
Main bearing lower shell
1
4110000405020
Thrust washer (lower)
2
4110000405021
Thrust washer (upper)
1
4110001939052
Deep groove ball bearing
2
4110000001168
Hole elasticity file ring
3
4110001939010

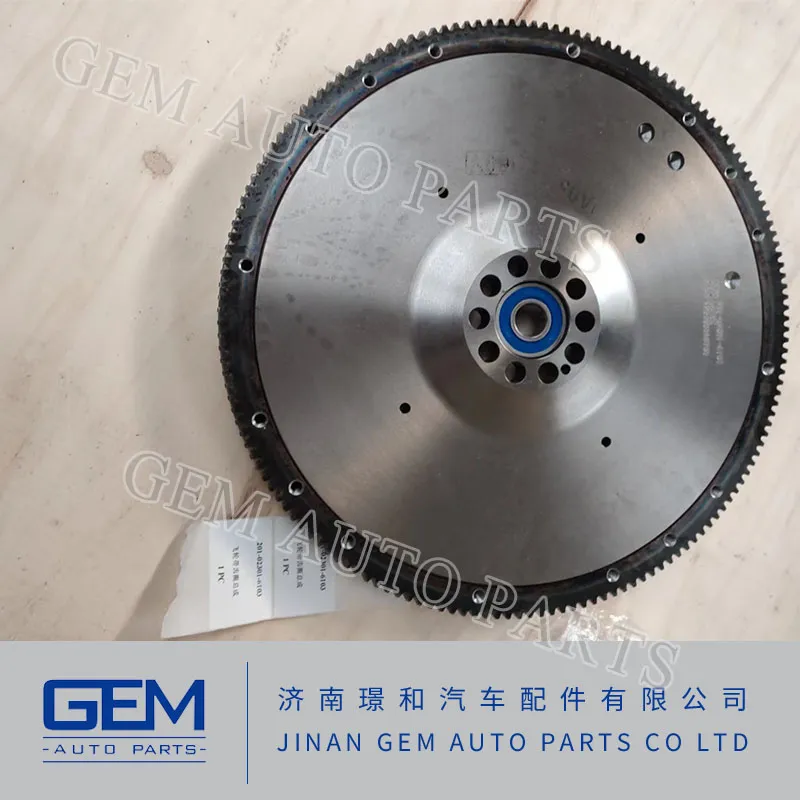

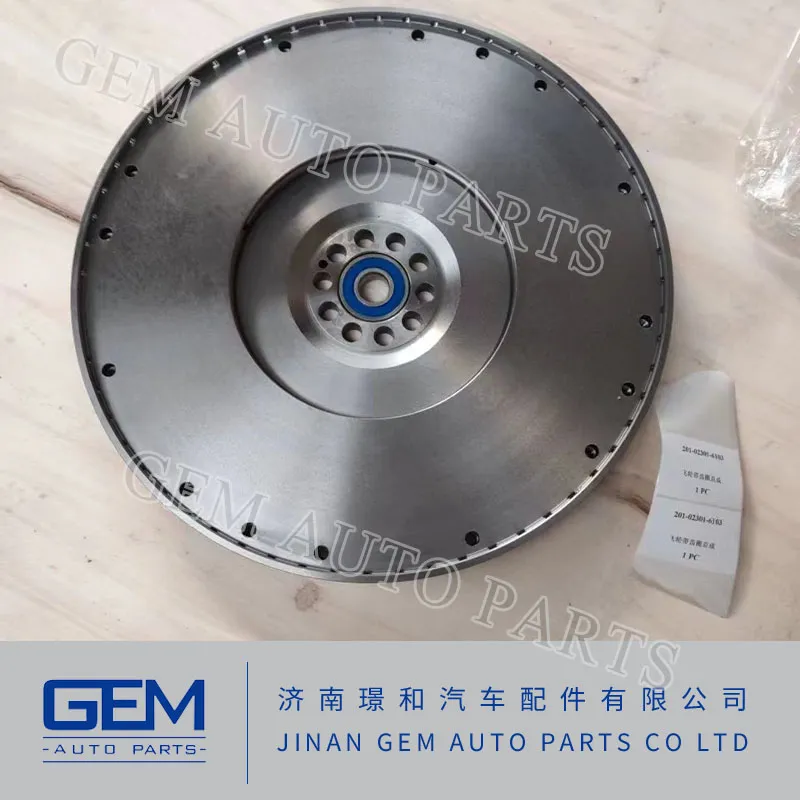

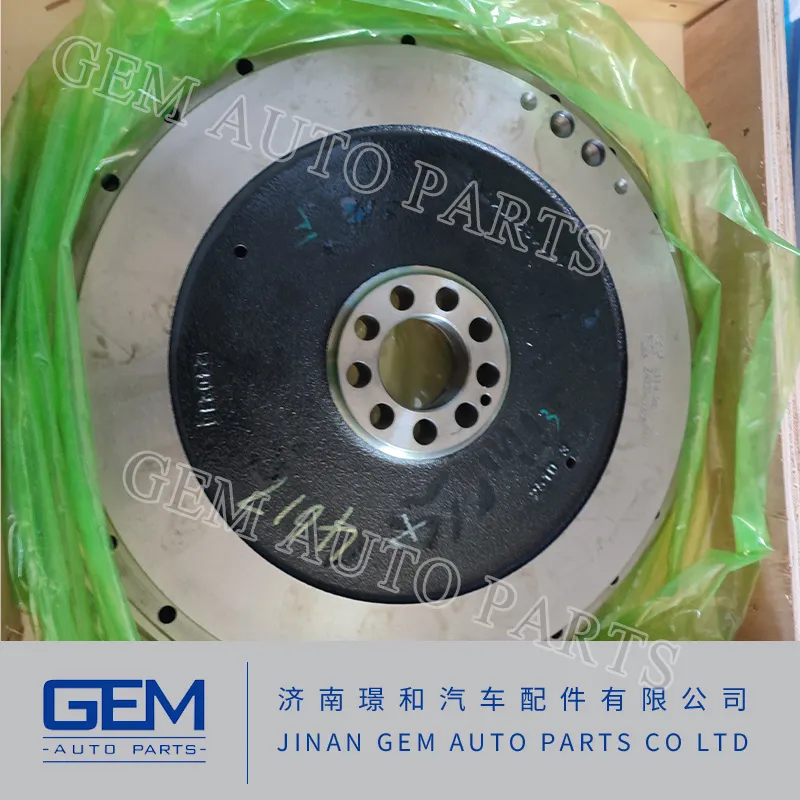

Flywheel
4
4110000001084
Spring washer
5
4129900261331
Screw
6
4110001117182
Flywheel bolt
7
4110001939011
Gear ring
8
4110000001071
Cylindrical pin
1
4110001939005
Piston ring subassembly
2
4110702677027
Piston
3
4110702677028
Connecting rod assembly
4
4110001050020
Piston pin
5
4110001050021
Piston pin retainer
6
4110702677029
Connecting rod lower shell
7
4110702677030
Connecting rod upper shell
1
4110001595046
Keystone barrel ring
2
4110001595047
Twist taper ring
3
4110001595048
Coil spring loaded oil-control ring
1
4110002077016
Connecting rod bush
2
4110702677032
Connecting rod
3
4110702677033
Connecting rod bolt
1
4110001117111
Lift hook clamp
2
4110001117114
Valve stem seal
3
4110001595061
Cylinder head subassembly
4
4110001117115
Cylinder head gasket
5
4110001117116
Valve stem seal
6
4110001939021
Cylinder head bolt
7
4110000001192
Clamping block
8
4110000001194
With shoulder nut
9
4110001939020
Cylinder head bolt
1
4110001050032
Injector bushing
2
4110001117117
Seal ring
3
4110001050031
Bowl plug
4
4110001050028
Valve guide
5
4110001595062
Cylinder head
6
4110001050029
Bowl plug
7
4110001117121
Bowl plug
8
4110001595063
Exhaust valve seat
9
4110001595064
Intake valve seat
10
4110000001211
Rivet
11
4110000001404
Ring
12
4110702890004
Push rod bush
1
4110000001191
Rings screw
1
4110001117189
Hexagon flange bolt
2
4110001117332
Cylinder headcover assembly
3
4110001050053
Cylinder head cover gasket
4
4110001050052
Cylinder head cover
1
4110001117324
Fine filter
2
4110001117325
Cover
