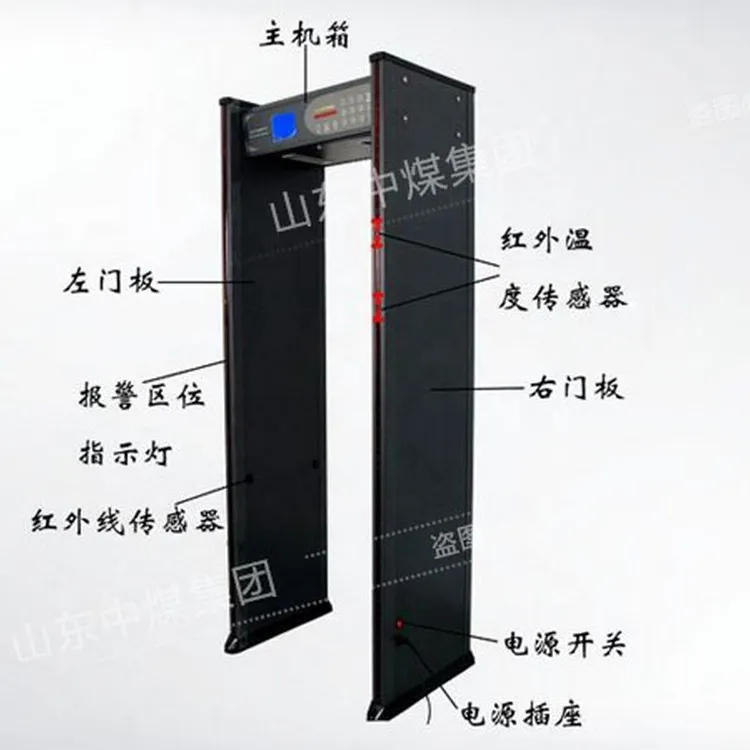

Introduction To Infrared Body Temperature Security Door
Infrared temperature measurement with metal security inspection: organic integration of infrared temperature measurement and metal security inspection. Before metal security inspection, infrared human body temperature measurement shall be carried out first, and human voice alarm shall be given to prompt abnormal temperature;

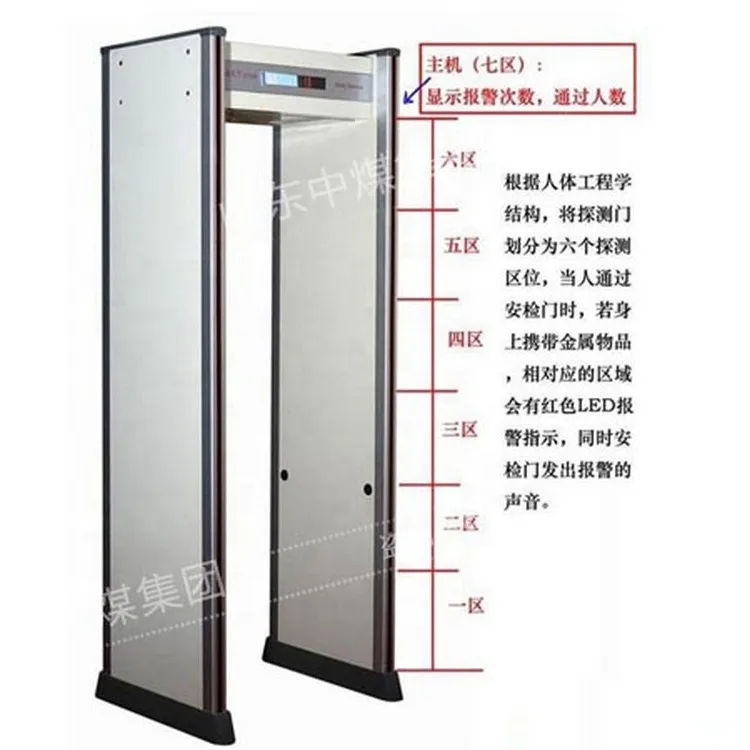

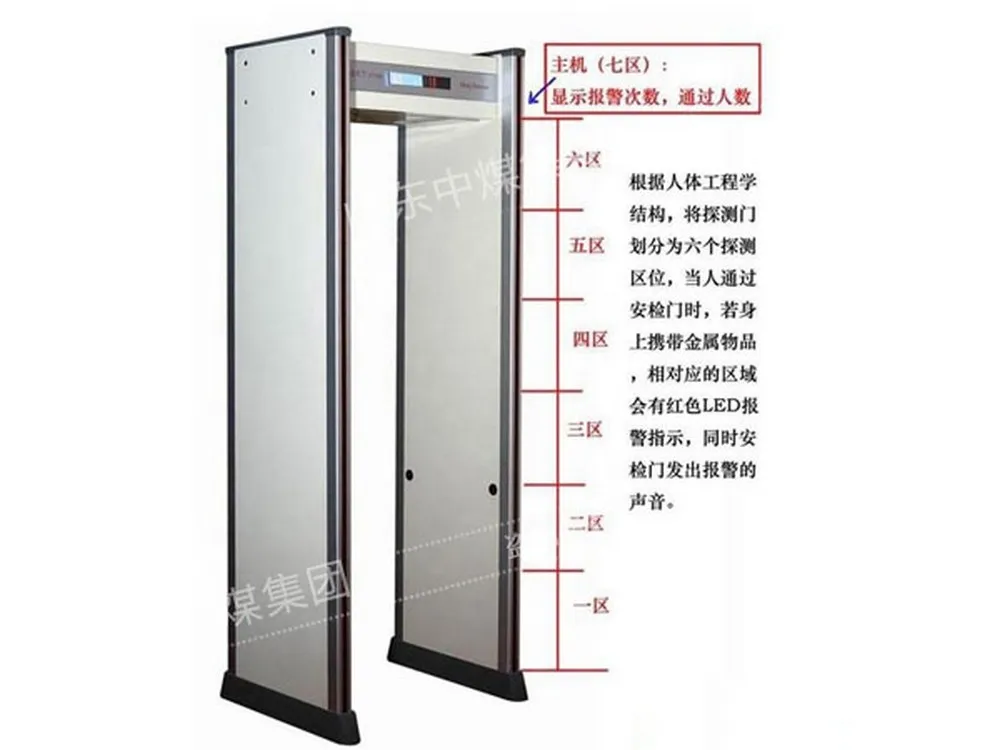

Infrared Body Temperature Security Door Detection Area
According to the basic structure of human body, it is divided into six overlapping network detection areas.Interactive launching and receiving, accurately determine the position of metal objects.Eliminate the weak and blind areas in the detection area, with higher sensitivity and more stable performance.Double side infrared scanning can quickly capture the induction signal, eliminate the detection error caused by the lag of induction when the human body passes, and automatically count the number of people passing.The six main detection areas have a 255 level sensitivity program, which can preset the possible parts, volume, weight and size of metal articles for appropriate sensitivity adjustment according to the actual use
Alarm Mode Of Infrared Body Temperature Security Door
It has a variety of audible and visual alarm modes for easy identification.Audible and visual alarm can accurately determine the position of metal objects through the super bright LED lights on the panel area; LED post lights are installed on the two sides of the door body, each row of lights is composed of 240 bulbs, which can visually see the alarm location and help inspectors quickly find the location of contraband.Alarm indication: 1-25s alarm time and 1000 level sensitivity can be adjusted. Both sides of the door post can directly display the alarm location through the LED column light, and accurately display the contraband hidden at the corresponding height of the human body;
Infrared body temperature security door area sensitivity:
The highest sensitivity can detect the metal content object of the size of the paper clip. It can be adjusted between 255 levels of sensitivity by itself. It can adjust the location adjuster to the appropriate sensitivity according to the detection requirements. At the same time, it can adjust the overall sensitivity separately.Set the weight, volume, size and position of metal articles in advance, eliminate the false alarm of key, jewelry, zipper, button, coin, mobile phone and other personal items, and detect the contraband such as controlled knives and guns.
Infrared body temperature security door product process:
High brightness 5-inch LCD color LCD panel is adopted; aluminum alloy pillar is made inside and outside the door panel, making the whole door body more solid!The exterior is made of PVC synthetic material and special production process. The fireproof board and waterproof membrane are pasted on the exterior, which can prevent fire and moisture without deformation, making the door more durable and more luxurious and beautiful.
Safety performance: the power supply of the whole machine is placed on the top of the main machine. The power supply of the whole machine can be controlled by the remote controller. The uninterruptible power supply protection system is adopted. The battery power supply is not less than 8 hours. When the power is cut off, the system has the function of parameter protection. The imported waterproof synthetic fiber material is adopted. The LCD can be manufactured and synthesized by the precise processing technology. According to the human visual angle characteristics, the LCD can be installed obliquely for reading / operation.
Temperature alarm: human voice alarm, indicating abnormal temperature;
Electromagnetic radiation: it conforms to the EMC electromagnetic radiation standard and adopts the weak magnetic field technology, which is harmless to the pacemaker wearer, pregnant woman, floppy disk, film, video tape, etc.
Installation and commissioning:
The metal detection door of the equipment is of integrated design, which can be installed or disassembled in 20 minutes. The installation and commissioning instructions are provided with the equipment.zmwm20
Product Parameters
Technical Parameters Of Infrared Body Temperature Security Door
detail
Preview
Detailed Photos
detail
Preview
Infrared Body Temperature Security Door Picture
