Product Description

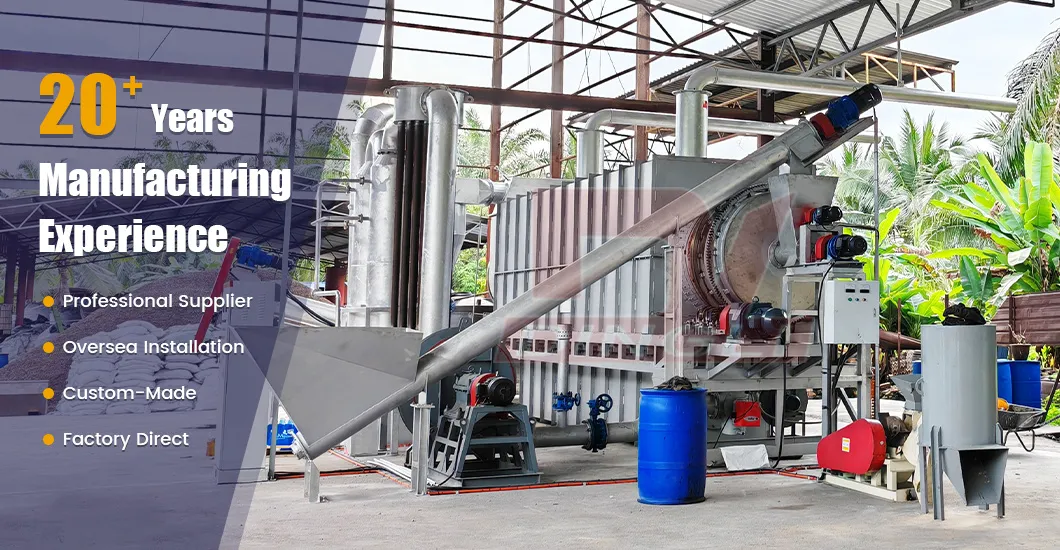

Biomass Continuous Charcoal Carbonization Furnace

Environmentally friendly drum continuous carbonation machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of a high degree of automation, advanced technology.

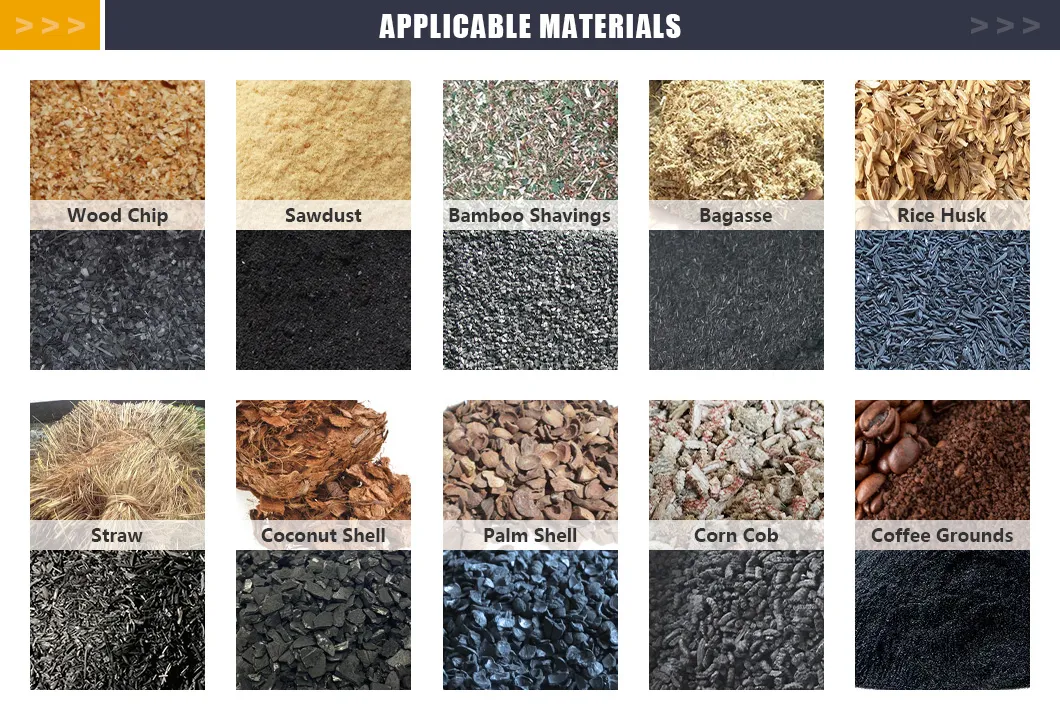

This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, etc.

Working Principle

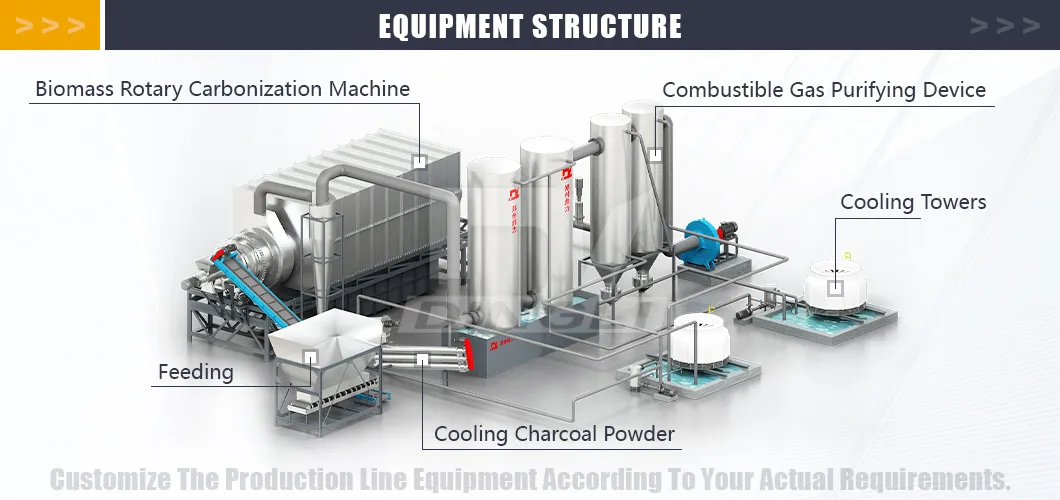

Carbonization Furnace Working Principle
The carbonization machine adopts the advanced technology of recovery, purification and circulating combustion of carbon monoxide, methane, ethane and other combustible gases produced in the process of carbonization. It solves the problem of environmental pollution caused by thick smoke which produced by ordinary carbonization furnace in the carbonization project, and solves the heat energy problem required by the equipment, fully realizes self-sufficiency, and improves the continuity and economy of the equipment We should make full use of the agricultural and forestry residues to turn waste into treasure and contribute to the greening environment.
Product Parameters
Model
Diameter(mm)
The drum length(m)
Host RPM(revolutions per minute)
Carbon capacity(kg/h)
Power(kw)
Dimension(m)
DLTJ1210
1200
10
2-5
200-300
40-50
11*2.0*2.8
DLTJ1410
1400
2-4
400-500
50-70
11*2.2*3.0
DLTJ1612
1600
12
600-800
70-80
11*2.5*3.3
DLTJ1912
1900
2-3
900-1100
90-110
13.5*2.8*3.6
DLTJ2212
2200
1200-1500
110-130
13.5*3.0*4.0
Inner layer diameter(mm)
Outer layer diameter(mm)
DLTJ1610/2
1000
DLTJ1810/2
1800
700-1000
DLTJ2010/2
2000
1100-1300
DLTJ2312/2
2300
1500-2000
DLTJ2512/2
2500
2200-2500
DLTJ2912/2
2900
2500-3000
130-150
13.5*3.5*4.5
DLTJ3212/2
3200
3200-3800
160-180
13.5*3.8*5.0
DLTJ3612/2
3600
4000-4500
200-230
13.5*4.2*5.5
Note: The price above is just for reference, please feel free to contact us if you want to know more about different models or production lines. We can offer free customized proposals.

1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
Related Products

Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below are Dingli Dryer Factory & Sales Team & Production Workshop Pictures:
Below are Dingli Group Honors & Certificates & Patents:
Below are Dingli Customers Visiting:
Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.
