Part Number
Model
Description
02353EWU
CR8BM8BKPAC1
NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box)
02356CDX
NetEngine 8000 M8-S Integrated AC Chassis Components (Including 2*AC Power,Fan Box)
02353ANP
CR8BM8BKPDC1
NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box)
02356CDA
NetEngine 8000 M8-S Integrated DC Chassis Components (Including 2*DC Power,Fan Box)

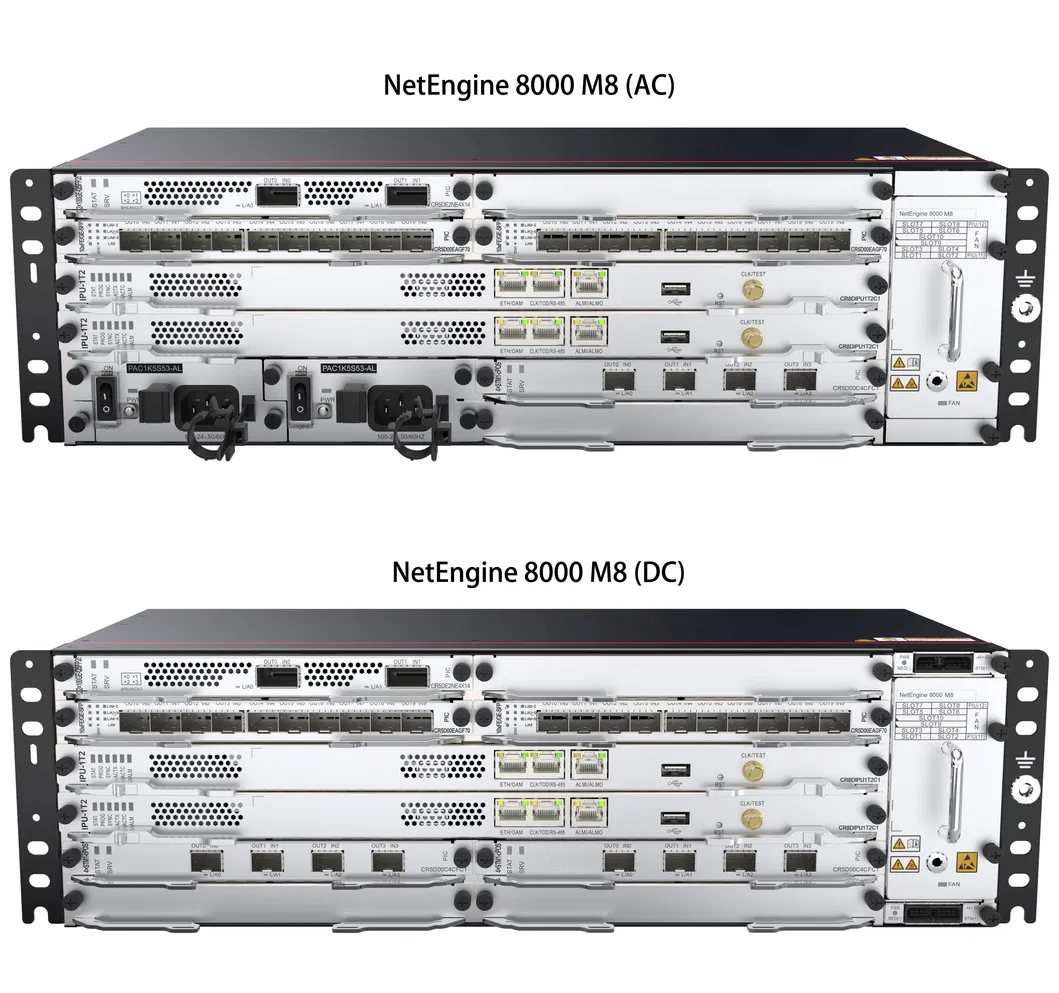

NE8000 M8
Integrated Chassis Components
Height x Wide x Depth
13.26cm (3U) x 44.2cm x 22cm
Weight with packaging [kg(lb)]
9.2 kg (20.28 lb)
11.3 kg (24.91 lb)
Weight without packaging (full configuration) [kg(lb)]
[IPU-480/IPU-480-B/IPU-480-BN]DC:16.5 kg (36.38 lb)
[IPU-480/IPU-480-B/IPU-480-BN]AC:17.1kg(37.71 lb)
[IPU-1T2/IPU-1T2-B]DC:16.5 kg (36.38 lb)
[IPU-1T2/IPU-1T2-B]AC:17.1kg(37.71 lb)
Weight without packaging [kg(lb)]
5.7 kg (12.57 lb)
7.8 kg (17.2 lb)
Weight with packaging (full configuration) [kg(lb)]
[IPU-480/IPU-480-B/IPU-480-BN]DC:20.0 kg (44.09 lb)
[IPU-480/IPU-480-B/IPU-480-BN]AC:20.6kg(45.42 lb)
[IPU-1T2/IPU-1T2-B]DC:20.0 kg (44.09 lb)
[IPU-1T2/IPU-1T2-B]AC:20.6kg(45.42 lb)
Typical power consumption (with configuration) [W]
[IPU-480/IPU-480-B/IPU-480-BN]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=428.11 W
[IPU-1T2/IPU-1T2-B]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+2*CR5D00EAGF95=484.34 W
[IPU-480/IPU-480-B/IPU-480-BN]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=457.79 W
[IPU-1T2/IPU-1T2-B]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=485.27 W
Typical heat dissipation (with configuration) [BTU/hour]
[IPU-480/IPU-480-B/IPU-480-BN]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=1350.19 BTU/hour
[IPU-480/IPU-480-B/IPU-480-BN]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=1443.77 BTU/hour
[IPU-1T2/IPU-1T2-B]DC: 2*IPU+1*fan+2*DC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+2*CR5D00EAGF95=1532.61 BTU/hour
[IPU-1T2/IPU-1T2-B]AC: 2*IPU+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=1532.91 BTU/hour
Heat dissipation mode
Air cooling
Power supply mode
DC, AC
Input voltage range [V]
DC: -40 V to -72 V
AC: 90 V to 290 V
Rated input voltage [V]
DC: -48 V/-60 V
AC: 200V to 240V/100V to 127V dual live wires, support 240V HVDC
Maximum input current [A]
DC: 40A
AC: 10A
Rated output power [W]
DC: 1600W
AC: 1500W
Number of slots
DC: 13
AC: 11
Number of service board slots
DC: 8
AC: 6
Switching capacity [bps,bit/s]
IPU-240/IPU-240-B:480 Gbit/s
IPU-480/IPU-480-B/IPU-480-BN:960 Gbit/s
IPU-1T2/IPU-1T2-B:2.4 Tbit/s
Redundant IPUs
1:1
Redundant fans
1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C(104°F) (one fan module contains two fans)
Redundant power supply
1+1
Noise at normal temperature (acoustic power) [dB(A)]
< 72 dB (meeting the ETSI 72 dBA standard)
Airflow direction
From left to right
Maximum input cable size
DC: 10mm^2 (0-20m)
AC: Standard C13 cable
Front-end circuit breaker/fuse
DC: ≥ 32 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 40 A.)
AC: ≥10 A
Long-term operating temperature [°C(°F)]
DC: -40°C to +65°C (-40°F to +149°F), startup: ≥ -20°C (-4°F)
AC: -20°C to +55°C (-4°F to +131°F)
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158 °F)
Restriction on the operating temperature variation rate [°C(°F)]
≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]
5% RH to 85% RH, non-condensing
Storage relative humidity [RH]
5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]
Storage altitude [m(ft.)]
< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]
≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
MTBF [year]
DC: 155.06
AC: 112.71
MTTR [hour]
0.5 hour
Availability
DC: 0.999999632
AC: 0.999999494
Maximum number of electrical ports
DC: IPU-1T2/IPU-1T2-B:80
IPU-480/IPU-480-B/IPU-480-BN:80
IPU-240/IPU-240-B:80
AC: IPU-1T2/IPU-1T2-B:60
IPU-480/IPU-480-B/IPU-480-BN:60
IPU-240/IPU-240-B:60
Maximum number of 100GE ports
DC: IPU-1T2/IPU-1T2-B:12
IPU-480/IPU-480-B/IPU-480-BN:4
IPU-240/IPU-240-B:2
AC: IPU-1T2/IPU-1T2-B:9
Maximum number of 40GE ports
Maximum number of 10GE ports
IPU-480/IPU-480-B/IPU-480-BN:48
IPU-240/IPU-240-B:24
Maximum number of FE ports
DC: IPU-1T2/IPU-1T2-B:160
IPU-480/IPU-480-B/IPU-480-BN:160
IPU-240/IPU-240-B:160
AC: IPU-1T2/IPU-1T2-B:120
IPU-480/IPU-480-B/IPU-480-BN:120
IPU-240/IPU-240-B:120
Maximum number of physical ports on the entire device
DC: 160
AC: 120
Maximum number of 50GE ports
DC: IPU-1T2/IPU-1T2-B:16
IPU-480/IPU-480-B/IPU-480-BN:8
IPU-240/IPU-240-B:4
AC: IPU-1T2/IPU-1T2-B:12
Maximum number of 25GE ports
DC: IPU-1T2/IPU-1T2-B:32
IPU-480/IPU-480-B/IPU-480-BN:16
IPU-240/IPU-240-B:8
AC: IPU-1T2/IPU-1T2-B:24
IPU-240/IPUA-240-B:8
Maximum number of GE ports
DC:
IPU-1T2/IPU-1T2-B:160
AC:
IPU-1T2/IPU-1T2-B:120
