Product Photo:
Product parameter :
Features
Highest power density
Tj max
= 175°C
PressFIT control pins and screw power terminals
Integrated NTC temperature sensor
Isolated baseplate
Low Vce(sat) with Planar technology
Vce(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
High short circuit capability(10us)
Low inductance module structure
Benefits
Higher inverter output current for the same frame size
Reduced system costs by simplification of the inverter systems
Easy and most reliable assembly
High inter-connection reliability
suitable for press-in & soldering process
Applications
Commercial, construction and agricultural vehicles (CAV)
Motor control and drives
Solutions for solar energy systems
Uninterruptible Power Supply (UPS)
Soft switching welding machine
AC and DC servo drive amplifier

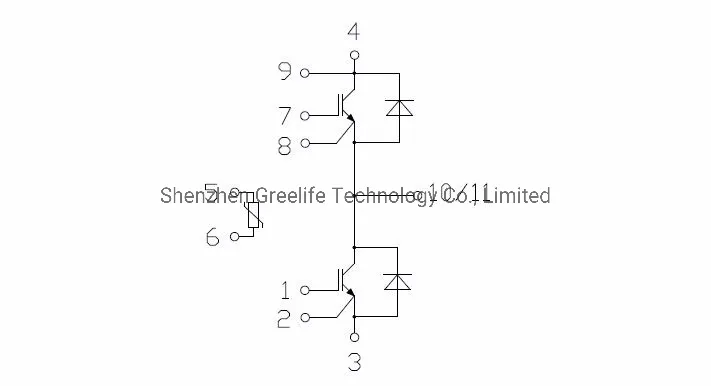

E52/E53 IGBT module is one of the most popular IGBT packages worldwide and is used in many different applications, such as General Purpose Drives; Commercial, Construction and Agricultural Vehicles as well as eBus; Solar; Wind; Traction; UPS and finally, Transmission and Distribution. In the latest module generation it is now feasible to increase the module current to 600 A. This is possible through the new IGBT technology enabling a higher power density and reduced BoM costs.Circuit Diagram

Package drawing
E53 Series
products:
FAQ:
1.Why is the IGBT specified for 175ºC overload?
The CETC
IGBT
is developed to operate at a continuous temperature of 175°C. The overload limitation is given by the package. Most of the applications are designed with an overload profile and here the IGBT is the perfect fit. The CETC
IGBT provides the lowest static losses.
2.How to handle the high gate charge specified for IGBT datasheet?
The specified gate charge in the datasheet is for an operation with VGE of ± 20
V. Most customers use VGE in the range of +5.4
V to +7
V. Here the gate charge is much lower and with this value, typical switching frequencies can be addressed with standard drives.
