Zhaowei conveyor belt 300mm 400mm 500mm 800mm drum motor

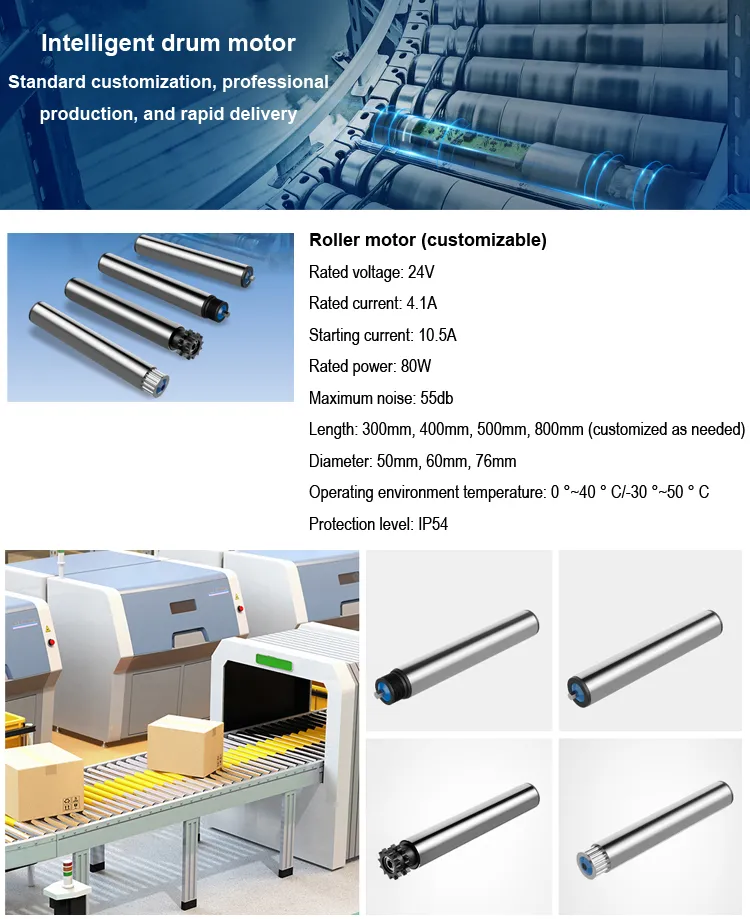

Product Description:Roller motor (customizable)
Rated voltage: 24V
Rated current: 4.1A
Starting current: 10.5A
Rated power: 80W
Maximum noise: 55db
Length: 300mm, 400mm, 500mm, 800mm (customized as needed)
Diameter: 50mm, 60mm, 76mm
Operating environment temperature: 0 °~40 ° C/-30 °~50 ° C
Protection level: IP54
Product Description:
The Zhaowei drum motor adopts an integrated mechanism, which has many characteristics such as high torque, compact structure, simple and convenient assembly, and good sealing. It can be customized with different lengths of 300-1000mm and diameters of 50-76mm according to needs, suitable for transportation scenarios in multiple fields such as food and logistics.Zhaowei has developed a drum motor solution based on its insight into the pain points of drum motor products.High power: Compared to the 30-50W motor power available on the market, Zhaowei Electromechanical uses an 80W high-power motor to achieve greater torque output in limited space, helping logistics enterprises to operate smoothly during peak hours.Modular: In addition to high power, Megaway also adopts a design structure with motor lines facing outward, achieving modular assembly and more convenient maintenance.High strength: In contrast, the Zhaowei gearbox is manufactured using powder metallurgy, which has improved its strength and lifespan.Diversification: Generally, the dimensions of drum motors are: 300mm, 400mm, 500mm, 800mm, p50mm, p60mm, p76mm, and other diameters. In order to meet customers' customized needs, customers can customize drum motors with a diameter of 800mm or more, and can come with various connection methods: straight through, plastic multi wedge belt, metal multi wedge belt, steel double sprocket, synchronous belt wheel, to meet customers' diverse customization needs.Our company can design, develop, and produce products according to the special needs of customers. Please consult customer service on the Zhaowei Electromechanical website for details.
above specifications just for reference and customizable according to requirements.
product details show:
To solve this problem, we try to add an intelligent self-locking function to the circuit breaker controller of the electronic
meter. Taking into account that the internal space of the smart controller of the electric meter is relatively small, the gear motor should
drive the stable operation of the loop control system in a limited space, and it is only allowed to rotate in the specified direction and cannot go backwards. We use 10mm planetary gearheads
and
turbine inserts to be
injected
into the loop controller gearbox, so that the transmission structure has the characteristics of small size, large torque and can meet the needs of self-locking function. The loop controller gearbox in this scheme
can realize the reverse self-locking of the electric meter, which can only transmit the power of the active end of the motor without responding to the external load, thereby isolating the external load from the smart meter's own mechanism. In case of possible damage, the smart meter
can be stopped at the
gear motor (also called the gear motor of the loop controller) to increase the service life of the smart meter, solve the problem of data loss when the power is suddenly cut off, and protect the safety of the data.

Application

Our Services:
ODM & OEM
Gearbox design and development
Related technology support

1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Company Information:

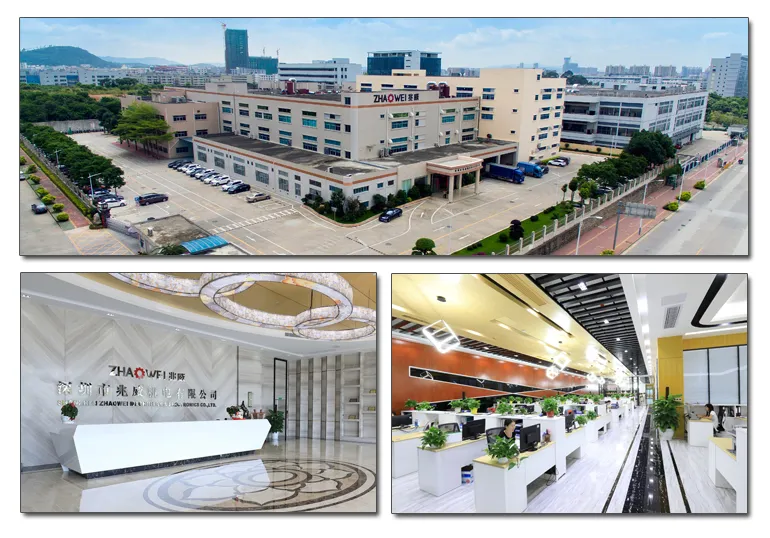

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd
was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

1) Competitive Advantages
1) Competitive Advantages
17+year experience in manufacturing motor gearbox
We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
Competitive Price
Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
2) Main Products
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).and more...
