PLUTOINDUSTRIAL DOOR OPENING SENSORDual-path human-vehicle separation radar
PLUTO is designed for industrial doors,gates and garage doors as an opening sensor, capable of distinguishing between people and vehicles. Batman has a mounting height ranging from 2.5m to 9m, and its cross-traffic masking,digitally adjustable.It can perfectly replace the loop detector, without the need to dig up the ground, providing both aesthetics and time savings.
Pluto offers two-way individual outputs, ensuring a variety of options for your access entrance
Key Features

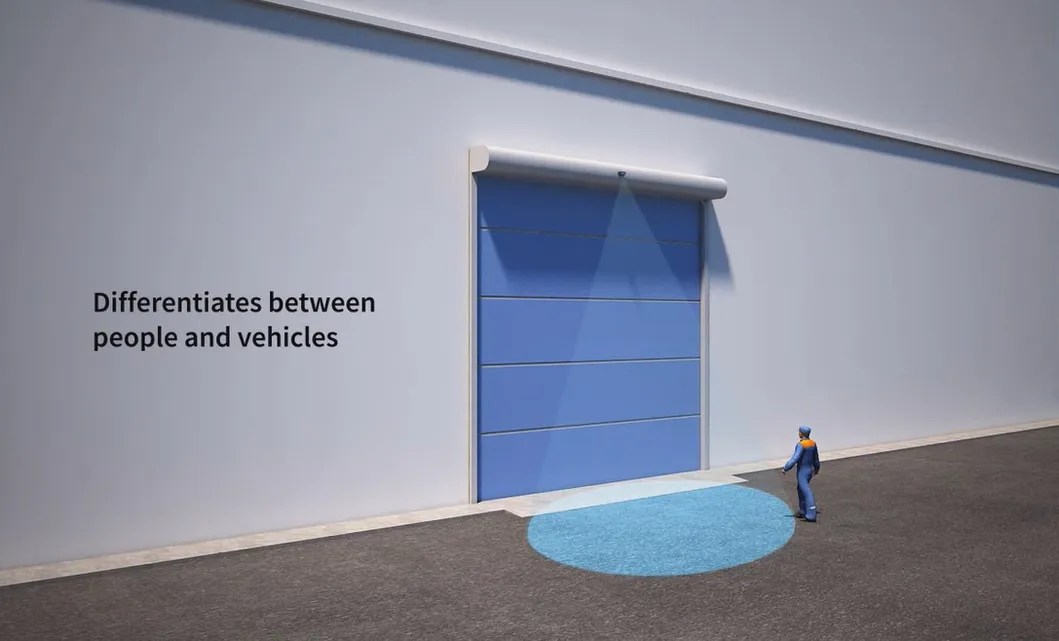

People and Vehicle Seperating Detection

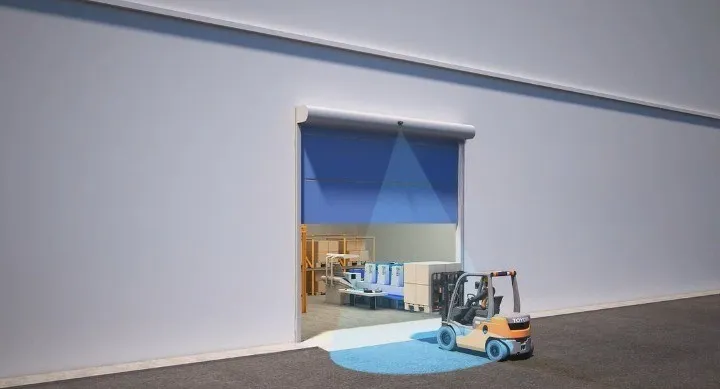

PLUTO features dual-path outputs, enabling both human-vehicle separation detection-allowing the door to open only for vehicles-and the ability to open the door fully for vehicles while partially open for pedestrians. This enhances passage efficiency and conserves energy.

PLUTO
offering different
detetion options:
-Detects vehicles only
-Detects people only
-Detects both people
and vehicles.

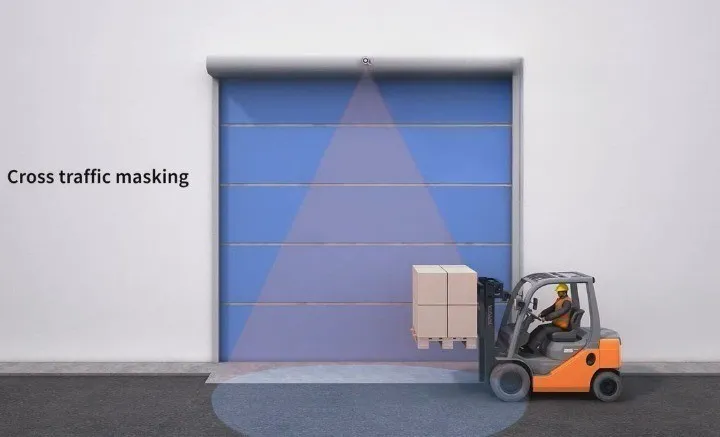

Cross traffic maskingPLUTO excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. Its outstanding performance in this aspect sets Pluto

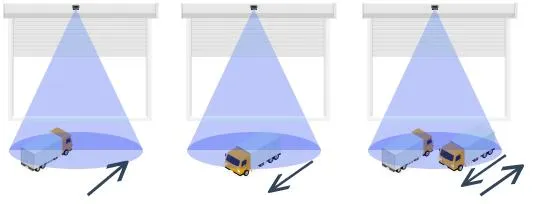

apart.Installation Height (2.5m-9m):PLUTO has a wide range of mounting heights, from 2.5m to 9m. Achieving human-vehicle separation at extremely low heights is a challenging aspect of radar technology, and in this regard, PLUTO perfectly accomplishes human-vehicle separationDetection Direction :
3 Options in Direction,
Approaching detection
Leaving detection
Both direction detectionSet by APP or Push button:PLUTO provides
two methods of configuration.It
utilizes an APP to configure all parameters, making the
setting
process effortless. Additionally, physical push buttons are retained. This ensures that the sensor can be tuned in any situation.
PLUTO excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. Its outstanding performance in this aspect sets Pluto
apart.

PLUTO has a wide range of mounting heights, from 2.5m to 9m. Achieving human-vehicle separation at extremely low heights is a challenging aspect of radar technology, and in this regard, PLUTO perfectly accomplishes human-vehicle separation

PLUTO provides
two methods of configuration.It
utilizes an APP to configure all parameters, making the
setting
process effortless. Additionally, physical push buttons are retained. This ensures that the sensor can be tuned in any situation.

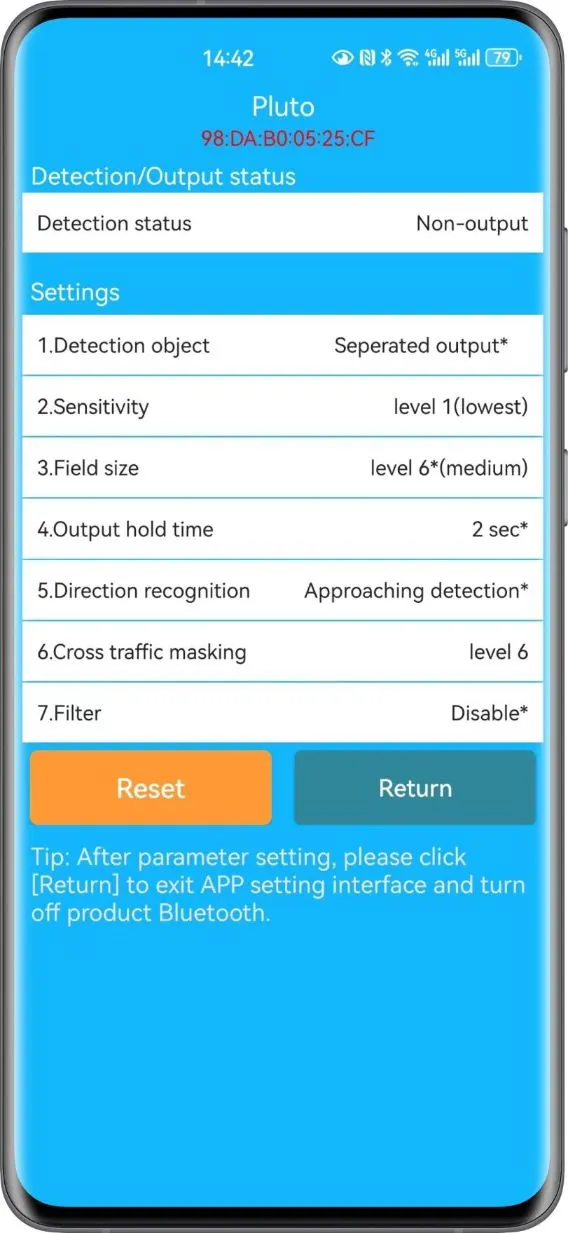

With this
APP, you could easily configure:
1.Detection object: Vehicle/People/Both
2.Sensitivity:7
levels
3.Field size:9 levels
4.Output hold time:0.2sec
to 5 sec.
5.Detection direction:Near/Far/Both directions
6.Cross traffic masking: 9 levels
7.Filter: on or off

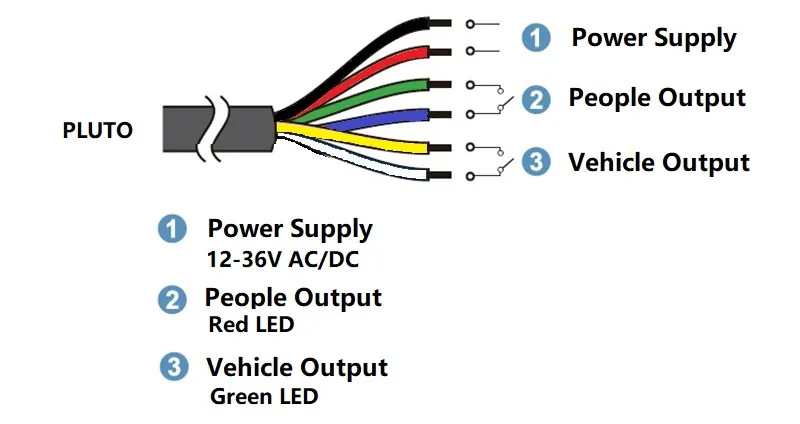

Wiring

Applications

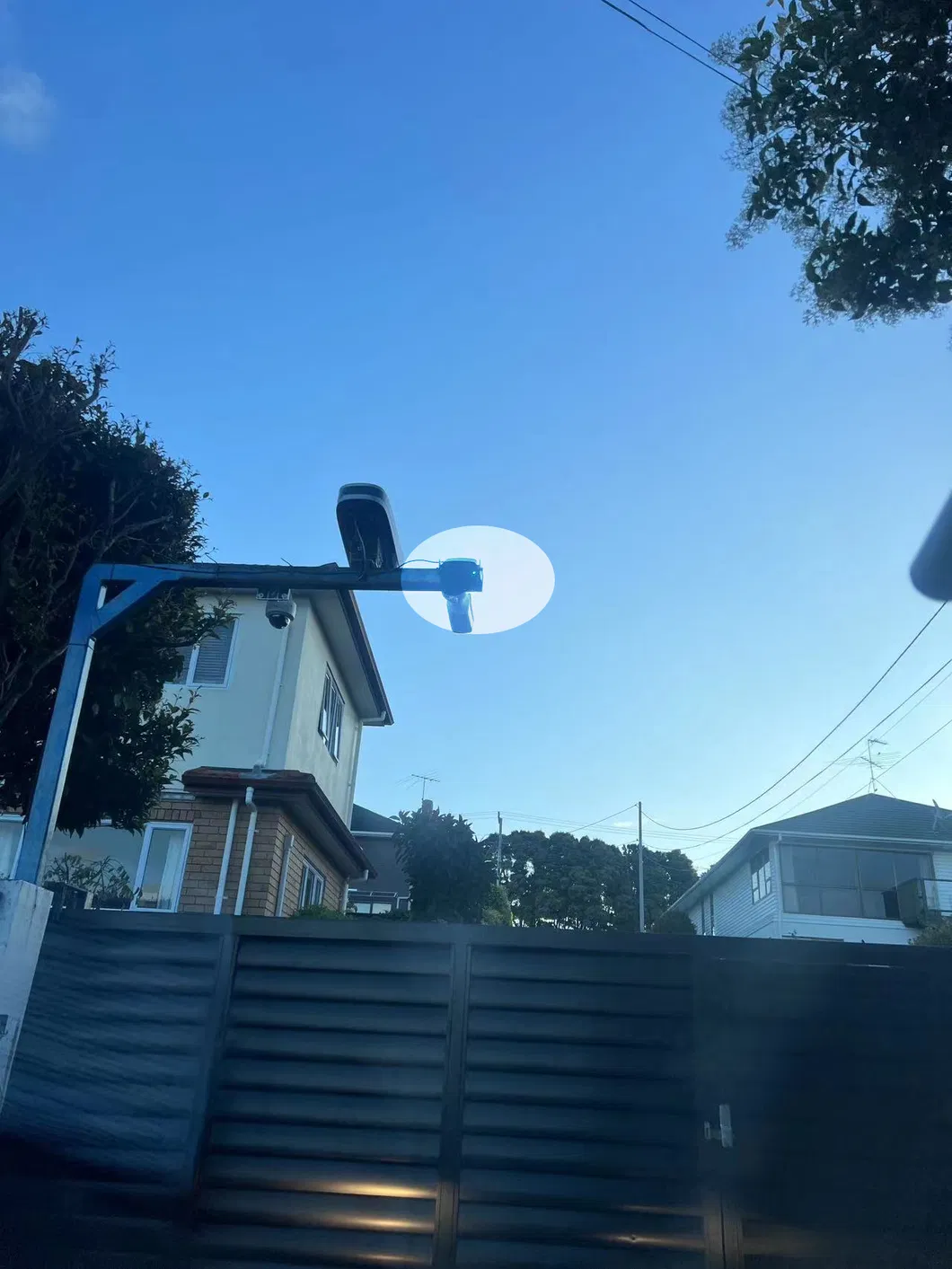

Application:Gate

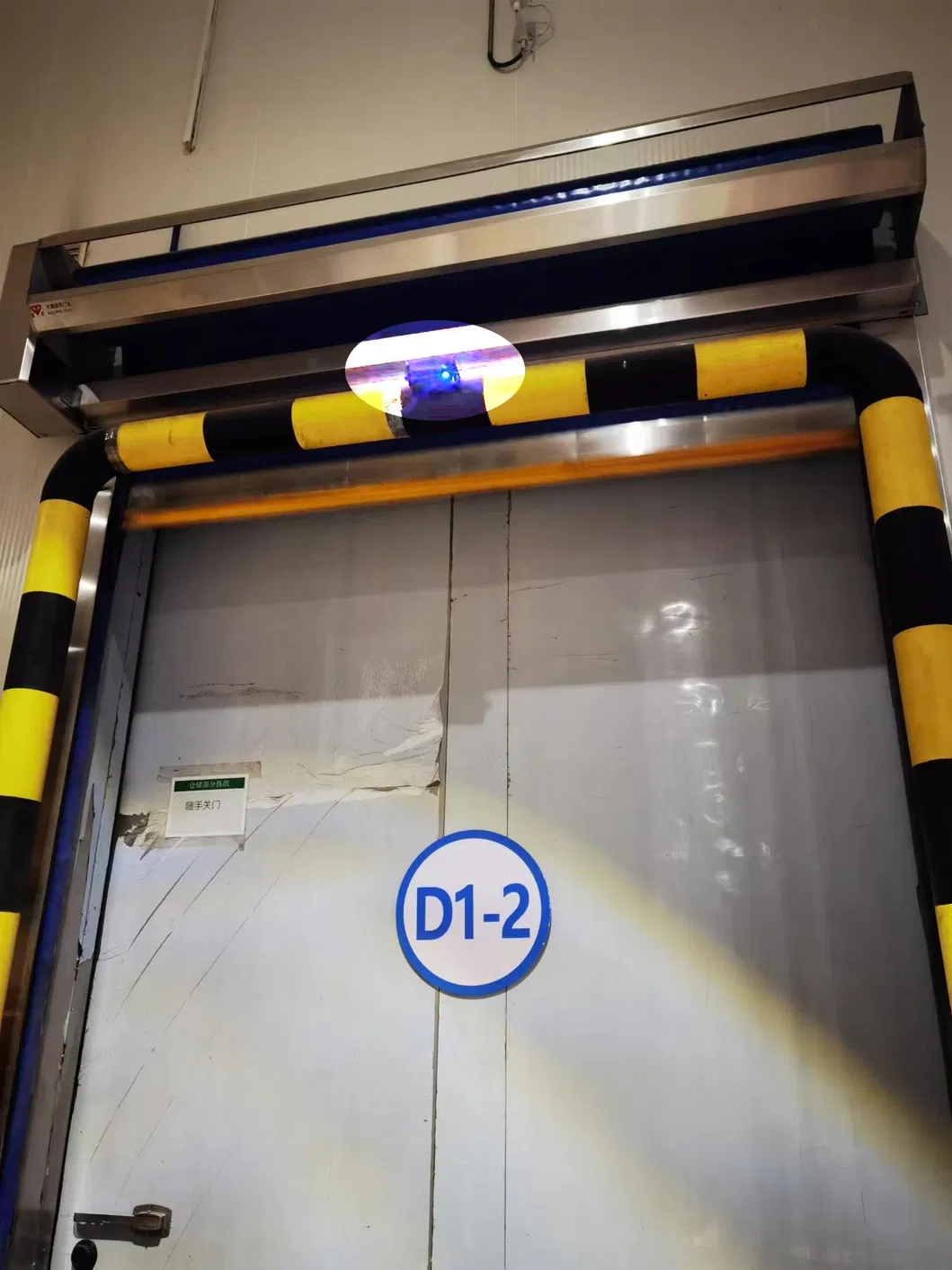

Application: Cold storage door

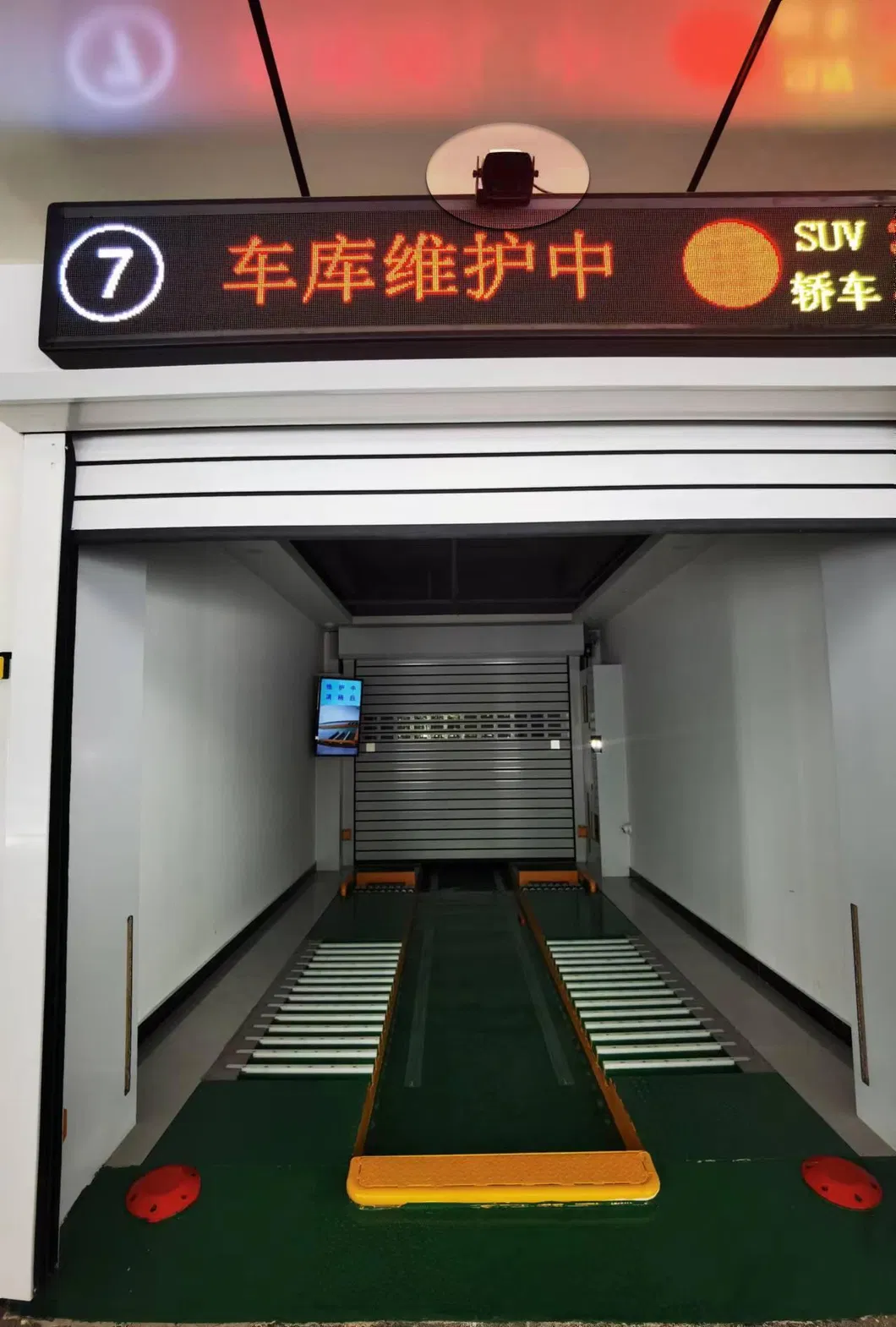

Application: Stereo garage door

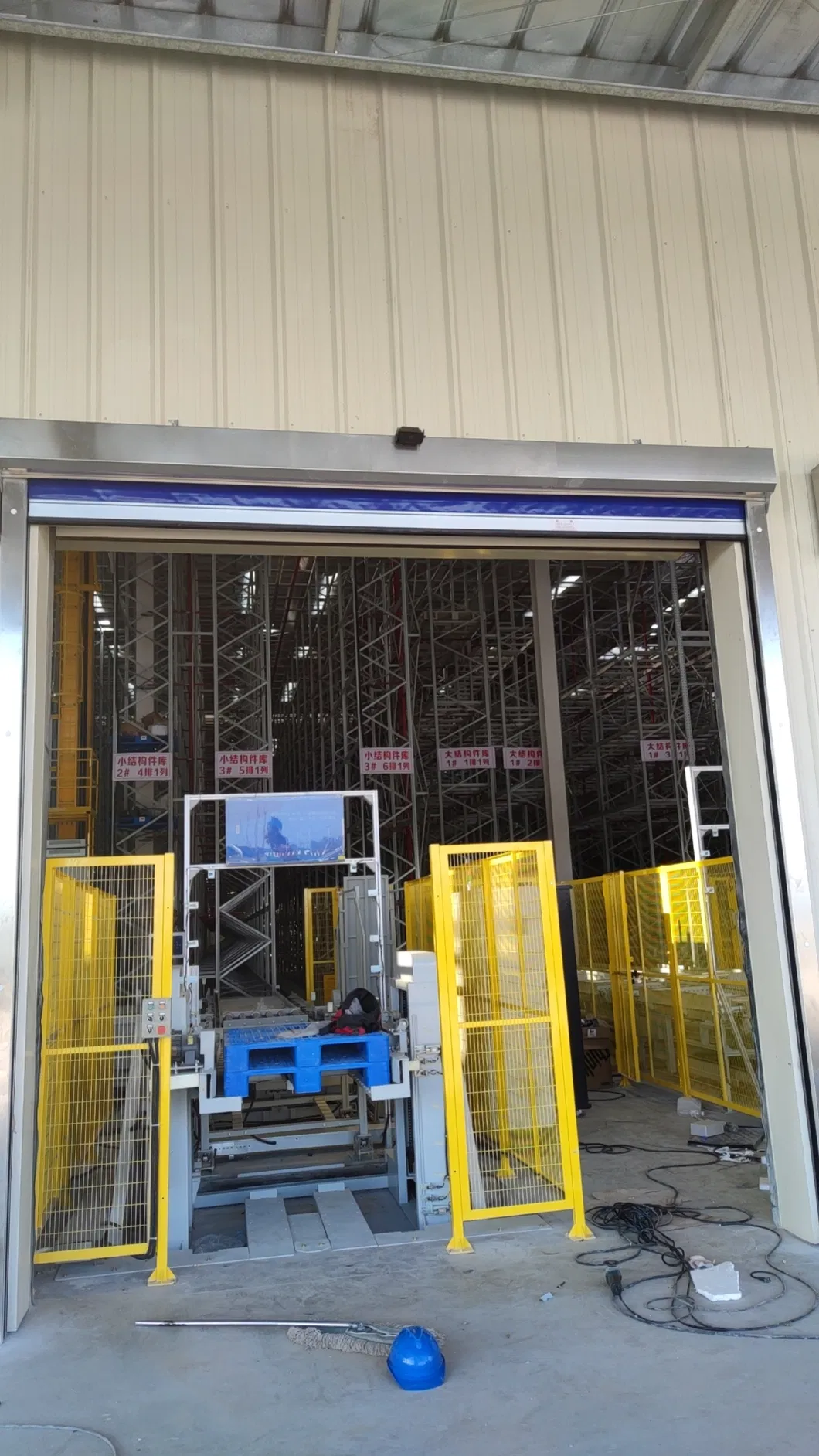

Application: High speed door
Technical Data
PLUTO, the accurate and dependable sensor
for your industrial door sensing needs!
