ANSI C136.41 Standard, NEMA photocontrol cover and 7pin base for street lighting control.
Basic Specification:
1. Materials of cover has UL approved, suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure
and Immersion in accordance with UL 746C.2.The base material:PBT, Add an UV stabilizer, UL 94V-0 flamerating
Copper contact materials: brass H62
Conductive Dimming Pins -
Phosphor bronze, four provided,0.25mm thick with gold and tin plating and nickel under-plating
Elastic body O
Thermoplastic Elastomer Runner, designatedSantoprene 251-80W232, Secured together with base by molding.All 7pins of base are sealing with glue, much better
waterproof degree.1000W/1800VA for power contacts
250mA@30VDC for signal contacts
BASE MATERIAL:PBT with 30% glass fiber (UL94 V-0 rated)
GASKET MATERIAL:Thermal Elastomer (105ºC
rated, UL recognized)
Epoxy

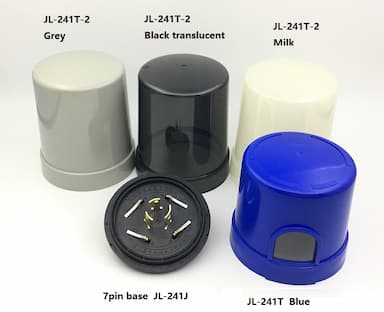

Product Pictures:

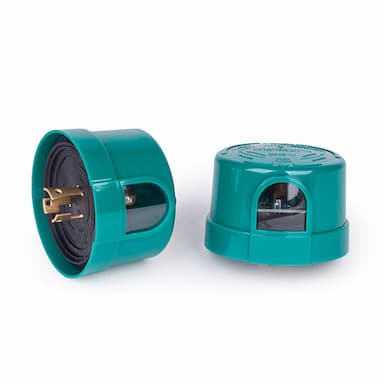

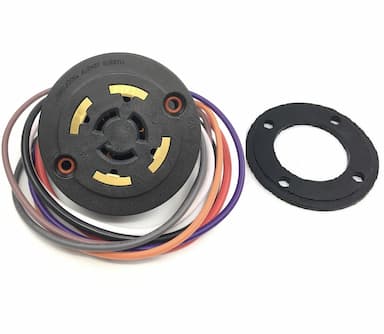

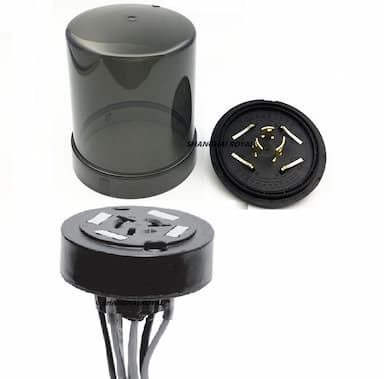

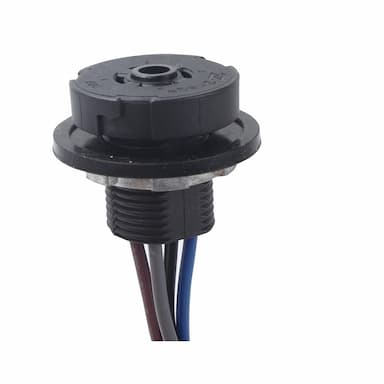

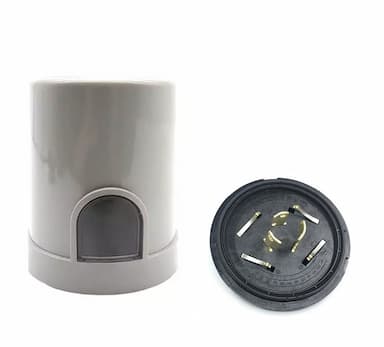

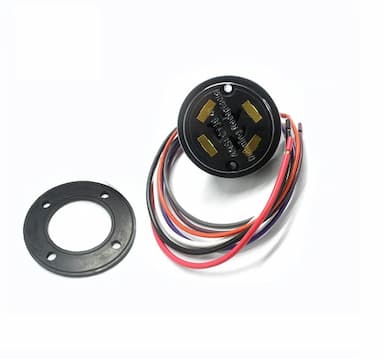

All the JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an
ANSI C136.10-2006 receptacle to fit a
twist-lock photocontrol. This series conform newly published ANSI
C136.41-2013 to allow a
LED lamp multi-controlled through the receptacle.This series offers 2
or 4
gold-plated low voltage pads on the top surface to fit photocontrol has ANSI
C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.This series also offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US
and Canadian safety standards, under their file E188110, Vol.1 &
Vol.2.

Installation:
Disconnect power; wire the receptacle according
to the diagram in right hand. An arrow indicating NORTH on the top of the receptacle is used to
assist correct direction. Push the photocontroller on and twist it clockwise to lock it into the receptacle.Adjust the receptacle position if necessary.
JL-240Y series supports tool-free rotation.JL-240Z series supports Wall-mount and rotation.
